"THE FOUR-STACKER" 4-Level Car Parking Lift

High-density parking solution designed for long-term vehicle storage.

Model: 4032-4. "The Four-Stacker Car Storage Lift is designed for multi-vehicle storage. Features Olympics' exclusive heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failing lock system assures safety. Load capacity per level is 14,300 Lbs. (L2-5,500, L3-4,400, L4-4,400).

Quadruple your parking space with the 4032-4 Car Stacking lift!

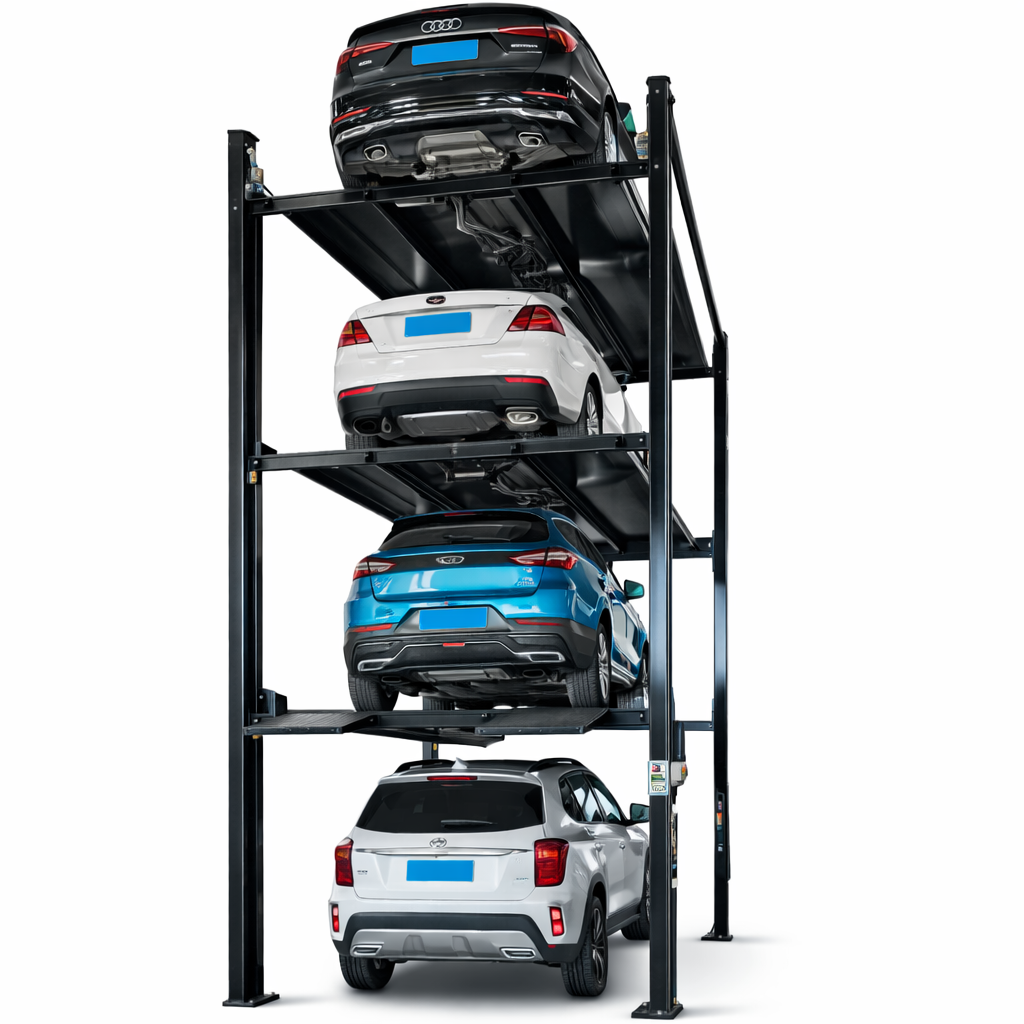

The Four-Stacker is designed to stack and store four vehicles in one parking space. Maximizes vertical space by stacking vehicles across one ground level and three elevated platforms. Ideal for residential, commercial, and fleet applications where space efficiency is critical. Features reliable mechanical operation, automatic locking at every level, and simple push-button or key-switch control.

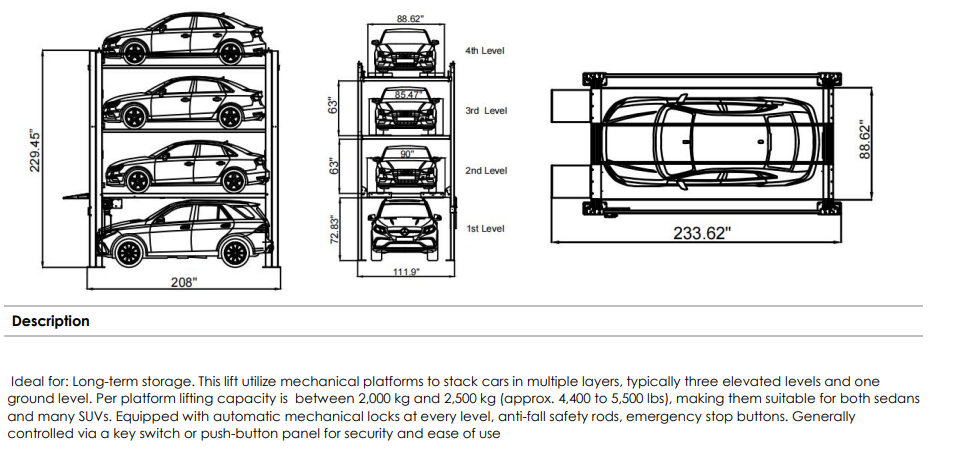

Key Dimensions: Overall Height 229.45" | Overall Width 119" | Overall Length 233.62" | Platform Width 88.62" | Platform Length 196.85"

Key Features

• 4 parking levels (1 ground + 3 elevated platforms)
• Per-platform capacity: 5,500 & 4,400 lbs X2.
• High-quality Q235 spec structural steel
• Designed for long-term parking and vehicle storage
• Mechanical platform lifting system
• Automatic mechanical locks at every level
• Compact footprint with maximum vertical efficiency

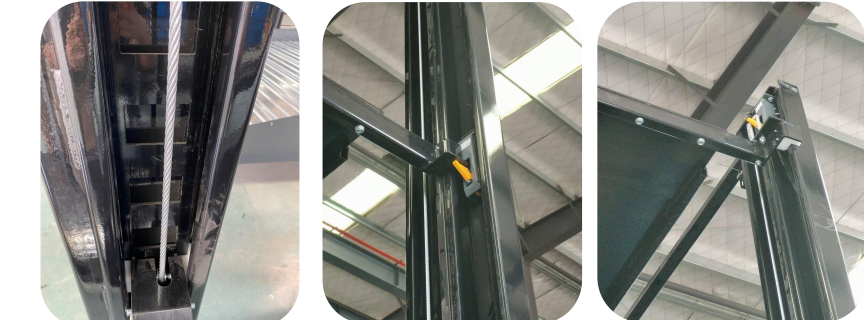

• Anti-fall safety rod system
• Limiting switch for automatic stop
• Includes emergency stop function
• Includes nine drip trays

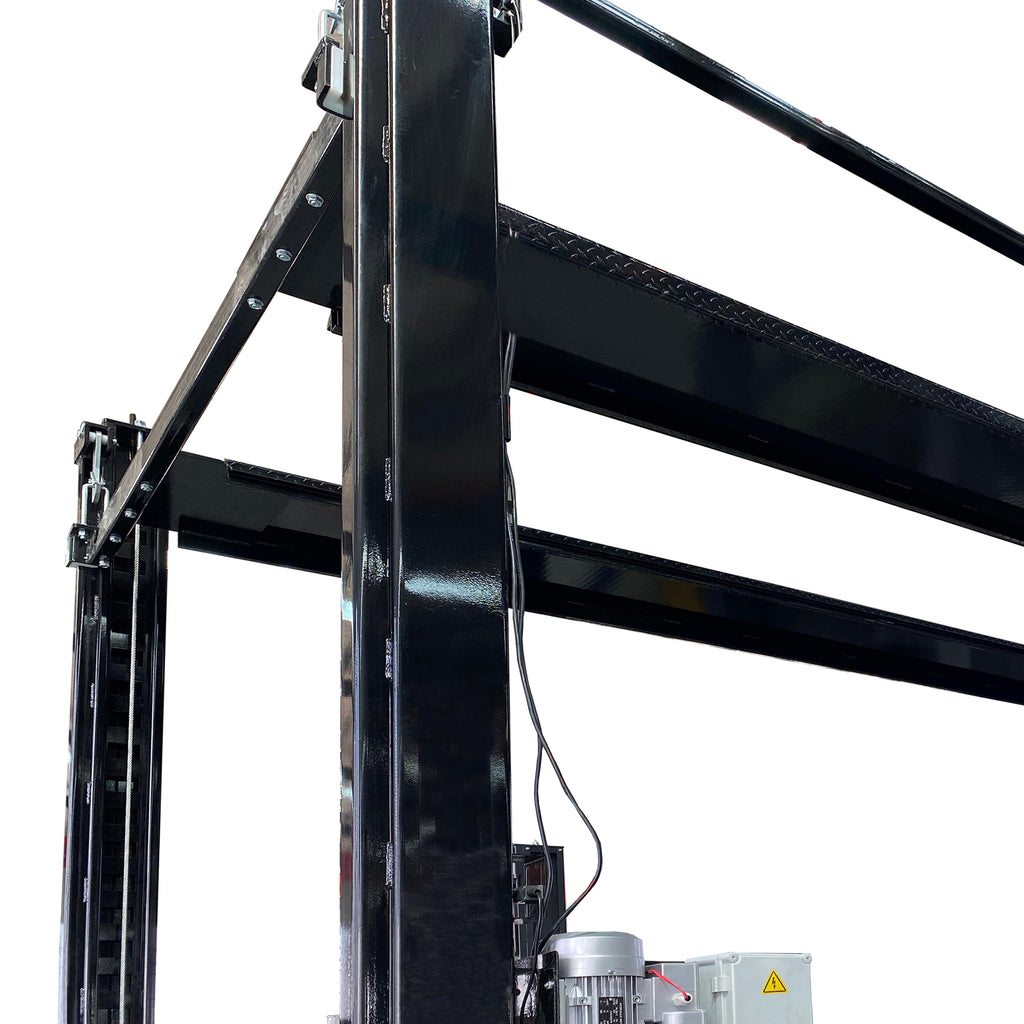

• Includes Aluminum 220V 3KW 4-horsepower 60Hz power unit

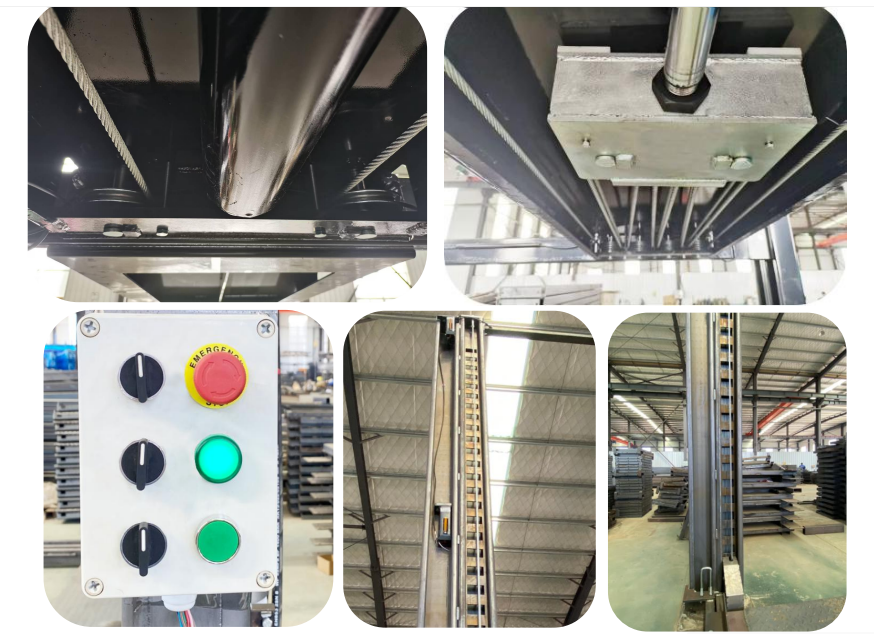

• Includes electric push-button controls

• Compact footprint with maximum vertical efficiency

Specifications

Safety & Operation

• Mechanical locking system secures platforms at every level
• Anti-fall safety rods enhance vehicle protection
• Emergency stop controls for safe operation
• User-friendly controls for smooth daily use

Why Choose This Parking Lift?

Built for durability and efficiency, this 4-level parking system delivers reliable performance while maximizing available space. It is an ideal solution for high-density parking environments requiring safe, organized, and long-term storage.
