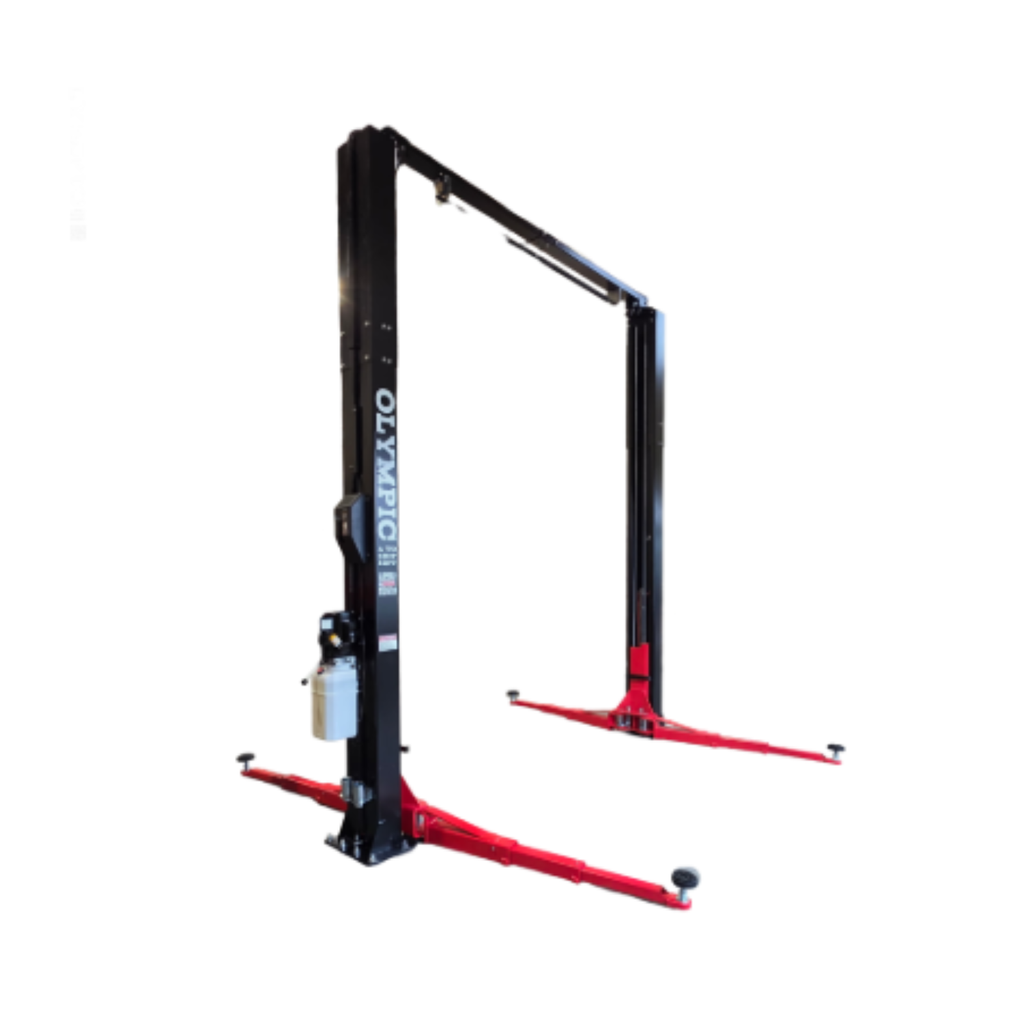

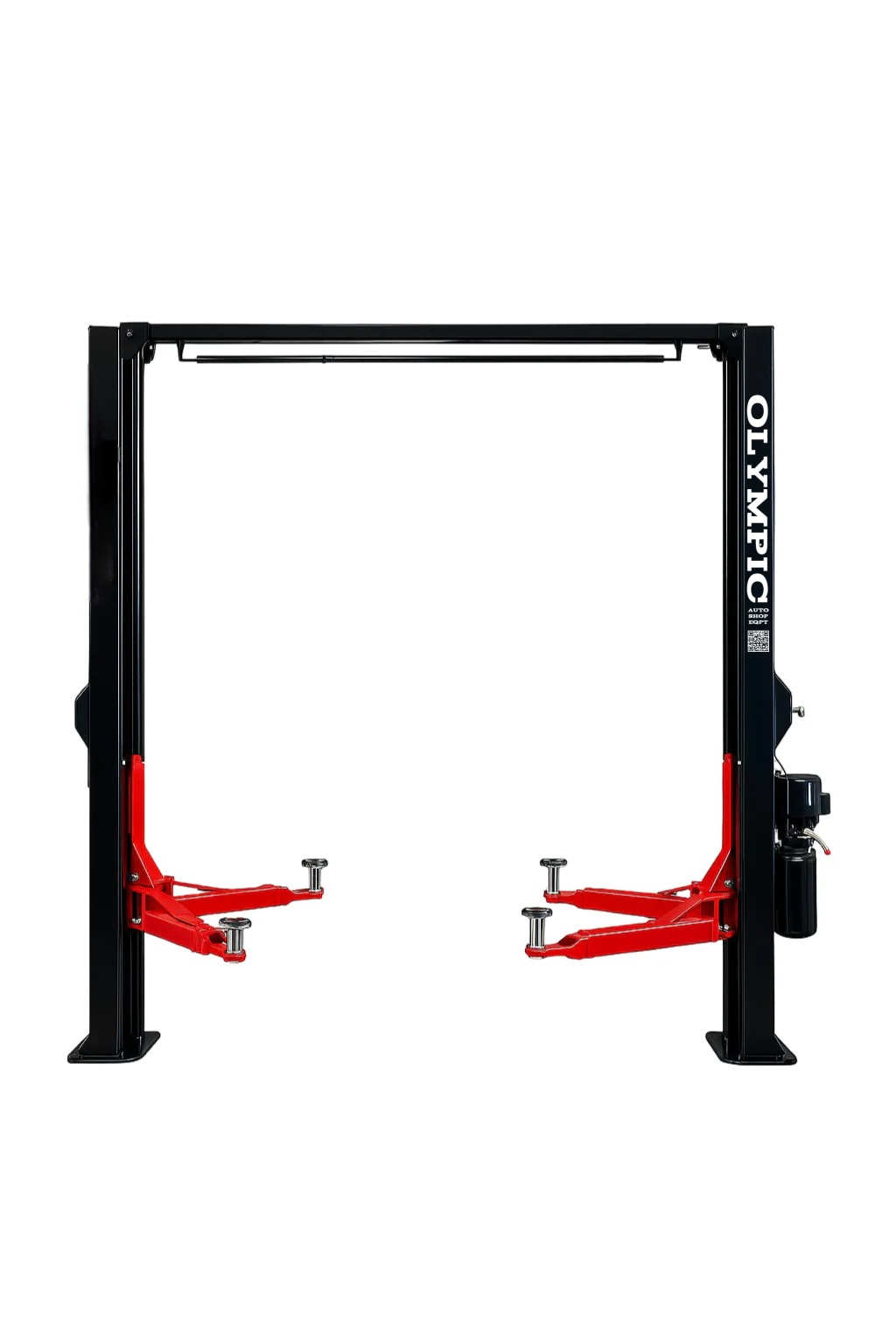

Model: 2PCFXL-10 / 10,000‐lb. Gold Series / Symmetric Clear floor / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 10-Year Warranty / 153″ H X 135″ W
Model: 2PCFXL-10
The 2PCFXL-10, our most popular 2-post lift, offers exceptional value at a bargain price. An updated design utilizing the best materials and technology available, guarantying exceptional performance, and durability. Described as bulletproof!
The Olympic 2PCFXL-10 Two-Post Commercial Grade Clear Floor Symmetric Post Lift offers a long list of options and accessories providing you with everything you could possibly want in a deluxe two-post car lift. In addition to the long list of standard features and capabilities packed into the structure, parts, and components you get the Industry-Best 10-Year Warranty!
Features
The 2PCFXL-10 symmetric two-post lift offers you more than the competition for less money. Check it out and compare. Includes a pair of heavy-duty low pressure hydraulic cylinders, single point manual lock release, deluxe pin-on carriage, three stage long-reach extension arms, three stage screw-on type adjustable foot pads, truck adapters, and powerful three-horsepower power unit. This sophisticated yet simple design requires very little service or maintenance for lower overall cost of ownership.
Why Choose an Olympic Lift?
It’s Tough, described as bulletproof! When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy.
Internationally certified and tested to perform flawlessly at 150% of rated capacity.
Features
- Industry Best Olympic 10-Year Warranty!
- Technically advanced configuration
- Dual heavy-duty hydraulic cylinders
- Beautiful open carriage design
- Convenient single side lock release
- Three-stage symmetrical long reach extension arms standard
- Three-stage screw-on type adjustable height foot adapter
- Durable powder-coated finish
- Automatic stop at maximum lifting height
- Vehicle door anti-crush rubber protection
- Synchronized hydraulic system
- Independent load distribution with cable leveling system
- Swing arm support with high quality wear-resistant rubber pads
- Set of four 3 1/2″ Foot extensions included
- Standard 220V 3 horsepower 2.2kw, 60hz, 1ph motor
- Optional 6″ truck extensions available at checkout

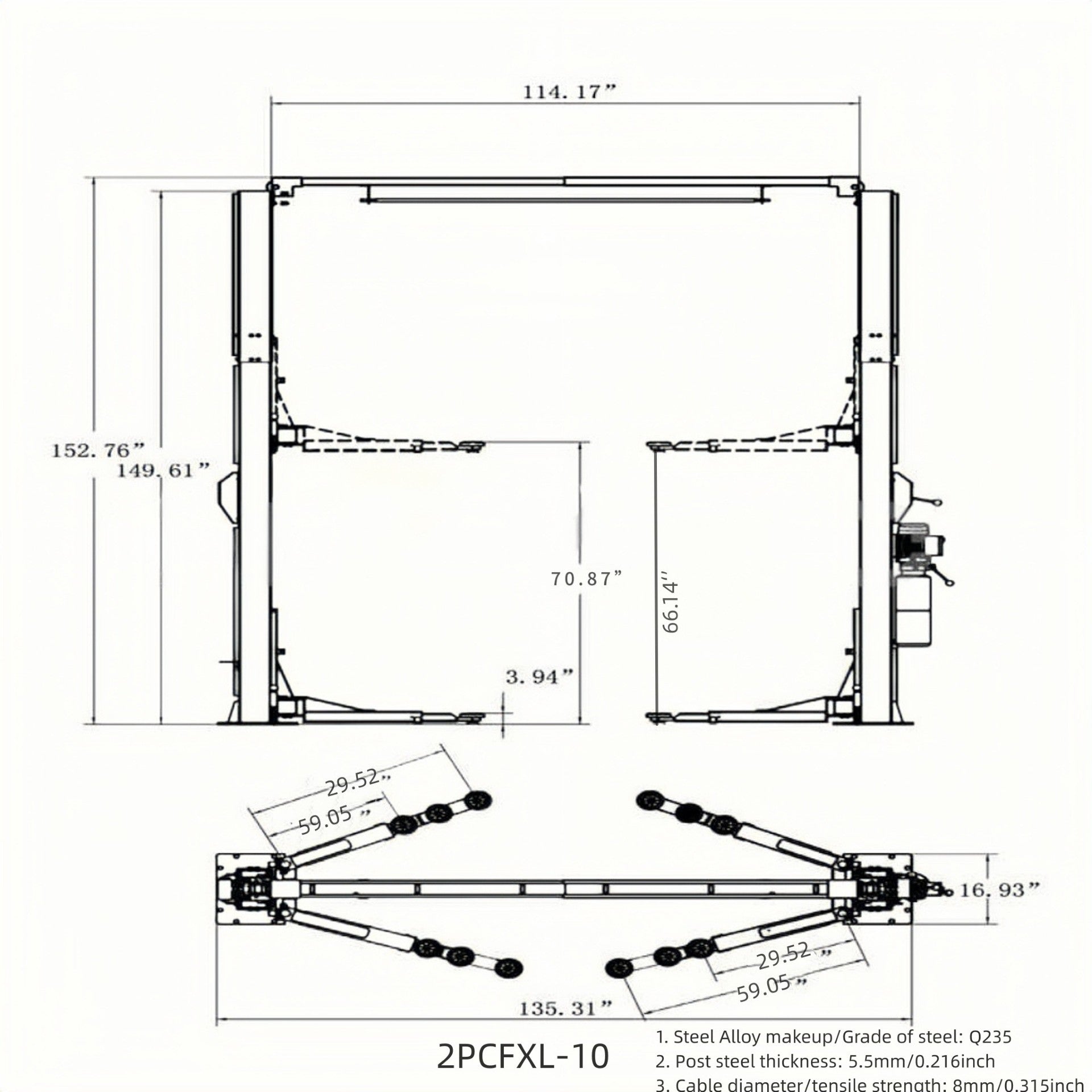

Specifications
Style | 2-Post Clear Floor Lift |
Weight Capacity | 10,000 lbs. |
Overall Height | 153″ |
Overall Width | 135.31″ |
Drive Through Width | 100.39″ |
Minimum Lift Height | 3.94″ |
Maximum Lift Height | 70.87″ |
Width Between Posts | 114.17″ |
Front Arm Min Reach | 29.52″ |
Front Arm Max Reach | 59.05″ |
Rear Arm Min Reach | 29.52″ |
Rear Arm Max Reach | 59.05″ |
Speed of Rise | 50 Seconds |
Speed of Lowering | 50 Seconds |
Motor Size | 3 horsepower |
Voltage | 220V 1ph 2.2kw 60hz |
