Name: Model: Olympic 2PCFXL-10 / 10,000‐lb. / Symmetric Clear floor / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 153″ H X 135″ W 10-Year Warranty / SHIPS FREE!
Brand: OLYMPIC EQUIPMENT
SKU: 2PCFXL-10
Price: 4342.00 USD
Availability: InStock

1/3

Model: Olympic 2PCFXL-10 / 10,000‐lb. / Symmetric Clear floor / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 153″ H X 135″ W 10-Year Warranty / SHIPS FREE!

$4,342.00 USD ~~$5,428.00 USD~~

10,000 lbs

Capacity

12′ 9″

Fits Under Ceiling

10-Year

Warranty

102.75″

Drive Through Width

Synchrony Financing
$361.83/mo for 12 months Preorder & Save $217.10

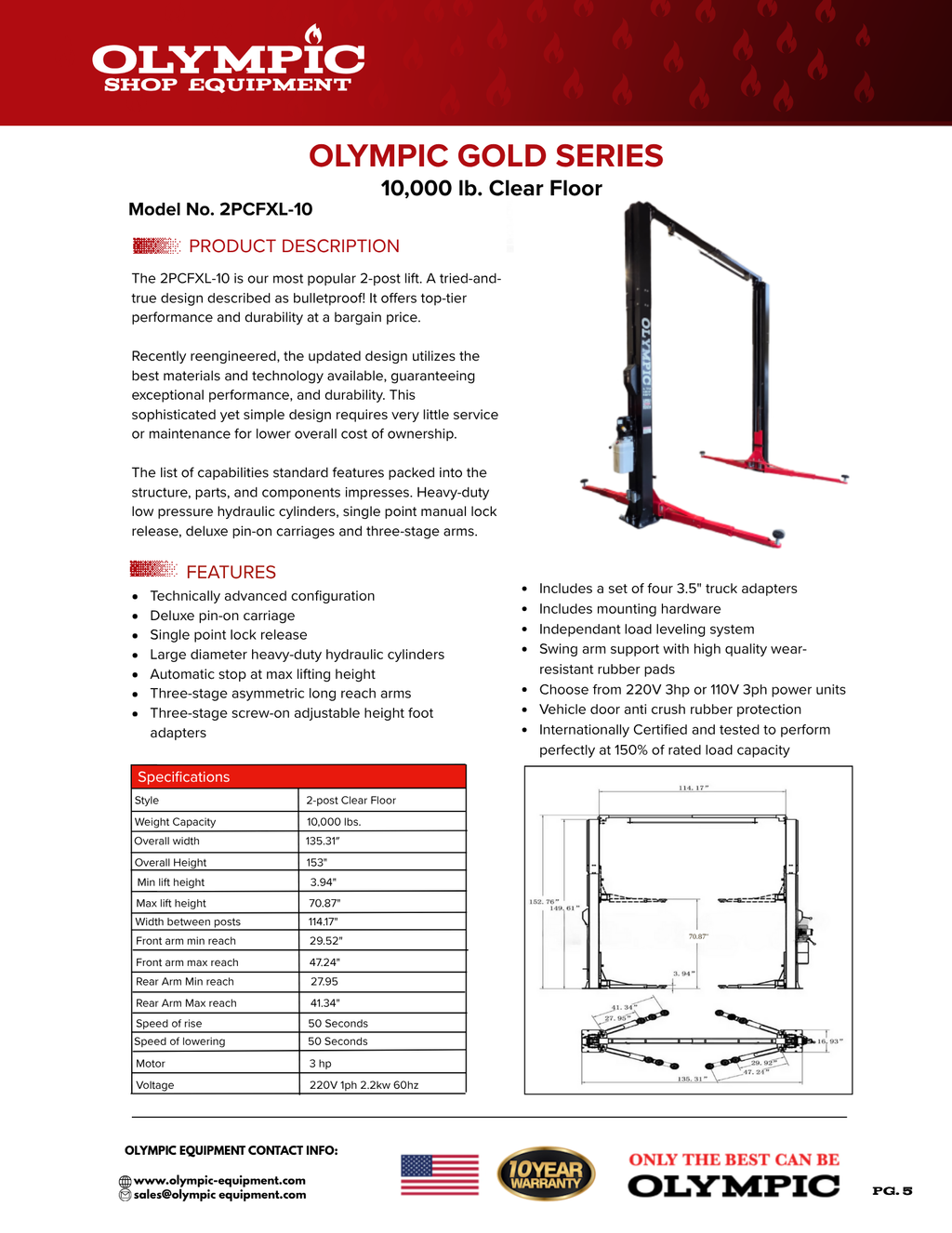

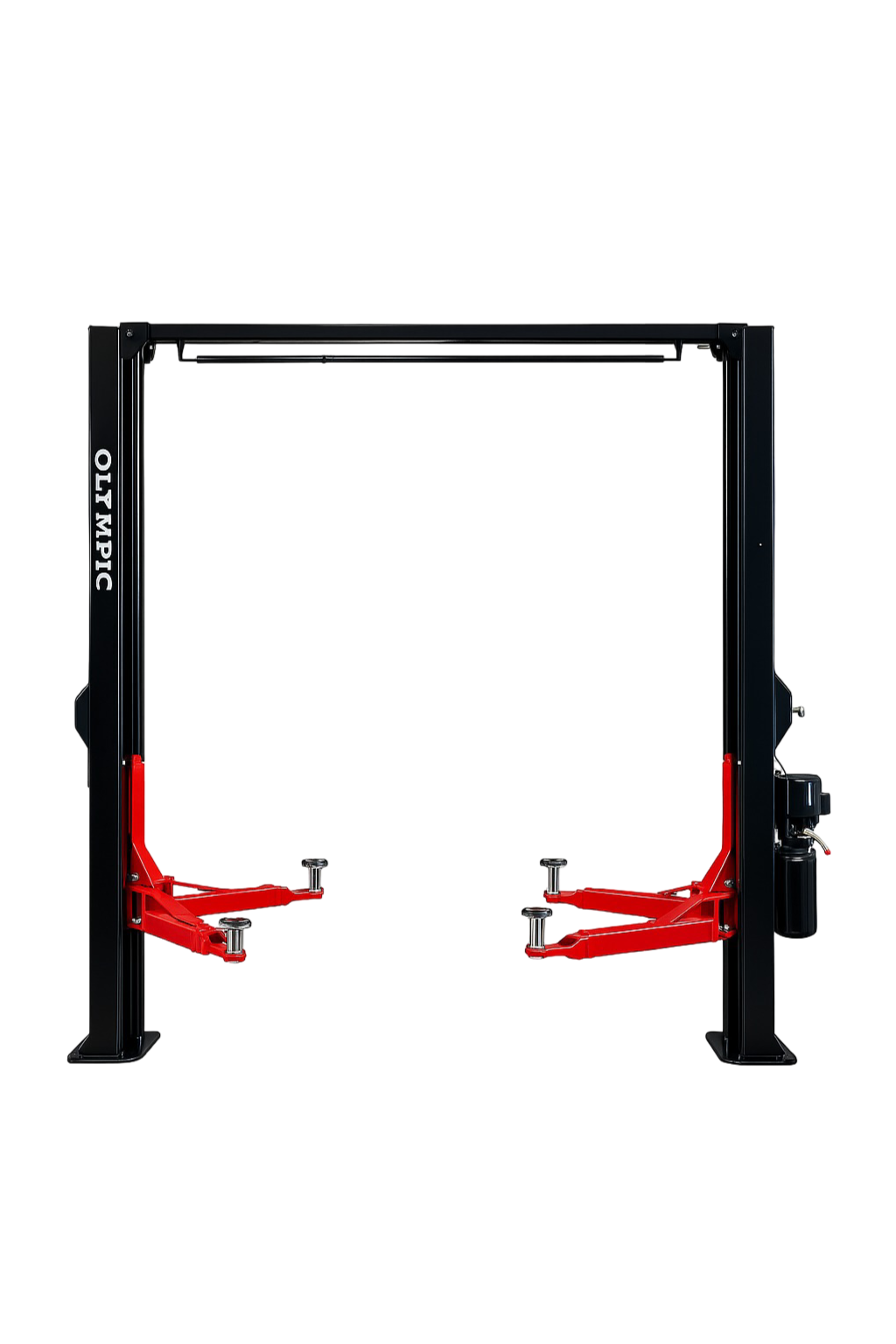

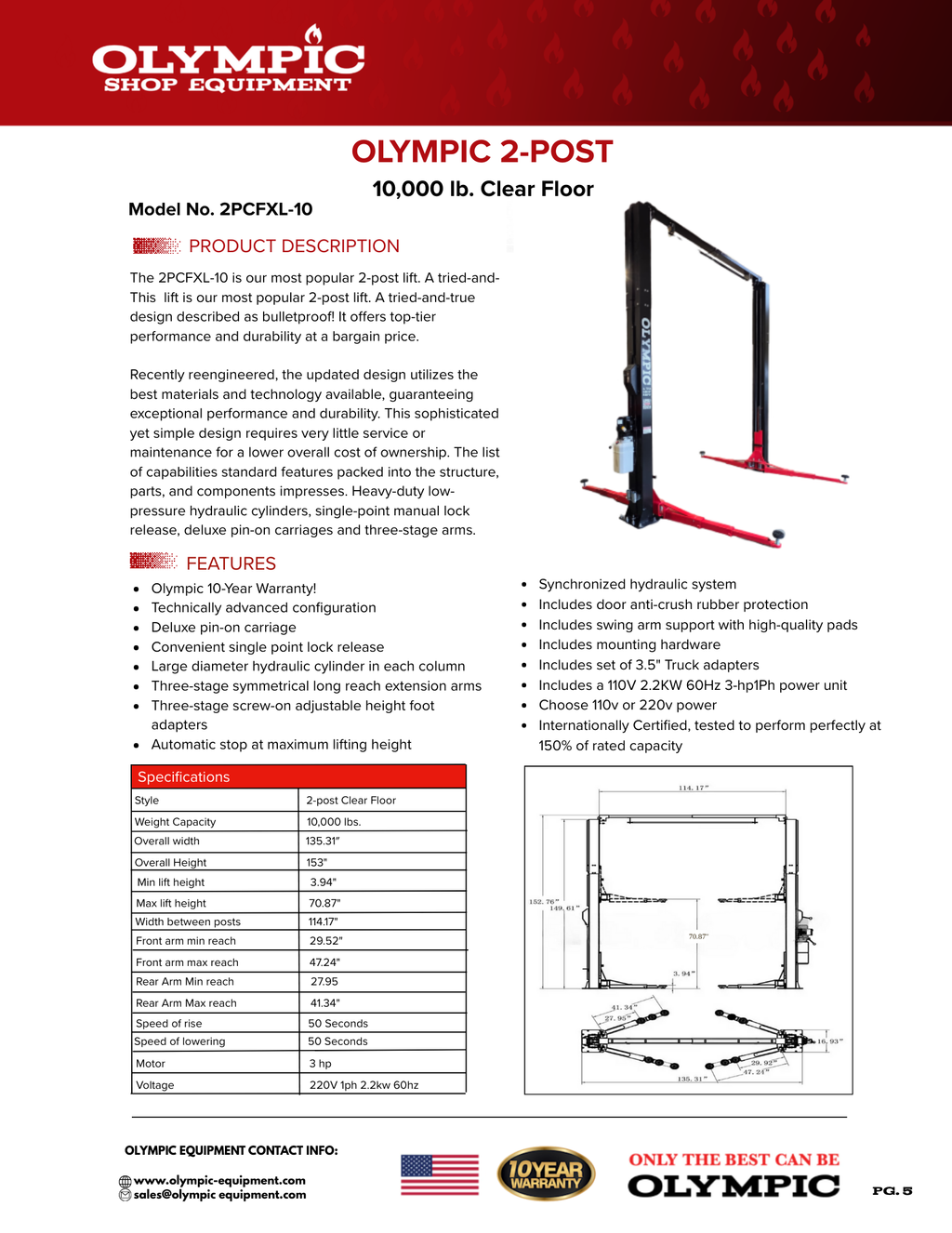

Olympic 2PCFXL-10 / 10,000 lb. 2-Post Clear Floor Lift

Our most popular 2-post lift — a proven, bulletproof design.
Recently reengineered with the best materials and technology, offering top-tier performance, low maintenance, and unbeatable value.
Capacity: 10,000 lbs | Fits Under Ceiling Height: 12′9″ | Max. Lift Height: 70.87″

Key Features

Olympic 10-Year Warranty!
Technically advanced configuration
Deluxe pin-on carriage
Convenient single point lock release
Large-diameter hydraulic cylinder in each column
Three-stage symmetrical long reach extension arms
Three-stage screw-on adjustable height foot adapters
Durable powder-coated finish
Automatic stop at maximum lifting height
Synchronized hydraulic system
Door anti-crush rubber protection
Swing arm supports with high-quality pads
Mounting hardware included
Includes (4) 3.5″ truck adapters
110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option)
Certified & tested at 150% of rated capacity

Specifications

Style	2-Post Clear Floor Lift
Capacity	10,000 lbs
Overall Height	153″
Overall Width	135.31″
Drive Through Width	100.39″
Voltage	110V / 220V
Min. Lift Height	3.94″
Max. Lift Height	70.87″
Width Between Posts	114.17″
Front Arm Reach	29.52″ – 59.05″
Rear Arm Reach	29.52″ – 59.05″
Speed of Rise	50 seconds
Speed of Lowering	50 seconds
Recommended Power Unit	HPU2203, 3HP, 2.2KW, 1PH
Fits Under Ceiling Height	12′9″
