Model: Olympic FRSL-78 / Ultra-Thin Full-Rise Scissor Lift / 7,800 Lb. Capacity / 7-Year Warranty / SHIPS FREE!
$4,849.00 USD
$6,062.00 USD
7,800 lbs
Capacity
72.8″
Max Lift Height
81.3″
Overall Width
7-Year
Warranty
Pickup currently not available
Olympic FRSL-78 / 7,800 lb. Ultra-Thin Full-Rise Scissor Lift
Full-rise scissor lift designed for shops with height restrictions.
With a 7,800 lb. capacity and a slim 4.1″ profile, this space-saving lift delivers a 72.8″ rise — enough to comfortably handle cars, trucks, and SUVs. It can also be flush-mounted for a clean, drive-over surface.
Capacity: 7,800 lbs |
Max Lift Height: 72.8″ |
Overall Width: 81.3″
Key Features
- Olympic 7-Year Warranty
- Pneumatic lock release
- Ramps lock at full extension
- Mechanical locking teeth with automatic engagement & pneumatic release
- Drop speed control prevents hydraulic hose failure risks
- Compensation valves ensure smooth movement
- Emergency stop button
- 24V safety voltage control system
- Fully automatic operation with lift/lower/lock controls
- Durable hot powder-coated finish
- Flush-mount option for a clean drive-over surface
- Powerful 220V, 2.2KW, 3HP, 1PH hydraulic power unit
- Certified & tested at 150% of rated capacity
Specifications
| Style | Scissor Lift |
|---|---|
| Weight Capacity | 7,800 lbs |
| Overall Lift Length | 80″ |
| Overall Width | 81.3″ |
| Minimum Lift Height | 4.1″ |
| Maximum Lift Height | 72.8″ |
| Speed of Rise | 55 seconds |
| Speed of Lowering | 45 seconds |
| Table Width | 33.5″ |
| Required Air Pressure | 6–8 BAR |
Why Choose an Olympic Lift?
It’s tough — described as bulletproof! When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T

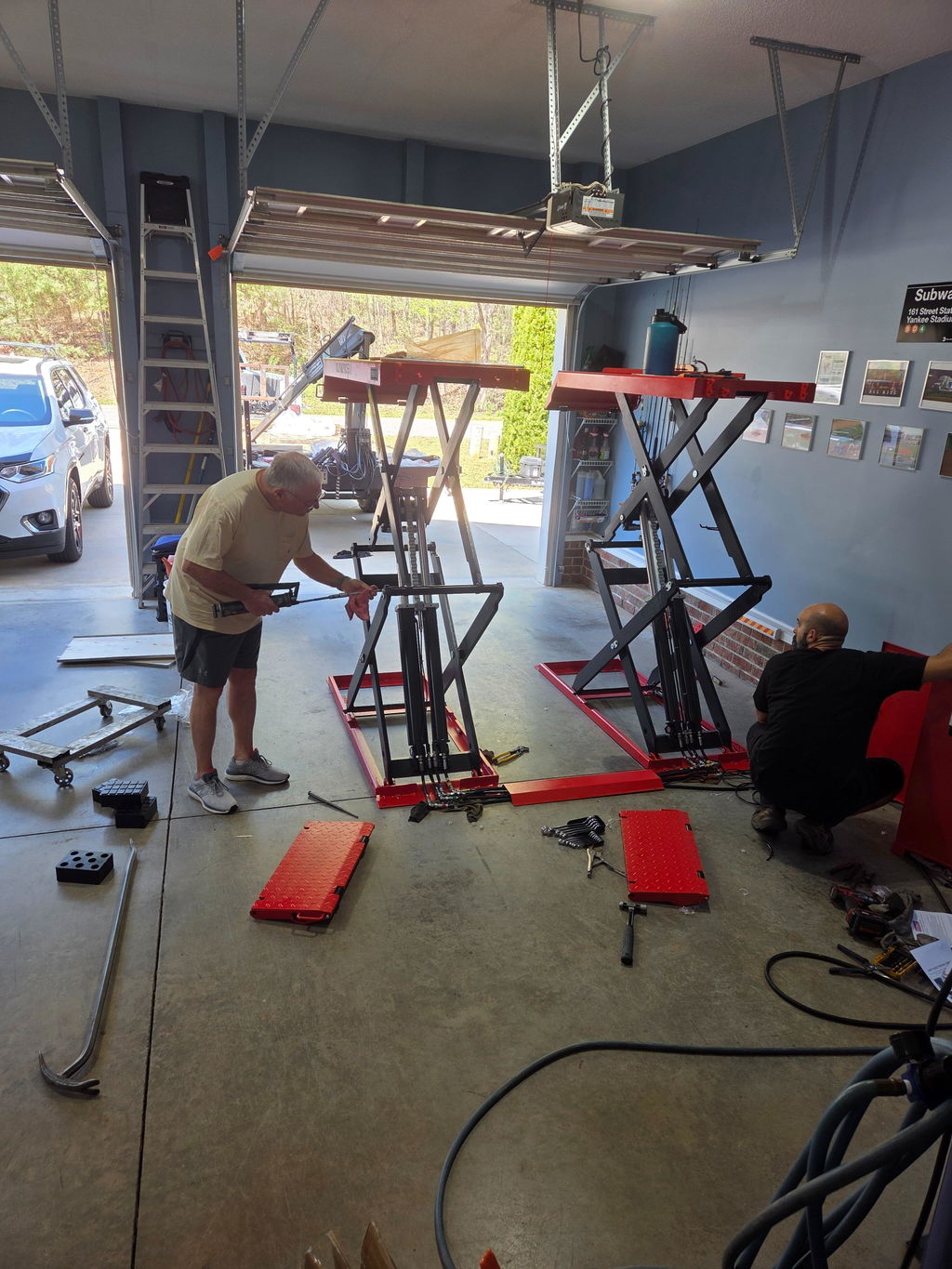

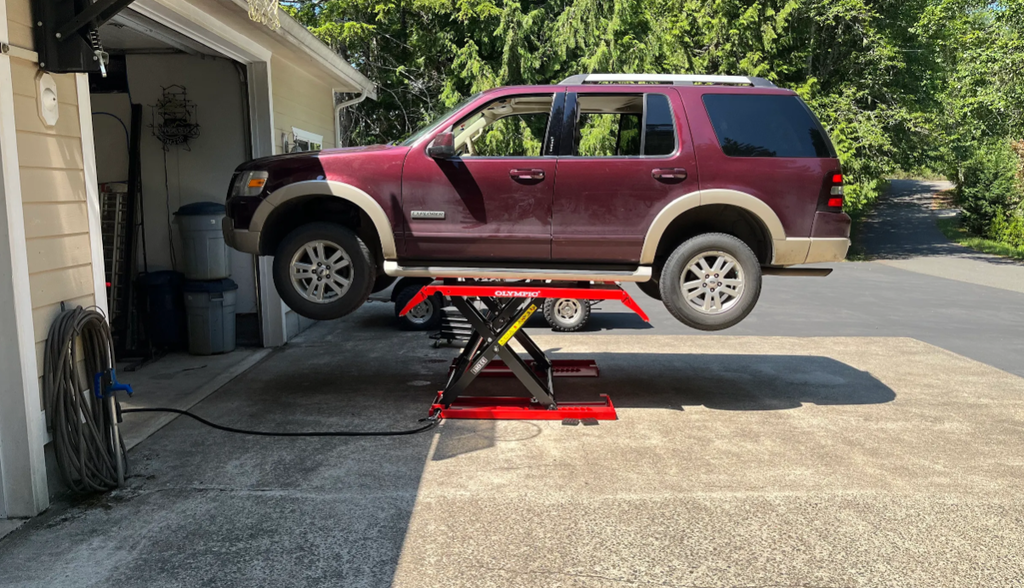

I picked up this 7,500 Gold Series Portable Mid-Rise Scissor Lift at the warehouse. Saved on shipping and did the assembly myself, because I have a tractor at home to unload the unit with. There is nothing really to install since it is portable. True, the instructions are not all that useful for assembly, but it is pretty simple to figure out on your own. The unit is easy to wheel around on concrete surfaces to place exactly where you want. So far, I've only used it to lift a 2006 Ford Explorer that weighs approximately 5,100 lbs. It lifted it easily without the motor sounding taxed. Lifted all the way to the stops, I pushed on the vehicle in all directions testing the lifts sturdiness. The lift stayed planted with very little movement of the vehicle. I felt perfectly comfortable under the vehicle. Very excited to get A LOT more use out of this lift.
