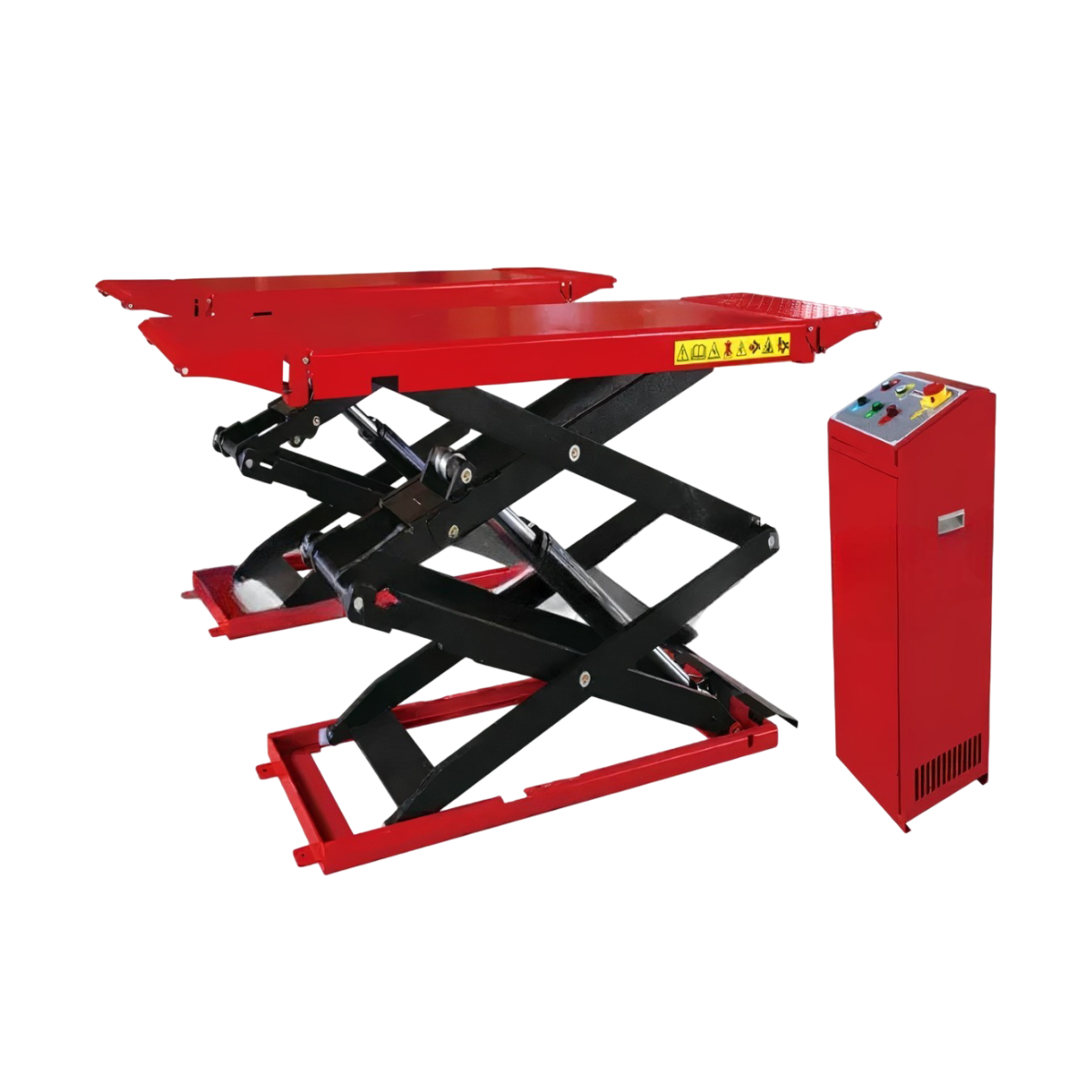

Model: FRSL-78

Gold Series Ultra-Thin Full Rise 7800 lb. Scissor Lift is the perfect above ground lift for those customers with ceiling height restrictions with the need for “enough lift” to raise pick-up trucks in limited space.  This full rise scissor lift is also perfect for service shops that want to avoid the cluttered look of dozens of vertical lift columns.

A space saver combining an extremely low lift platform height and a 73” full rise scissor jack system. The FRSL-78 can also be flush mounted if desired. When flush mounted it gives the service area a cleaner appearance providing a “flat surface” which can be driven over from any angle, making it easier to position the vehicle over the lifting platforms.

An excellent choice for tire and wheel work, mechanical work, vehicle inspections, brake repair, body work and general automotive service. The 33.5″ distance between the lift platforms improves workspace and is able to accommodate a full frame, unibody, or SUV (truck) lifting points. In addition to the long list of standard features and capabilities packed into the structure, parts, and components you get the industry-best Olympic 7-Year Warranty!

More features than you thought possible. The easy-to-use 24V voltage control system keeps users safe. The separate control panel can be conveniently positioned to allow easy access for the operator. The electric/hydraulic power unit is housed inside the metal control panel box. The fully automatic push button controls raise and lower the lift. The lock system is automatically engaged and disengaged as the lift is being raised or lowered.

Why Choose an Olympic Lift?

It’s Tough, described as bulletproof! When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy.

Note: Pneumatic lock release requires air service.

Internationally certified and tested to perform flawlessly at 150% of rated capacity.

Features

• Olympic 5-Year Warranty
• Pneumatic lock release.
• Ramps are lockable at full extension.
• Mechanical locking teeth with automatic engagement and pneumatic release.
• Drop speed control in case of hydraulic hose failure.
• Compensation valves ensure smooth movement.
• Emergency stop button.
• 24V safety voltage control system.
• Fully automatic operation with main power switch, lifting button, lowering button and locking button.
• Durable hot powder coated finish.
• Powerful 220V 2.2kw 60hz 3hp power unit

Specifications
