Model: 4PXW-10

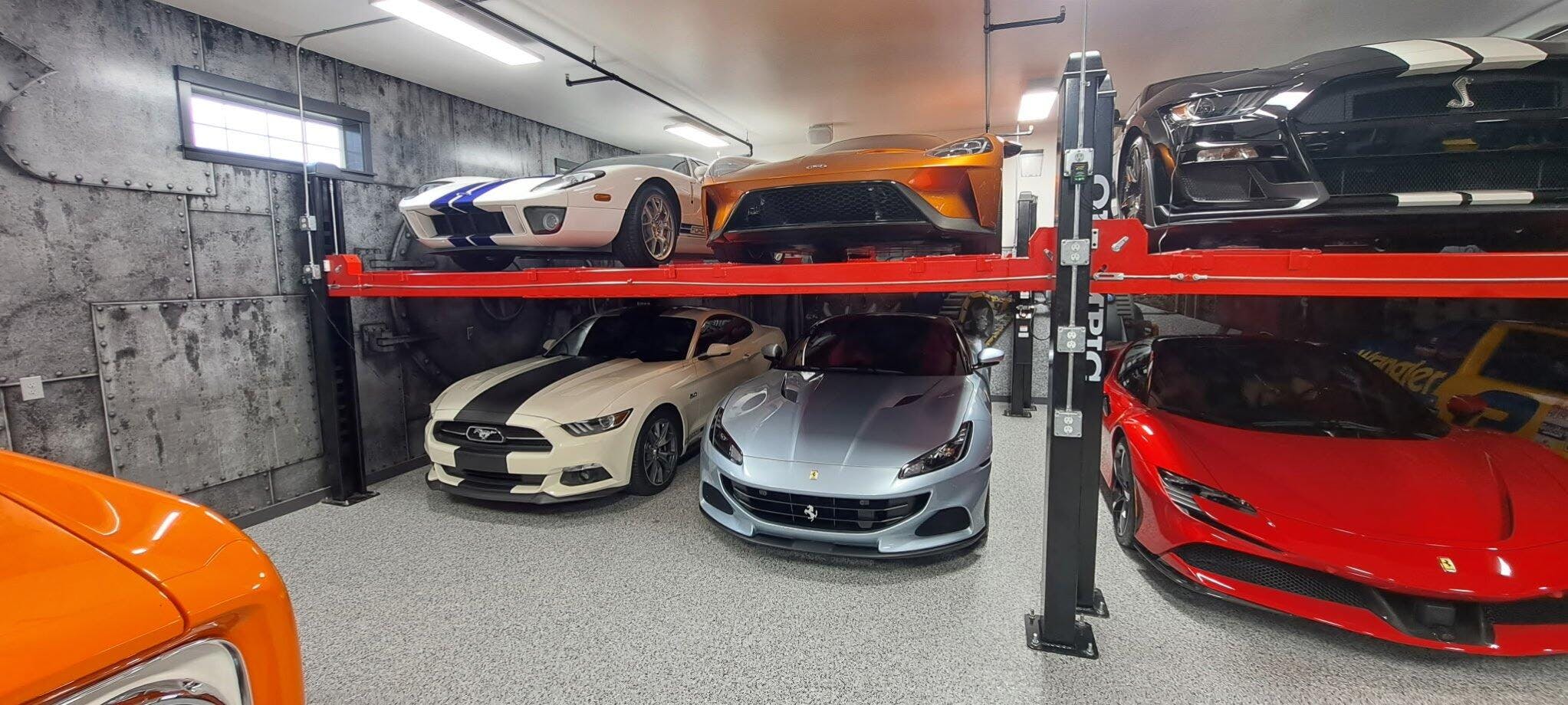

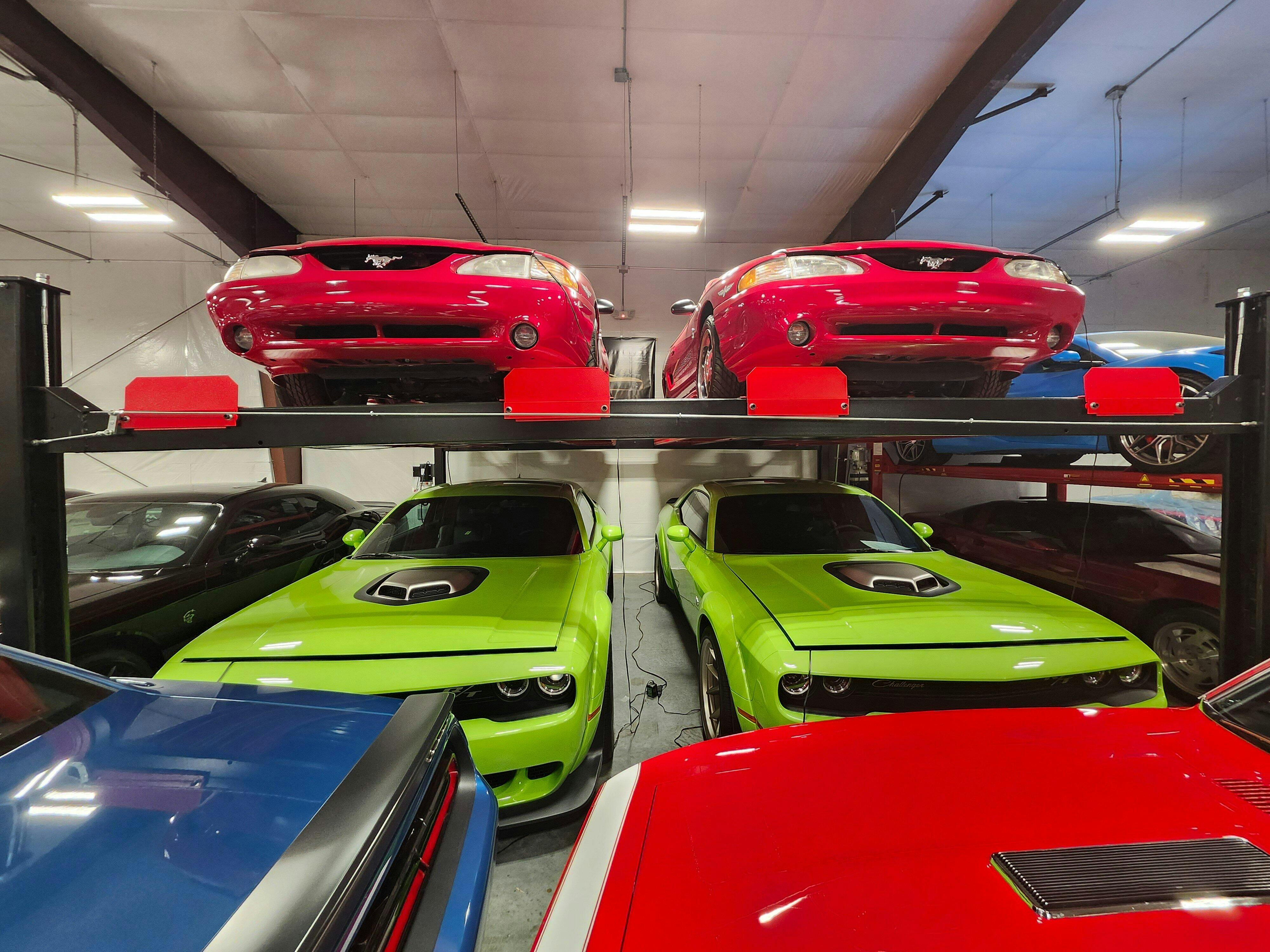

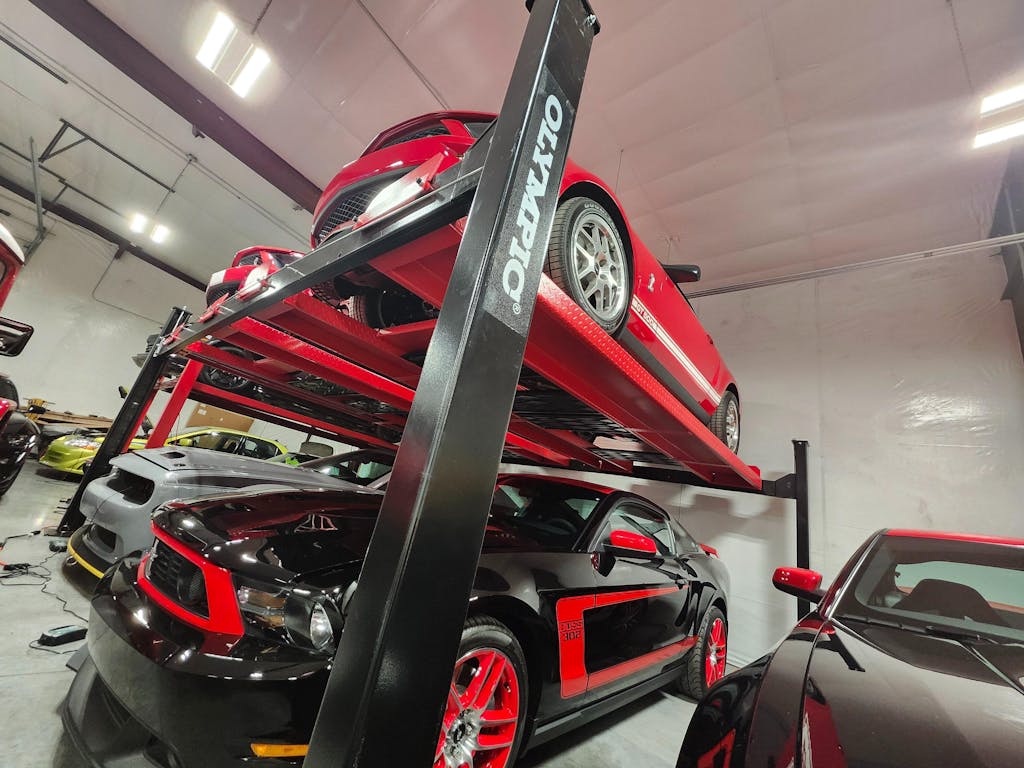

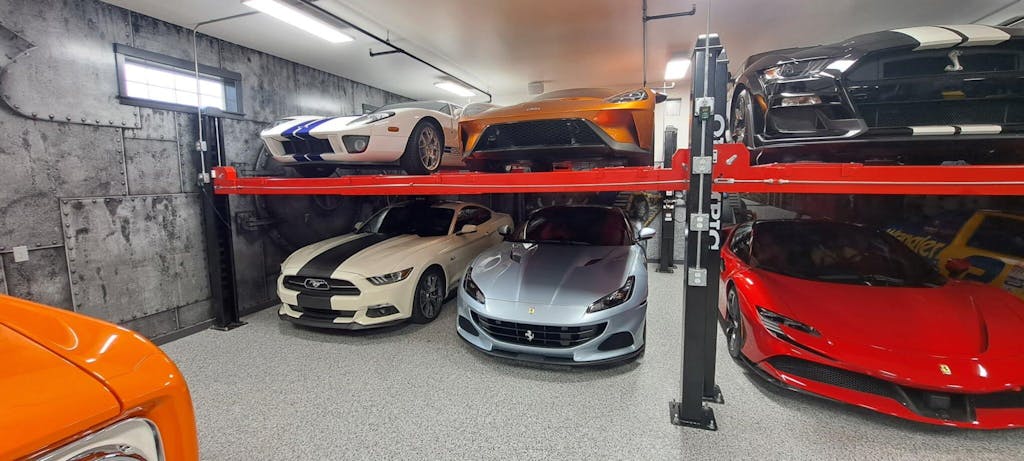

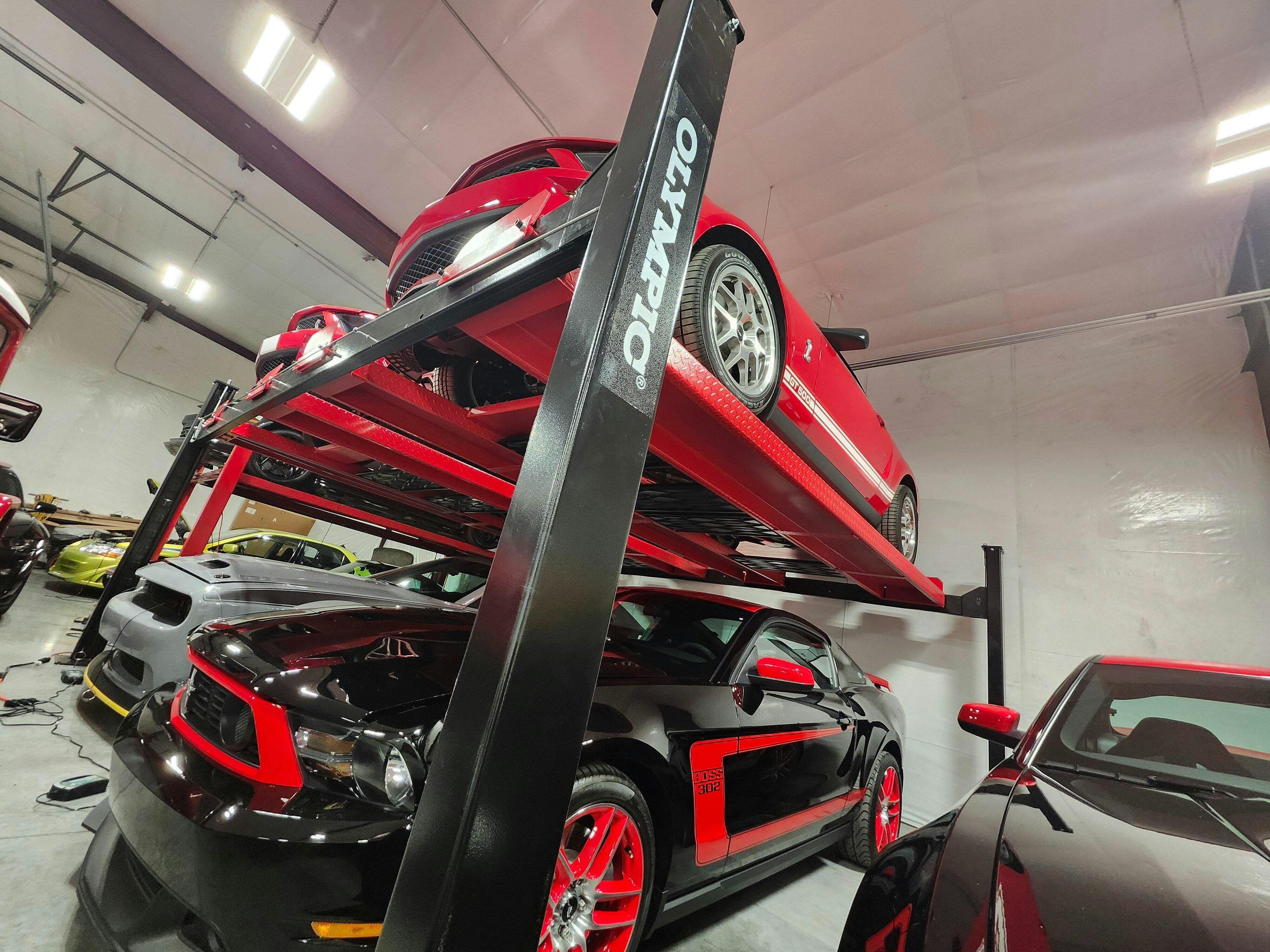

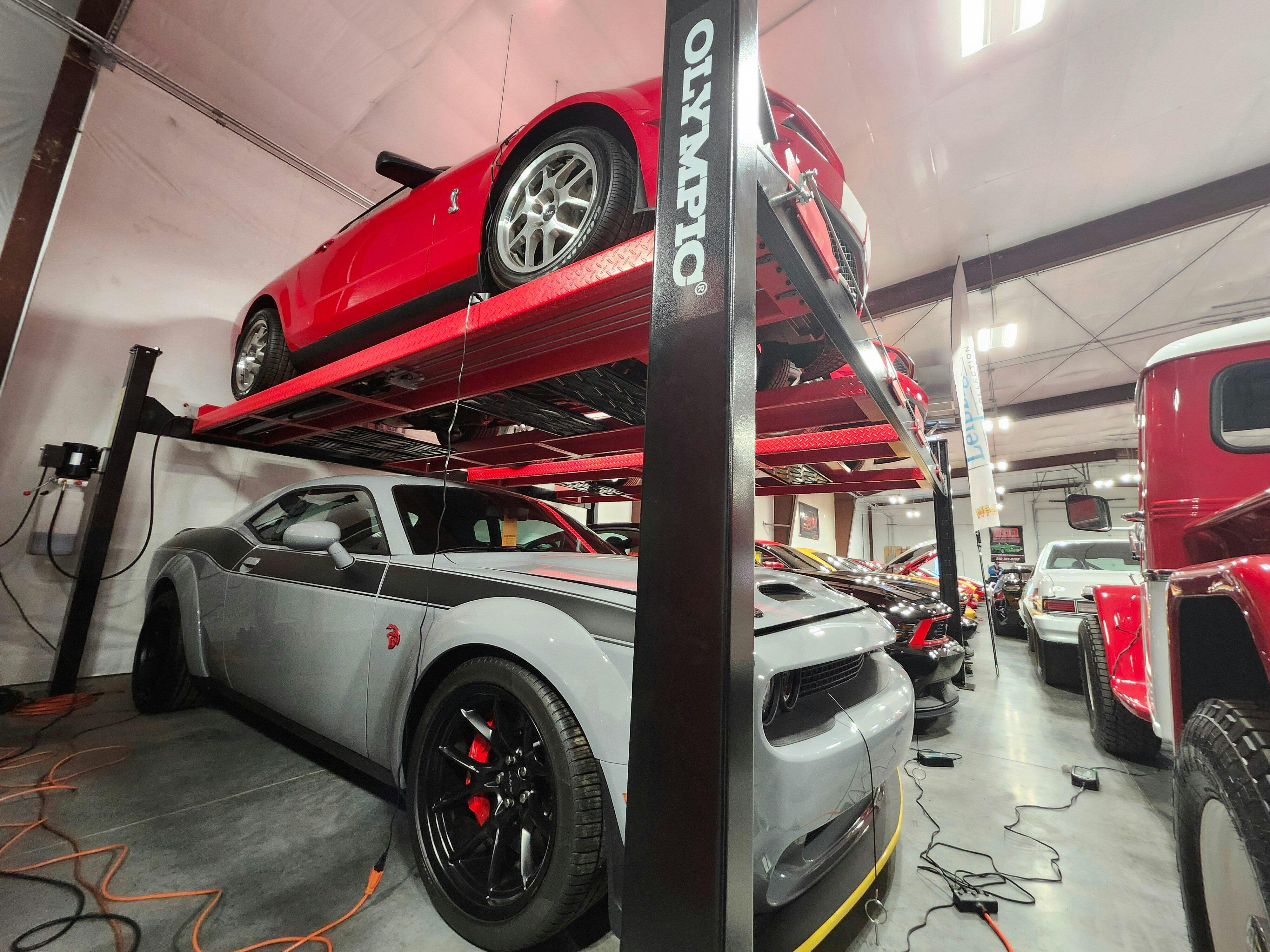

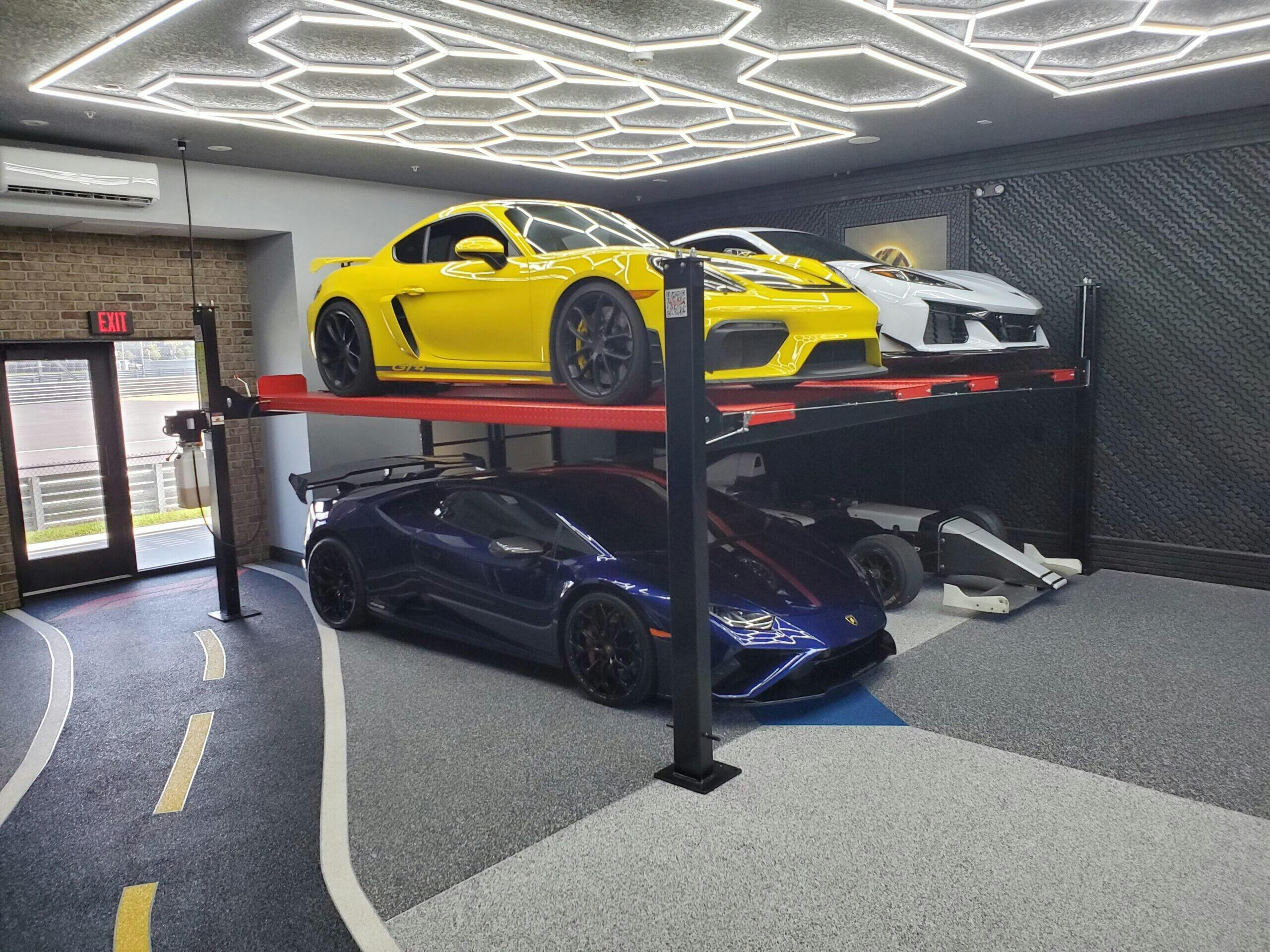

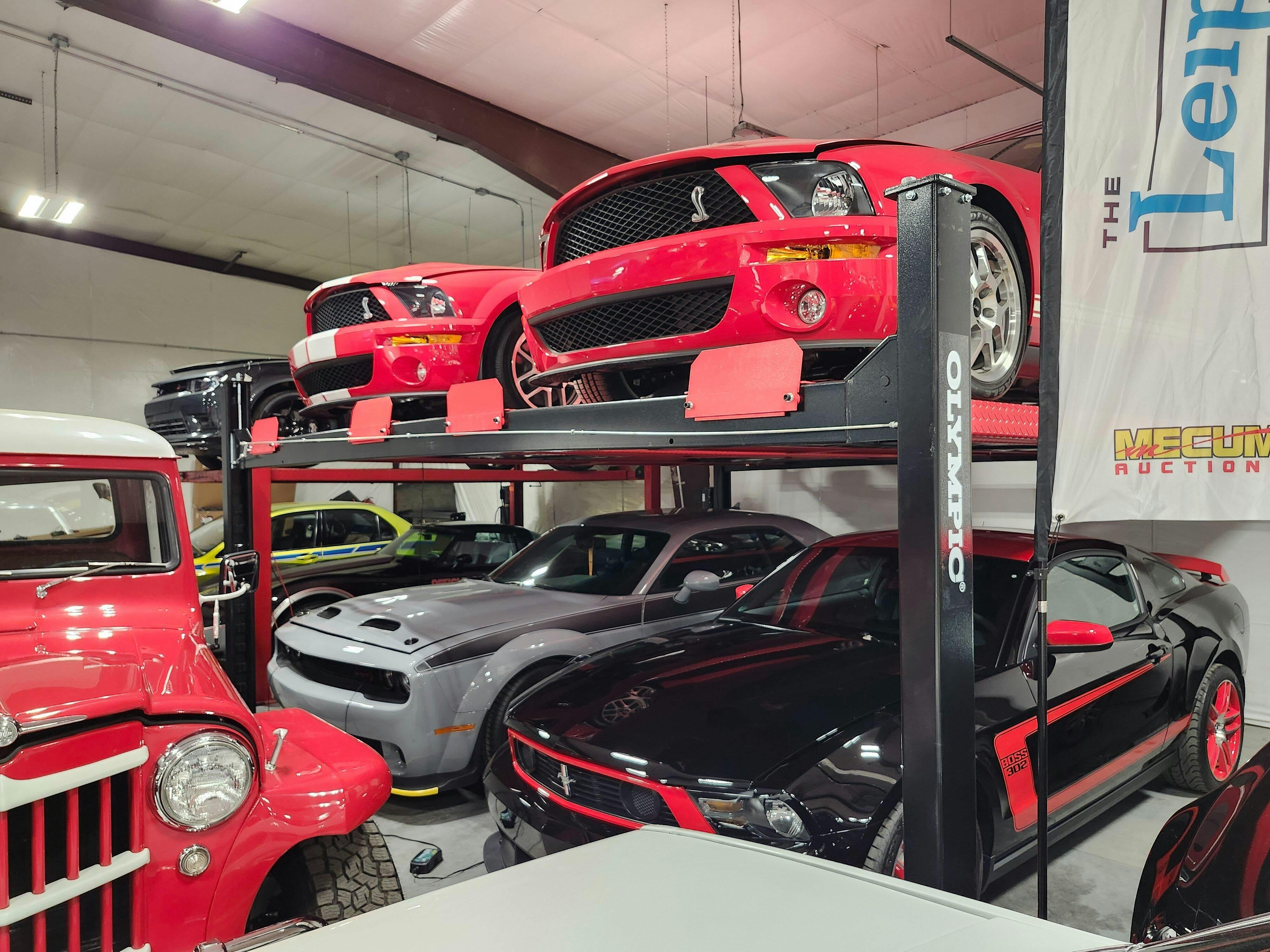

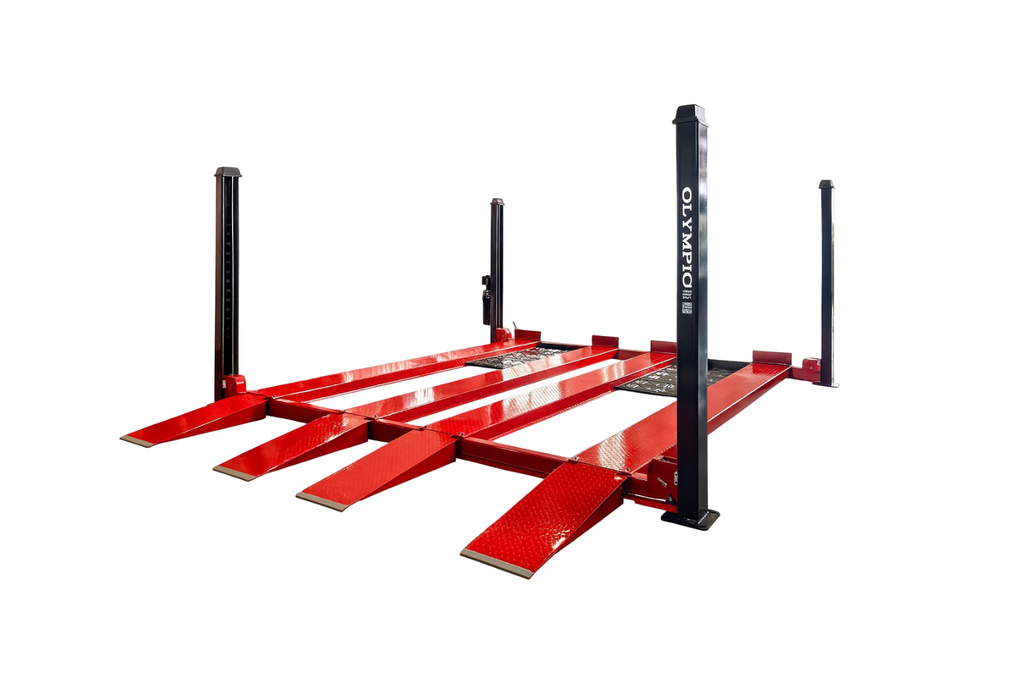

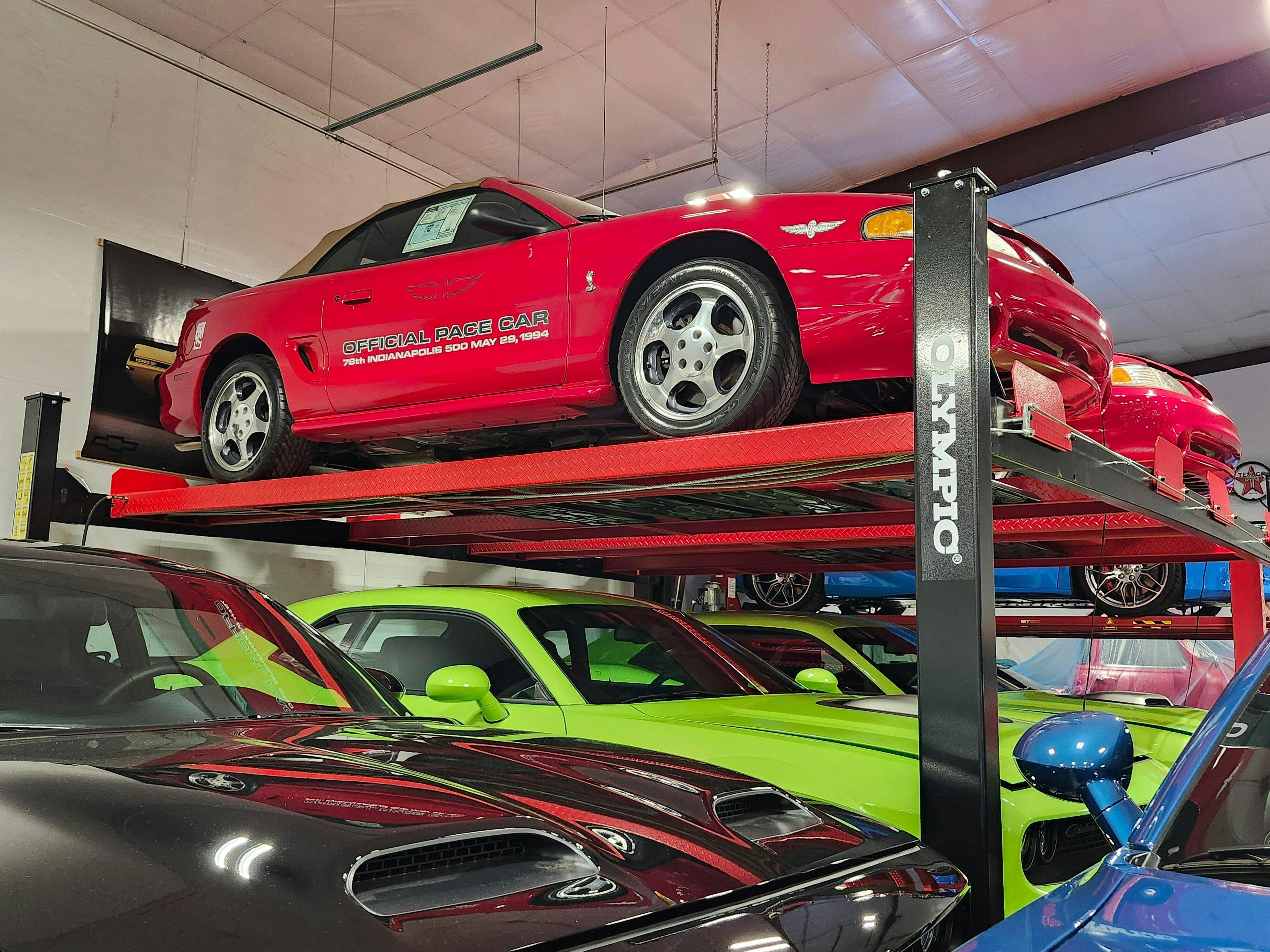

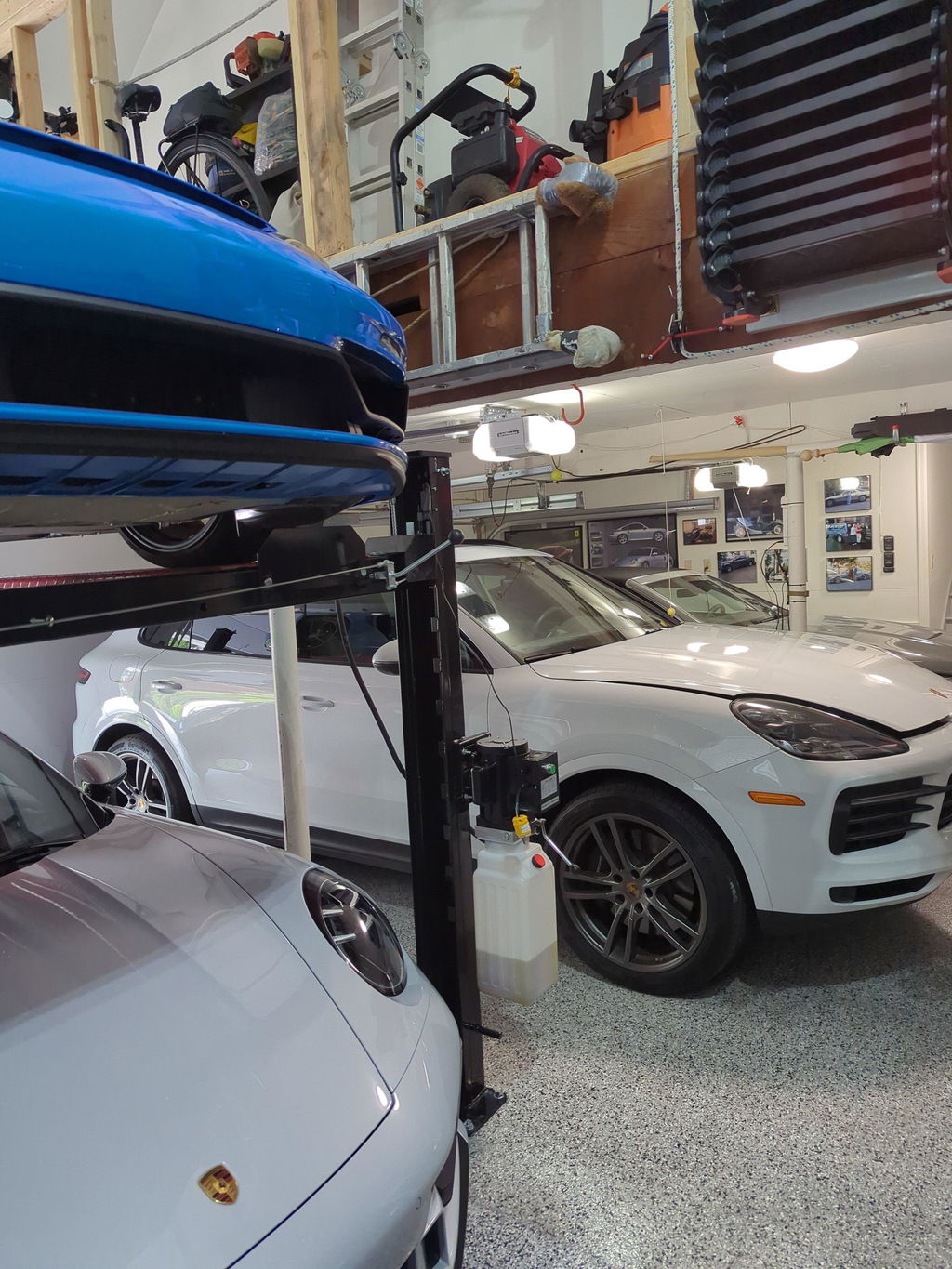

The “Double Stacker” Gold Series Extra-Wide Lift allows you to park four large vehicles in the same space as two. With 192” between the posts, it is wide enough to store a pair of American size vehicles side-by-side. With 10,000 load capacity it can accommodate most any car on the road—current or classic. Got a pair of classic Cadillac’s? No problem. Load ‘em up!

The open-center runways provide easy access for maintenance procedures. 78” of clearance under the runways allows you to work on up to four vehicles at once without banging your head! The extra width allows for safe and easy entry and egress. Detachable extra-long approach ramps ensure effortless loading and unloading. Low deck runways (4.5”) provide low clearance vehicles. Industry Best 10-Year Warranty!

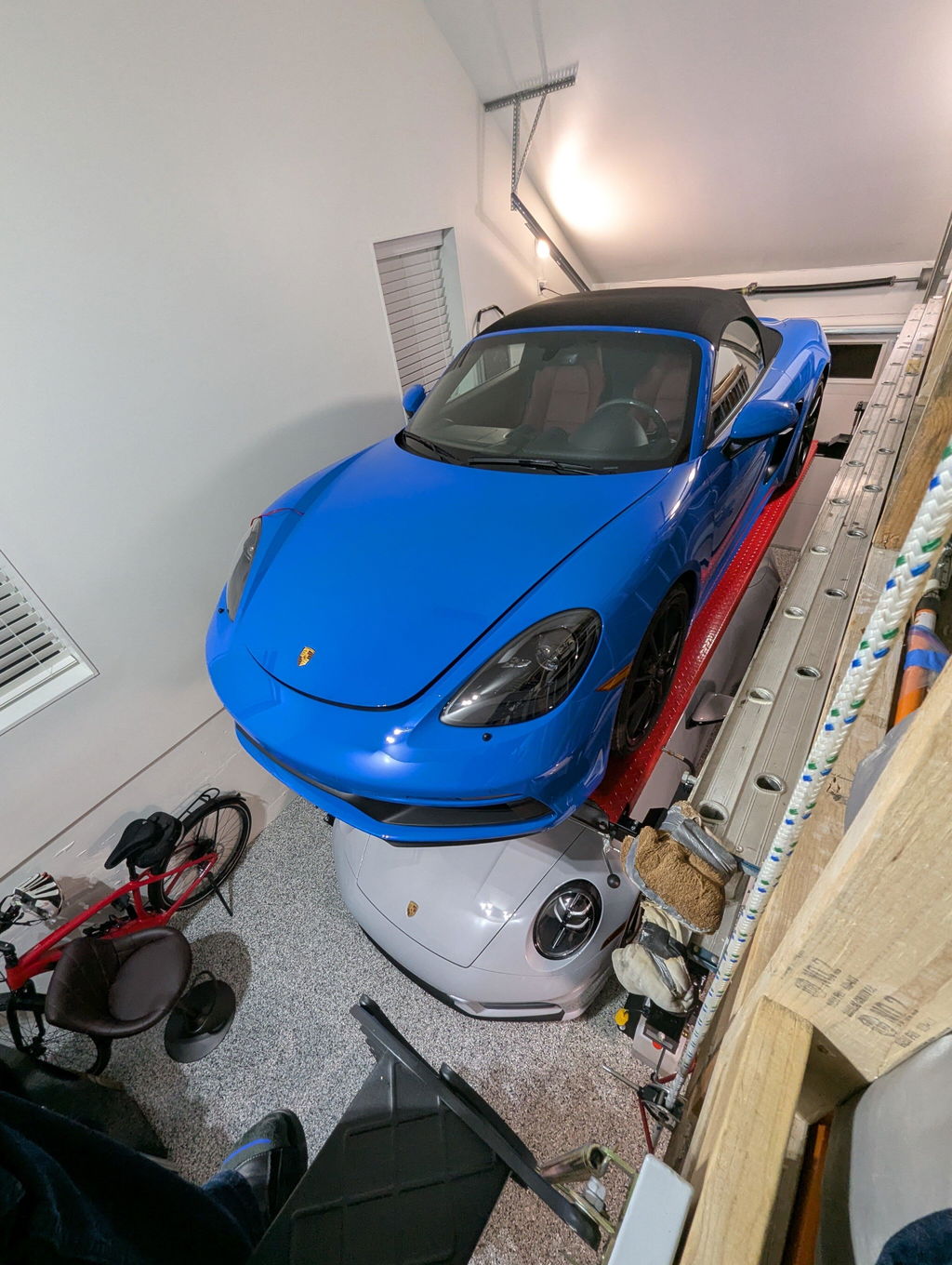

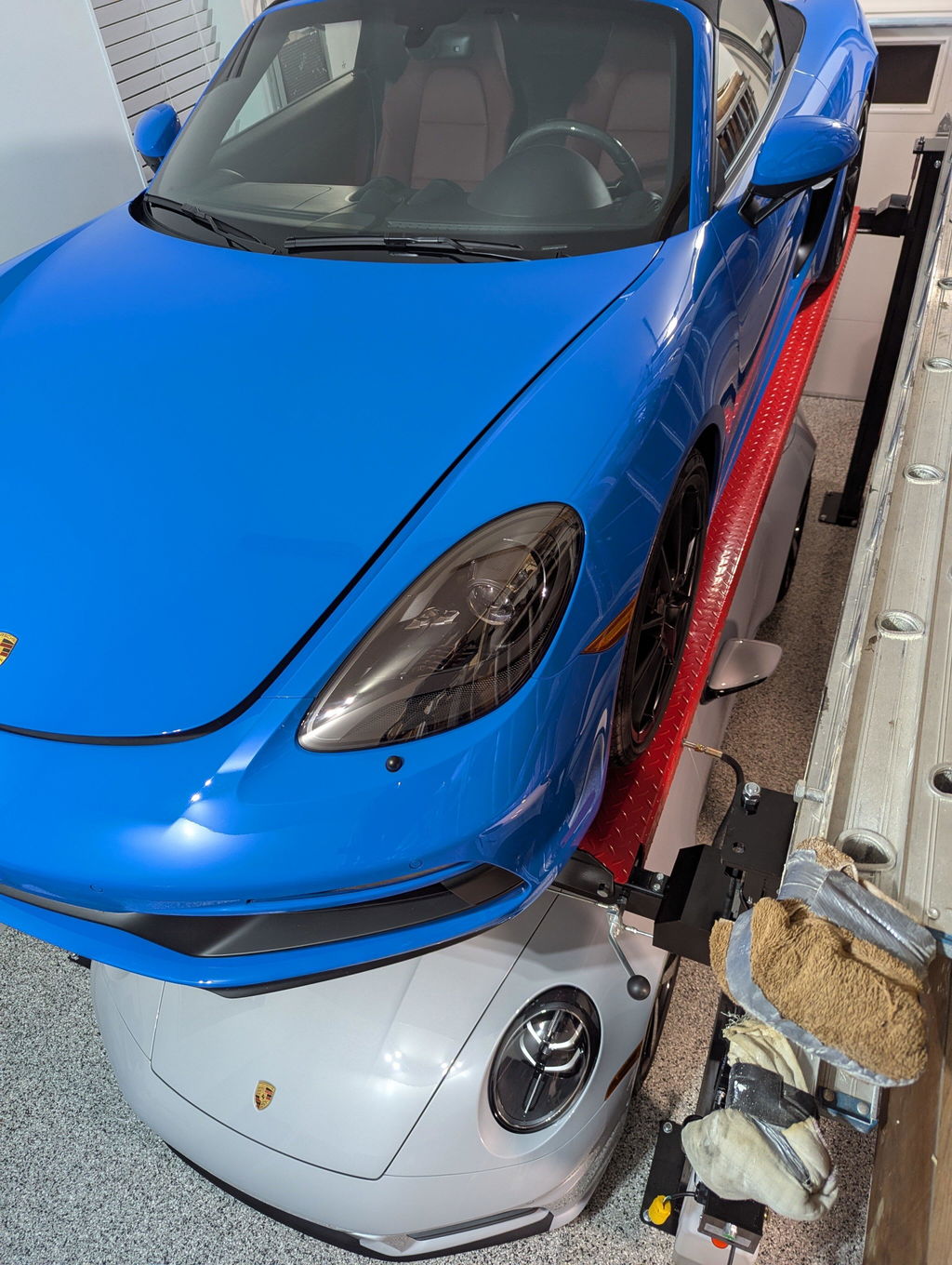

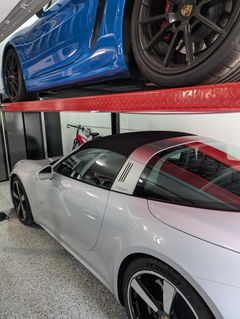

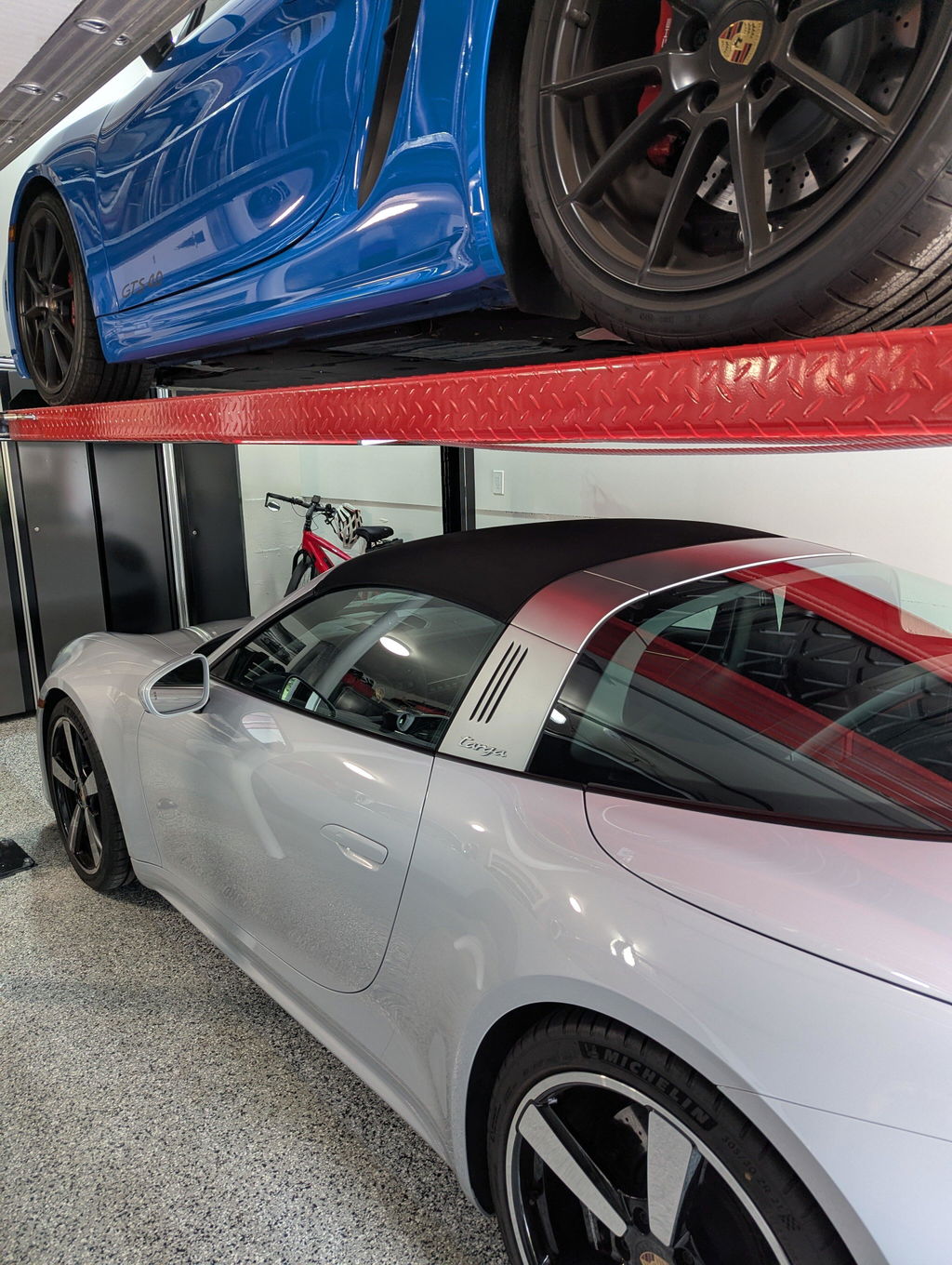

Car Storage: The extra wide post-to-post clearance allows you to get in and out without the hassle of crawling through windows or worry of damaging doors. The Double Stacker gives you more room in your garage, and peace of mind. It’s perfect for whatever you drive!

Vehicle Maintenance: The open-center runways provide easy access for maintenance procedures. 78” of clearance under the runways allows you to work without banging your head while you work on up to four vehicles at once!

Safety Features: Heavy-Duty cable sheaves protect you while you work. The spring-loaded ladder locks click into place ensuring safe, level operation. Heavy-duty aircraft cables rated at 14,000 lbs. combine to make cable load capacity 500% more than the 10,000 lb. tested load rating. The powerful 220v 2.2KW three-horsepower electric-hydraulic power unit is virtually maintenance free.

Optional Bridge Center Jack (two makes a set). Bridge Jacks raise the front or rear portion of a vehicle off the runways, allowing for efficient wheel and brake service. A pair of jacks allows the entire vehicle to be raised. Each jack features telescoping arms, contact pads, safety-lock and stackable truck adapters for increased lifting power and better access to contact points. Order your Bridge Jacks at checkout.

Note: Installers will require a capable forklift to be on site at time of installation. Not a portable lift. Caster arms not included.

Features:

• Industry Best 10-Year Warranty!

• Provides up to 78” of Storage space
• Ladder-lock system provides greater safety
• Single-point lock release
• Durable powder-coated finish
• Automatic shutoff at maximum height
• Independent cable leveling load distribution system

• Includes six drip trays
• Includes a heavy-duty tool tray
• Includes mounting hardware
• Includes removable ramps
• Includes removable stops
• Includes powerful 220v 2.2kw 3hp 60hz 1ph power unit

• Optional light-weight aluminum ramps
• Optional 1,000 lb. aluminum platforms (8 pcs make a set)
• Optional Bridge Jack: FBCJ-6

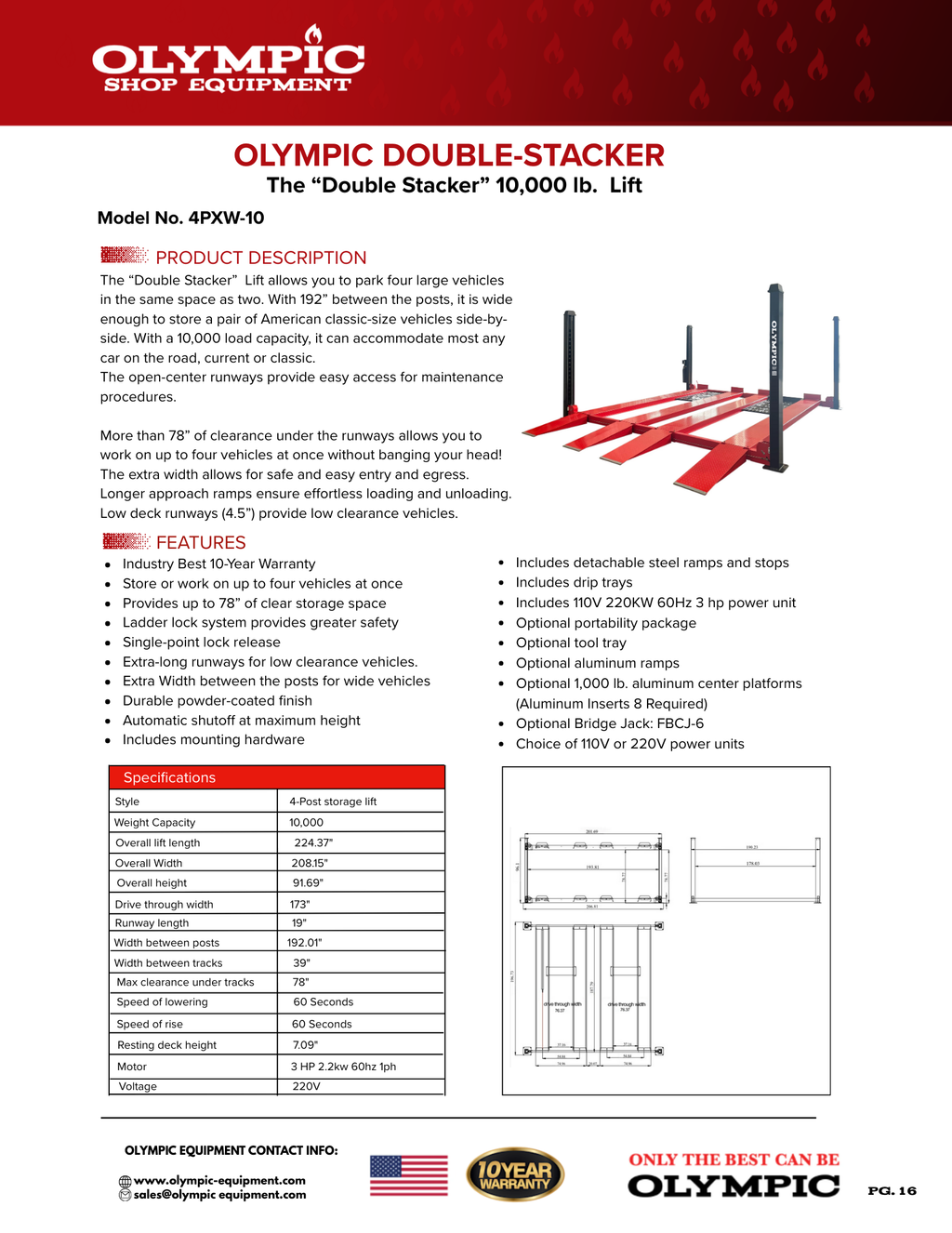

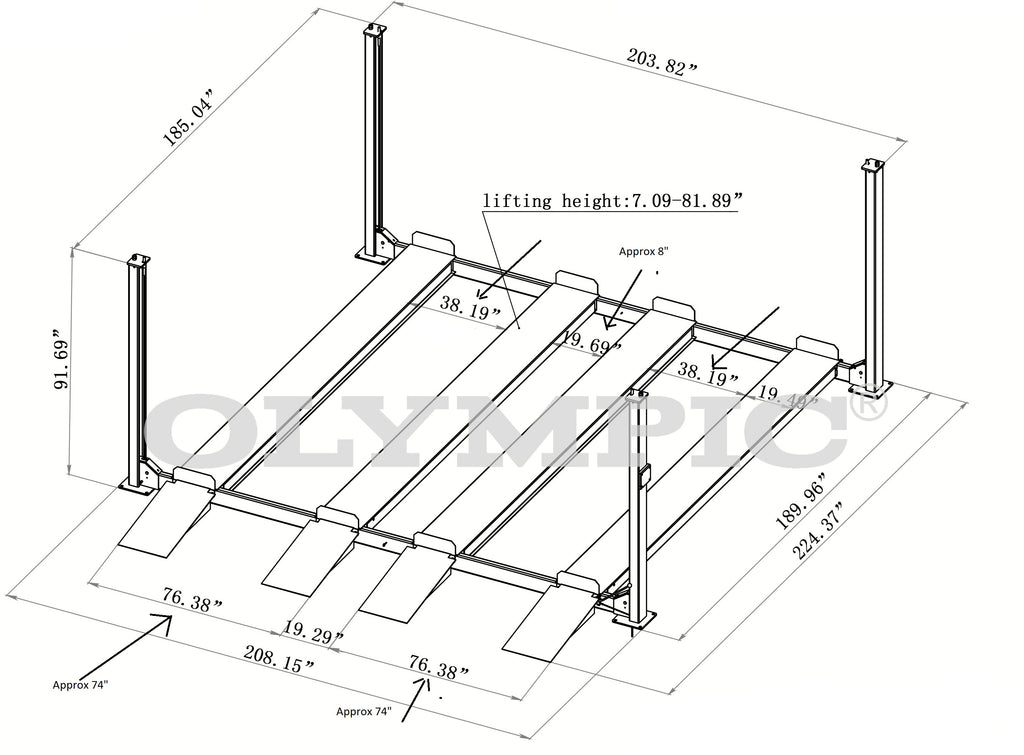

Specifications
