Model: Olympic 4PML-9B / 9,000 lb. Extra-Wide Car & Lift / Portable / Adjustable Width Runway / 10-Year Warranty / 137″ W X 199″ L / SHIPS FREE!
1/2
Model: Olympic 4PML-9B / 9,000 lb. Extra-Wide Car & Lift / Portable / Adjustable Width Runway / 10-Year Warranty / 137″ W X 199″ L / SHIPS FREE!
$4,199.00 USD $5,936.00 USD
9,000 lbs
Capacity
110.6″
Drive Through
10-Year
Warranty

Olympic HDMBL-8 / 9,000 lb. Gold Series Car & Trailer Storage Lift

Extra-wide, heavy-duty lift designed for any vehicle including basic cars or even trucks.
Protects your vehicles and equipment from damage and theft while saving storage costs. Adjustable runways fit a wide range of trailers, trucks, and dual-wheel vehicles.
Capacity: 9,000 lbs. | Drive Through Width: 110.6″ | Max. Lift Height: 75″

Key Features

  • Industry Best 10-Year Warranty!
  • 9,000 lb. load capacity
  • Dependable heavy-duty design
  • Large slider blocks for added stability
  • Drive-through design with ramps fitting either end
  • Detachable 3′ 9″ ramps included
  • Adjustable runways accommodate any trailer width
  • Steel runways formed from 3/16″ non-skid diamond plate
  • Extra-wide 18.7″ runways
  • Aircraft-quality cables rated at 14,000 lbs.
  • Built-in ladder lock safety system
  • Heavy-duty 3″ diameter hydraulic cylinder
  • Durable powder-coated finish
  • Optional portability package
  • Optional drip trays, tool tray, aluminum ramps
  • Optional 1,000 lb. aluminum center platforms
  • Optional 6,000 Lb Bridge Jacks (Part No. HLCJ-6 or JVCJ-6)
  • Certified & tested at 150% of rated capacity

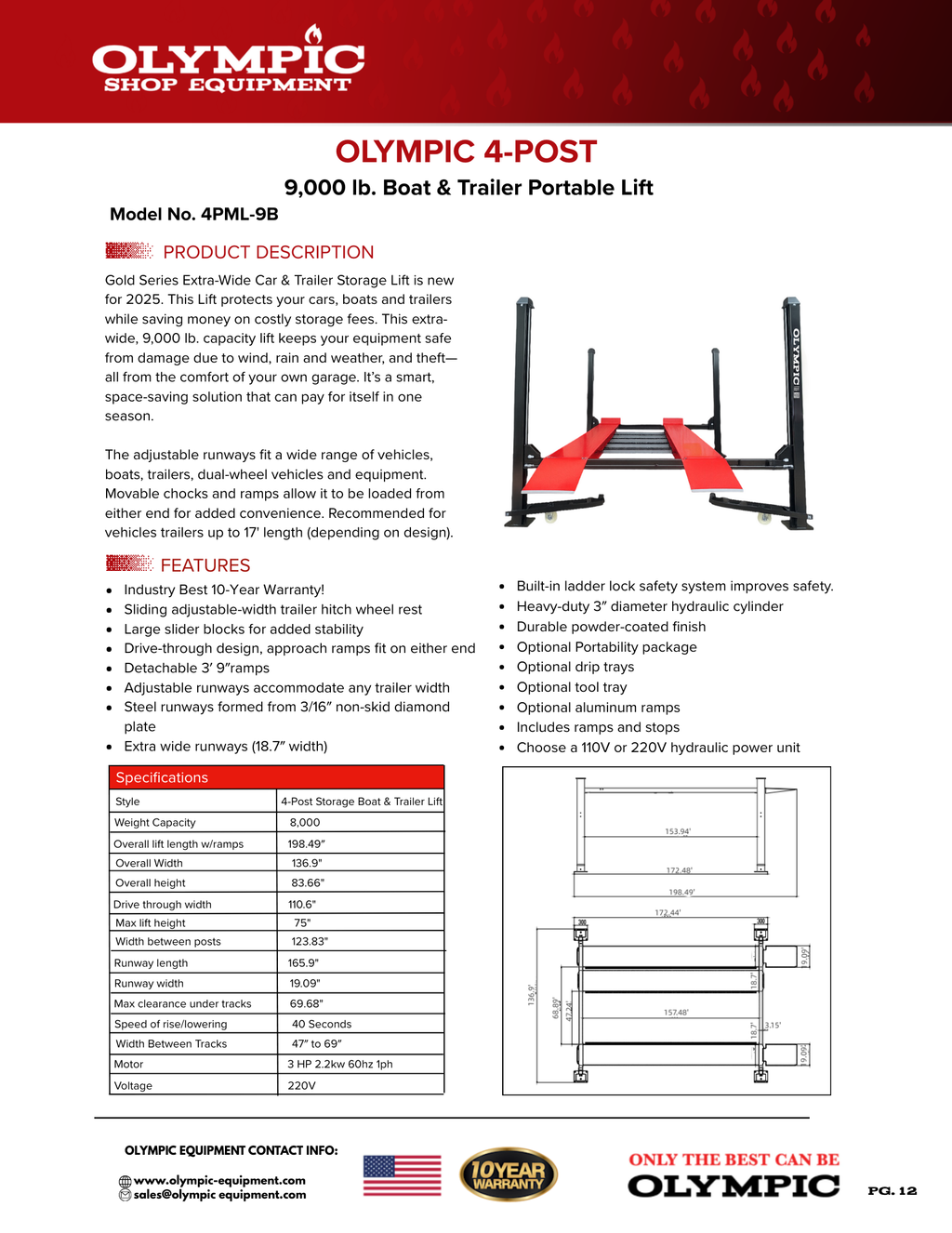

Specifications

Style 4-Post Boat & Trailer Storage Lift
Capacity 9,000 lbs
Overall Lift Length (with ramps) 198.49″
Overall Width 136.9″
Overall Height 83.66″
Max. Lift Height 75″
Drive Through Width 110.6″
Width Between Posts 123.83″
Runway Length 165.9″
Runway Width 19.09″
Max. Clearance Under Runways 69.68″
Width Between Tracks 47″ – 69″
Speed of Rise 40 seconds
Speed of Lowering 40 seconds
Recommended Power Unit HPU2203, 3HP, 2.2KW, 1PH
Voltage 110V / 220V

Why Choose an Olympic Lift?

When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
