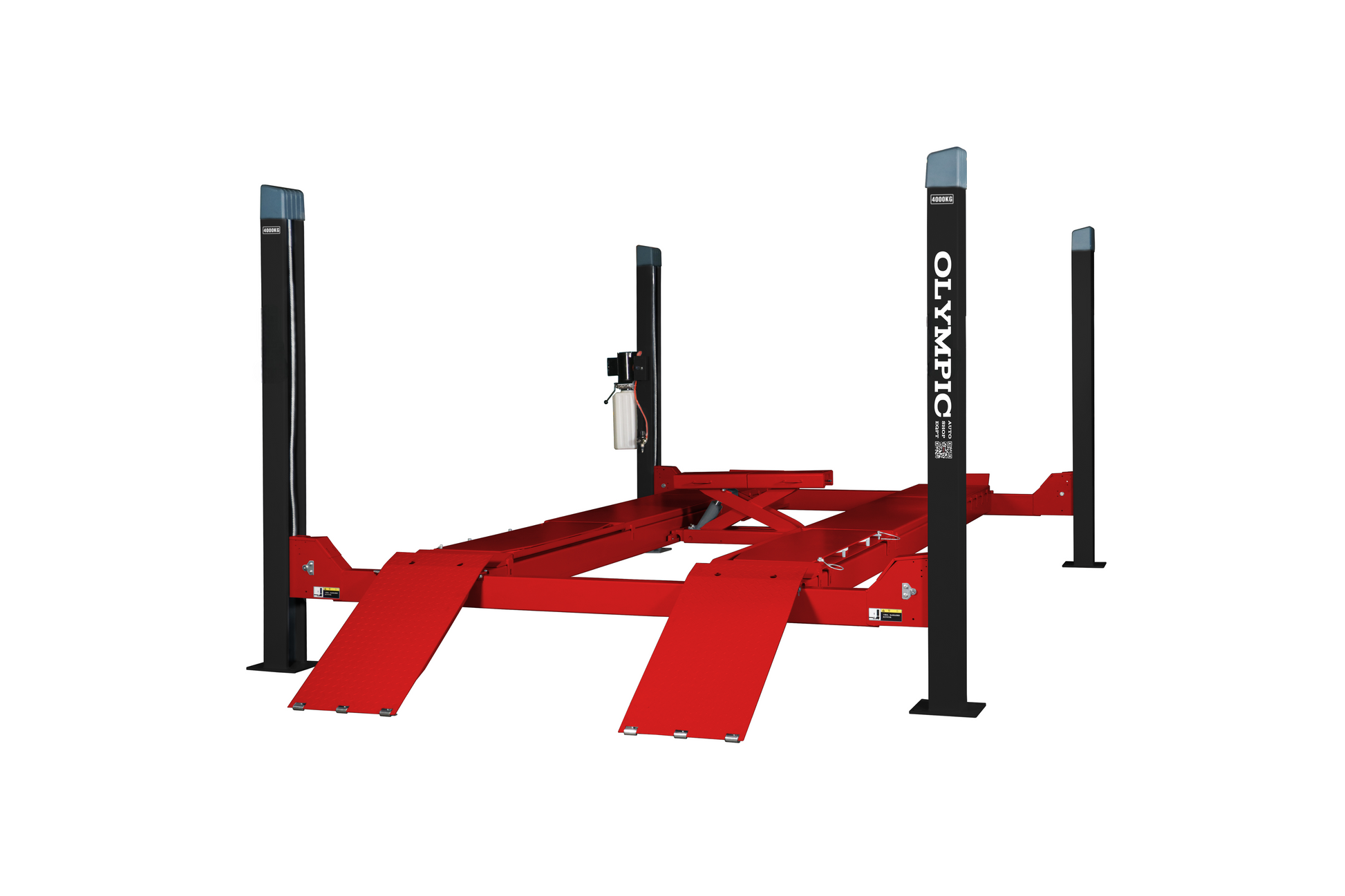

Olympic 4PHDXLA-12 Heavy-Duty Alignment Lift
Professional-grade 12,000 lb. alignment lift designed for high-volume automotive shops.
The Olympic 4PHDXLA-12 delivers dependable lifting performance, exceptional durability, and precision alignment capability. Designed to handle everything from passenger vehicles to long-bed dually trucks and commercial service vehicles, this lift features integrated heavy-duty slip plates and front turntables for accurate wheel alignments and efficient service work.
Constructed from high-strength Q235 structural steel and finished with a durable powder coating, the 4PHDXLA-12 is built to withstand years of demanding daily use.
Every Olympic lift is backed by our industry-leading 10-Year Warranty for long-term confidence.

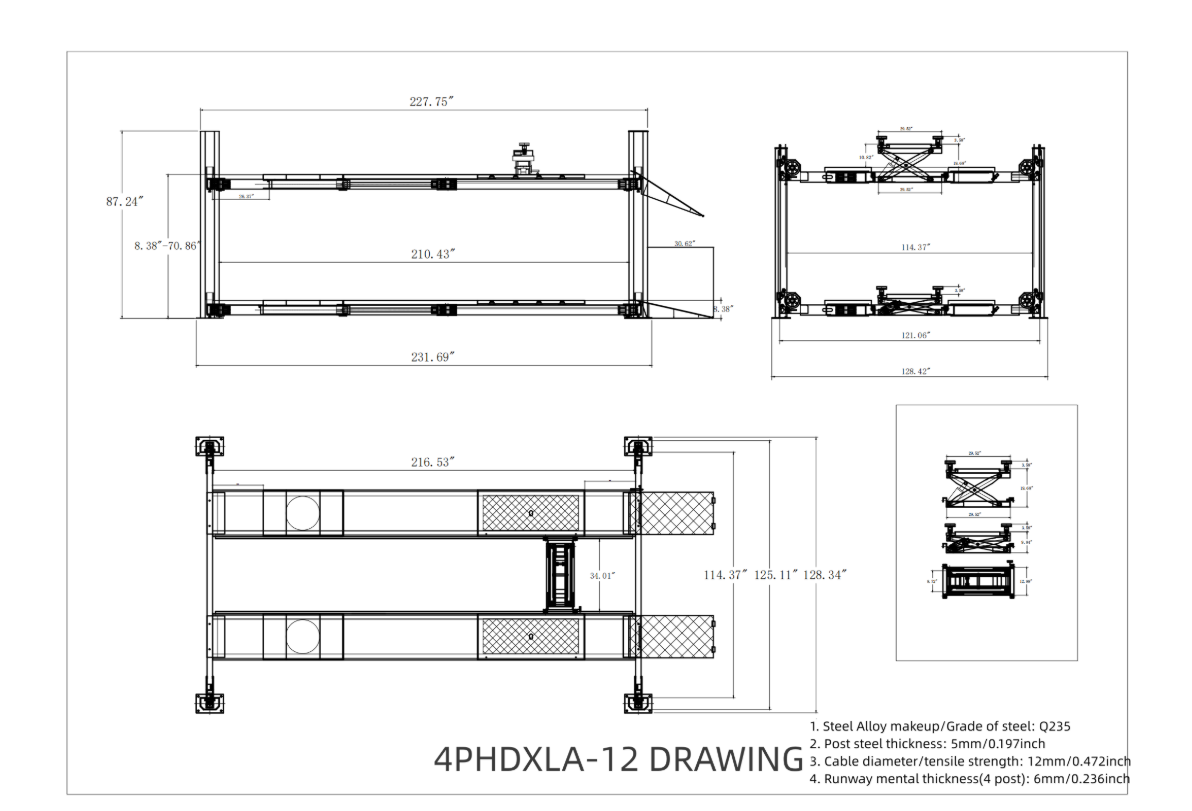

Key Dimensions:
Overall Height: 87.40"
Maximum Lift Height: 70.86"
Overall Length: 245.47"
Runway Length: 196.85"
Overall Width: 132.40"
Key Features
- Industry-leading Olympic 10-Year Warranty
- 12,000 lb. lifting capacity
- Heavy-duty Q235 structural steel construction
- Includes front turntables and rear slip plates for professional alignments
- Maximum lifting height of 70.86"
- Air-operated lock release system
- 21.6" wide runways
- Cable-driven lifting system for smooth operation
- Multi-position safety locking system
- Adjustable runway spacing to accommodate various vehicle widths
- Cable anti-failure safety protection
- Premium Italian hydraulic oil seals
- Durable powder-coated finish for corrosion resistance
- 220V, 3HP (3.0KW), single-phase motor
- Optional 7,000 lb. rolling bridge jack (Part No. HLCJ-14)
Safety Features
- Multi-position mechanical locking system
- Air-operated lock release
- Cable anti-failure protection
- Heavy-duty steel construction
- Precision hydraulic lifting system
- Designed for commercial daily-use environments
Specifications
| Model |
4PHDXLA-12 |
| Warranty |
10-Year Warranty |
| Lifting Capacity |
12,000 lbs. |
| Motor |
AC220/230V • 50Hz • 3.0KW |
| Lifting Height |
1800 mm (70.86") |
| Overall Height |
87.40" |
| Overall Length |
245.47" |
| Overall Width |
132.40" |
| Runway Length |
196.85" |
| Platform / Approach Length |
211.96" |
| Runway Sections |
45.27" / 64.96" / 40.15" |
| Width Between Columns |
2,880 mm |
| Wheelbase Range |
2,445 mm – 2,945 mm |
| Lift Time |
Approximately 60 seconds |
| Lowering Time |
Approximately 50 seconds |
| Lift Weight |
1,400 kg |
Why Choose Olympic?
Olympic Equipment builds commercial-grade automotive lifts trusted by professional repair shops, dealerships, restoration facilities, and enthusiasts across North America. Every lift is engineered for strength, reliability, and ease of use, then backed by our industry-leading 10-Year Warranty, giving you the confidence to invest in equipment built to perform for years to come.
