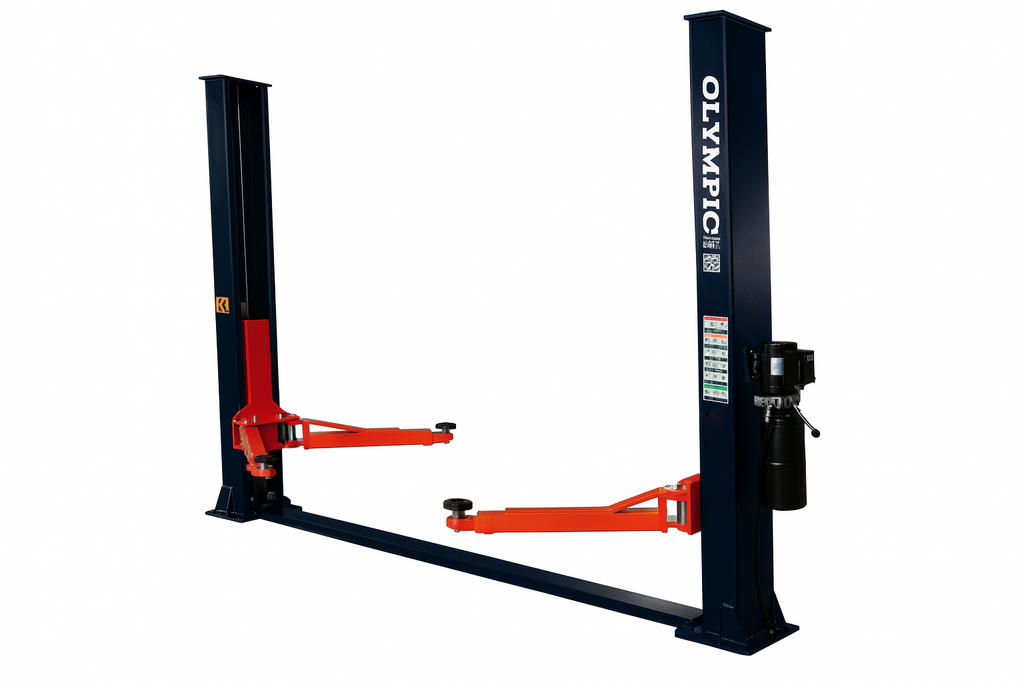

Olympic 2PBPXW-10 10,000 lb Extra-Wide 2-Post Base Plate Car Lift

The Olympic 2PBPXW-10 is a 10,000 lb extra-wide 2-post base plate car lift built for professional automotive service, commercial garages, and demanding vehicle repair applications. Its extra-wide design provides a 104-inch drive-through width, making it well suited for larger vehicles, dual-wheel trucks, and service vehicles.

Designed for facilities with lower ceiling clearance, this base plate vehicle lift has an overall height of 110 inches and fits under a ceiling height of approximately 9 ft. 3 in. The lift combines heavy-duty Q235 structural steel, large-diameter hydraulic cylinders, three-stage symmetrical long-reach arms, and a synchronized hydraulic system for dependable professional use.

With a 10,000 lb lifting capacity, adjustable foot adapters, and included truck adapters, the Olympic 2PBPXW-10 provides a versatile lifting solution for automotive repair shops and commercial service facilities.

KEY FEATURES

• 10,000 lb lifting capacity
• Extra-wide 2-post base plate configuration
• 104-inch drive-through width
• 116-inch width between posts
• Three-stage symmetrical long-reach extension arms
• Three-stage screw-on adjustable height foot adapters
• Convenient single-point lock release
• Large-diameter hydraulic cylinder in each column
• Synchronized hydraulic lifting system
• Automatic stop at maximum lifting height
• 15 locking positions
• High-quality Q235 structural steel construction
• Deluxe pin-on carriage
• Durable powder-coated finish
• Door anti-crush rubber protection
• Swing arm supports with high-quality pads
• Includes four 3.5-inch truck adapters
• Mounting hardware included
• 3HP, 2.2KW, single-phase power unit
• 110V power unit included with 220V option
• Certified and tested at 150% of rated capacity
• Olympic 10-Year Warranty



SPECIFICATIONS

BENEFITS

The extra-wide configuration gives automotive professionals additional drive-through clearance when servicing larger vehicles. With a 104-inch drive-through width and 10,000 lb capacity, this lift is designed to support a broad range of commercial automotive service applications.

The three-stage symmetrical long-reach arms provide flexible vehicle positioning, while the adjustable foot adapters help accommodate different lifting points. The included 3.5-inch truck adapters further support service work on compatible larger vehicles.

The base plate design and 110-inch overall height make this professional vehicle lift suitable for workshops and garages with lower ceiling clearance. Its synchronized hydraulic system and 15 locking positions provide controlled lifting and positioning during automotive maintenance and repair work.

IDEAL FOR

• Commercial automotive repair shops
• Professional mechanic garages
• Automotive service centers
• Vehicle maintenance facilities
• Truck service applications
• Dual-wheel vehicle service
• Fleet maintenance operations
• Professional automotive workshops



WHY CHOOSE THIS PRODUCT

The Olympic 2PBPXW-10 combines a 10,000 lb lifting capacity with an extra-wide base plate design for professional automotive service. Its 104-inch drive-through width provides additional clearance for larger service vehicles, while the three-stage long-reach arms and adjustable foot adapters offer flexible vehicle positioning.

Built with heavy-duty structural steel, hydraulic cylinders in each column, synchronized lifting, and multiple locking positions, this commercial-grade 2-post vehicle lift is designed for demanding garage and workshop environments.

Upgrade your automotive service facility with the Olympic 2PBPXW-10 10,000 lb extra-wide 2-post base plate car lift. Built for professional garages, trucks, dual-wheel vehicles, and demanding automotive repair applications.
