Olympic 2PTS-8800 8,800 lb. Two-Post Triple Stacker Parking Lift
$14,599.00 USD
$19,465.00 USD
Pickup currently not available
Product details & specifications
Triple Your Parking Capacity
The Olympic 2PTS-8800 is a purpose-built two-post triple stacking lift that stores up to three vehicles in one organized footprint. Two independently positioned platforms provide a combined 8,800 lb. rated platform capacity, while the open ground level is sized for a larger SUV.
This system is configured for collectors, private garages, dealerships, race teams, and vehicle storage facilities that need maximum vertical capacity without giving up valuable floor space.
CUSTOM ORDER ONLY — ESTIMATED 60–90 DAYS.
Choose your powder-coat color. Bundle three or more lifts and save an additional 5% on top of the current sale price.
Choose your powder-coat color. Bundle three or more lifts and save an additional 5% on top of the current sale price.
Key Features
- 8,800 lb. total rated platform capacity
- 4,400 lb. capacity per lifting platform
- Two-post triple-stacking layout for up to three vehicles
- Designed for sedans on the platforms and a large SUV at ground level
- Anti-fall mechanical safety locks
- Electric safety-lock release
- Push-button control box
- Upper travel limit switch stops the lift automatically at maximum height
- Customizable platform height for project-specific clearances

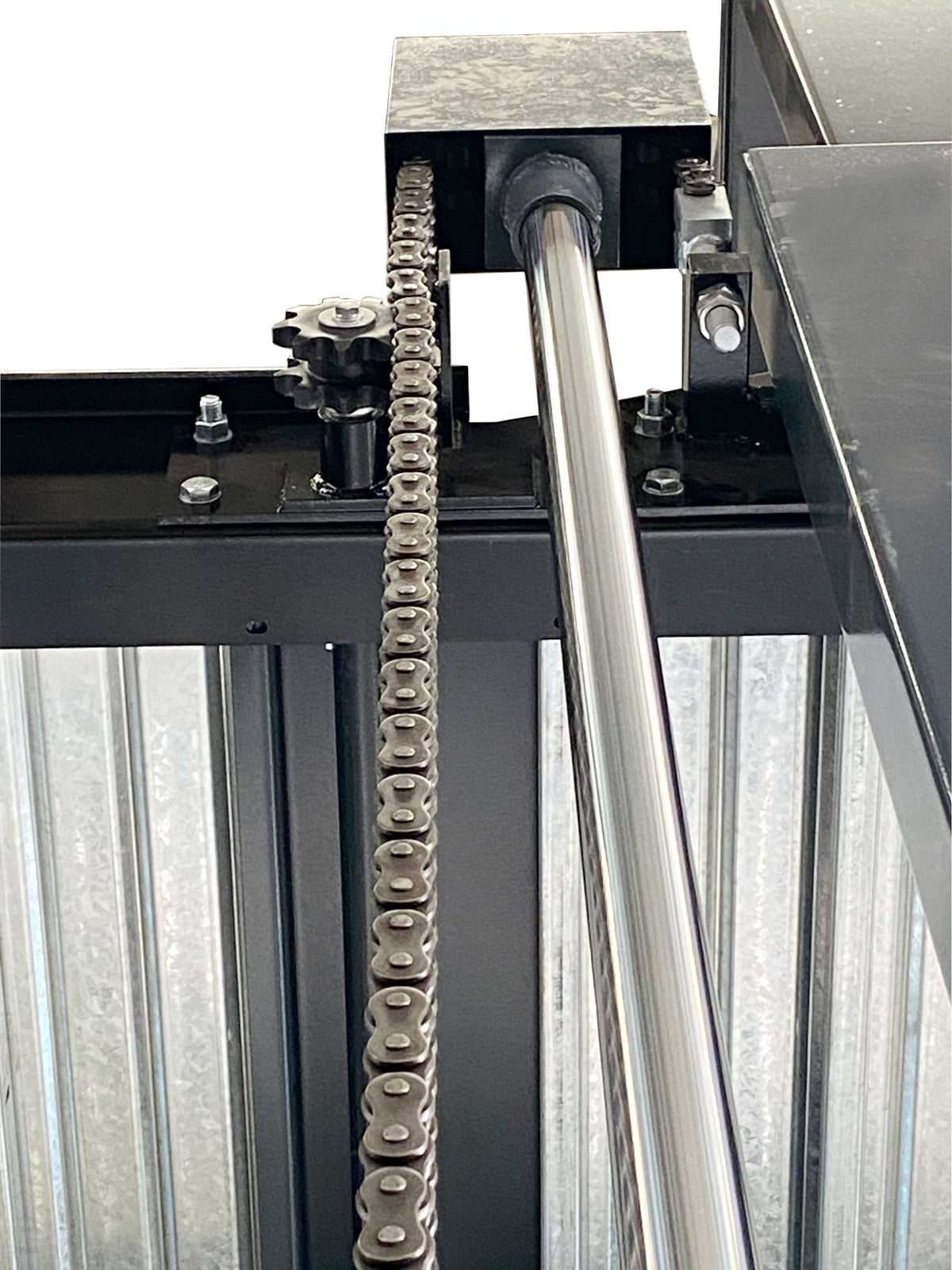

- Hydraulic cylinders and chain drive for smooth, quiet operation
- 2.2 kW hydraulic power unit
- Powder-coated finish with custom RAL colors available

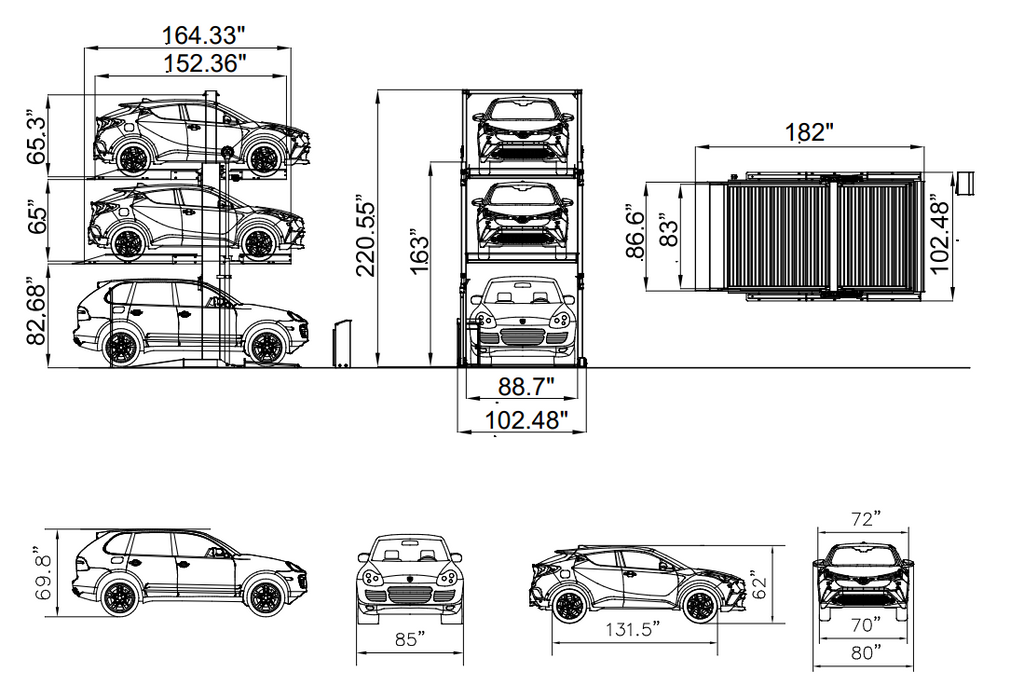

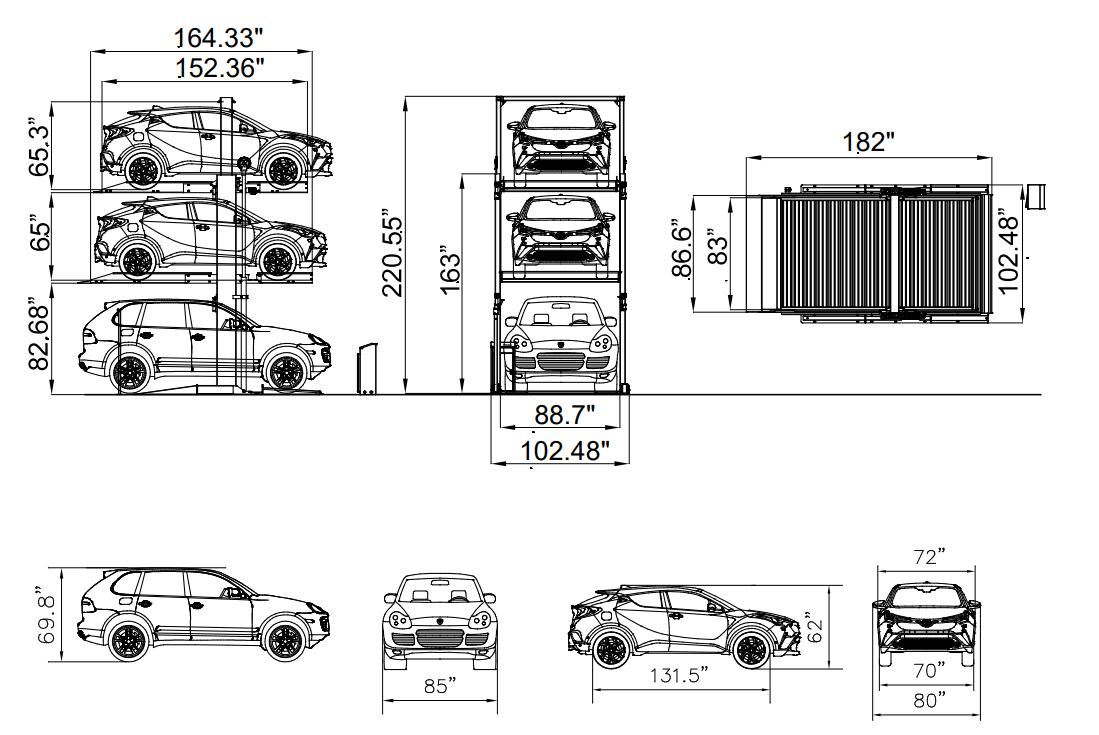

Specifications
| Specification | Details |
|---|---|
| Model | Olympic 2PTS-8800 |
| Lift Style | Two-Post Triple Stacker |
| Total Rated Platform Capacity | 8,800 lbs. |
| Top Platform Capacity | 4,400 lbs. |
| Lower Platform Capacity | 4,400 lbs. |
| Overall Height | 220.55 in. |
| Overall Width | 102.48 in. |
| Overall Length With Ramp | 182 in. |
| Upper Platform Length | 152.36 in. |
| Lower Platform Length | 164.33 in. |
| Bottom Platform Lifting Height | 82.68 in. |
| Clearance Between Platforms | 65 in. |
| Top Vehicle Clearance | 65.3 in. |
| Motor | 2.2 kW |
| Finish | Powder coated; custom RAL colors available |
| Order Type | Custom order only |
| Estimated Lead Time | 60–90 days |
Built Around Your Collection
Choose a finish that matches your personal garage, race-team identity, corporate colors, or showroom design. Platform height can be configured around your vehicles and available ceiling height.
Planning multiple bays? Bundle three or more lifts and receive an additional 5% savings on top of the current sale.
Ideal For
- Private collector garages
- Race teams and motorsports facilities
- Dealership display and storage
- Commercial vehicle storage
- High-density parking projects
- Garages with limited floor space and generous ceiling height
Fit and Installation
Vehicle dimensions, ceiling height, slab requirements, power, access, and installation conditions must be confirmed before ordering. Contact Olympic Equipment for fit guidance, color selection, delivery planning, and professional installation options.
