Pickup currently not available

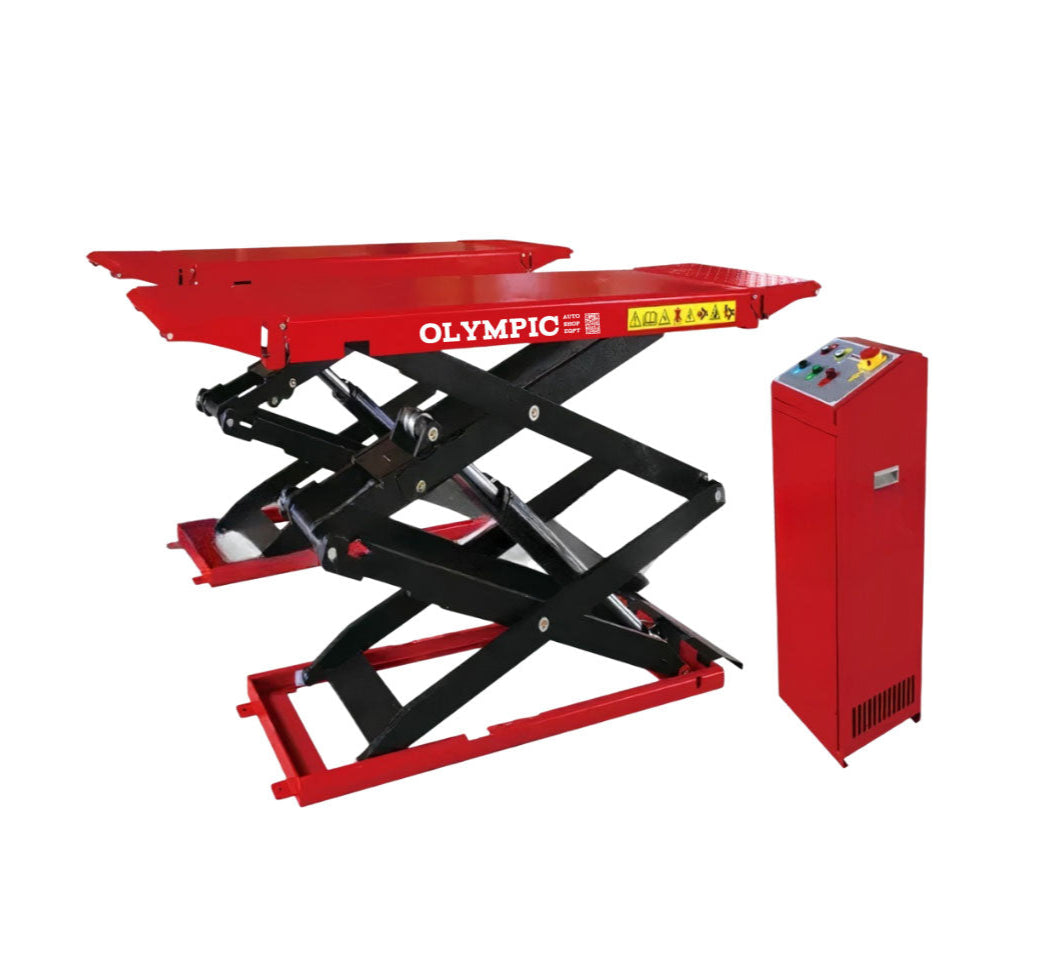

The Olympic FRSL-78 is a professional 7,800 lb full-rise scissor car lift designed for automotive repair shops, garages, workshops, and vehicle service environments where lifting height and space efficiency are important.
With a maximum lift height of 72.8 inches and an ultra-thin 4.1-inch minimum profile, the FRSL-78 provides substantial under-vehicle access while maintaining a compact installation footprint. The lift can also be configured for flush-mount installation, creating a clean drive-over surface when installed appropriately.
Its full-rise scissor configuration is designed to accommodate cars, trucks, and SUVs within the 7,800 lb rated capacity.

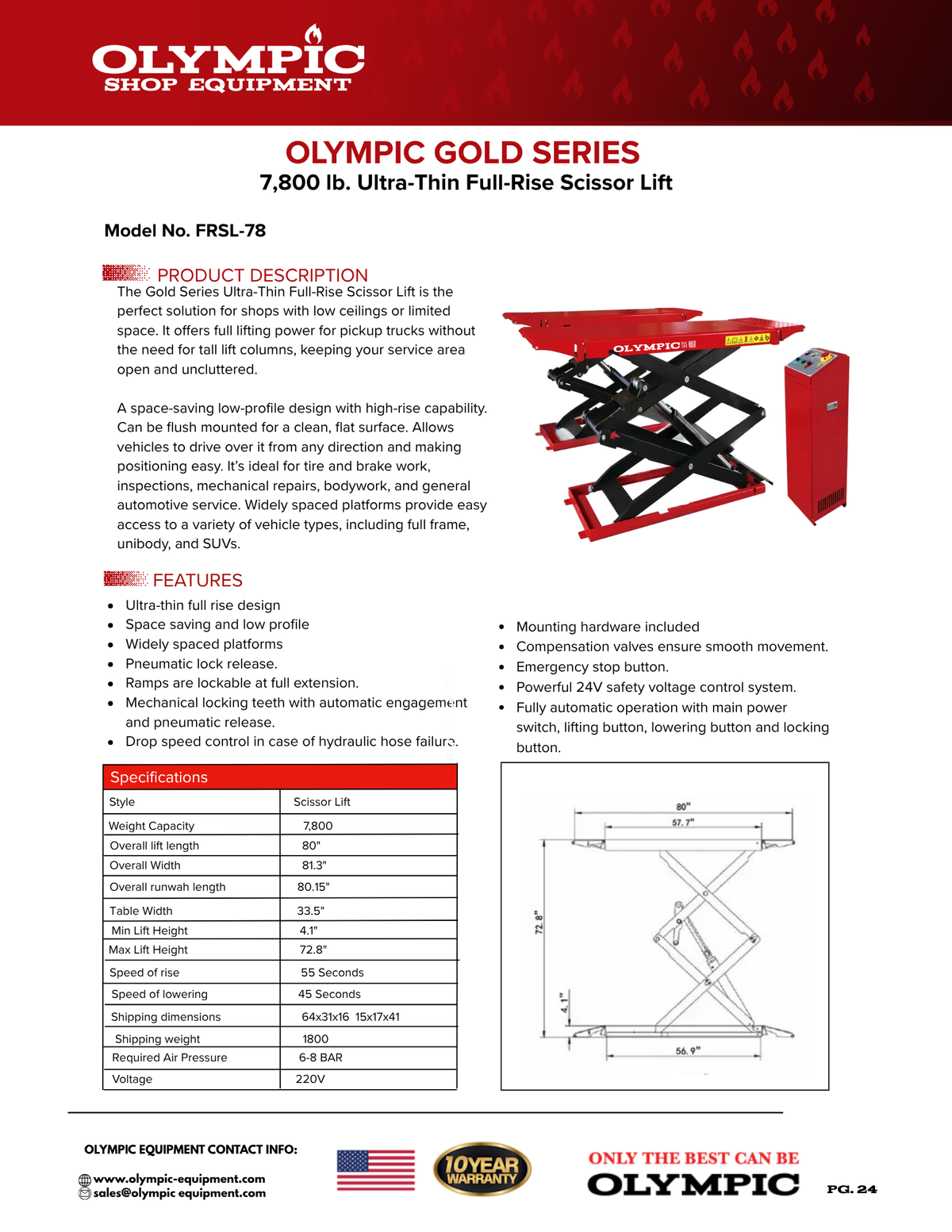

| Model | Olympic FRSL-78 |
|---|---|
| Lift Type | Full-Rise Scissor Lift |
| Lifting Capacity | 7,800 lbs. |
| Overall Lift Length | 80 inches |
| Overall Width | 81.3 inches |
| Minimum Lift Height | 4.1 inches |
| Maximum Lift Height | 72.8 inches |
| Table Width | 33.5 inches |
| Rise Time | Approximately 55 seconds |
| Lowering Time | Approximately 45 seconds |
| Required Air Pressure | 6–8 BAR |
| Motor | 3 HP, 2.2KW, single-phase |
| Voltage | 220V |
| Installation Option | Flush-mount capable |
| Safety System | Mechanical locking teeth with pneumatic release, drop-speed control, emergency stop, 24V safety control |
| Warranty | 7-Year Warranty |
The FRSL-78 provides full-rise vehicle access while maintaining an ultra-thin profile. Its 72.8-inch maximum lifting height allows technicians to work with greater access underneath supported vehicles.
The flush-mount option can provide a clean, drive-over surface when the lift is installed according to applicable installation requirements. This makes the configuration suitable for workshops where floor space and bay accessibility are important considerations.
Automatic mechanical locking teeth, pneumatic release, drop-speed control, compensation valves, and an emergency stop provide multiple operating and safety features for professional vehicle service applications.
The Olympic FRSL-78 combines a 7,800 lb lifting capacity with a full-rise scissor configuration and ultra-thin 4.1-inch profile. Its 72.8-inch maximum lift height, flush-mount option, hydraulic power system, automatic locking controls, and professional-grade structural steel construction make it a practical choice for automotive service environments.
Olympic states that this model is load-tested at 150% of its rated capacity. Buyers should verify current model-specific certification and test documentation before purchase and installation.
Upgrade your automotive service equipment with the Olympic FRSL-78 7,800 lb Full-Rise Scissor Car Lift. With a 72.8-inch lifting height, ultra-thin profile, flush-mount option, and 220V 3HP hydraulic power unit, it provides professional vehicle lifting capability for qualified automotive service environments.
