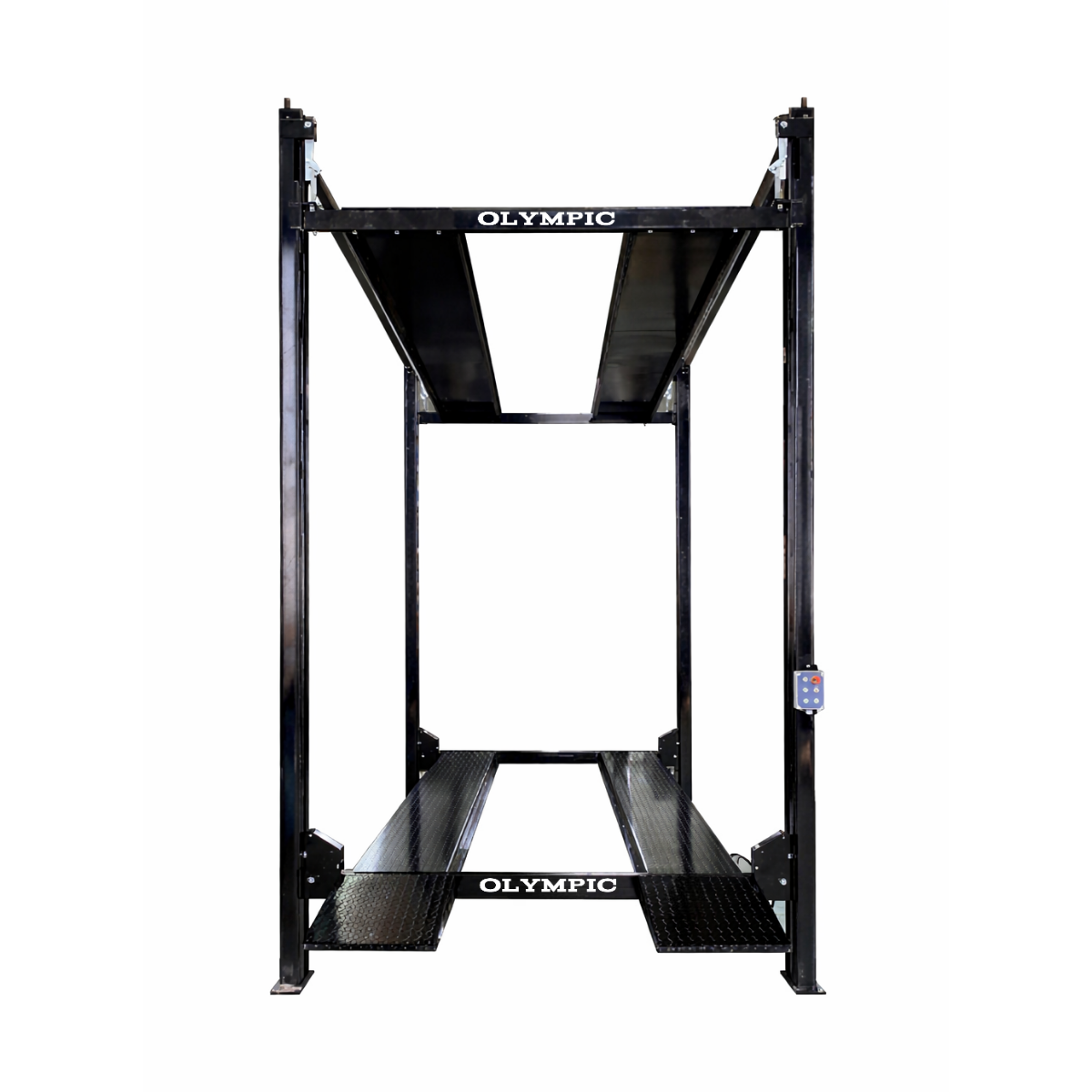

Olympic Triple Stacker-XL 4-Post 3-Car Storage Lift – 16,000 lb Capacity

The Olympic Triple Stacker-XL Model 4032-XL is a heavy-duty 4-post triple car storage lift designed to store three vehicles within a single parking footprint. Its three-level configuration provides an efficient way to maximize vertical storage space for garages, dealerships, vehicle collections, and professional storage facilities.

Designed specifically to accommodate larger classic cars and trucks from the golden age of American automotive manufacturing, the Triple Stacker-XL combines wide platforms, substantial lifting capacity, and a space-saving vertical configuration.

The lift provides a 16,000 lb total capacity, with a 9,000 lb lower platform capacity and 7,000 lb upper platform capacity. A 220V 3KW single-phase power unit and electric button controls provide straightforward operation.

KEY FEATURES

• Heavy-duty 4-post design for three-vehicle storage
• Stores up to three vehicles in one parking footprint
• 16,000 lb total capacity
• 9,000 lb lower platform capacity
• 7,000 lb upper platform capacity
• Designed for large classic cars and trucks
• Wide platform design for larger vehicles
• Heavy-duty Q235 structural steel construction

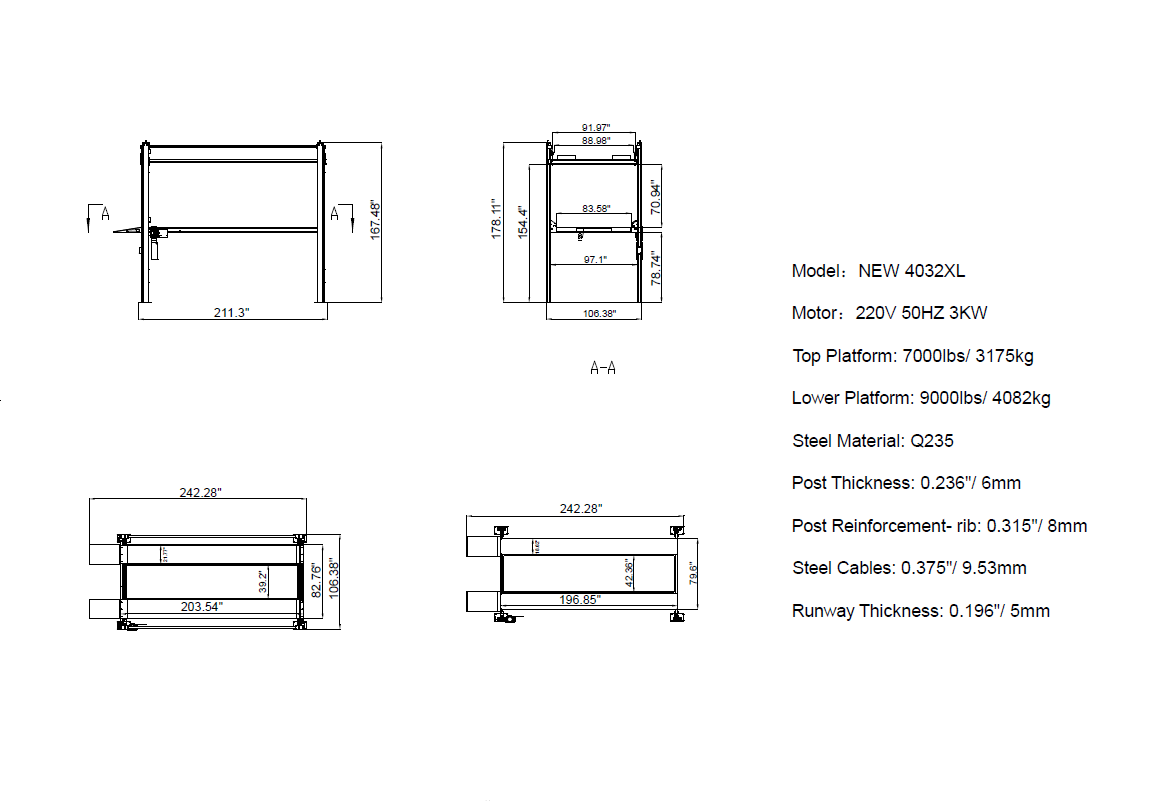

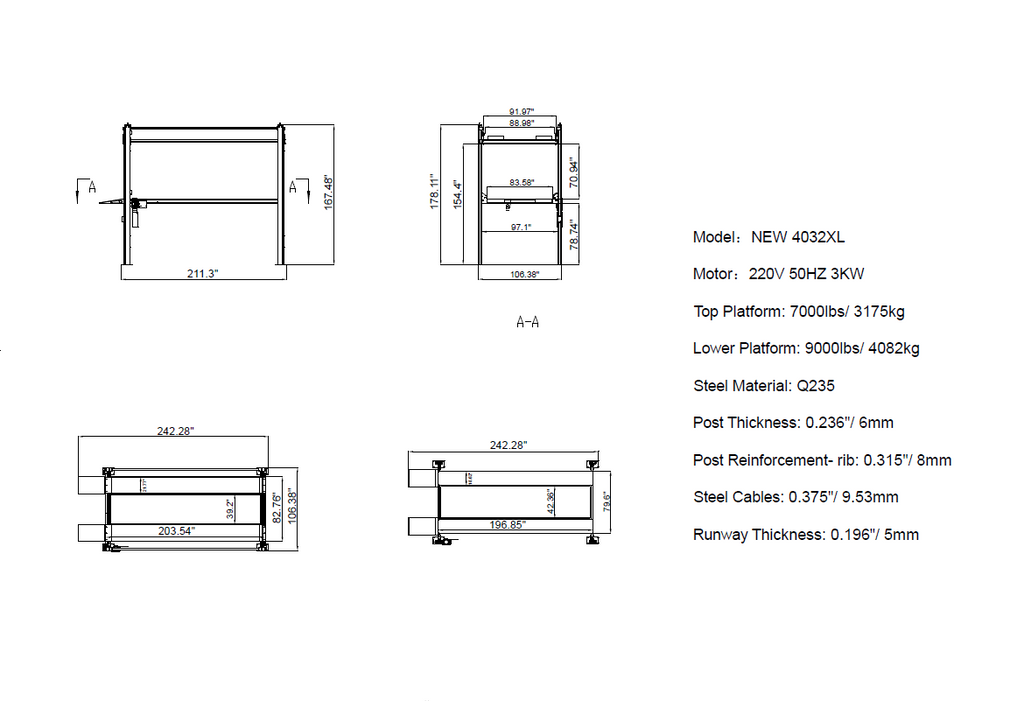

• Maximum upper platform rise of 154.4"
• 70.94" clearance between platforms
• Maximum lower platform rise of 78.74"

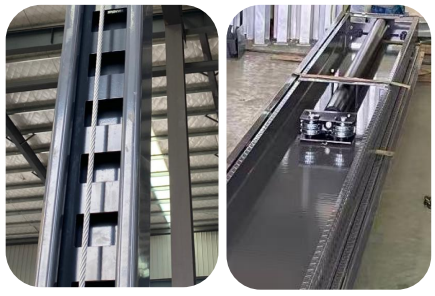

• Single-channel ladder locking system
• Anti-failure locking system

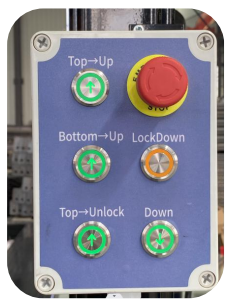

• Electric button controls
• User-friendly control box included
• Includes six plastic oil trays
• Includes two heavy-duty steel ramps
• 220V 3KW 60Hz 1-phase power unit
• Suitable for residential and commercial applications
• 10-year warranty
• Special-order product

SPECIFICATIONS

BENEFITS

• Maximize parking space: Store three vehicles vertically within a single parking footprint.
• High-capacity storage: The lower 9,000 lb and upper 7,000 lb capacities provide substantial support for multi-vehicle storage.
• Designed for larger vehicles: The extended dimensions and wide platform design are suited to large classic cars and trucks.
• Efficient vehicle organization: A three-level configuration helps dealerships, collectors, and storage facilities organize multiple vehicles vertically.
• Heavy-duty construction: Q235 structural steel provides a robust foundation for demanding vehicle storage applications.
• Convenient operation: Electric button controls and the included control box provide straightforward lift operation.
• Added protection: The ladder locking and anti-failure locking systems provide additional security during operation.

IDEAL FOR

• Classic car collections
• Automotive dealerships
• Vehicle storage facilities
• Professional garages
• Residential garages with suitable space
• Commercial parking and storage operations
• Automotive businesses
• Multi-vehicle storage facilities
• Large vehicle storage applications
• Professional vehicle collection facilities

WHY CHOOSE THIS PRODUCT

The Olympic Triple Stacker-XL is built for customers who need to increase vehicle storage capacity without expanding their parking footprint. Its three-level, 4-post configuration allows up to three vehicles to be stored vertically while providing substantial capacity for larger classic cars and trucks.

With a 16,000 lb total capacity, wide platforms, heavy-duty Q235 steel construction, electric controls, and dedicated locking systems, the 4032-XL is a practical solution for residential and commercial vehicle storage applications.

Before installation or operation, compare the identification plate and current product specifications with the manual supplied with the exact lift.

Maximize your available garage or commercial storage space with the Olympic Triple Stacker-XL 3-Car Storage Lift. This is a special-order product. Order the 4032-XL for a heavy-duty three-level vehicle storage solution designed for large cars and trucks.
