Olympic SCAL-9 Alignment Scissor Lift with Sub-Lift – 9,000 lb Capacity
$10,999.00 USD
$14,665.00 USD
Pickup currently not available
Product details & specifications
NEW FOR 2026
First arrival expected around the end of December 2026. Arrival timing is estimated and subject to change.

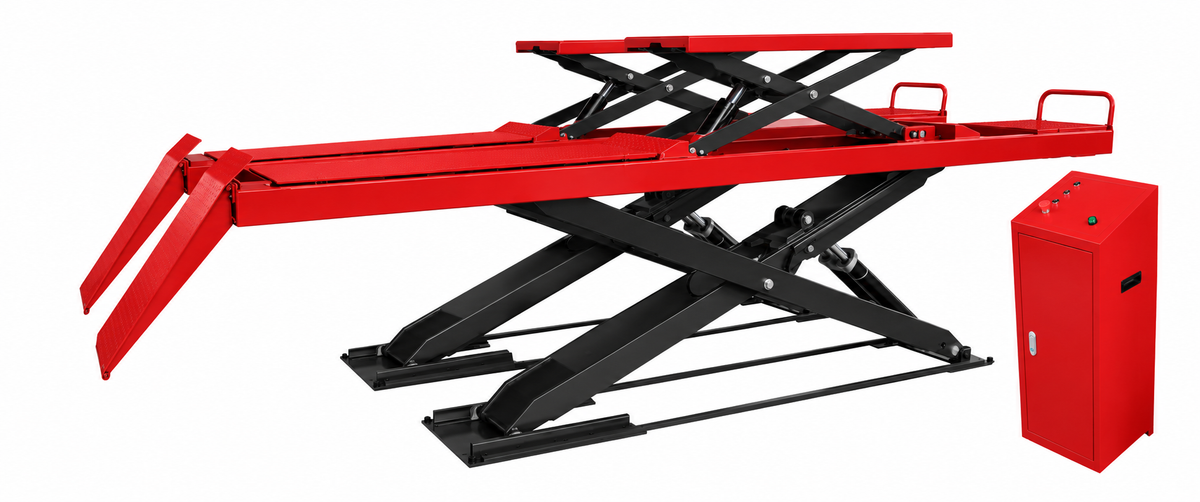

Olympic SCAL-9 Alignment Scissor Lift
Build your alignment bay around the Olympic SCAL-9, a 9,000 lb wheel alignment scissor lift with a built-in sub-lift. Its drive-on runways support alignment work, while the integrated lifting platform provides additional access for wheel, brake, and suspension service on compatible vehicles.
The full-rise scissor design reaches approximately 71 inches and keeps upright posts out of the working area. Adjustable turntable recesses and movable slip plates support alignment setup across compatible wheelbases.
Features for Your Alignment Bay
- 9,000 lb main-lift capacity with a separately rated 9,000 lb integrated sub-lift. Capacities are not additive.

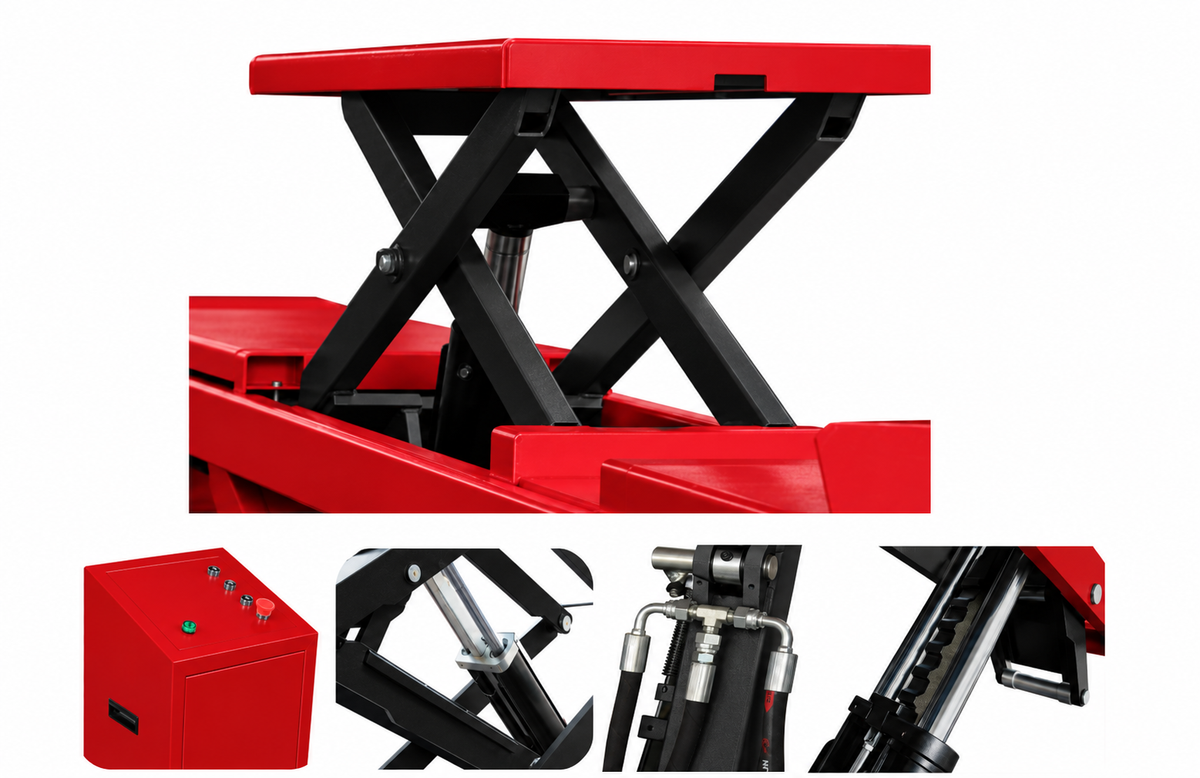

- Built-in sub-lift with approximately 19.7 inches of lifting travel above the runways.
- Hydraulic lifting system powered by an approximately 3 hp steel-housing motor.
- Mechanical safety locks with air-operated release.
- 24V control panel for lift operation.
- Alignment slip plates that move left, right, and rearward.
- Adjustable turntable recesses to accommodate different compatible wheelbases.
- Organized hydraulic hose routing for a tidy installation.
SCAL-9 Specifications
| Main-lift capacity | 9,000 lb |
|---|---|
| Sub-lift capacity | 9,000 lb |
| Maximum main-lift height | 70.9 in (approximately 71 in) |
| Sub-lift travel | 19.7 in |
| Minimum lowered height | 6.9 in |
| Runway length | 177.2 in (14 ft 9.2 in) |
| Overall length with ramps | 217.7 in (18 ft 1.7 in) |
| Overall lift width | 85.8 in (7 ft 1.8 in) |
| Width of each runway | 25.2 in |
| Clear space between runways | 35.4 in |
| Sub-lift platform length | 59.1 in |
| Approach ramp length | 36.6 in |
| Motor output | Approximately 3 hp |
| Control circuit | 24V |
| Lock release | Air-operated |
Plan Your SCAL-9 Installation
Confirm the required pit or recess layout, concrete requirements, electrical supply, and compressed-air requirements with Olympic Equipment before preparing your bay. The 24V specification refers to the control circuit, not the incoming electrical supply.
Turntable inclusion and alignment-system compatibility should be confirmed for your setup. The SCAL-9 is a vehicle lift; a computerized alignment measuring system is separate equipment.
