Model: T650 / The Olympic T650 Rim-Lock All-In-One Tire Changer / Pneumatically Operated Tilting Column / Double Assist Arms / Extra Large Capacity / 5-Year Warranty
1/2
Model: T650 / The Olympic T650 Rim-Lock All-In-One Tire Changer / Pneumatically Operated Tilting Column / Double Assist Arms / Extra Large Capacity / 5-Year Warranty
$3,770.00 USD $4,712.00 USD

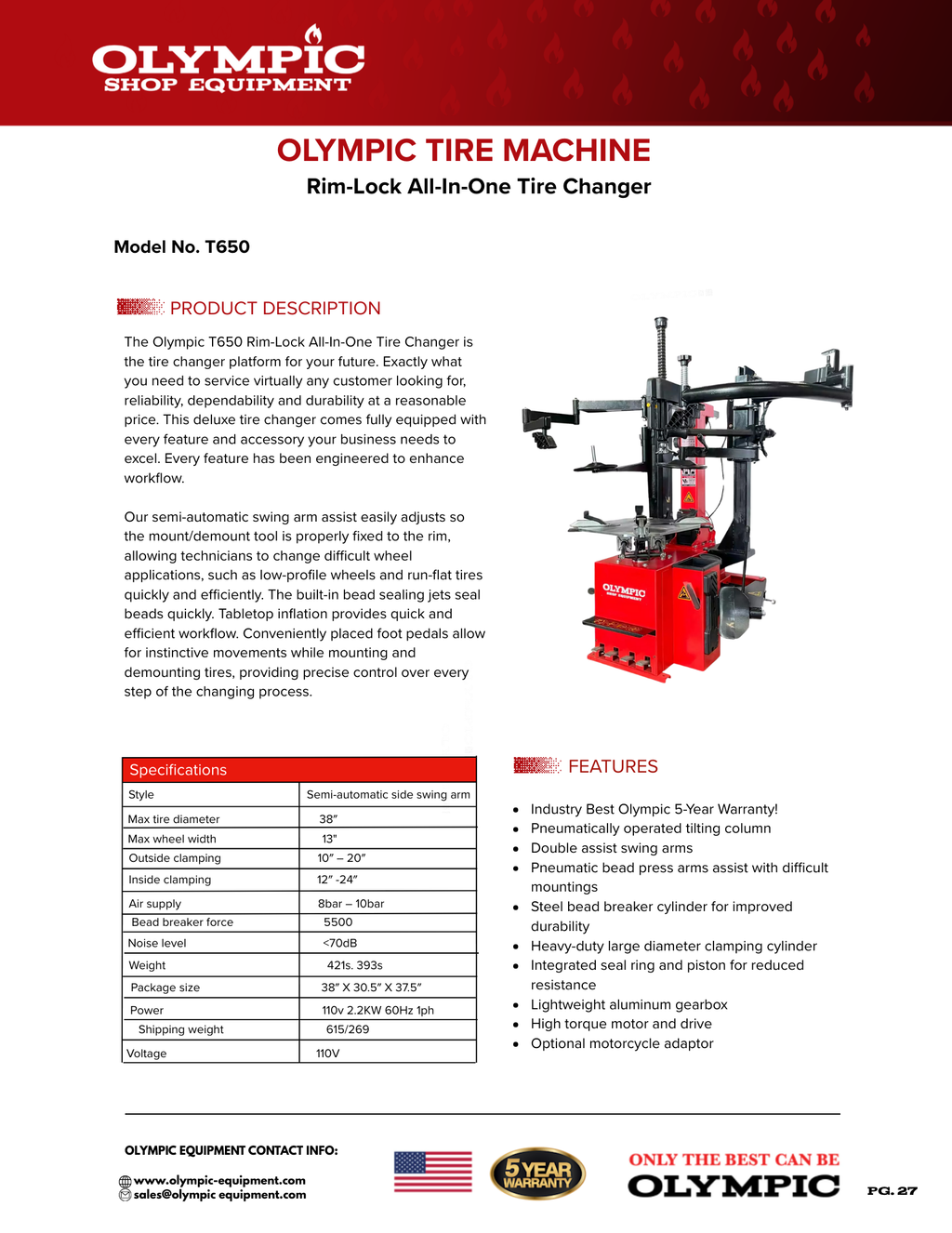

dOWNLOAD MANUAL
Model: T650

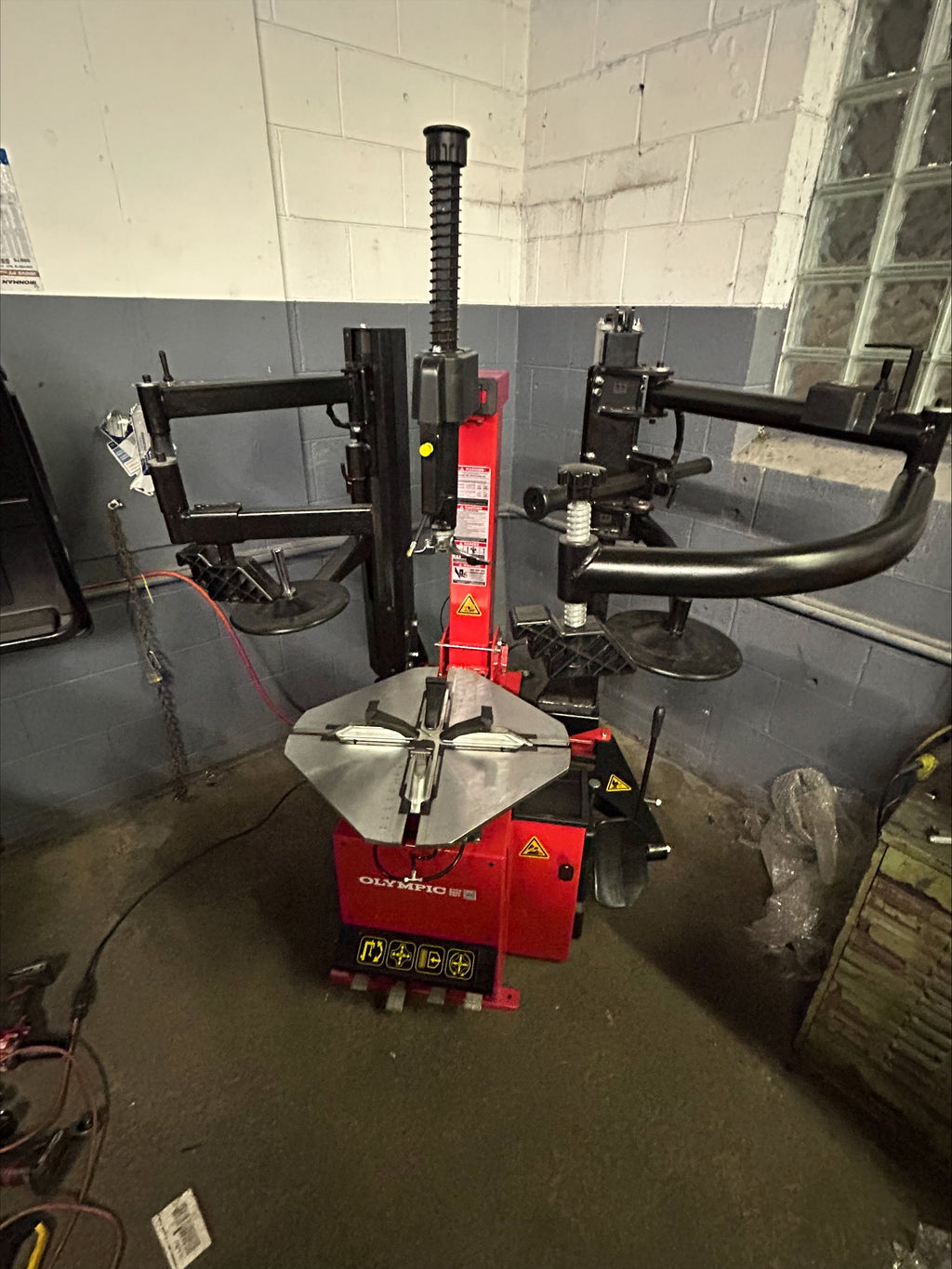

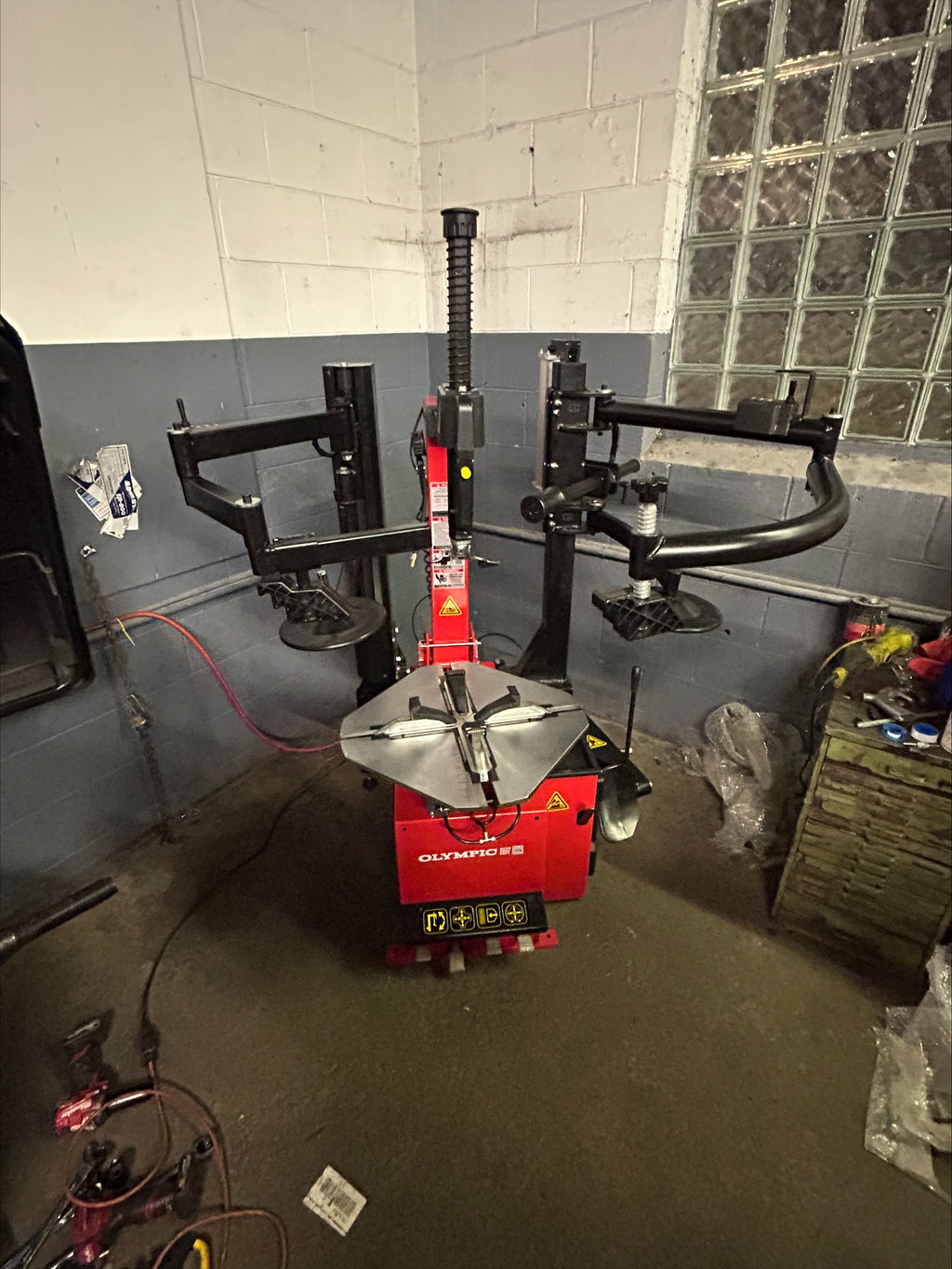

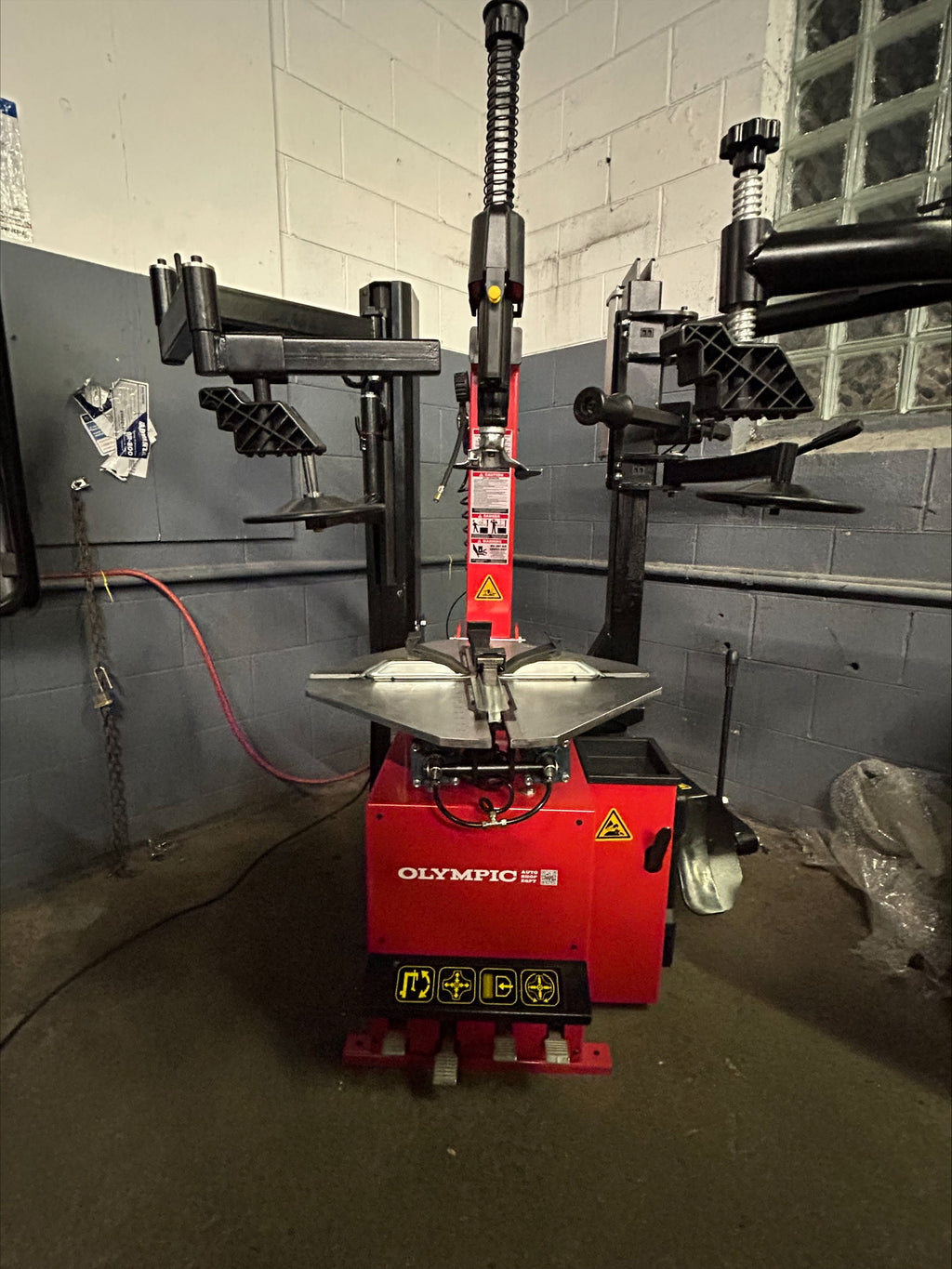

The Olympic T650 Rim-Lock All-In-One Tire Changer is the tire changer platform for your future. Exactly what you need to service virtually any customer looking for, reliability, dependability and durability at a reasonable price. This deluxe tire changer comes fully equipped with every feature and accessory your business needs to excel. Every feature has been engineered to enhance workflow.

Our semi-automatic swing arm assist easily adjusts so the mount/demount tool is properly fixed to the rim, allowing technicians to change difficult wheel applications, such as low-profile wheels and run-flat tires quickly and efficiently. The built-in bead sealing jets seal beads quickly. Tabletop inflation provides quick and efficient workflow. Conveniently placed foot pedals allow for instinctive movements while mounting and demounting tires, providing precise control over every step of the changing process. Industry Best Olympic 5-Year Warranty!

The T650 Rim-Lock Tire Changer features a compact cabinet and required workspace allowing it to easily fit into limited space applications without sacrificing capability.



NOTE: Optional motorcycle adapter available at checkout.

Features:

  • Industry Best Olympic 5-Year Warranty!
  • Pneumatically operated tilting column
  • Double assist swing arms
  • Pneumatic bead press arms assist with difficult mountings
  • Steel bead breaker cylinder for improved durability
  • Heavy-duty large diameter clamping cylinder
  • Integrated seal ring and piston for reduced resistance
  • Lightweight aluminum gearbox
  • Pneumatic bead breaker
  • Built in blast inflation
  • High torque motor and drive
  • Optional motorcycle adaptor



Specifications

Specification Semi-automatic side swing arm
Max tire diameter 38″
Max wheel width 13″
Outside clamping 10″ – 20″
Inside clamping 12″ -24″
Air supply 8bar – 10bar
Bead breaker force 5500lbs.
Noise level <70dB
Weight 421lbs. / 393lbs
Package size 38″ X 30.5″ X 37.5″
Power 110v 2.2KW 60Hz 1ph
