Model: Olympic 2PBP-12 / 12,000‐lb. HDXL / Base Plate 2-Post Lift / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 115″ H X 156″ W 10-Year Warranty / SHIPS FREE!
$4,958.00 USD
$6,198.00 USD
12,000 lbs
Capacity
74.8″
Max. Lift Height
10-Year
Warranty

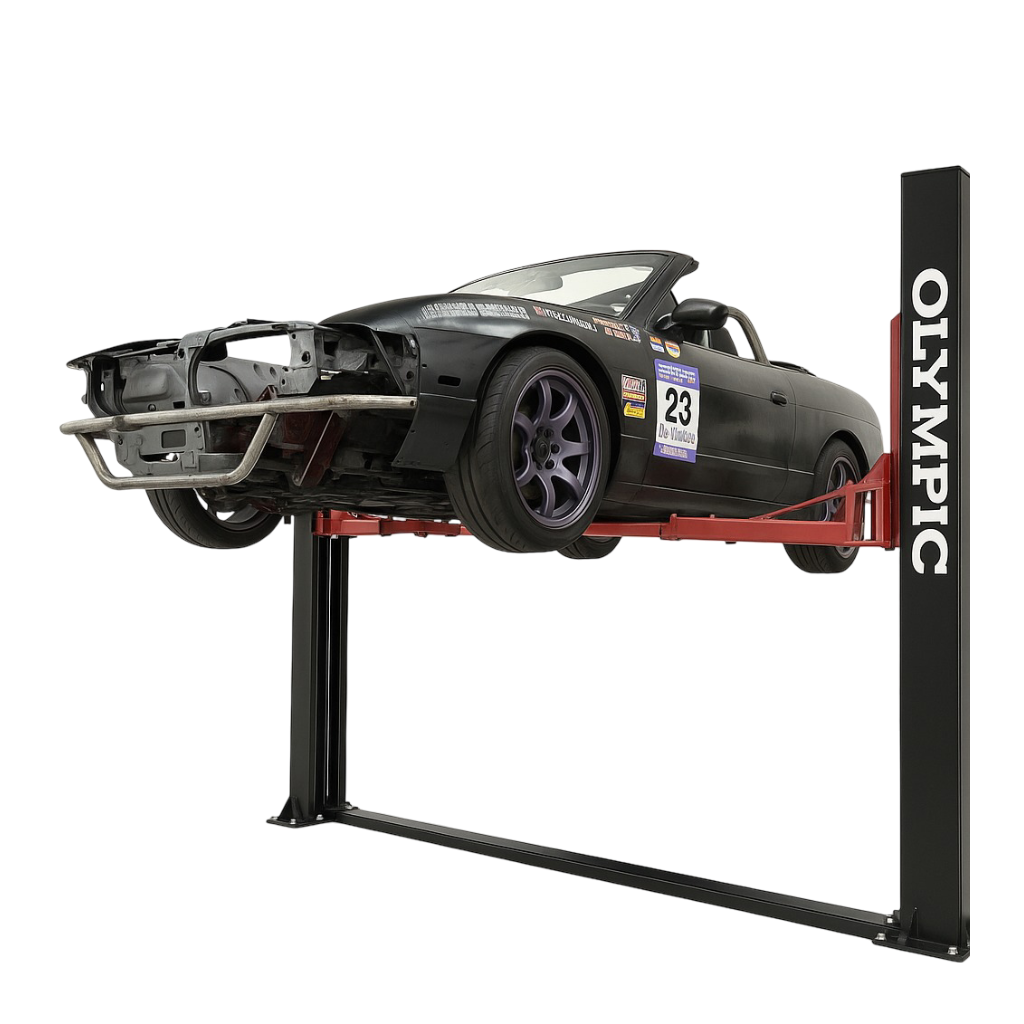

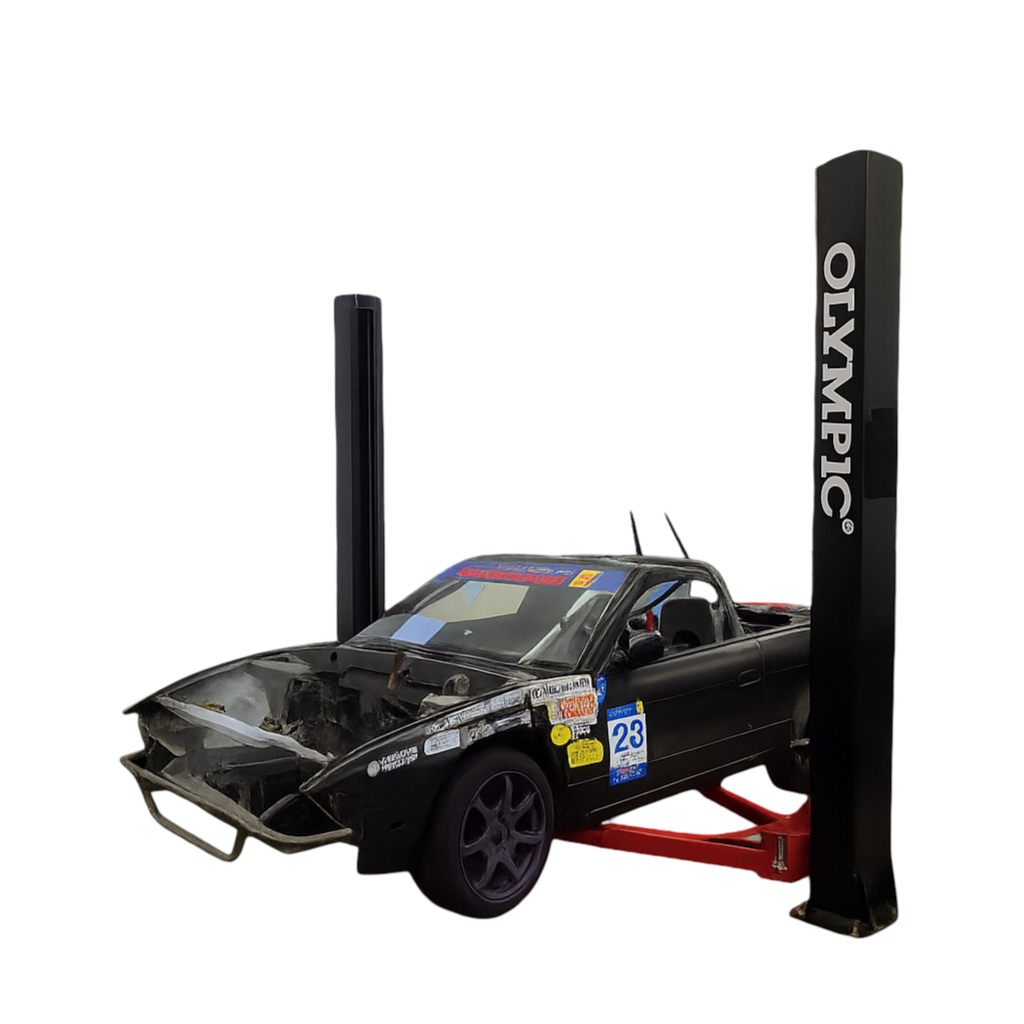

Olympic 2PBP-12 / 12,000 lb. Base Plate Lift
The heavyweight brute of the Olympic lineup.
A bulletproof, professional-grade lift offering extra width, low post height, and the muscle to handle service trucks, vans, and motorhomes.
Capacity: 12,000 lbs |
Fits Under Ceiling Height: 9′6″ |
Max. Lift Height: 74.8″
Key Features
- Olympic 10-Year Warranty!
- Technically advanced configuration
- Deluxe pin-on carriage
- Convenient single point lock release
- Large-diameter hydraulic cylinder in each column
- Three-stage symmetrical long reach extension arms
- Three-stage screw-on adjustable height foot adapters
- Durable powder-coated finish
- Automatic stop at maximum lifting height
- Synchronized hydraulic system
- Door anti-crush rubber protection
- Swing arm supports with high-quality pads
- Mounting hardware included
- Includes (4) 3.5″ truck adapters
- 110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option)
- Certified & tested at 150% of rated capacity

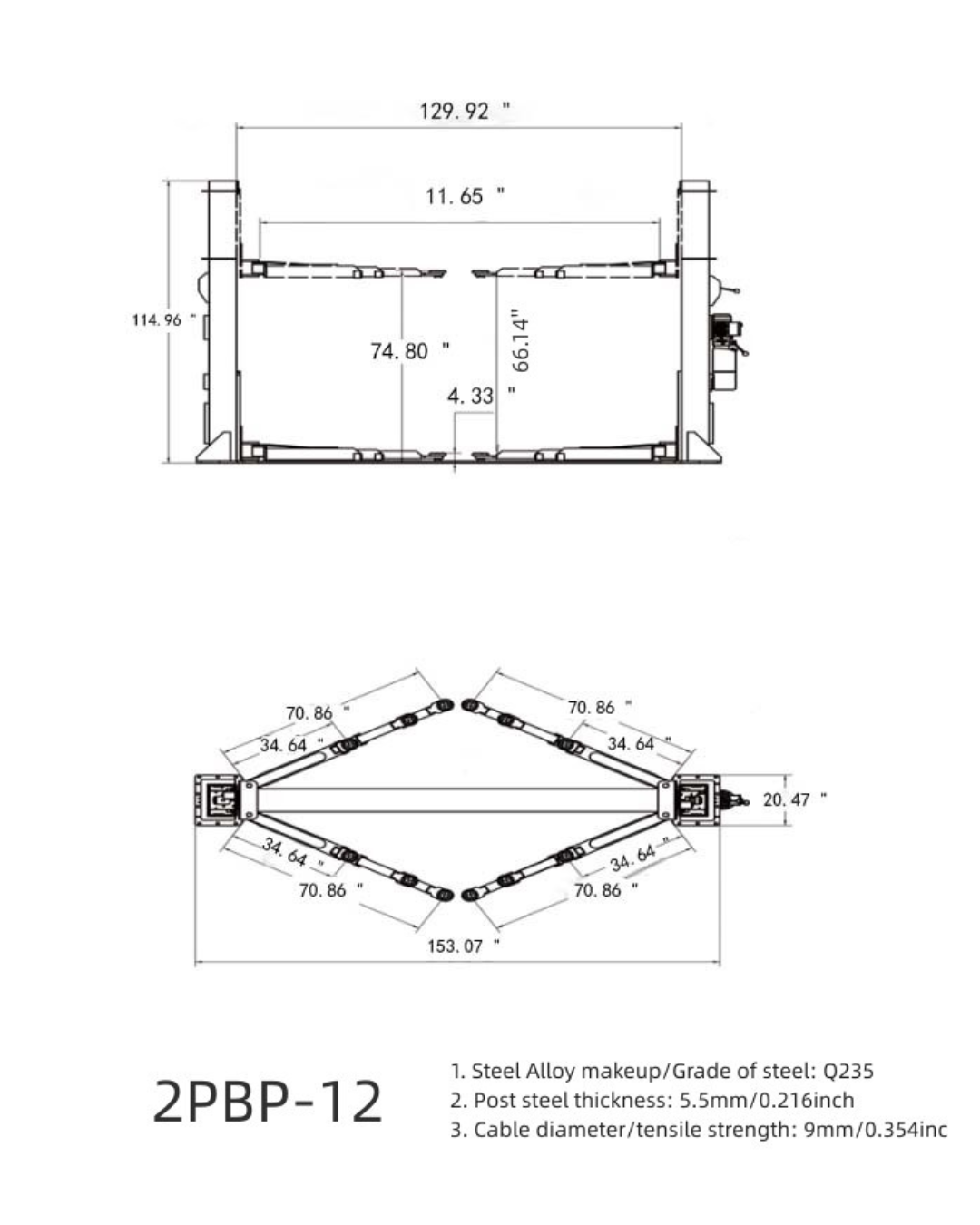

Specifications
| Style | 2-Post Base Plate |
|---|---|
| Capacity | 12,000 lbs |
| Overall Height | 114.96″ |
| Overall Width | 153.07″ |
| Voltage | 220V, 1-Phase |
| Min. Lift Height | 4.33″ |
| Max. Lift Height | 74.80″ |
| Width Between Posts | 130″ |
| Front Arm Reach | 34.64″ – 70.86″ |
| Rear Arm Reach | 34.64″ – 70.86″ |
| Speed of Rise | 50 seconds |
| Speed of Lowering | 50 seconds |
| Recommended Power Unit | HPU2204, 3KW, 4HP, 1PH |
| Fits Under Ceiling Height | 9′6″ |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
