Model: 2PBP-8 / 8,000-lb Silver Series Base Plate 2-Post Lift / 2-stage arms / Symmetric 2-stage foot pads / Dual point lock release / 5-year warranty
$2,698.00 USD
$3,372.00 USD
Model: 2PBP-8 / FREE SHIPPING

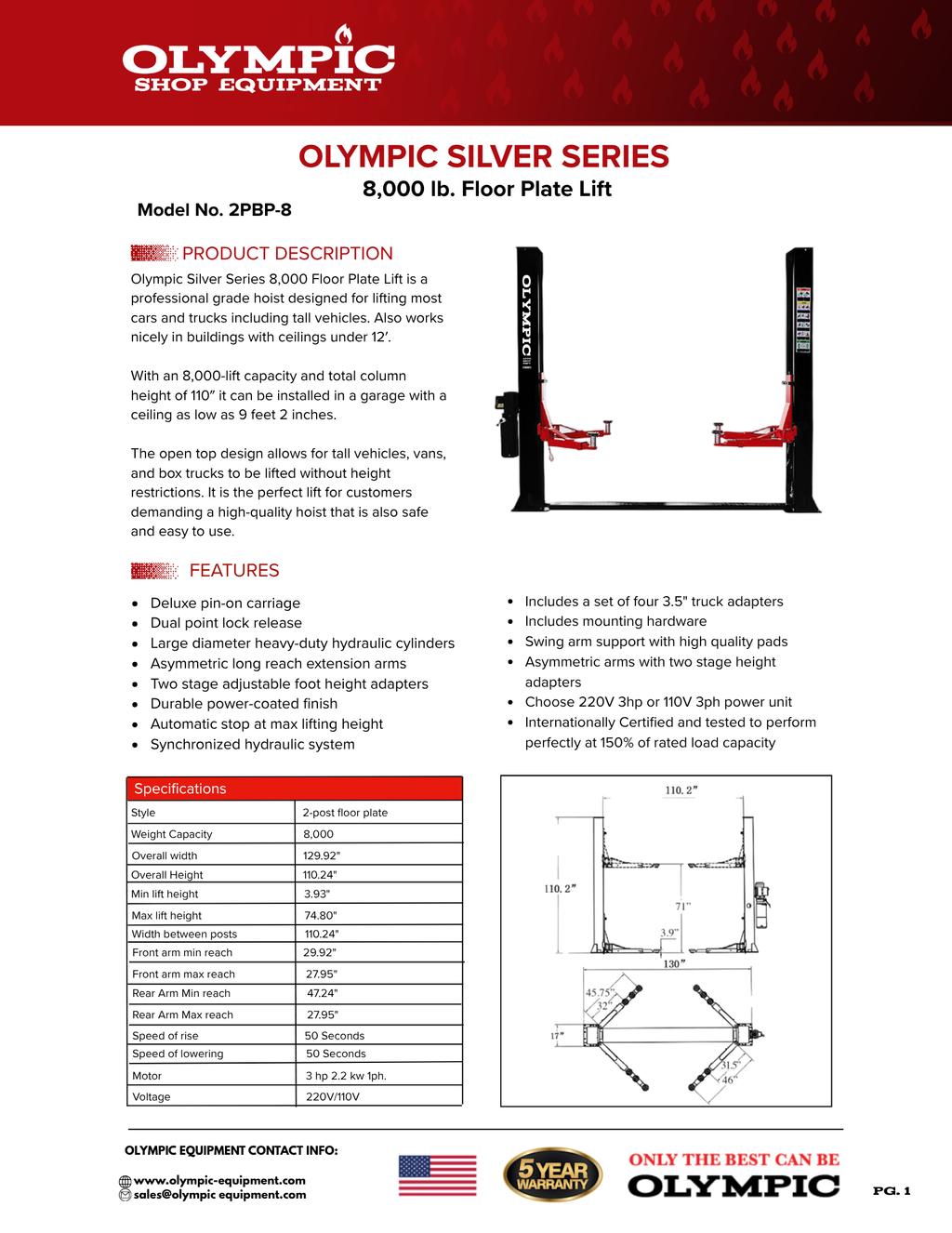

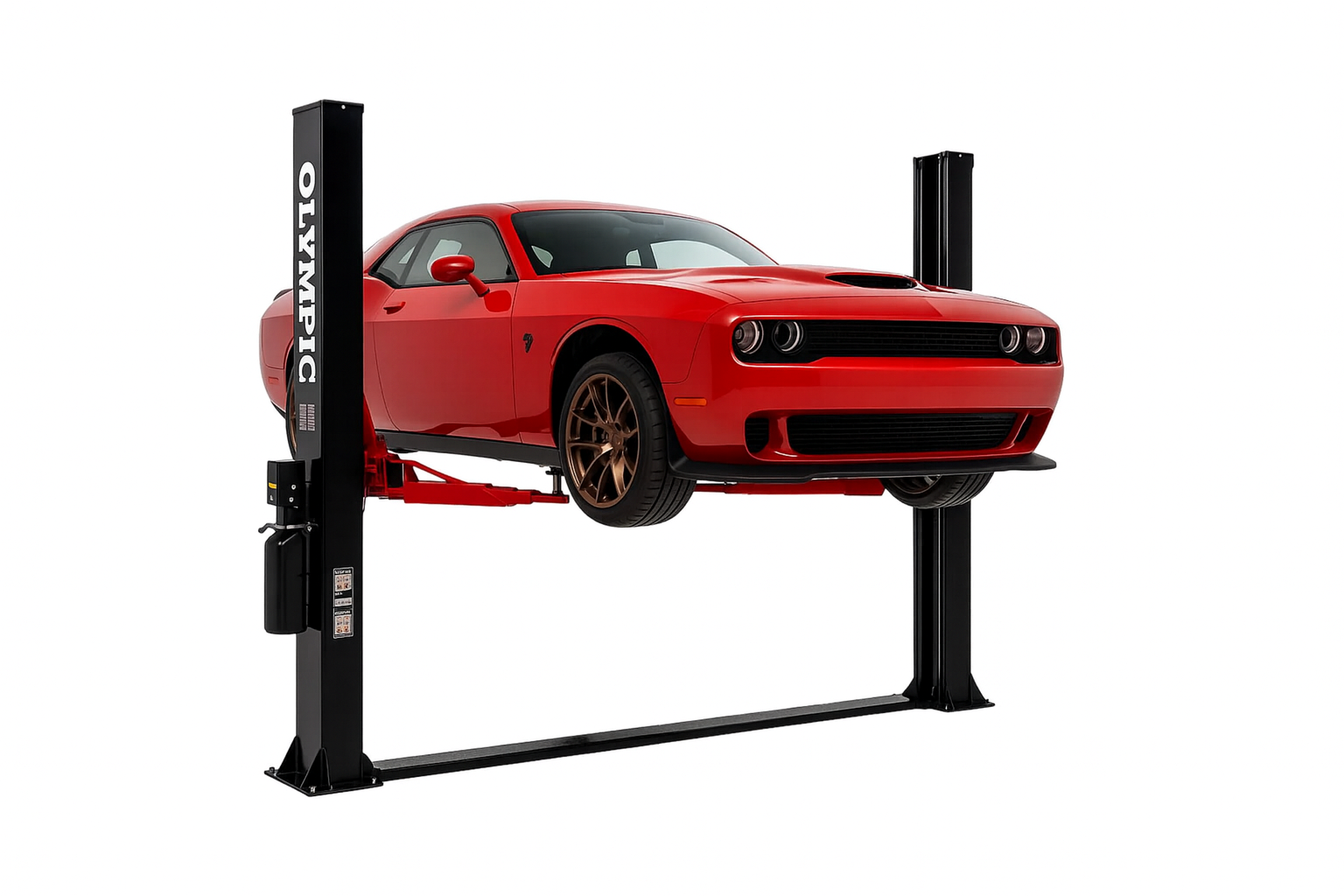

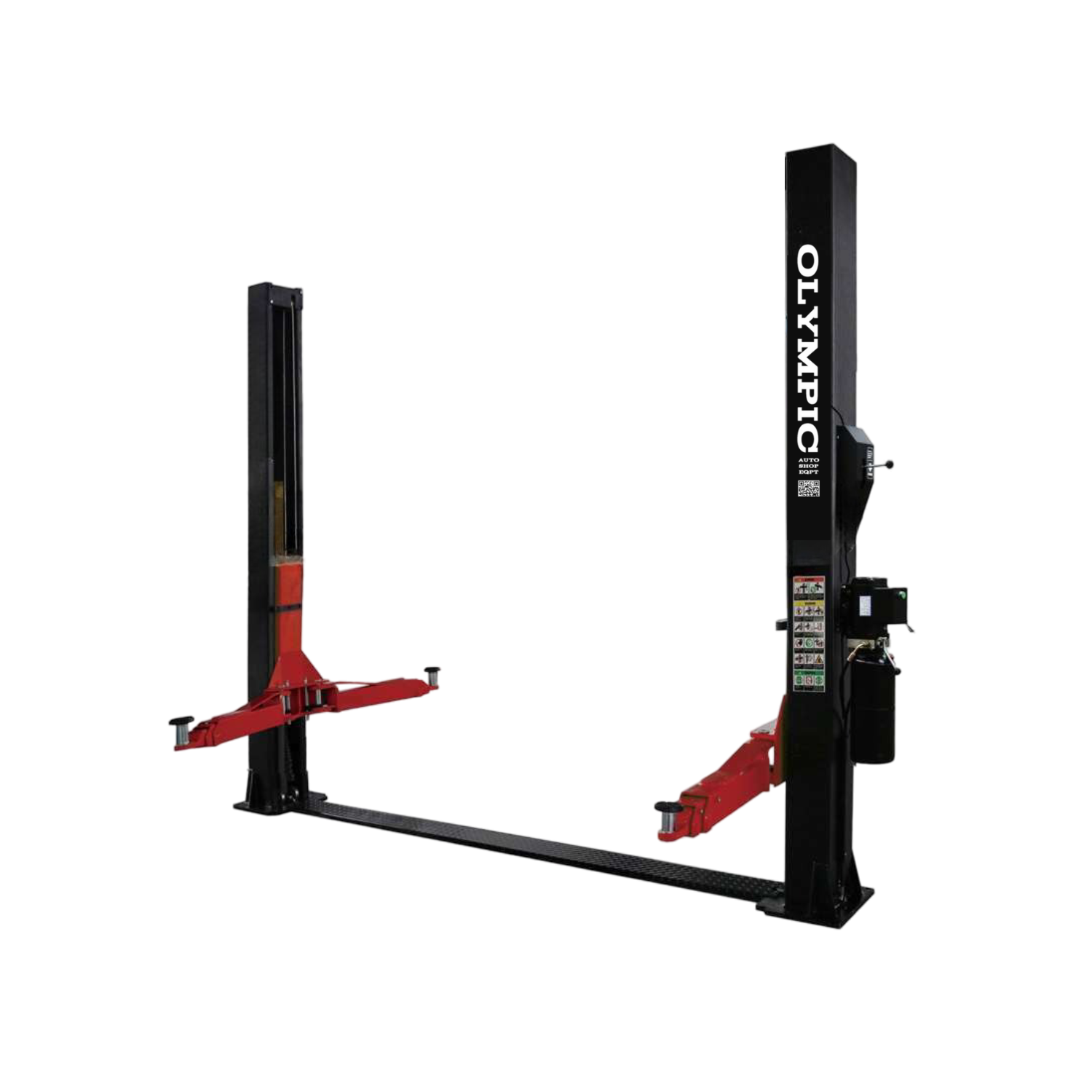

Olympic Silver Series 8,000 lb. Floor Plate Lift is a professional-grade hoist designed for lifting most cars and trucks, including tall vehicles. Also works nicely in buildings with ceilings under 12′.
With an 8,000-lift capacity and total column height of 110″ it can be installed in a garage with a ceiling as low as 9 feet 2 inches.
The open top design allows for tall vehicles, vans, and box trucks to be lifted without height restrictions. It is the perfect lift for customers demanding a high-quality hoist that is also safe and easy to use.
Features:
- Olympic 5-Year Warranty
- Deluxe pin-on carriage
- Dual point lock release
- Dual large diameter hydraulic cylinders
- Symmetric long reach extension arms
- Two stage adjustable foot height adapters
- Durable power-coated finish
- Automatic stop at max lifting height
- Synchronized hydraulic system
- Includes mounting hardware
- Swing arm support with high quality pads
- Choose 110v or 220v hydraulic power unit
-
Internationally Certified, tested to perform perfectly at 150% of rated capacity

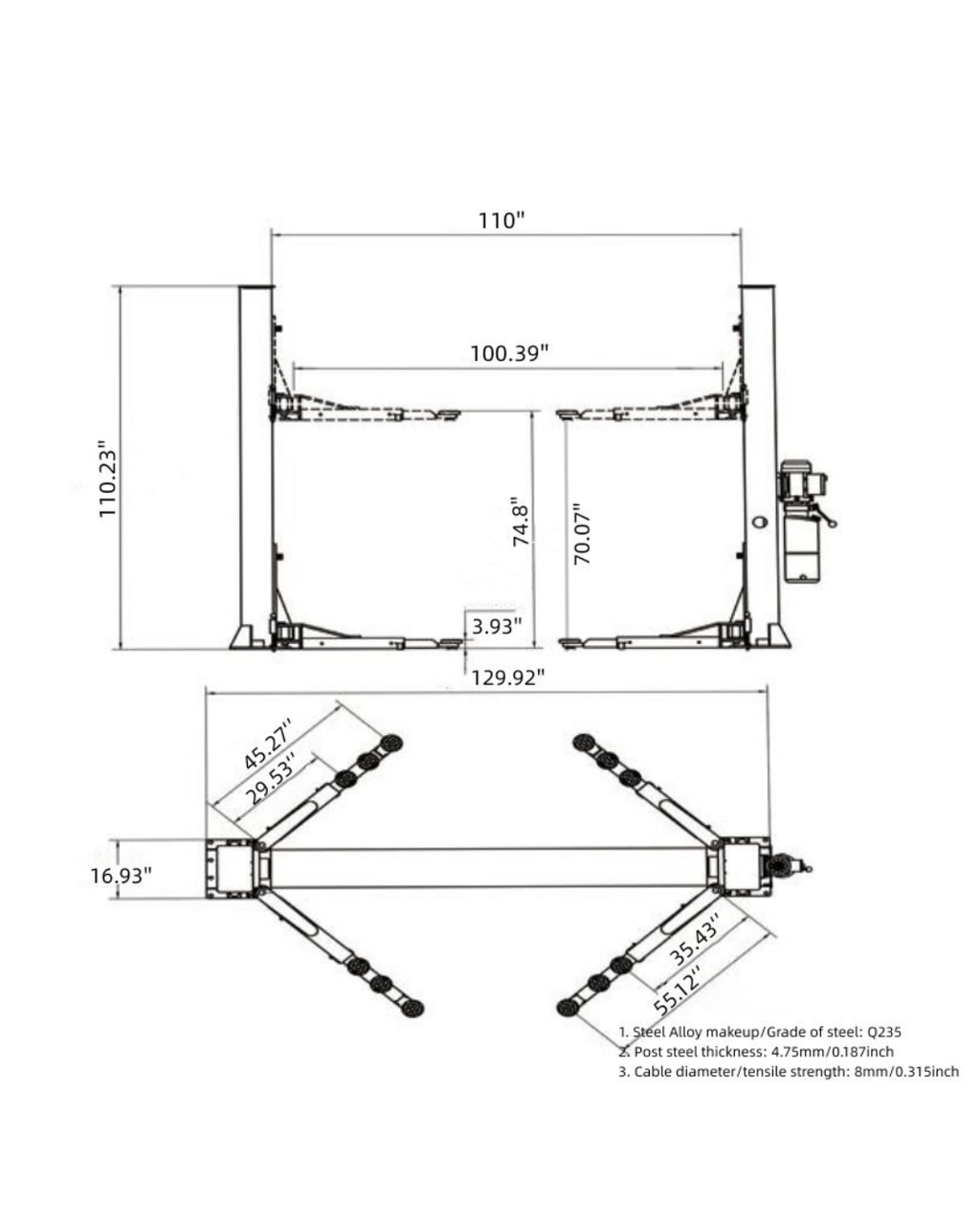

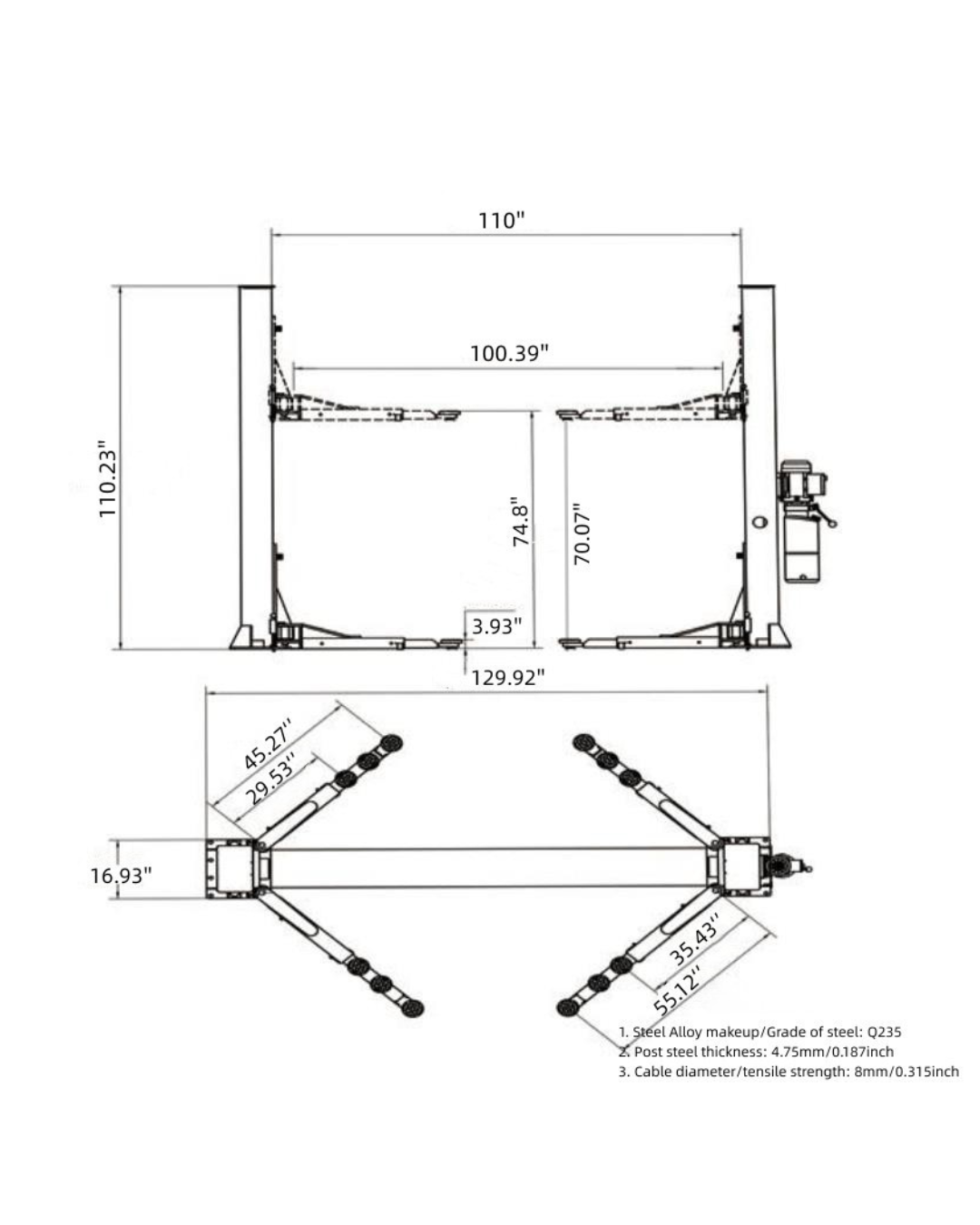

Specifications
| Style | 2-Post Base Plate Lift |
| Weight Capacity | 8,000 lbs. |
| Overall Height | 110.2" |
| Overall Width | 129.92" |
| Voltage | 110V/220V |
| Minimum Lift Height | 3.94″ |
| Maximum Lift Height | 71″ |
| Width Between Posts | 110.2″ |
| Front Arm Min Reach | 31.5″ |
| Front Arm Max Reach | 45.75″ |
| Rear Arm Min Reach | 31.5″ |
| Rear Arm Max Reach | 46″ |
| Speed of Rise | 50 Seconds |
| Speed of Lowering | 50 Seconds |
| Recommended Power Unit | HPU2203 3HP 2.2KW 1PH |
