Name: Model: Olympic 2PBPXW-10 / 10,000‐lb. / Extra Wide Base Plate 2-Post Lift / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 110″ H X 137″ W 10-Year Warranty / SHIPS FREE!
Brand: OLYMPIC EQUIPMENT
SKU: 2PBPXW-10
Price: 3899.00 USD
Availability: InStock

1/3

Model: Olympic 2PBPXW-10 / 10,000‐lb. / Extra Wide Base Plate 2-Post Lift / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 110″ H X 137″ W 10-Year Warranty / SHIPS FREE!

$3,899.00 USD ~~$4,873.75 USD~~

10,000 lbs

Capacity

104.33″

Drive Through Width

10-Year

Warranty

Still have questions? Message us here!

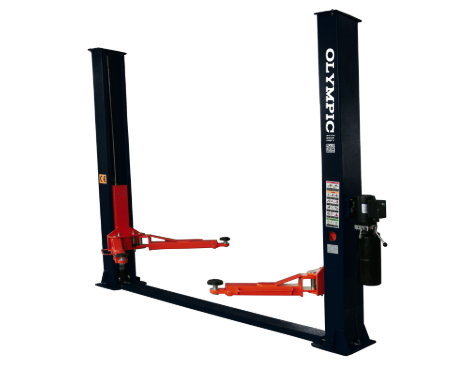

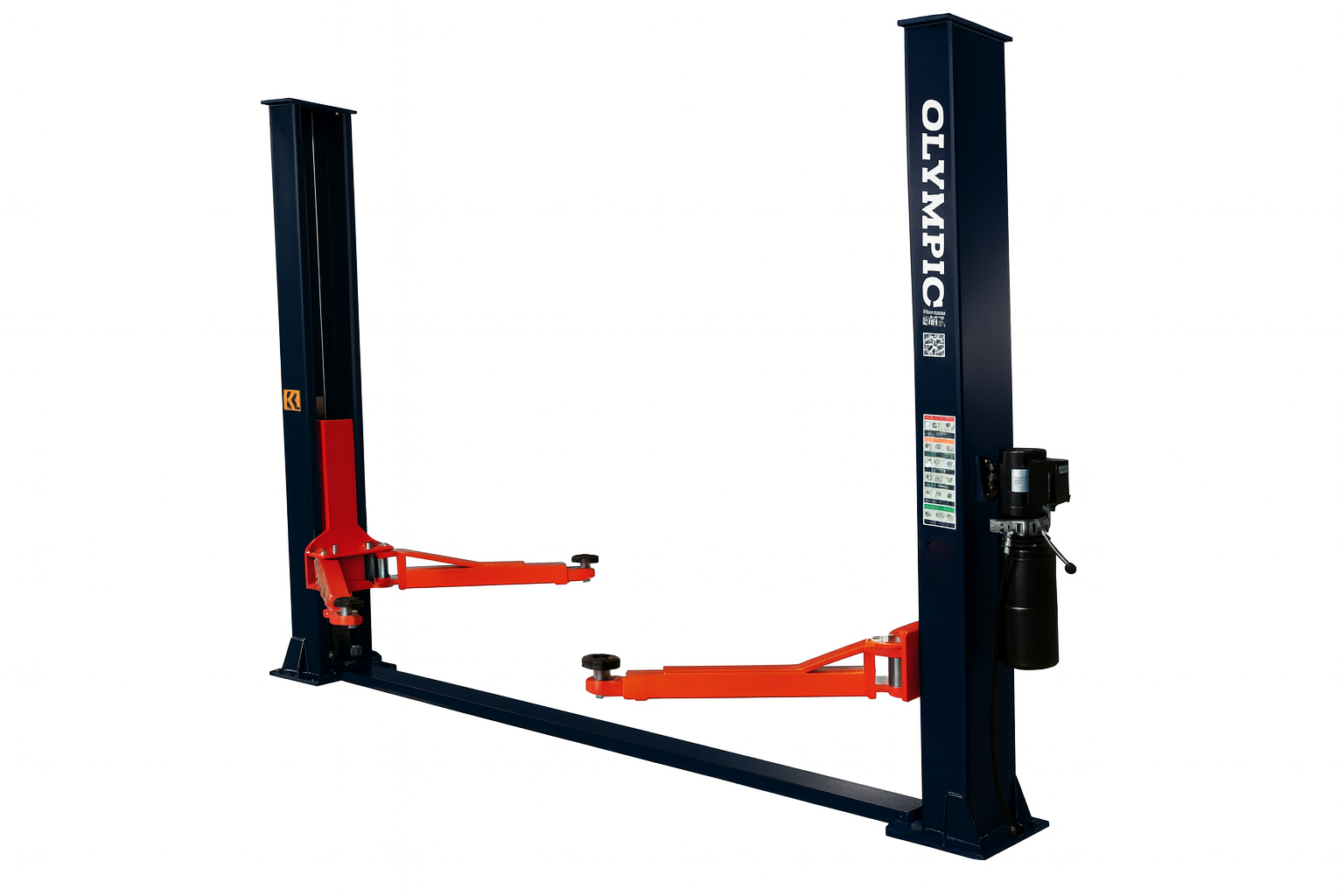

Olympic 2PBPXW-10 / 10,000 lb. Extra-Wide 2-Post Base Plate Lift

Commercial-grade lift with extra-wide clearance for dual-wheel trucks and service vehicles.
Built with cutting-edge technology, the best materials, and Olympic’s bulletproof Gold Series design.
Capacity: 10,000 lbs. | Fits Under Ceiling Height: 9′3″ | Drive Through Width: 104"

Key Features

Olympic 10-Year Warranty!
High-quality Q235 spec structural steel
Technically advanced configuration
Deluxe pin-on carriage
Convenient single-point lock release
Large-diameter hydraulic cylinder in each column
Three-stage symmetrical long-reach extension arms
Three-stage screw-on adjustable height foot adapters
Durable powder-coated finish
Automatic stop at maximum lifting height
Synchronized hydraulic system
Door anti-crush rubber protection
Swing arm supports with high-quality pads
Mounting hardware included
Includes (4) 3.5″ truck adapters
110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option)
Certified & tested at 150% of rated capacity

Specifications

Style	2-Post Base Plate
Capacity	10,000 lbs.
OVERALL Height	110″
Overall Width	137″
Drive through width	104"
Min. Lift Height	3.9″
Max. Lift Height	70.87″
Width Between Posts	116″
Front Arm Reach	28″ – 41.9″
Rear Arm Reach	30″ – 47.2″
Speed of Rise/Lowering	55 seconds
Drive through width	104"
Recommended Power Unit	220V, 3HP, 2.2KW, 1PH
Locking positions	15
Fits Under Ceiling Height	9′3″
