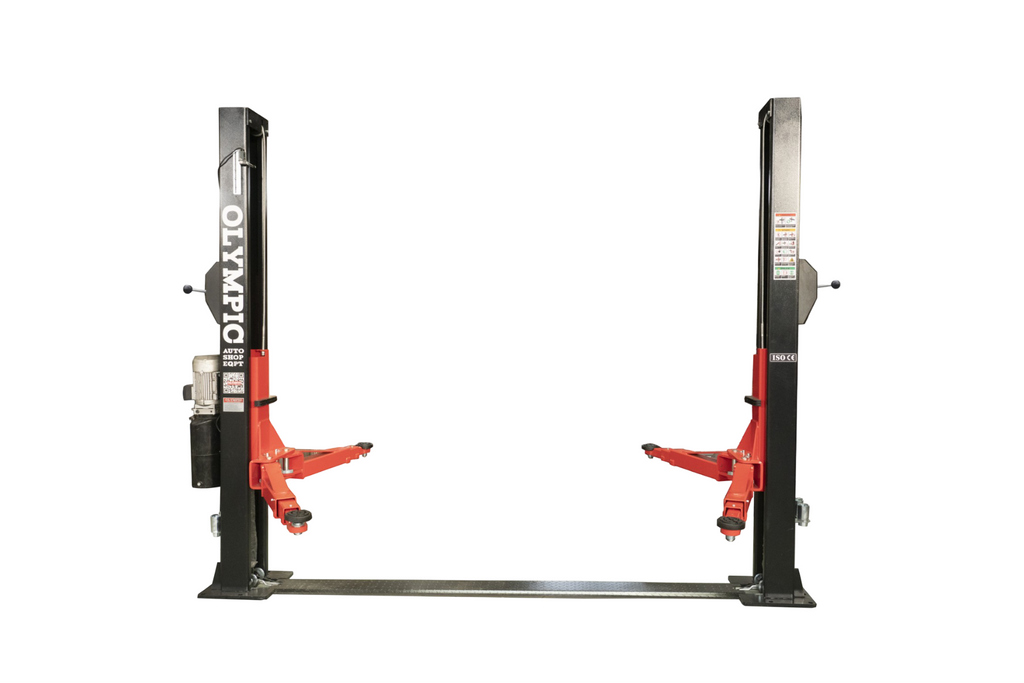

Model: Olympic 2PBPXW-10 / 10,000‐lb. / Extra Wide Base Plate 2-Post Lift / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 110″ H X 137″ W 10-Year Warranty / SHIPS FREE!
1/8
Model: Olympic 2PBPXW-10 / 10,000‐lb. / Extra Wide Base Plate 2-Post Lift / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 110″ H X 137″ W 10-Year Warranty / SHIPS FREE!
$3,411.00 USD $4,264.00 USD
10,000 lbs
Capacity
70.87″
Max. Lift Height
10-Year
Warranty

Olympic 2PBPXW-10 / 10,000 lb. Extra-Wide 2-Post Base Plate Lift

Commercial-grade lift with extra-wide clearance for dual-wheel trucks and service vehicles.
Built with cutting-edge technology, the best materials, and Olympic’s bulletproof Gold Series design.
Capacity: 10,000 lbs | Fits Under Ceiling Height: 9′3″ | Max. Lift Height: 70.87″

Key Features

  • Olympic 10-Year Warranty!
  • Technically advanced configuration
  • Deluxe pin-on carriage
  • Convenient single point lock release
  • Large-diameter hydraulic cylinder in each column
  • Three-stage symmetrical long-reach extension arms
  • Three-stage screw-on adjustable height foot adapters
  • Durable powder-coated finish
  • Automatic stop at maximum lifting height
  • Synchronized hydraulic system
  • Door anti-crush rubber protection
  • Swing arm supports with high-quality pads
  • Mounting hardware included
  • Includes (4) 3.5″ truck adapters
  • 110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option)
  • Certified & tested at 150% of rated capacity

Specifications

Style 2-Post Base Plate
Capacity 10,000 lbs
Overall Height 110″
Overall Width 137″
Voltage 110V / 220V
Min. Lift Height 3.9″
Max. Lift Height 70.87″
Width Between Posts 116″
Front Arm Reach 28″ – 41.9″
Rear Arm Reach 30″ – 47.2″
Speed of Rise 55 seconds
Speed of Lowering 55 seconds
Recommended Power Unit HPU2203, 3HP, 2.2KW, 1PH
Fits Under Ceiling Height 9′3″

Built for demanding garages and shops.
Strong. Safe. Professional-grade performance.
