The Big-Rig 33,000-lb. 4-Post Heavy-Duty Alignment Lift / 10-Year Warranty / 150″ W X 312″ L
$34,999.00 USD
$48,425.00 USD

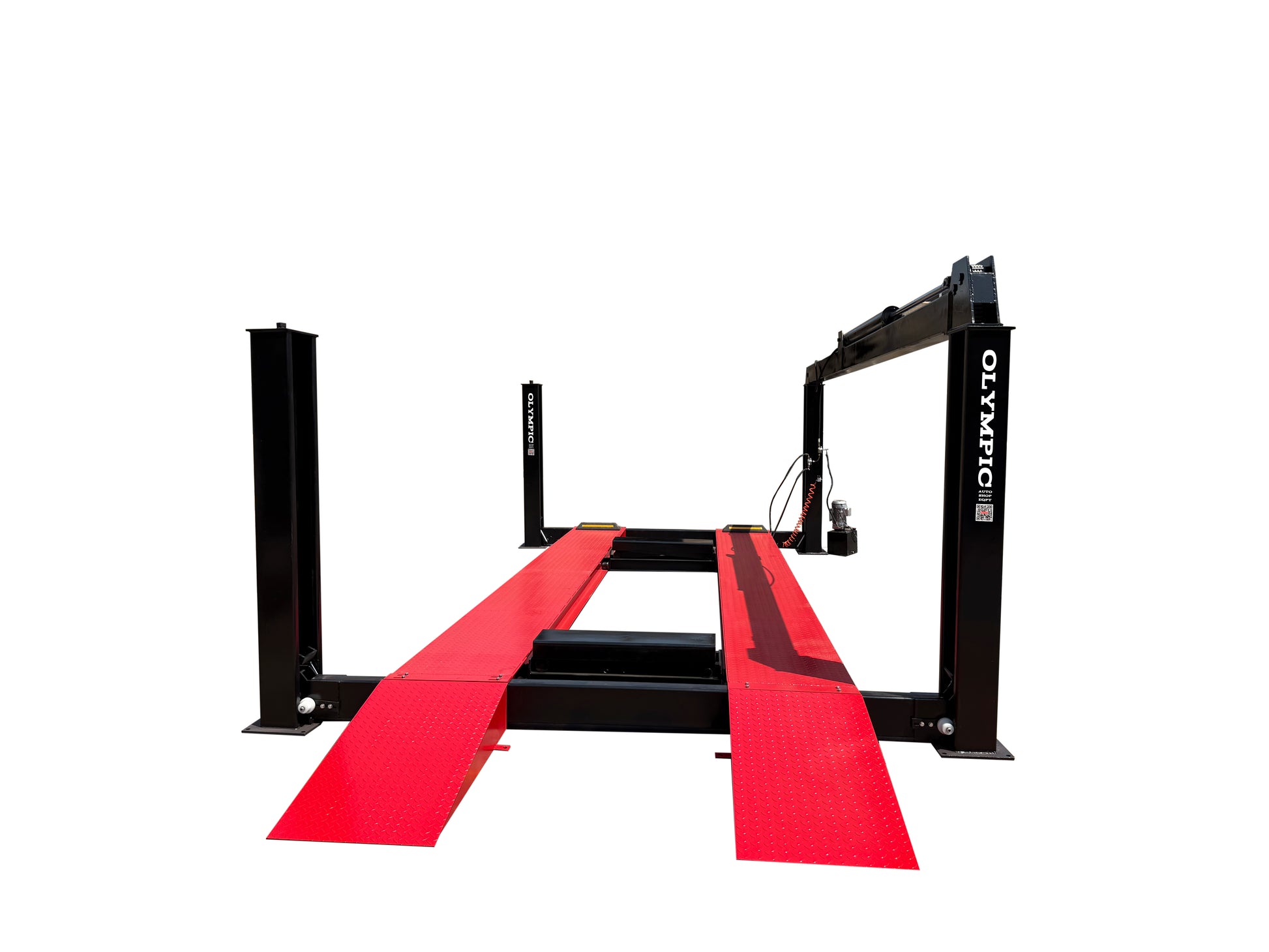

"THe Big-Rig 33,000 lb. Alignment Lift"
Heavy-Duty Commercial-Grade Alignment lift for Trucks, Heavy Equipment and Cars.
"The Big-Rig" 33,000 Lbs. Capacity Alignment Lift designed for maximum durability, strength and performance. Perfect for servicing and aligning large trucks, dump trucks, and semi-tractors, yet versatile enough to accommodate light-duty vehicles and cars. This lift handles anything you load on it, with precision and stability.
Its advanced design supports a wide range of service operations — inspections, repairs, maintenance, alignment — making it the ultimate shop investment. Includes one 9,000 lb. rolling bridge jack.
Capacity: 33,000 lbs | Overall Height: 94.9″ | Overall Length 312" | Runway Width: 25.6″
Call 866-774-4531 for a Freight Quote or to Order.
Key Features
- Industry Best 10-Year Warranty
- 33,000 lb. load capacity
- High-quality Q235 spec structural steel
- High-quality Q235 spec structural steel
- Includes one 9,000 lb. rolling bridge jack (4PRJ-9)
- Built-in turntables and slip plates for alignments
- Aircraft-quality stainless steel hydraulic cylinders
- Movable runways for versatility
- Slip-resistant extra-long runways (275.6″)
- Heavy-duty galvanized aircraft-grade cables
- Secondary locking system guards against cable failure
- Spring-loaded safety locks engage automatically
- Adjustable ladder locks for precision leveling
- Built-in grease fittings for easy lubrication
- Chain drive prevents over-extension
- Acceptable for outdoor use (protect power unit)
- Includes one 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Optional 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Maintenance-free 380V 3-phase hydraulic power unit
- Certified & tested at 150% of rated capacity
Specifications
| Style |
4-Post Alignment Lift |
| Weight Capacity |
33,000 lbs |
| Overall Lift Length |
289.3″ |
| Overall Width |
152.3″ |
| Overall Height |
94.9″ |
| Minimum Lift Height |
7.88″ |
| Lifting Height |
67″ |
| Runway Width |
27.6″ |
| Runway Length |
275.6″ |
| Runway Height |
7.9″ |
| Width Between Runways |
43.3″ |
| Width Between Posts |
129″ |
| Speed of Rise |
60 seconds |
| Speed of Lowering |
60 seconds |
| Bridge Jack Capacity |
9,000 lbs |
| Voltage |
220/380V, 3KW, 60Hz, 3-phase |
| Amps |
15 / 8.8 |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
