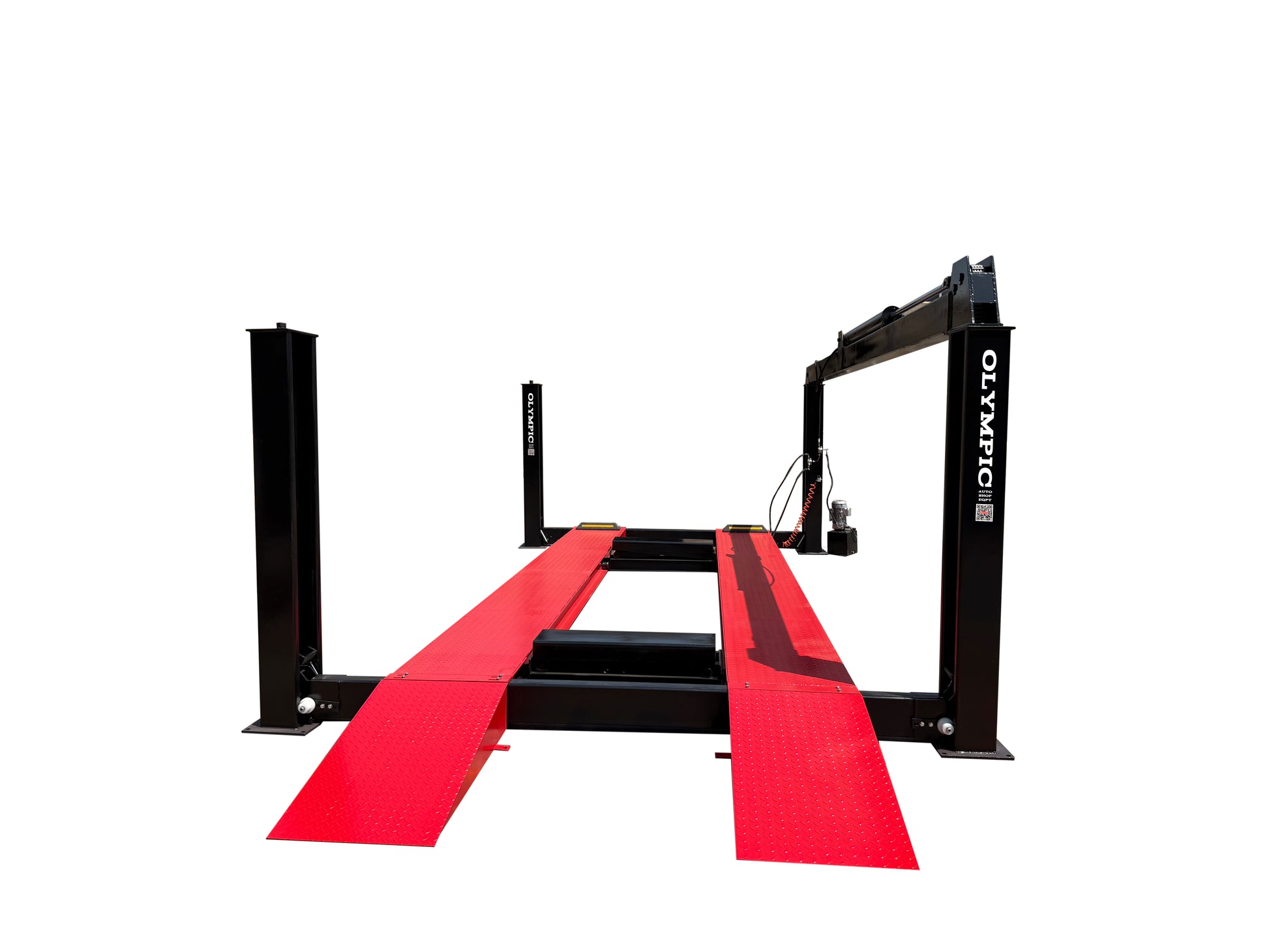

Olympic 4PHDXLA-33 / 33,000 lb. Alignment Lift

The most powerful alignment lift in the Olympic Gold Series lineup.
With a massive 33,000 lb. capacity, Italian-engineered hydraulics, and slip-resistant 275″ runways, this lift is designed for semis, dump trucks, heavy-duty vehicles, and more. Includes a 9,000 lb. rolling bridge jack for maximum versatility. Special order Item.
Capacity: 33,000 lbs | Overall Height: 94.9″ | Runway Width: 27.6″

Key Features

• Industry Best 10-Year Warranty
• 33,000 lb. load capacity
• Includes one 9,000 lb. rolling bridge jack (4PRJ-9)
• Built-in turntables and slip plates for alignments
• Aircraft-quality stainless steel hydraulic cylinders
• Movable runways for versatility
• Slip-resistant extra-long runways (275.6″)
• Heavy-duty galvanized aircraft-grade cables
• Secondary locking system guards against cable failure
• Spring-loaded safety locks engage automatically
• Adjustable ladder locks for precision leveling
• Built-in grease fittings for easy lubrication
• Chain drive prevents over-extension
• Acceptable for outdoor use (protect power unit)
• Includes one 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
• Optional 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
• Maintenance-free 380V 3-phase hydraulic power unit
• Certified & tested at 150% of rated capacity

Specifications

Why Choose an Olympic Lift?

When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
