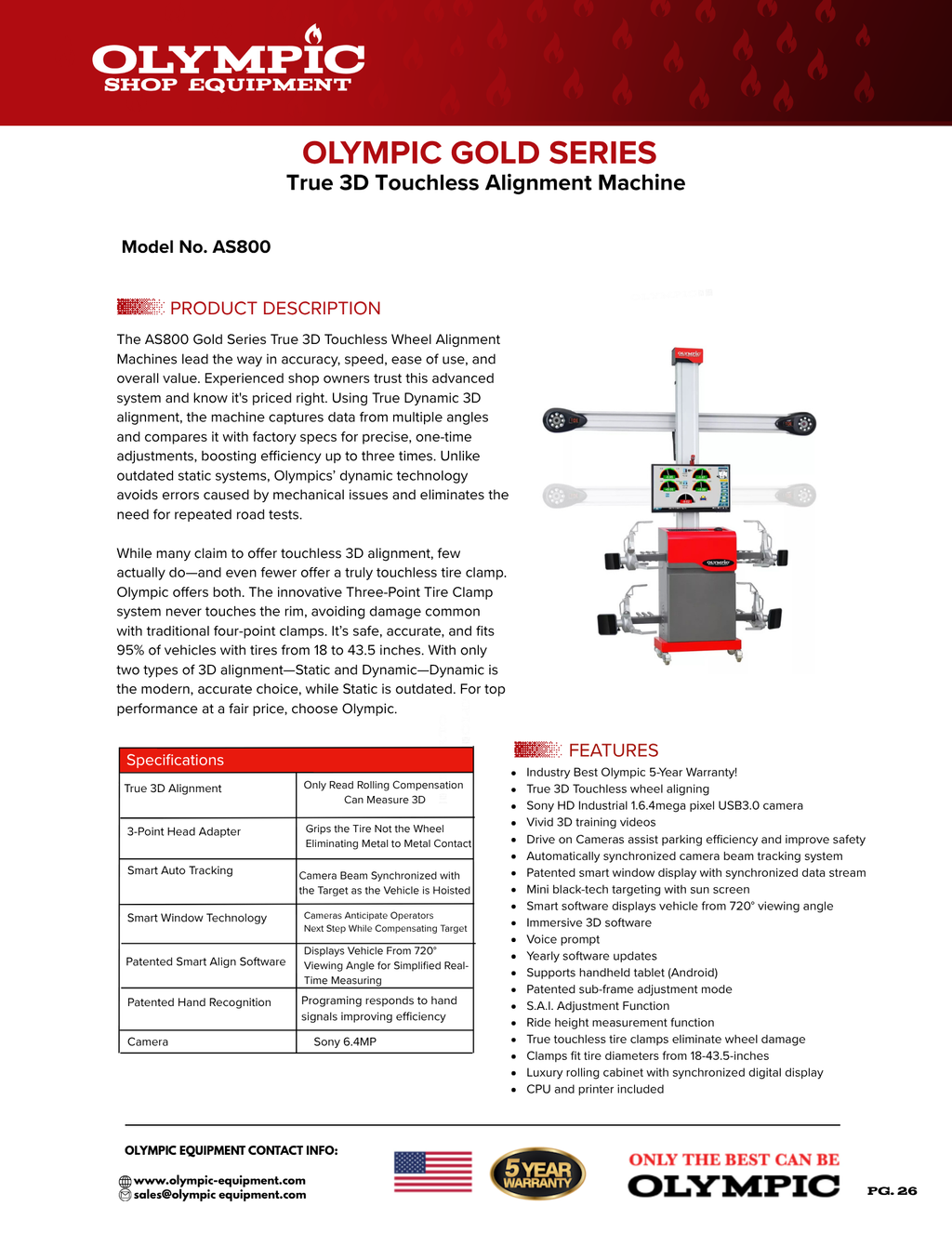

Model: Olympic AS800 / The Olympic AS800 True 3D Touchless Alignment Machine / Rolling Cart with Screen / Touchless Wheel Clamp / Patented Smart Window / 5-Year Warranty / SHIPS FREE
1/7
Model: Olympic AS800 / The Olympic AS800 True 3D Touchless Alignment Machine / Rolling Cart with Screen / Touchless Wheel Clamp / Patented Smart Window / 5-Year Warranty / SHIPS FREE
$14,465.00 USD $18,082.00 USD
5-Year
Warranty
18″–43.5″
Workable Tire Diameter

Olympic A9800 / True 3D Touchless Wheel Alignment Machine

Dynamic 3D precision, touchless technology, and Olympic reliability.
The A9800 delivers fast, damage-free, and highly accurate alignments with its patented touchless 3-point tire clamps and true 3D measuring system. Handles tire diameters from 18″ to 43.5″, covering 95% of vehicles on the road.
Warranty: 5-Year | Workable Tire Diameter: 18″–43.5″

Key Features

  • Olympic 5-Year Warranty
  • True 3D touchless wheel alignment
  • Sony HD Industrial 6.4MP camera
  • Dual screens for simultaneous upper/lower view
  • Vivid 3D training videos included
  • Drive-on cameras improve parking efficiency & safety
  • Automatic synchronized camera beam tracking
  • Patented smart window display with real-time data
  • 720° vehicle view via smart software
  • Touchless 3-point tire clamps — no rim contact
  • Fits tire diameters 18″–43.5″
  • Multi-language support with yearly software updates
  • Certified & tested at 150% of rated capacity

Specifications

Alignment Type True 3D (Rolling Compensation)
Clamp Type 3-Point Tire Adapter (No rim contact)
Camera Sony 6.4MP USB3.0
Smart Tracking Auto-synchronized beam tracking
Smart Window Tech Real-time compensation & anticipation
Software 720° vehicle display, hand signal recognition
Target Material Sun-resistant polymer “Black-Tech”
Functions Toe, Max Turning Angle, Toe-out-on-turn, Ride Height, Wheelbase, Track Width, Offset, Roll Radius
Tire Diameter Range 18″ – 43.5″
Voltage 110V, 60Hz, 1PH
Package Dimensions 3 Crates: 14″×11″×111″ (x2), 39″×30″×53″
Package Weight 640 lbs

Why Choose Olympic?

Olympic’s A9800 alignment system gives you precision, speed, and safety at a fraction of the cost of Hunter — without the rim damage. Backed by Olympic’s 5-Year Warranty and internationally certified for 150% load performance, this is the smart choice for professional service centers.
