$5,874.00 USD
$7,832.00 USD

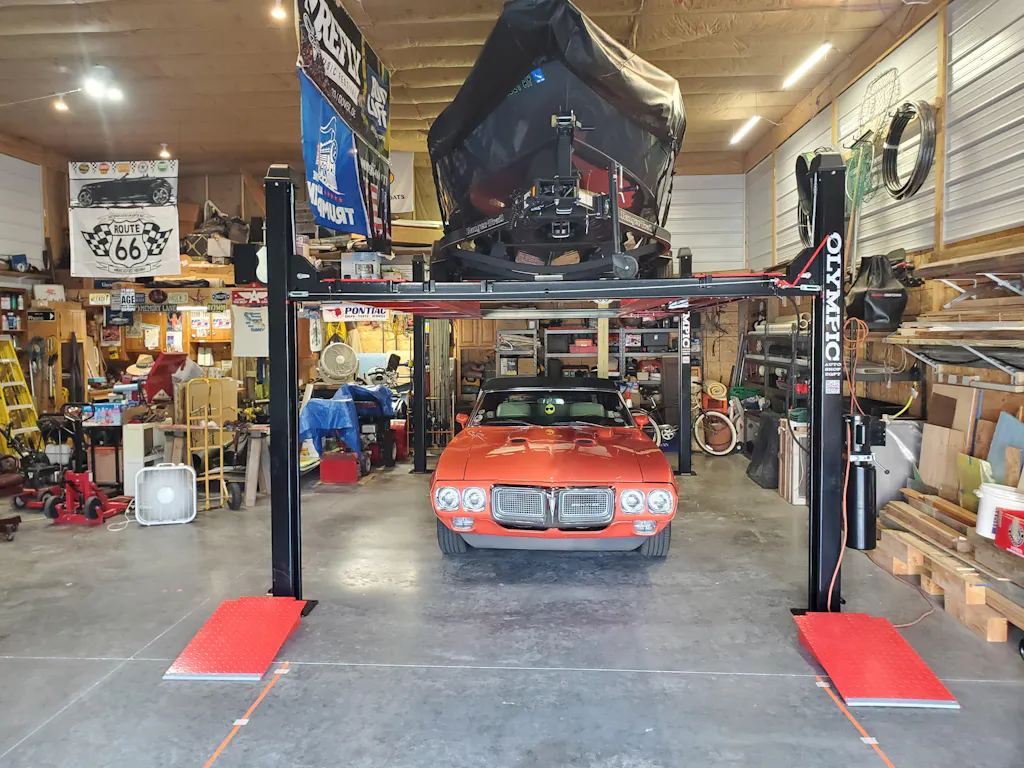

Olympic HDMBL-10 / “The Skipper” XL Portable Boat & Trailer Lift
The ultimate trailer lift — extra wide, extra-long, extra tall.
With a 10,000 lb. capacity, 112″ drive-through width, 84″ clearance underneath, 19 locking positions, and a movable runway, The Skipper handles large trailers, pickups, and trucks with ease. Designed to accommodate trailers up to 20′+ while keeping your trailer, boat and gear indoors, accessible, and secure.
Capacity: 10,000 lbs | Drive Through Width: 112″ | Max. Clearance Under Tracks: 84″
Key Features
- Industry Best 10-Year Warranty
- High-quality Q235 spec structural steel
- Portable drive-through design
- Provides 84″ of storage space
- 125″ between posts
- 112″ drive-through width
- Extra-long 195″ platforms
- Adjustable runway for trailer width flexibility
- 19 ladder locking positions
- Durable powder-coated finish
- Includes adjustable-width trailer hitch rest
- Includes portability package
- Includes removable ramps
- Includes removable stops
- Includes drip trays
- Optional tool tray
- Optional aluminum ramps
- Optional 1,000 lb. aluminum center platforms (5 inserts required)
- Optional 7,000 Lb Bridge Jack (Part No. YZRCJ-7)
- 110V 2.2KW 60Hz 1Ph power unit included (220V option)
- Certified & tested at 150% of rated capacity
Specifications
| Style |
4-Post Boat & Trailer Lift |
| Capacity |
10,000 lbs |
| Overall Lift Length |
239.76″ |
| Overall Width |
140.35″ |
| Overall Height |
104.33″ |
| Drive Through Width |
112″ |
| Lifting Range |
5.71″ – 88.74″ |
| Width Between Posts |
125″ |
| Runway Width |
20″ |
| Runway Length |
195″ |
| Max. Clearance Under Tracks |
84.02″ |
| Width Between Tracks |
46″ |
| Speed of Rise |
50 seconds |
| Speed of Lowering |
50 seconds |
| Recommended Power Unit |
HPU2203, 3HP, 2.2KW, 1PH |
| Voltage |
110V / 220V |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
