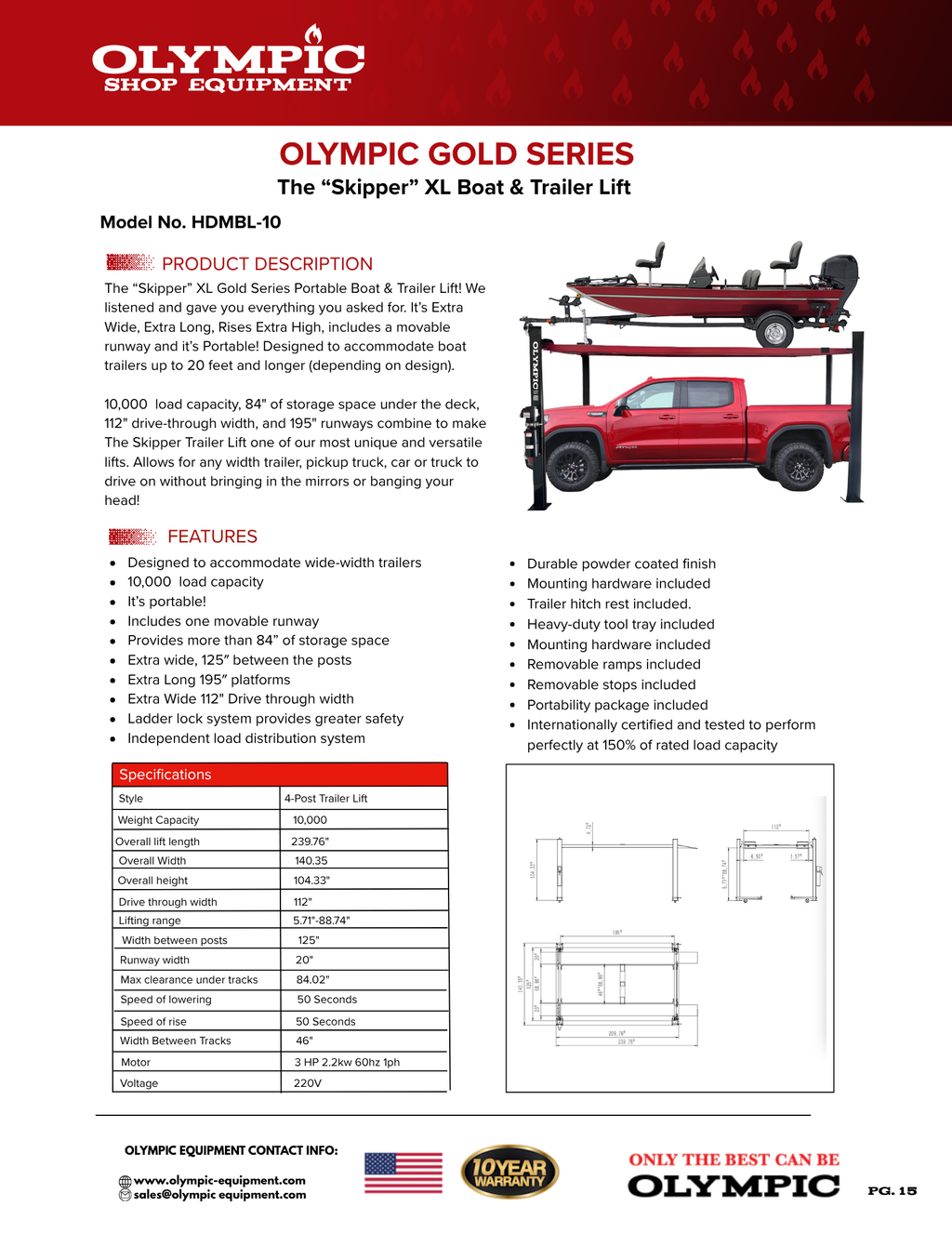

Model: HDMBL-10

Product Description

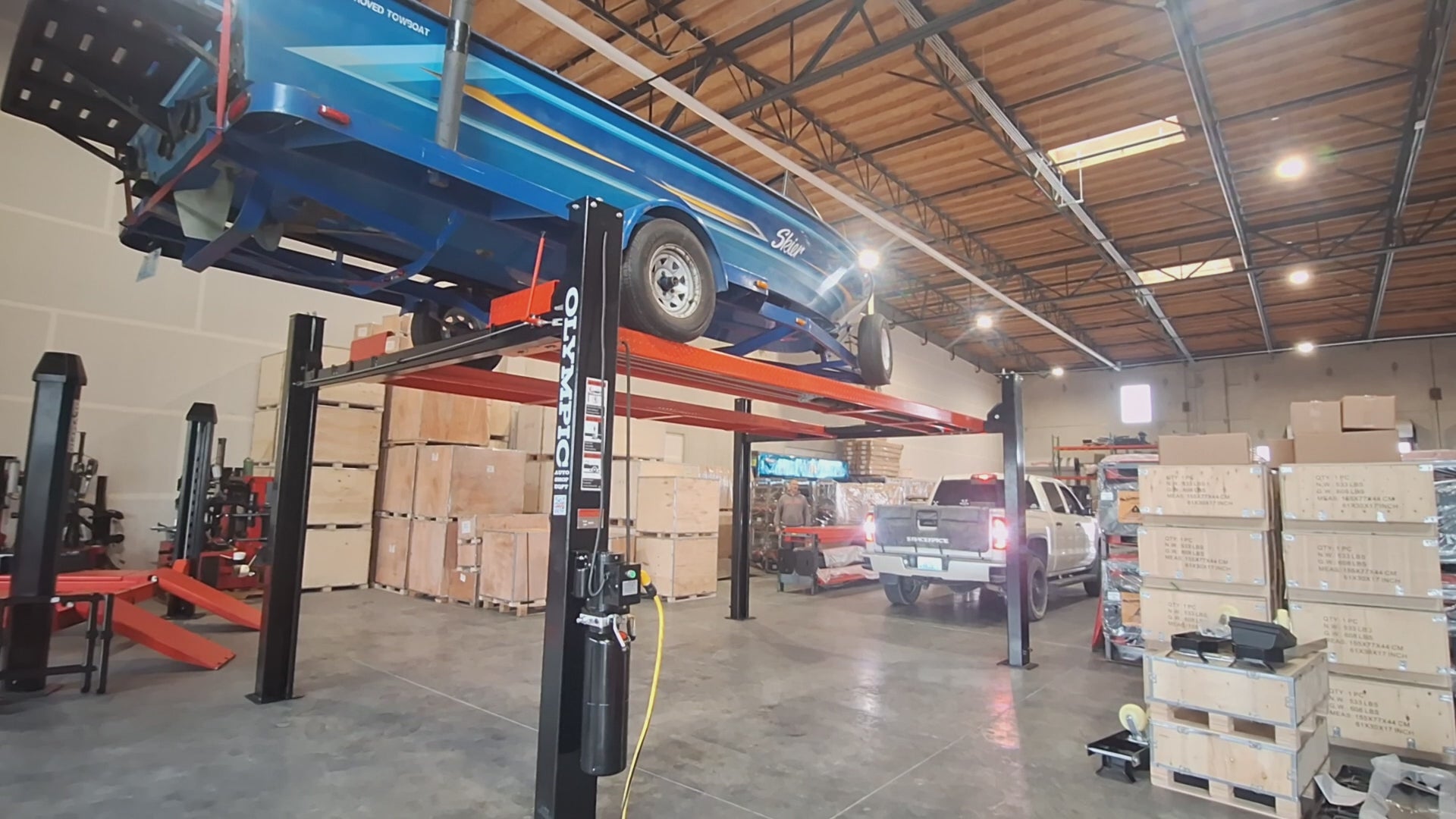

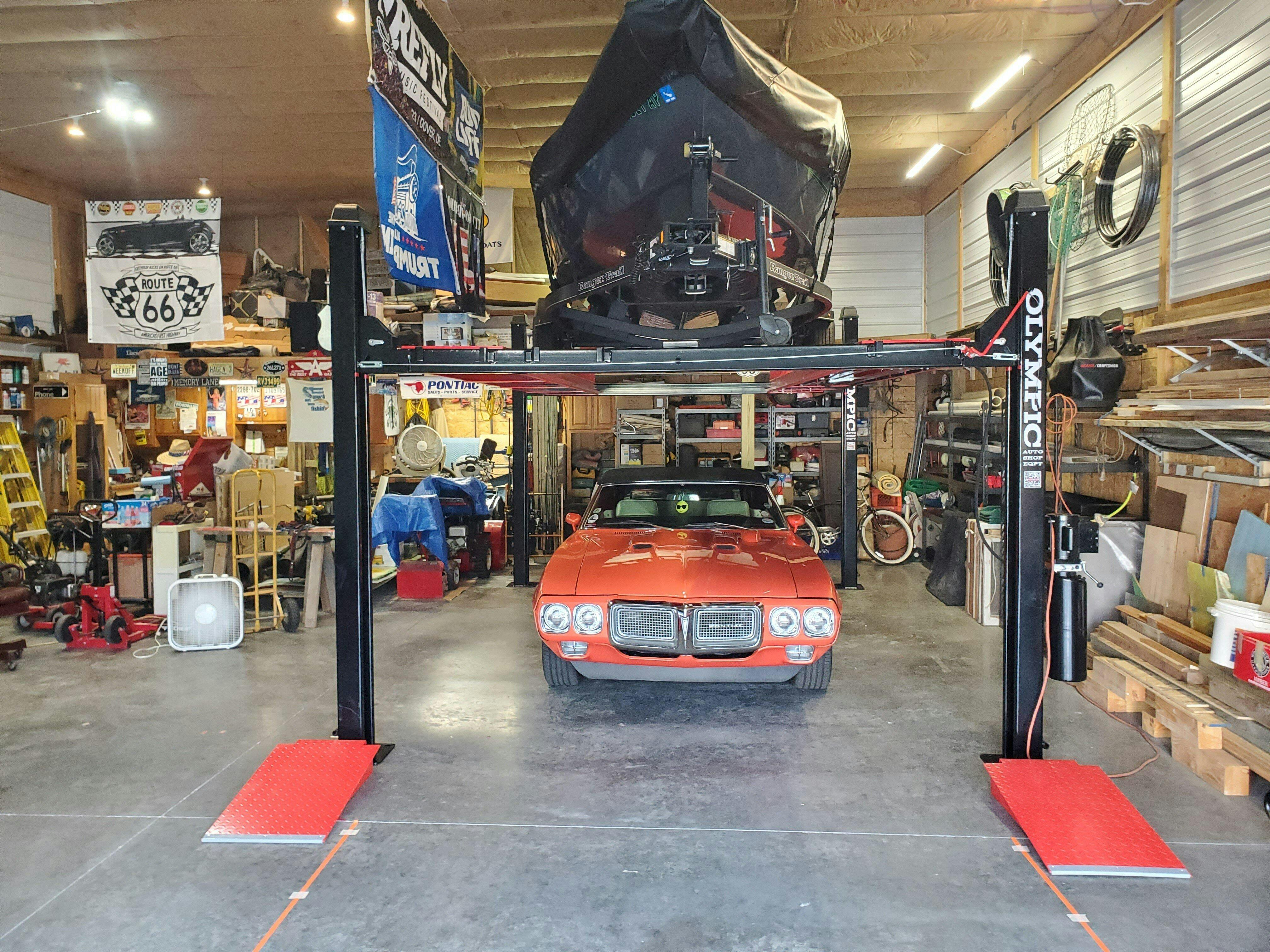

The “Skipper” XL Gold Series Portable Boat & Trailer Lift! We listened and gave you everything you asked for. It’s Extra Wide, Extra Long, Rises Extra High, includes a movable runway, and it’s Portable! Designed to accommodate boat trailers up to 20 feet and longer (depending on design).

10,000 load capacity, 84" of storage space under the deck, 112" drive-through width, and 195" runways combine to make The Skipper Trailer Lift one of our most unique and versatile lifts. Allows for any width trailer, pickup truck, car or truck to drive on without bringing in the mirrors or banging your head!

Note: Check width and length requirements before ordering.

Features:

• Industry Best 10-Year Warranty
• Designed to accommodate wide-width trailers
• 10,000  load capacity
• It’s portable!

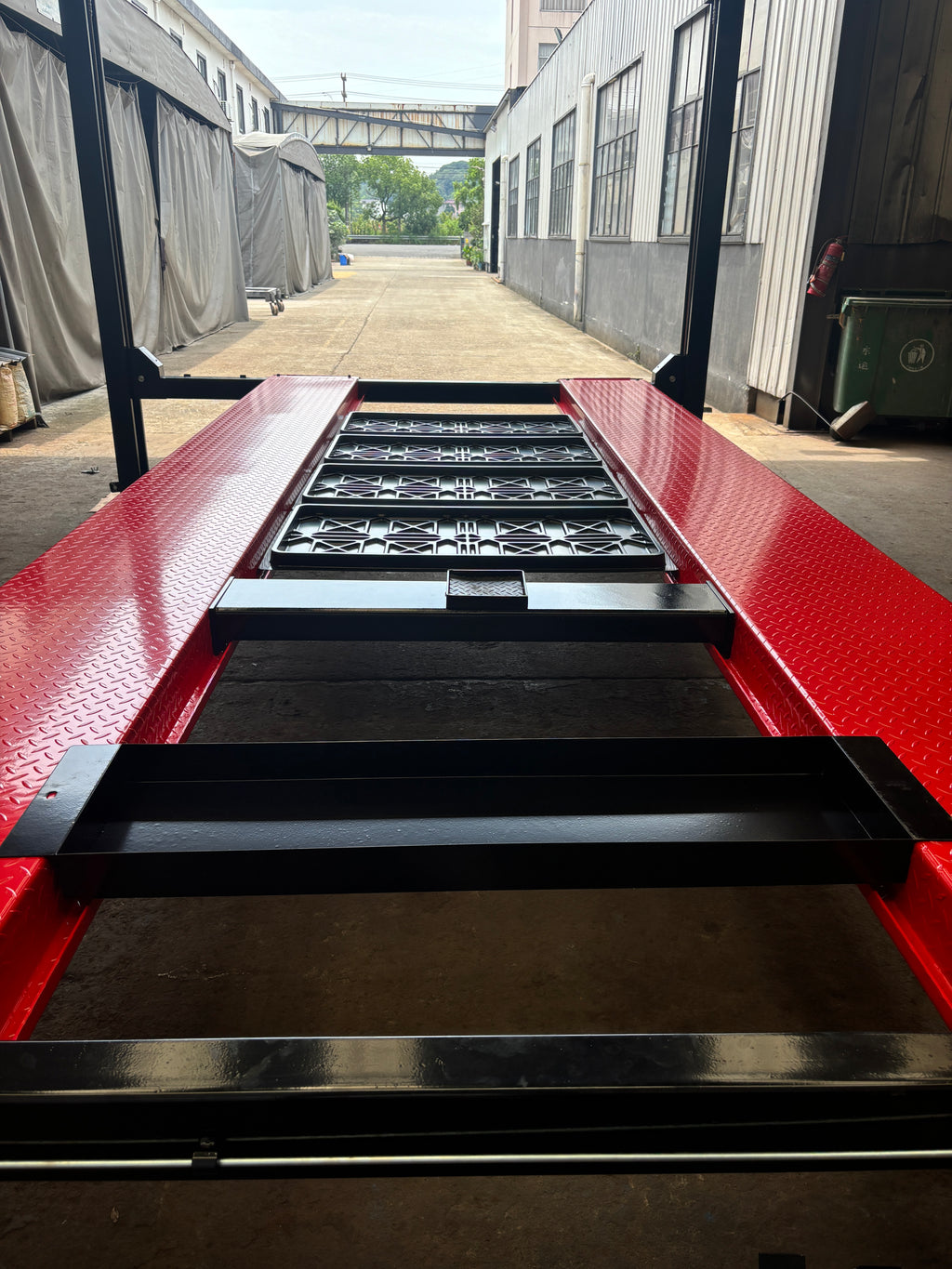

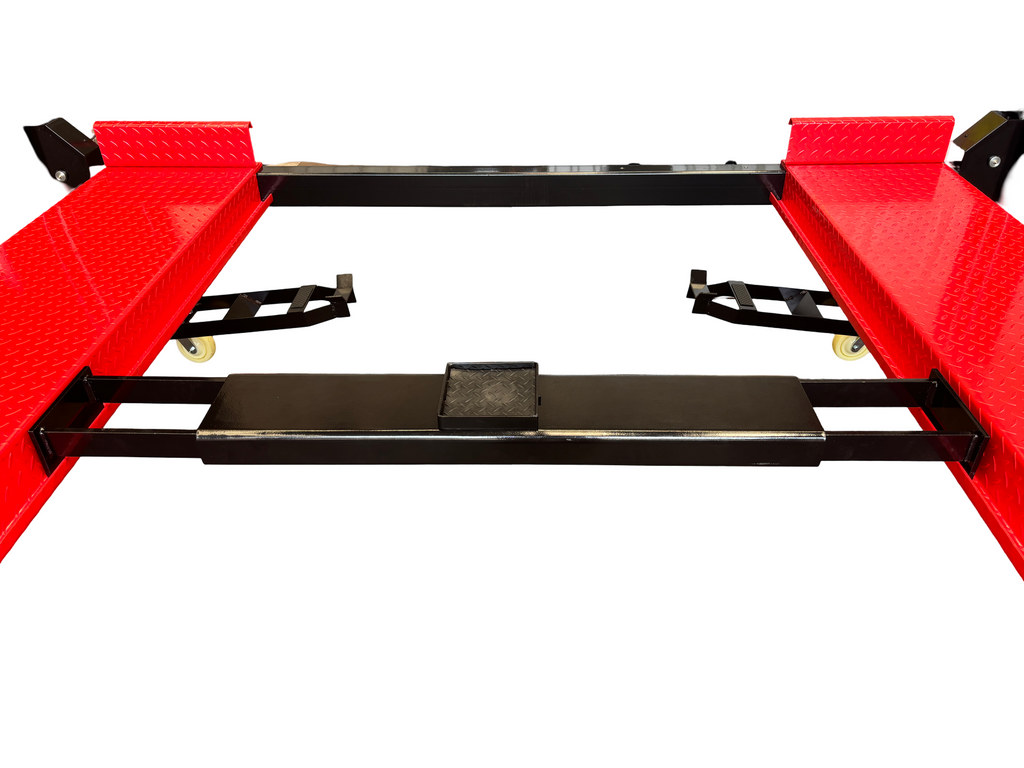

• Trailer hitch rest included.

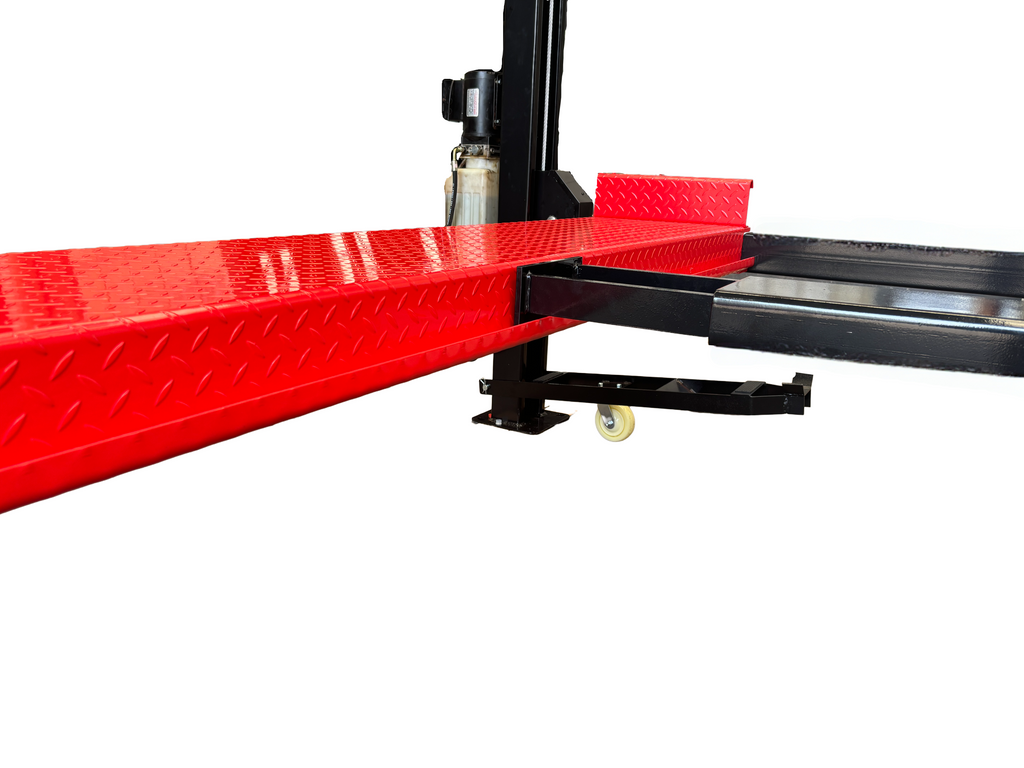

• Includes one movable runway
• Provides more than 84” of storage space
• Extra wide, 125″ between the posts
• Extra Long 195″ platforms
• Extra Wide 112" Drive-through width
• Ladder lock system provides greater safety
• Independent load distribution system
• Durable powder-coated finish
• Mounting hardware included

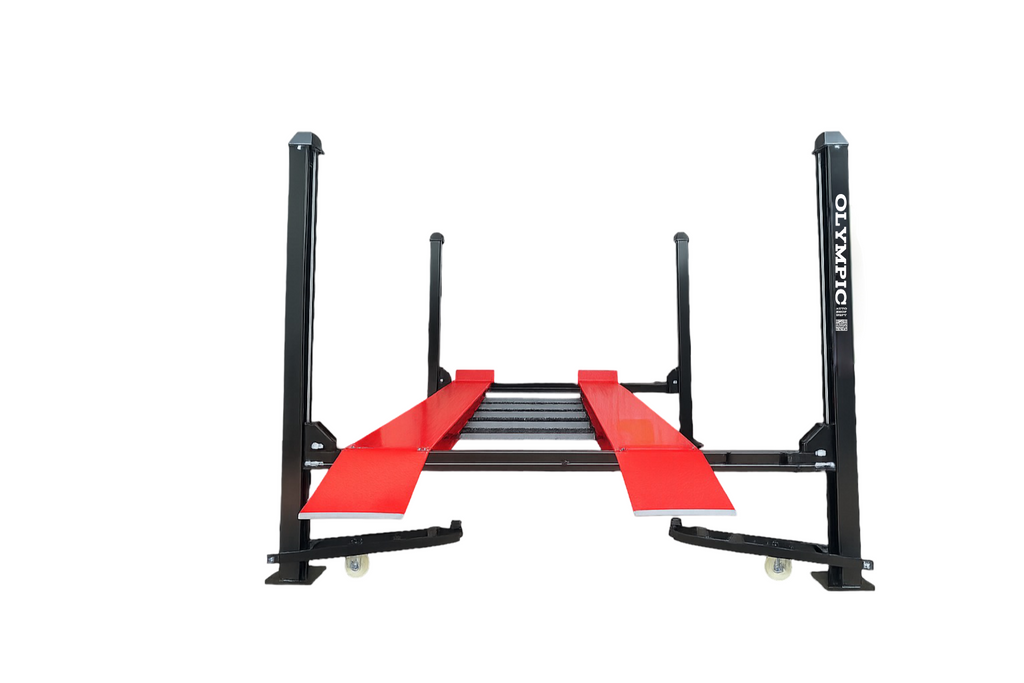

• Removable ramps included
• Removable stops included
• Optional portability package
• Optional drip trays
• Optional aluminum ramps
• Optional tool tray
• Choose 110V or 220V power unit
• Internationally certified and tested to perform perfectly at 150% of rated capacity
• Optional bridge Jack - YZRCJ-6

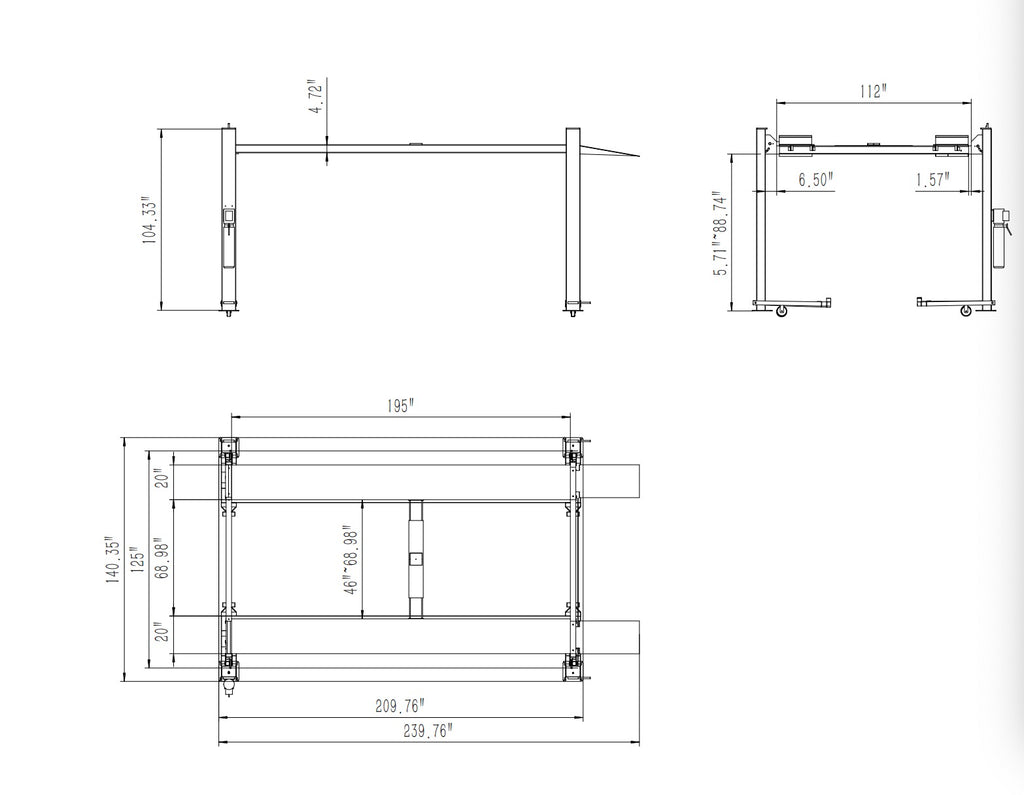

Specifications:

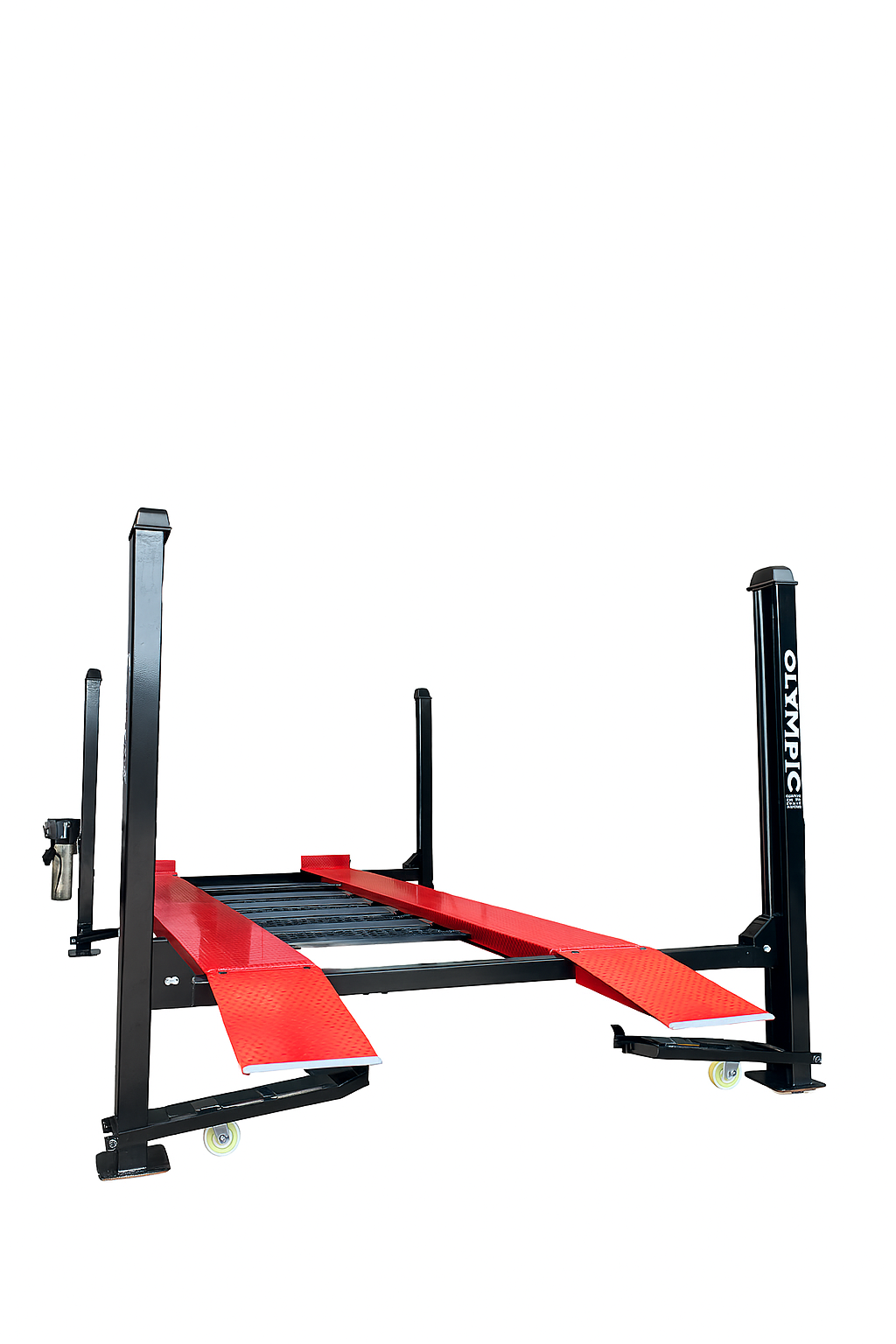

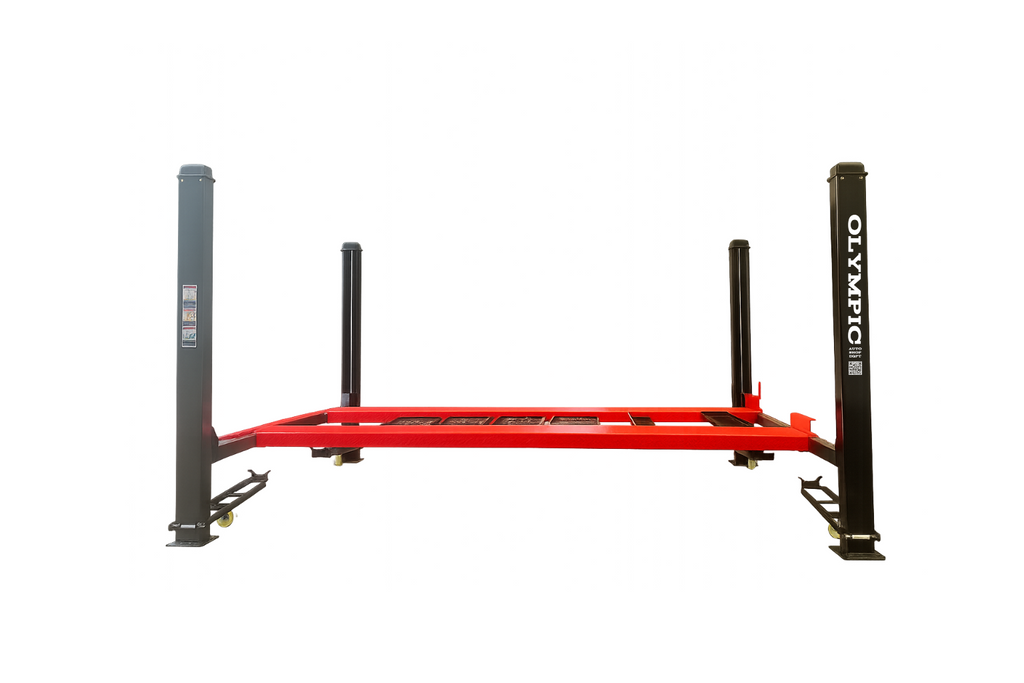

Style: 4-Post Boat and Trailer Lift

Weight Capacity: 10,000

Overall lift length: 239.76"

Overall Width: 140.35

Overall height: 104.33"

Drive through width: 112"

Lifting range: 5.71"-88.74"

Width between posts:125"

Runway width: 20"

Max clearance under tracks: 84.02"

Speed of lowering: 50 Seconds

Speed of rise: 50 Seconds

Width Between Tracks: 46"

Recommended power unit: HPU2203 3HP 2.2KW 1PH

Voltage: 110V / 220V
