"The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
1/7
  • "The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
  • "The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
  • "The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
  • "The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
  • "The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
  • "The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
  • "The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
"The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
"The Triple Stacker- S" Three-Level 3-Car Storage Lift - Dual-Capacity 5,000 / 6,000 lb. Platforms | Standard Size | 10-Year Warranty | Free Shipping
$14,199.00 USD $17,994.89 USD
Still have questions? Message us here!

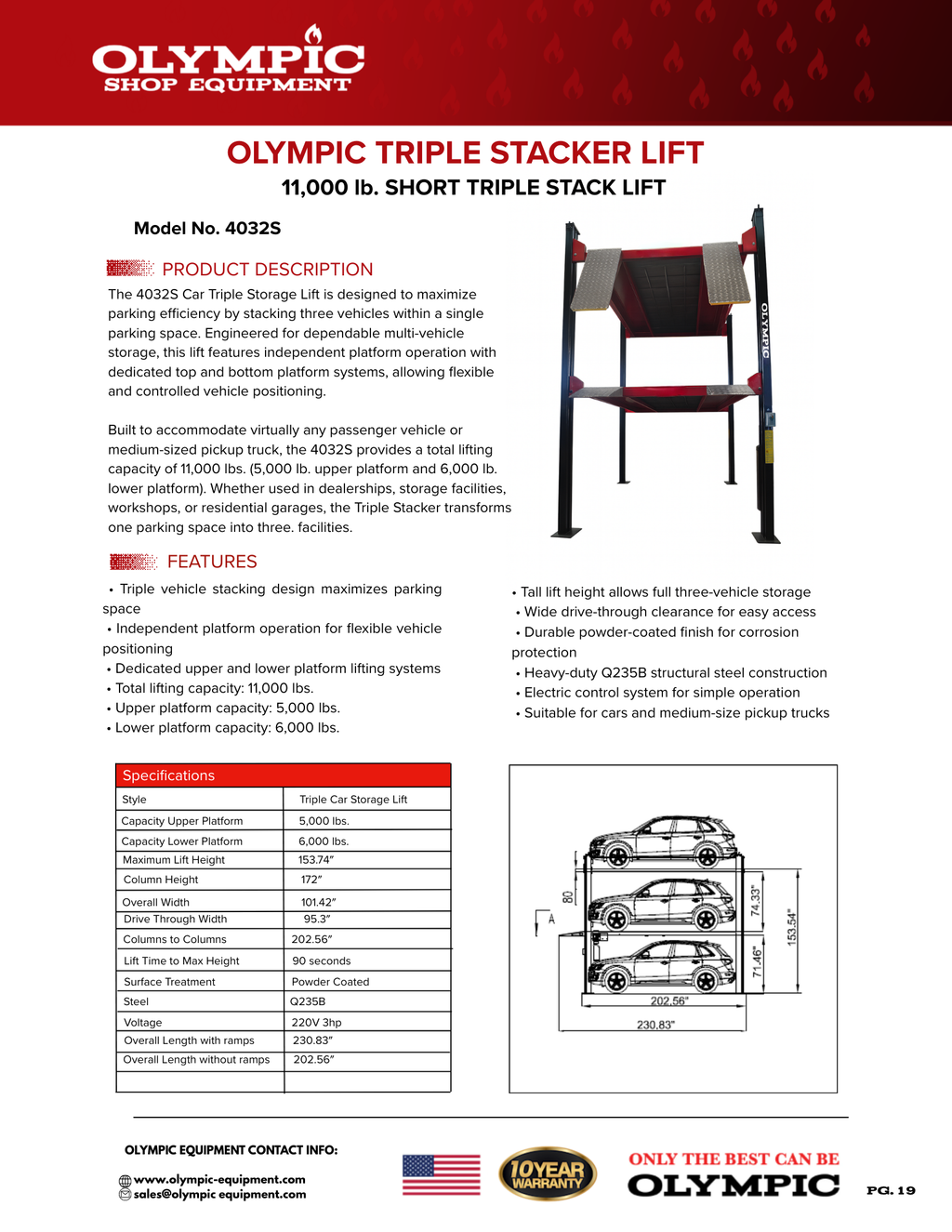

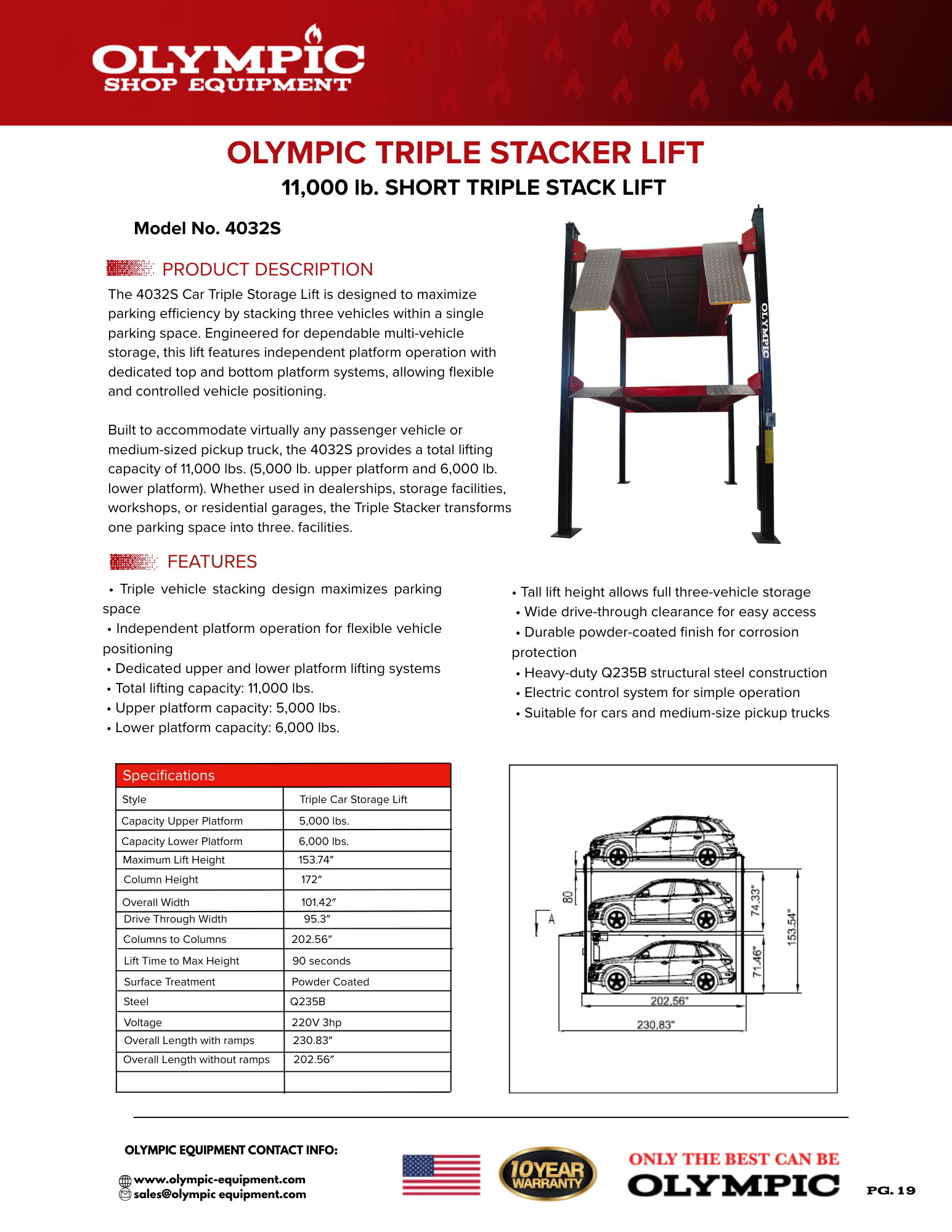

"The Triple-stacker-S" Car Storage Lift

Model: 4032-S. "The Triple-Stacker-S" Car Storage Lift is designed for multi-vehicle storage. Features Olympics' exclusive heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failing lock system assures safety.



Triple your parking space with the 4032S Car Stacking lift.


The Triple Stacker "S" model is designed to stack and store three vehicles in one parking space. Big enough to accommodate virtually any car or medium-sized pickup truck. 11,000 lb. total load capacity (5,000 upper + 6,000 lower deck).
Capacity: 11,000 lbs. | Drive Through Width: 95.3″ | Max. Lift | Height: 153.74″



*Check for availability*

Specifications — Top Platform

Lifting Capacity 5,000 lbs.
Overall Width (A) 101.42″
Overall Length (B) 230.83″
Height of Columns (C) 172″
Drive-thru Clearance (D) 95.3″
Maximum Rise (E) 150.6″
Maximum Lifting Height (F) 153.74″
Distance Between Platforms (G) 74.33″
Runway Width (H) 21.77″
Width Between Runways (I) 34.25″
Runway Length (J) 194.8″
Columns to Columns (K) 202.56″
Locking Positions Top end
Lifting Time to Max. Rise 90 seconds

Specifications — Bottom Platform

Lifting Capacity 6,000 lbs.
Maximum Rise (E) 71.46″
Maximum Lifting Height (F) 76.26″
Runway Width (H) 18.6″
Width Between Runways (I) 37.4″
Platform Thickness (L) 4.80″
Runway Length (J) 188″
Surface Treatment Powder coated

Power & Materials

Motor 2.2KW / 110V / 220V or 3KW 220V
Steel Q235B
