Olympic 4PXLA-10 / “The Dually” Portable SCISSOR JACK ALIGNMENT Lift
THE ONLY 4-POST ALIGNMENT LIFT WITH BUILT-IN SCISSOR LACKS!
"The 4PXLA-10 Dually” is the Swiss-Army Knife of alignment lifts; it does everything! Specifically designed to accommodate dual-wheel trucks, service vehicles, and super-wide cars. Use it for work, storage, maintenance, brake and wheel service, and four-wheel alignment.
An innovative design that made bridge jacks instantly obsolete! Only Olympic has it. Scissor jacks allow you to hoist vehicles off the runways without the hassle of locating and setting contact points! Saves work, time, workspace, and money!
The features seem endless: 10,000 lb. capacity, massive 112″ drive-through width, 125″ between posts, 84″ clearance under the platforms, 19 locking positions, adjustable width platform, and it's portable! What more could you ask?
Capacity: 10,000 lbs. | Drive Through Width: 112″ | Max. Clearance Under Tracks: 84″
Key Features
- Accommodates dual-wheel long-bed trucks & service vehicles
- Industry Best 10-Year Warranty
- High-quality Q235 spec structural steel
- Scissor Jacks built into the runways
- Portable drive-through design
- Provides 84″ of storage space
- 125″ between posts
- 112″ drive-through width
- Extra-long 195″ platforms
- Adjustable runway offers more flexibility
- 19 ladder locking positions
- Durable powder-coated finish
- Includes portability package
- Includes ramps
- Includes turntables
- Includes removable stops
- Includes drip trays
- Optional tool tray
- Optional 1,000 lb. aluminum center platforms (5 inserts required)
- 110V 2.2KW 60Hz 1Ph power unit included (220V option)
- Certified & tested at 150% of rated capacity

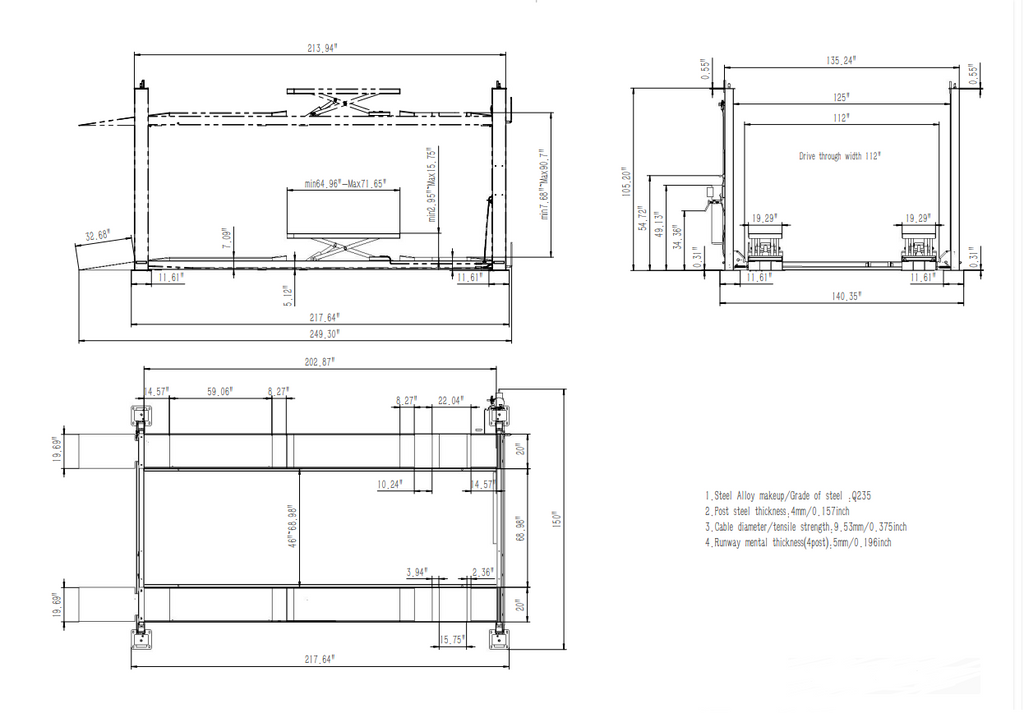

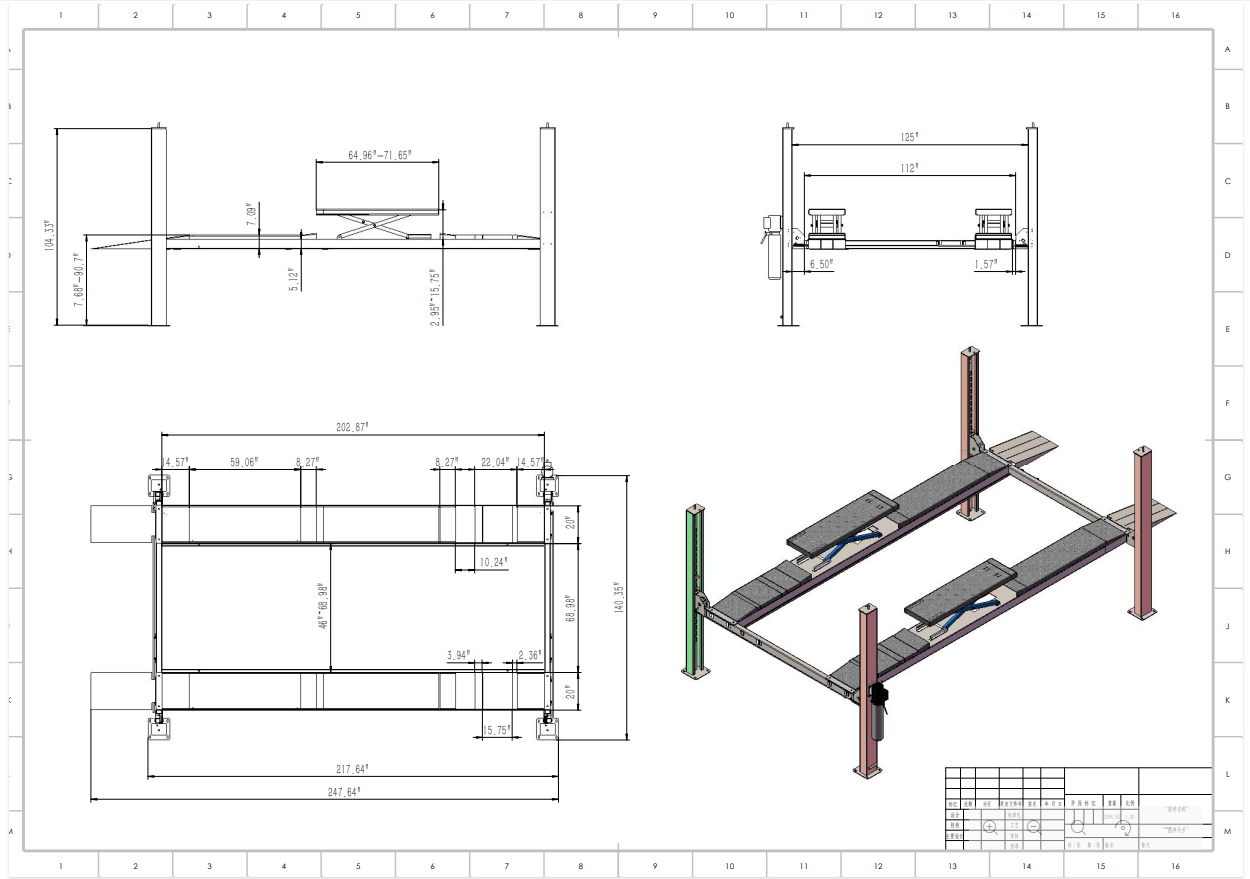

Specifications
| Style |
4-Post Dually Lift |
| Capacity |
10,000 lbs. |
| Overall Lift Length |
239.76″ |
| Overall Width |
140.35″ |
| OVERALL Height |
104.33″ |
| Drive Through Width |
112″ |
| Lifting Range |
5.71″ – 88.74″ |
| Width Between Posts |
125″ |
| Runway Width |
86-106″ |
| Max. Clearance Under Tracks |
84.02″ |
| Width Between Tracks |
46″ |
| Speed of Rise |
50 seconds |
| Speed of Lowering |
50 seconds |
| Recommended Power Unit |
HPU2203, 3HP, 2.2KW, 1PH |
| Voltage |
110V / 220V |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity. 10-Year Warranty!
