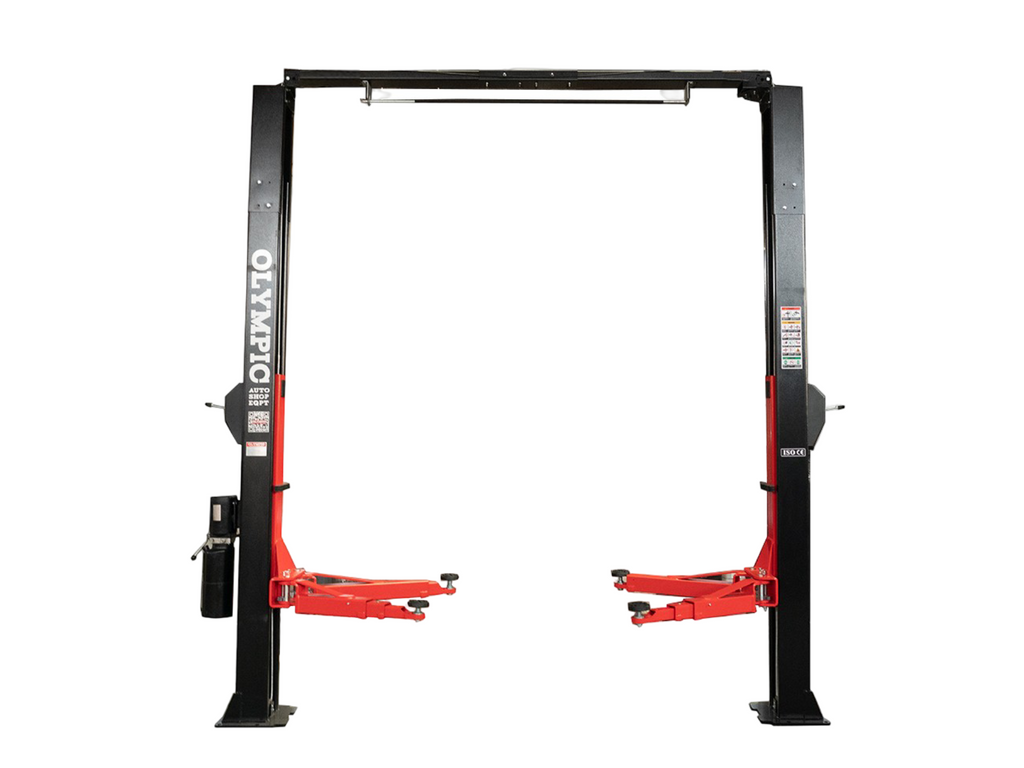

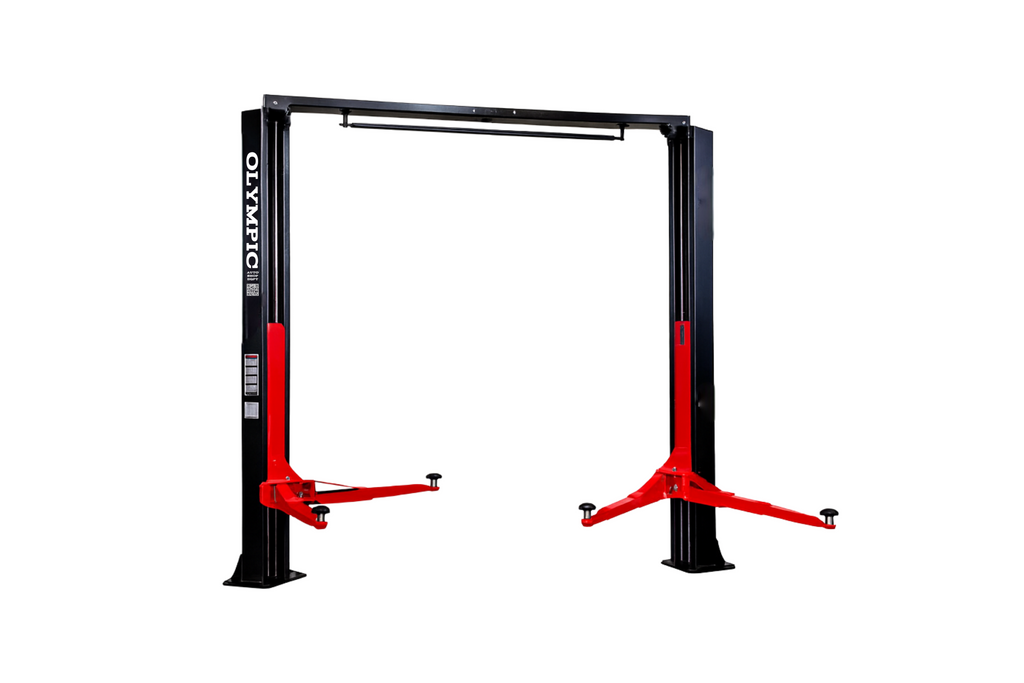

Olympic 2PDDA-10 10,000 lb Direct-Drive 2-Post Symmetric/Asymmetric Vehicle Lift
$5,099.00 USD
$6,374.00 USD
Product details & specifications
The Olympic 2PDDA-10 is a professional-grade 10,000 lb direct-drive 2-post vehicle lift designed for demanding automotive garages, repair shops, and commercial service facilities. Featuring a flexible symmetric/asymmetric post configuration, this advanced clear floor lift provides versatile vehicle positioning, strong lifting performance, and efficient access for automotive maintenance and repair.
Its direct-drive hydraulic system reduces the number of moving components while delivering reliable lifting performance. The lift is built with high-quality Q235 structural steel, large-diameter hydraulic cylinders, deluxe pin-on carriages, and three-stage long-reach extension arms.
With a maximum lift height of 74.8 inches and a minimum required ceiling height of 12 feet 8 inches, the Olympic 2PDDA-10 is designed for professional automotive workshops that need a high-capacity, versatile vehicle lifting solution.
KEY FEATURES
- 10,000 lb lifting capacity
- 2-post clear floor vehicle lift
- Direct-drive hydraulic technology
- Flexible symmetric or asymmetric post configuration
- High-quality Q235 structural steel construction
- Large-diameter hydraulic cylinders in each column
- Deluxe pin-on carriages
- Convenient single-point lock release
- Three-stage symmetrical long-reach extension arms
- Three-stage screw-on adjustable height foot adapters
- Synchronized hydraulic system
- Automatic stop at maximum lifting height
- Durable powder-coated finish
- Door anti-crush rubber protection
- Swing arm supports with high-quality pads
- 15 locking positions
- Mounting hardware included
- Includes four 3.5-inch truck adapters
- 110V power unit included with 220V option available
- 3HP, 2.2KW, single-phase power unit
- Certified and tested at 150% of rated capacity
- Olympic 10-Year Warranty
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Olympic 2PDDA-10 |
| Lift Style | 2-Post Clear Floor Lift |
| Lifting Capacity | 10,000 lbs |
| Drive System | Direct-Drive Hydraulic |
| Post Configuration | Symmetric or Asymmetric |
| Overall Height | 152.75 inches |
| Overall Width – Symmetric | 140.59 inches |
| Overall Width – Asymmetric | 144.96 inches |
| Drive-Through Width – Symmetric | 106.57 inches |
| Drive-Through Width – Asymmetric | 101.18 inches |
| Minimum Foot Height | 3.54 inches |
| Maximum Lift Height | 74.8 inches |
| Arm Configuration | Three-Stage Long-Reach Arms |
| Foot Adapters | Three-Stage Adjustable Screw-On Adapters |
| Lock Release | Single Point |
| Locking Positions | 15 |
| Speed of Rise | 50 seconds |
| Speed of Lowering | 50 seconds |
| Voltage | 110V |
| Power Unit | 3HP, 2.2KW, 1PH |
| Minimum Ceiling Height | 12 ft 8 in |
BENEFITS
The Olympic 2PDDA-10 provides a versatile lifting solution for automotive professionals who need flexibility in vehicle positioning and workshop operation.
The direct-drive hydraulic design reduces moving parts, supporting lower maintenance requirements and dependable operation. The flexible symmetric/asymmetric configuration allows the lift setup to accommodate different loading and positioning requirements.
Three-stage long-reach arms and adjustable foot adapters provide extended reach and adaptable contact positioning for compatible vehicles. The clear floor design helps maintain an open workspace beneath the vehicle for professional service and repair work.
IDEAL FOR
- Professional automotive repair shops
- Commercial garages
- Automotive service centers
- Vehicle maintenance facilities
- Professional mechanics
- Car and light truck service applications
- General automotive repair operations
- High-volume workshop environments
WHY CHOOSE THIS PRODUCT
The Olympic 2PDDA-10 combines direct-drive hydraulic technology with a flexible symmetric/asymmetric configuration and a 10,000 lb lifting capacity. Its clear floor design, long-reach three-stage arms, adjustable foot adapters, and single-point lock release make it a practical choice for professional automotive service operations.
Built with heavy-duty structural steel and equipped with large hydraulic cylinders, synchronized lifting, multiple locking positions, and a durable powder-coated finish, this lift is designed for demanding commercial garage environments. The included truck adapters and Olympic 10-Year Warranty add further value for professional equipment buyers.
Upgrade your automotive shop with the Olympic 2PDDA-10 10,000 lb direct-drive 2-post vehicle lift. Order today and equip your professional garage with a versatile, high-capacity lifting solution built for automotive service and repair.
Official 2PDDA-10 Resources
- Download the 2PDDA-10 operating and installation manual
- Professional installation
- Replacement parts
- Warranty details and exclusions
- Schedule service or request technical support
Before installation or operation, compare the identification plate and current product drawing with the manual supplied with the exact lift.
