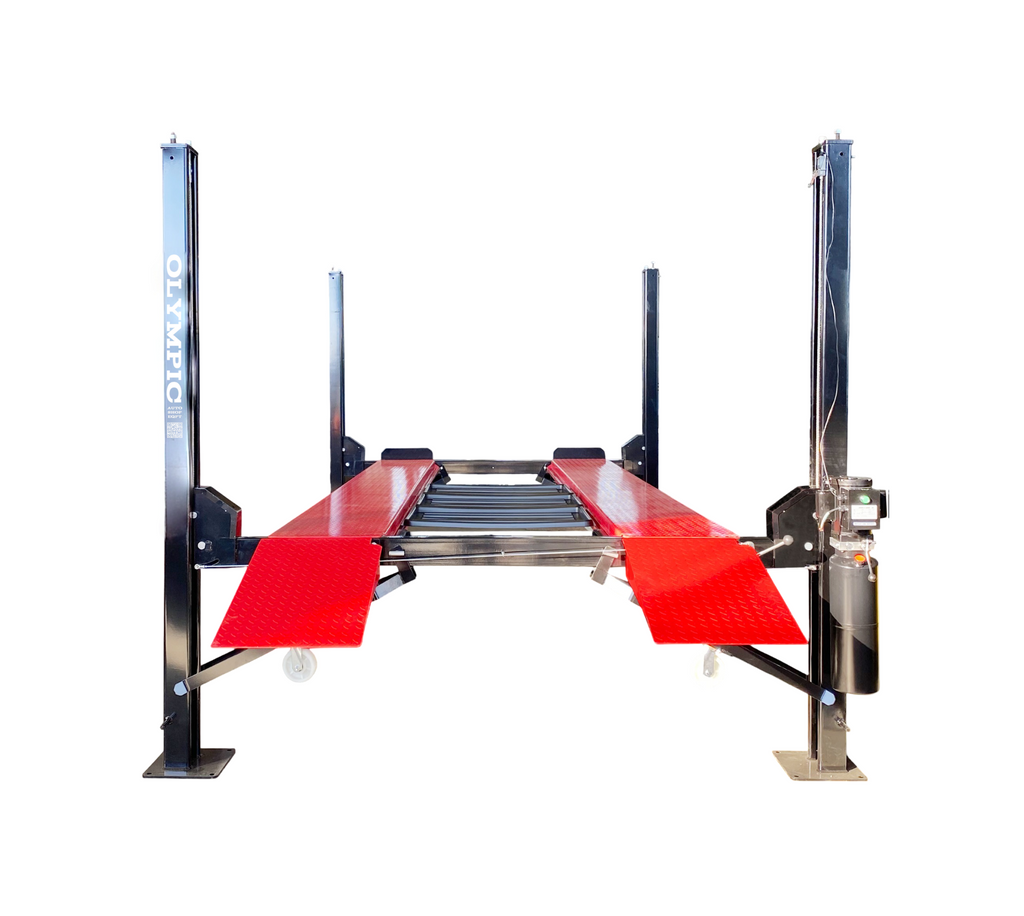

Olympic 4PHR-9X 9,000 lb High-Rise Portable 4-Post Car Storage Lift – Extra Wide & Long

The Olympic 4PHR-9X is a 9,000 lb high-rise portable 4-post car storage and maintenance lift designed to provide substantial vehicle storage space while maintaining convenient access for automotive service work. With up to 78.74″ of clearance under the tracks, this high-rise configuration allows vehicles to be stored beneath the elevated runways.

Its extra-wide 112″ overall width, 181″ runway length, and 87.67″ drive-through width make the 4PHR-9X a practical choice for garages, automotive workshops, service centers, car collectors, and professional vehicle storage applications.

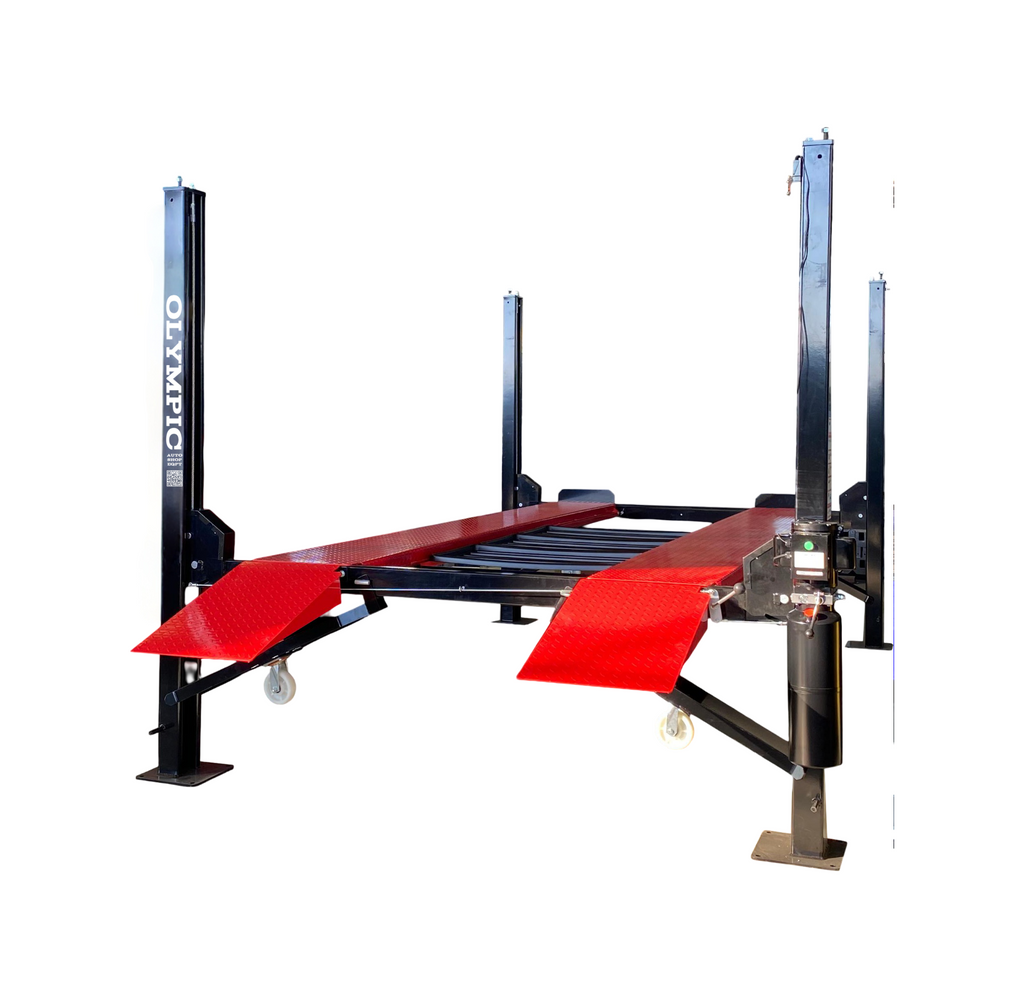

The portable design with pin-on caster arms provides flexibility when moving and positioning the lift.

KEY FEATURES

• 9,000 lb. lifting capacity
• High-rise 4-post lift configuration
• Up to 78.74″ clearance under the tracks
• Extra-wide 112″ overall width
• 218.9″ overall length with ramps
• 87.67″ drive-through width

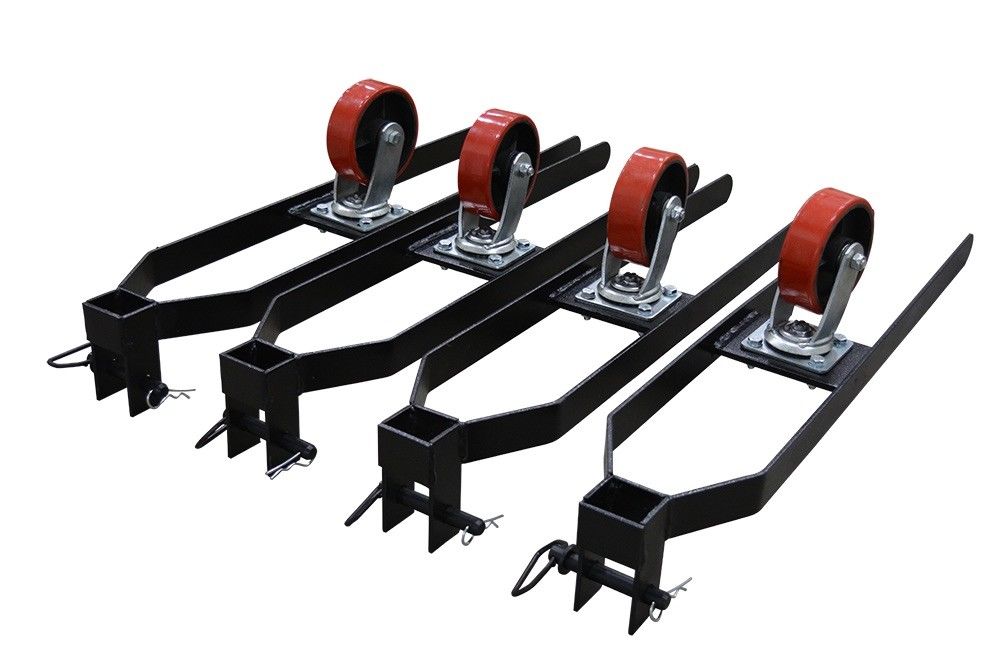

• Portable design with pin-on caster arms
• Convenient drive-through design
• Q235 specification structural steel
• Large-diameter heavy-duty hydraulic cylinder
• Single-point lock release
• Large slider blocks for added stability
• 10 locking positions
• Aircraft-quality cables rated at 14,000 lbs.
• 31″ detachable steel ramps included
• Detachable stops included
• Portability package included

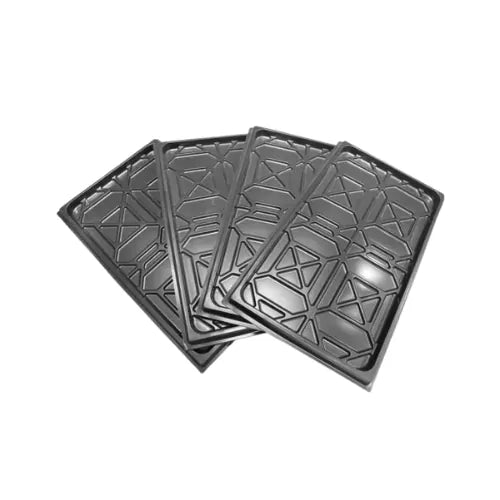

• Drip trays included
• 110V 2.2KW 60Hz 1Ph power unit
• 10-year warranty
• Optional workshop accessories available

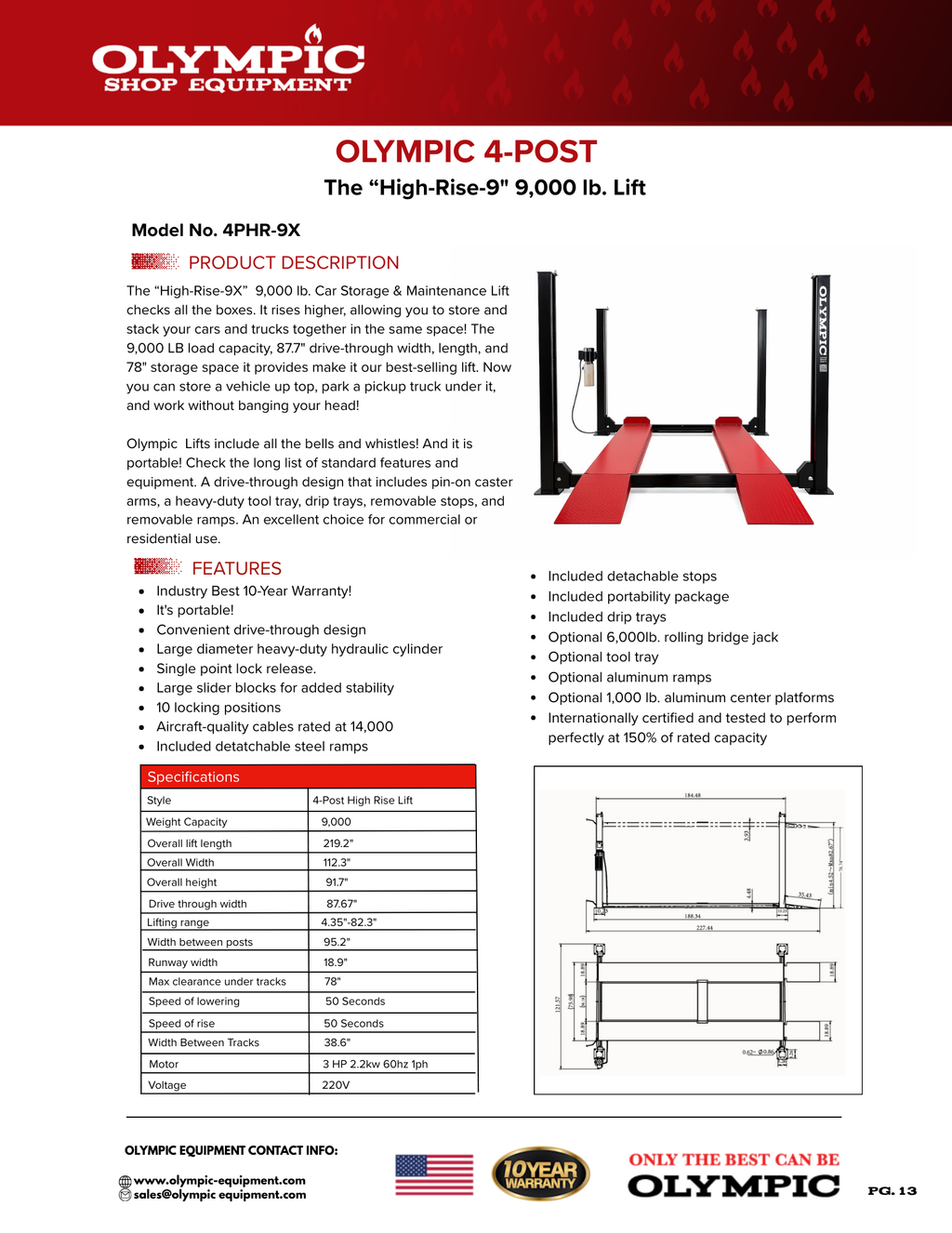

SPECIFICATIONS

BENEFITS

The 4PHR-9X is designed for customers who need both vehicle lifting capability and high-rise storage capacity. Its elevated runways create up to 78.74″ of space underneath, making it useful for storing another vehicle or using the area as additional garage space, subject to vehicle dimensions, site requirements, and safe operating conditions.

The portable four-post configuration offers flexibility for garages and workshops, while the drive-through design simplifies vehicle positioning. The hydraulic lifting system, locking positions, heavy-duty structural steel, and 14,000 lb.-rated cables provide features suited to demanding automotive environments.

Optional accessories such as a tool tray, aluminum ramps, aluminum center platforms, and a 6,000 lb. bridge jack can further support maintenance and workshop applications.

IDEAL FOR

• Home garages with vehicle storage needs
• Professional automotive workshops
• Commercial service centers
• Vehicle maintenance facilities
• Car collectors
• Race teams
• Automotive storage applications
• Professional mechanics
• Garages requiring portable lifting equipment

OPTIONAL ACCESSORIES

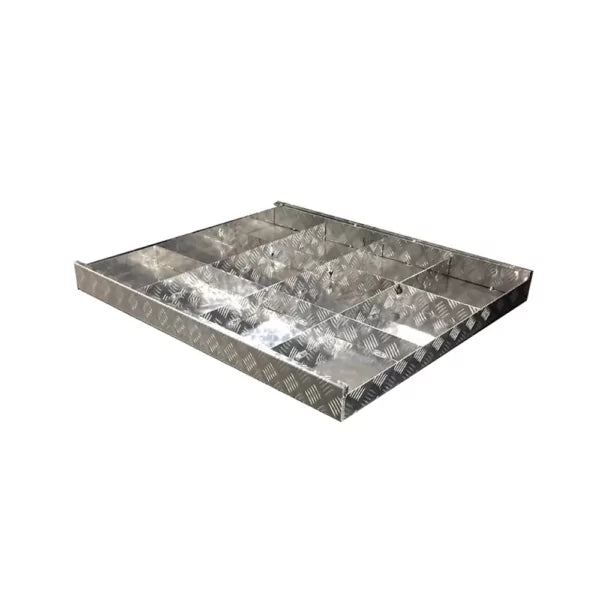

• Tool tray

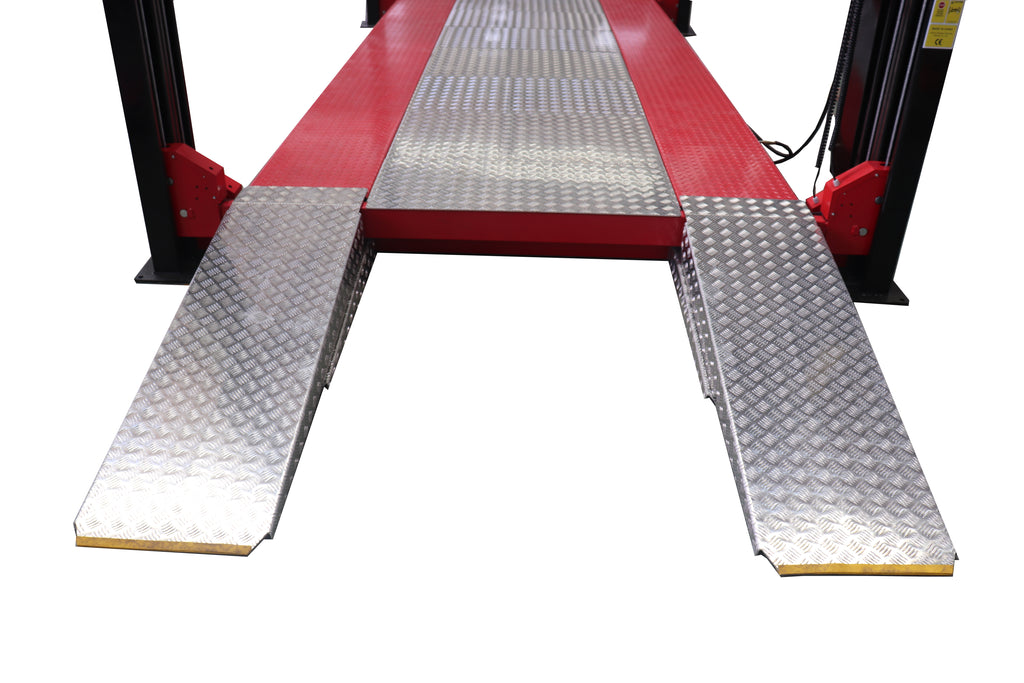

• Aluminum ramps

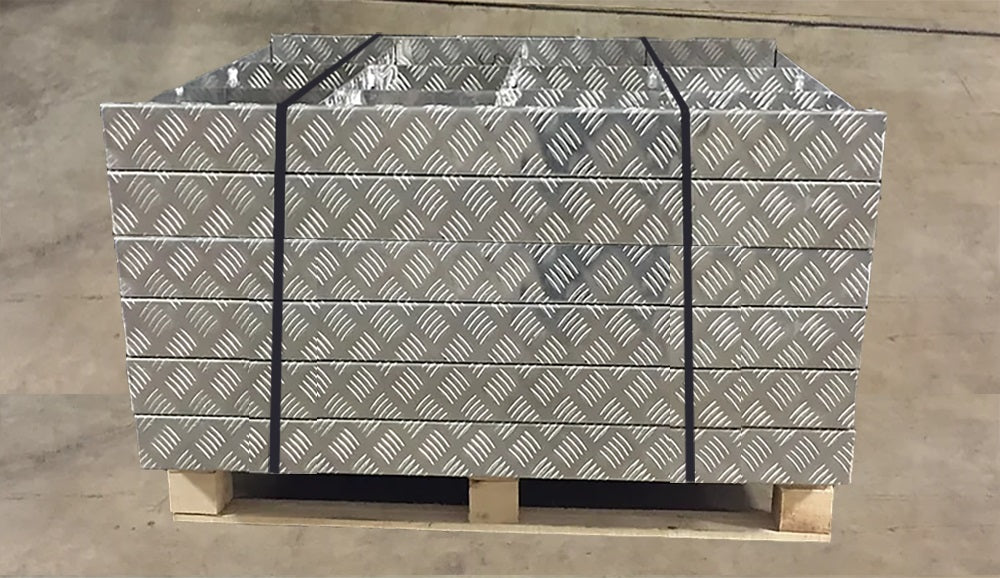

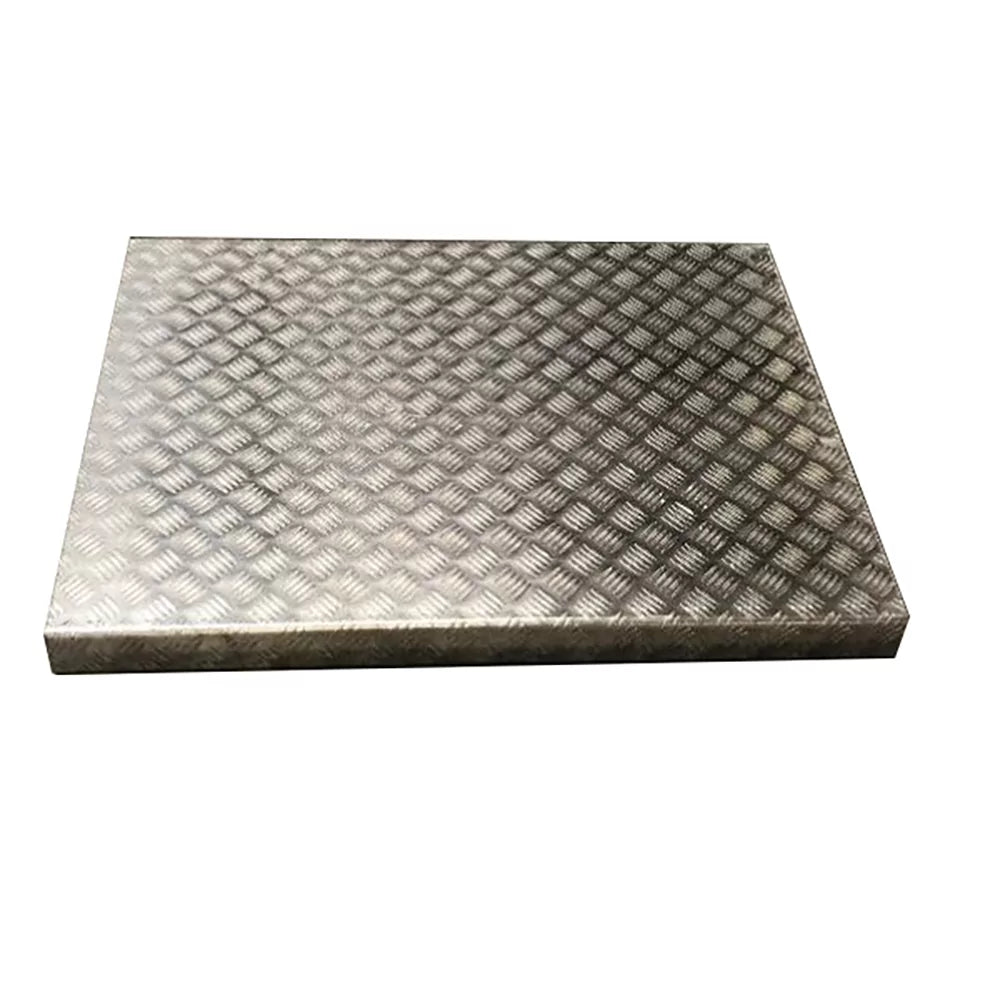

• 1,000 lb. aluminum center platforms, 4 inserts
• 6,000 lb. bridge jack, HLCJ-6 or JVCJ-6

WHY CHOOSE THIS PRODUCT

The Olympic 4PHR-9X 9,000 lb. High-Rise Car Storage Lift combines a high-rise four-post configuration, portable design, wide drive-through area, and substantial under-runway clearance. It is designed for customers who need a versatile solution for vehicle storage and maintenance in garages, workshops, and automotive service environments.

Olympic states that this model is load-tested at 150% of its rated capacity. Before purchasing or operating the lift, review the exact model's identification plate, product drawing, installation requirements, written warranty, and current certification and test documentation.

Add versatile vehicle storage and lifting capacity to your garage or workshop with the Olympic 4PHR-9X 9,000 lb. High-Rise Portable 4-Post Car Lift. Review the specifications, installation requirements, warranty terms, and available accessories before purchase.
