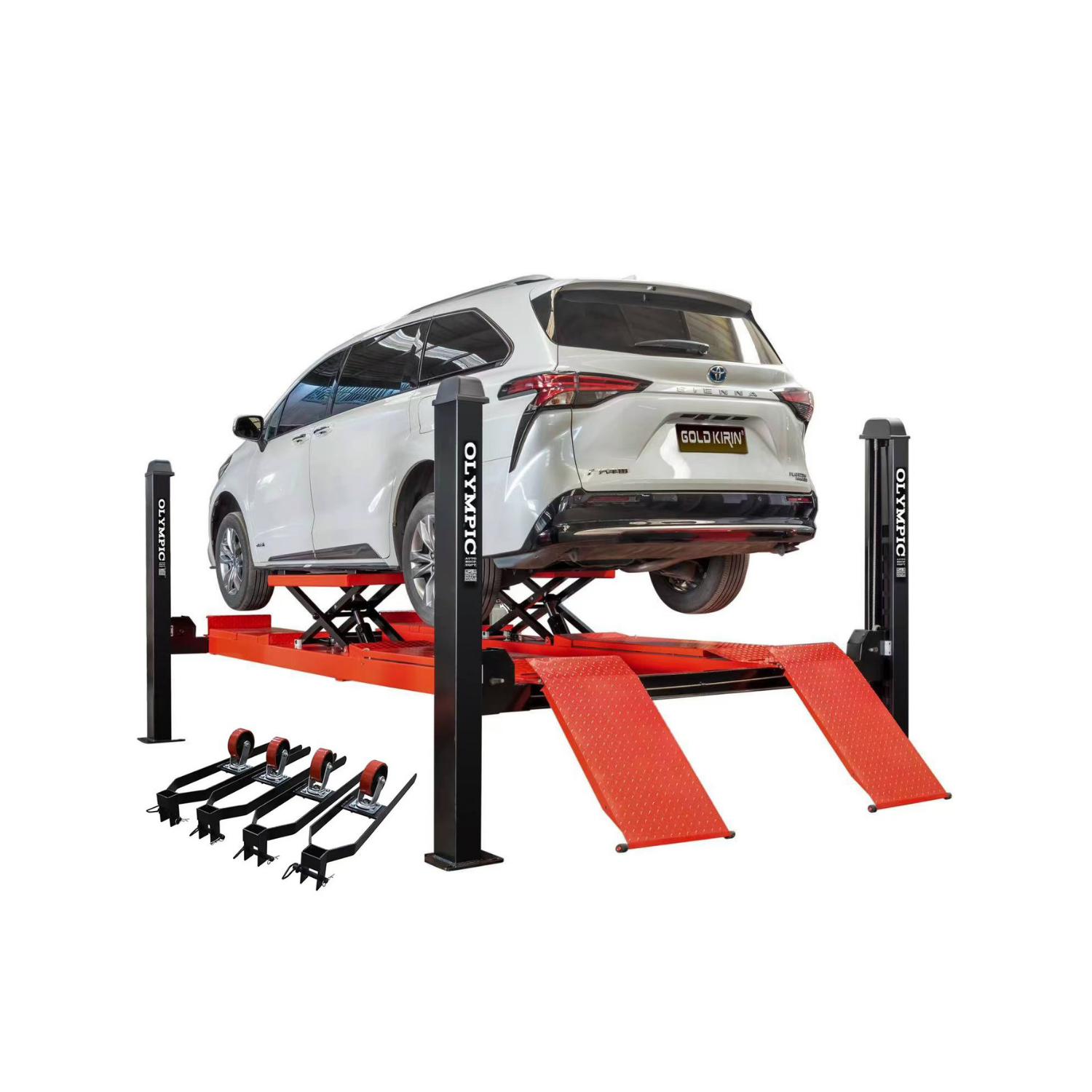

The Olympic 4PXLA-10 “The Dually” is a heavy-duty 10,000 lb 4-post alignment lift engineered for professional automotive service, maintenance, wheel and brake work, vehicle storage, and four-wheel alignment.
Designed specifically for dual-wheel trucks, long-bed trucks, service vehicles, and super-wide vehicles, this versatile automotive lift provides exceptional working space with a 112-inch drive-through width and 125 inches between the posts.
What makes the Olympic 4PXLA-10 unique is its integrated 6,500 lb built-in scissor jacks. Vehicles can be lifted directly off the runways without requiring separate bridge jacks or repositioning additional lifting equipment. This integrated design helps save valuable workspace while supporting efficient vehicle service and repair operations.
With adjustable runway width, included turntables and slip plates, removable approach ramps, a portability package, and up to 84.89 inches of clearance beneath the runways, “The Dually” is built for demanding garage and professional automotive applications.
| Model | Olympic 4PXLA-10 |
|---|---|
| Lift Style | Heavy-Duty 4-Post Alignment Lift |
| Lifting Capacity | 10,000 lbs |
| Built-In Scissor Jack Capacity | 6,500 lbs |
| Drive-Through Width | 112 inches |
| Width Between Posts | 125 inches |
| Maximum Clearance Under Runways | 84.89 inches |
| Runway Spacing | Adjustable |
| Locking Positions | 19 |
| Alignment Equipment | Front turntables and rear slip plates |
| Construction | Q235 structural steel |
| Included Power Unit | 110V, 2.2KW, 3HP |
| Optional Power | 220V |
| Approximate Rise/Lowering Time | 50 seconds |
| Warranty | 10 years |
The Olympic 4PXLA-10 combines vehicle lifting, alignment capability, maintenance access, and storage functionality in one professional automotive lift.
The built-in scissor jacks eliminate the need for separate bridge jacks when lifting a vehicle off the runways for brake, wheel, suspension, and other service work. This helps reduce equipment clutter and minimizes the need to reposition additional lifting equipment.
Its wide dimensions and adjustable runway configuration make it well suited for dual-wheel trucks, long-bed trucks, service vehicles, and other wide automotive applications.
The included turntables and slip plates provide the equipment needed for four-wheel alignment applications, while the high-clearance design provides substantial working and storage space beneath the runways.
The Olympic 4PXLA-10 “The Dually” is designed for automotive professionals and vehicle owners who require a wide, heavy-duty 4-post lift with alignment capability and integrated vehicle lifting support.
Its combination of a 10,000 lb lifting capacity, wide drive-through design, adjustable runways, alignment equipment, and built-in scissor jacks makes it a versatile solution for servicing trucks, dual-wheel vehicles, service vehicles, and other wide automobiles.
The integrated scissor jack design allows vehicles to be lifted directly from the runways without relying on separate bridge jacks, while the portable configuration and included caster kit provide additional flexibility.
Built from Q235 structural steel, tested at 150% of its rated capacity, and backed by a 10-year warranty, the Olympic 4PXLA-10 is designed for long-term professional automotive use.
Upgrade your automotive workshop with the Olympic 4PXLA-10 “The Dually” 10,000 lb 4-post alignment lift. Order today for a versatile heavy-duty vehicle lift with built-in scissor jacks, adjustable runways, alignment equipment, and professional-grade service capability.
Before installation or operation, compare the identification plate and current product drawing with the manual supplied with the exact lift.
