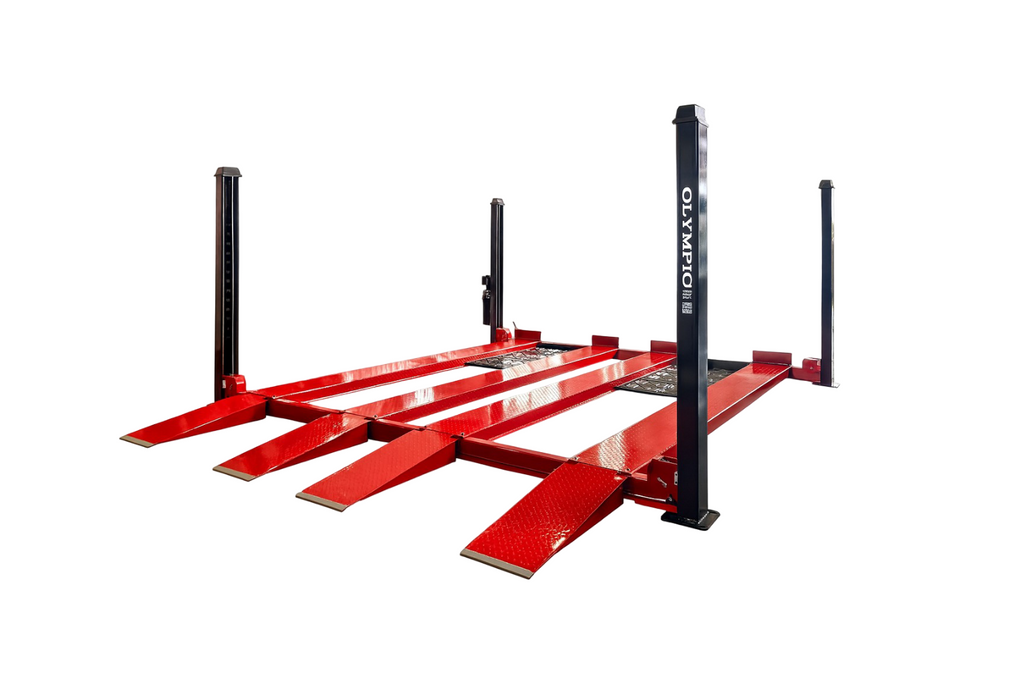

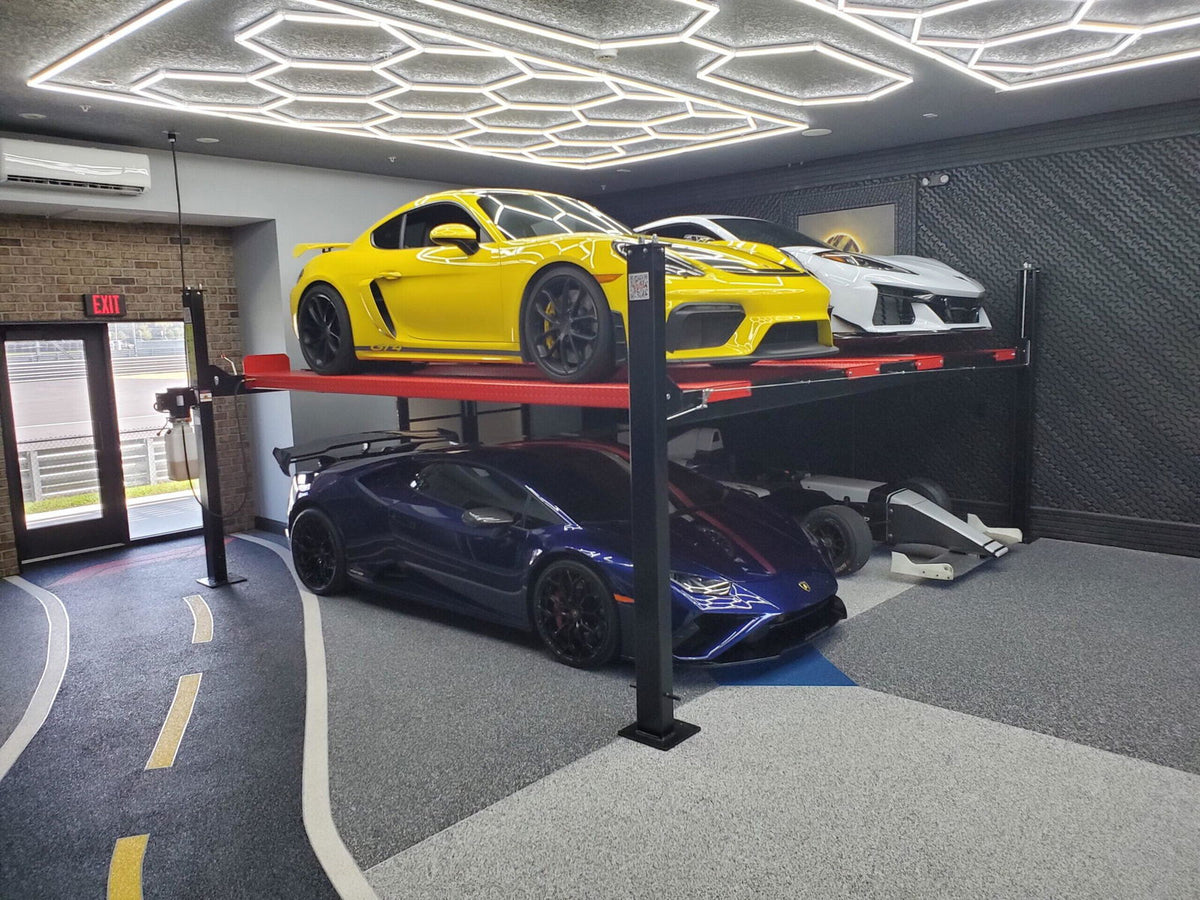

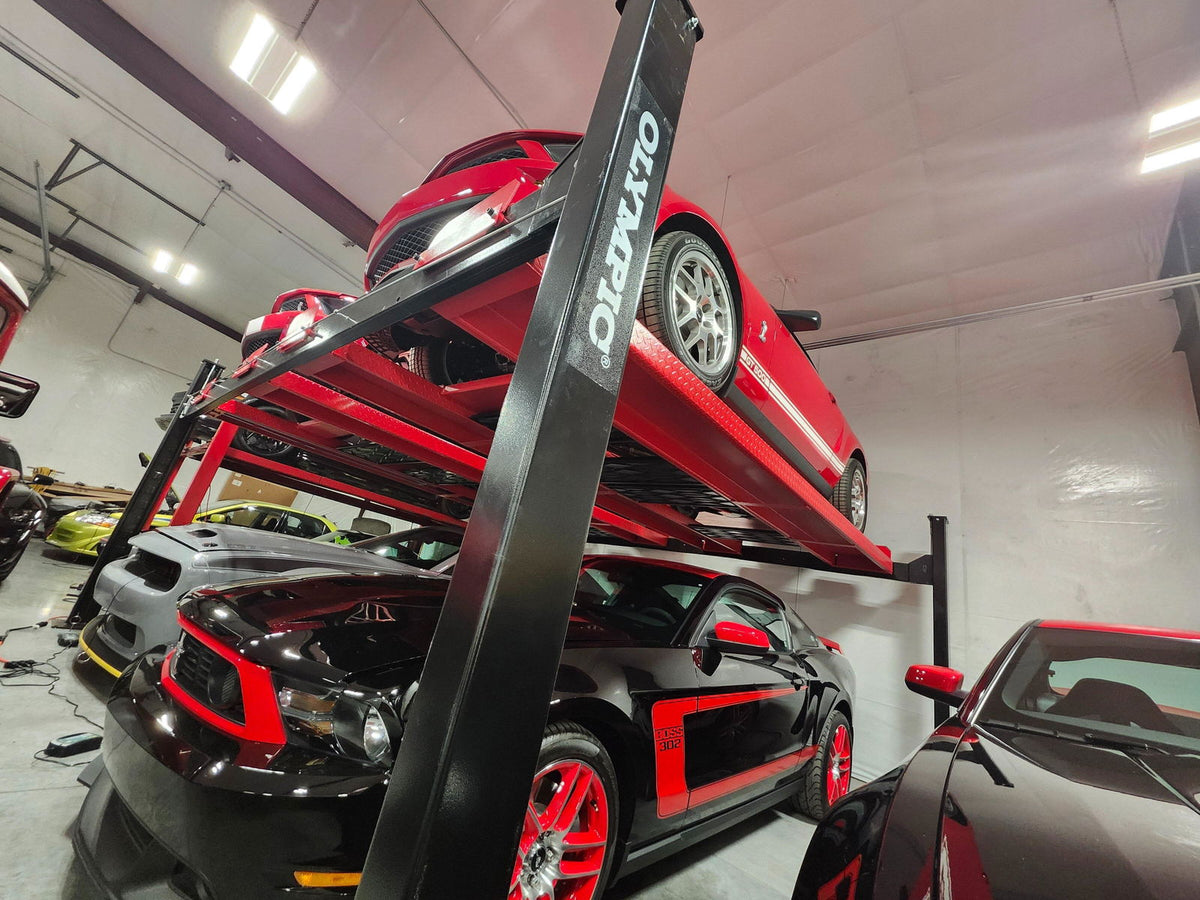

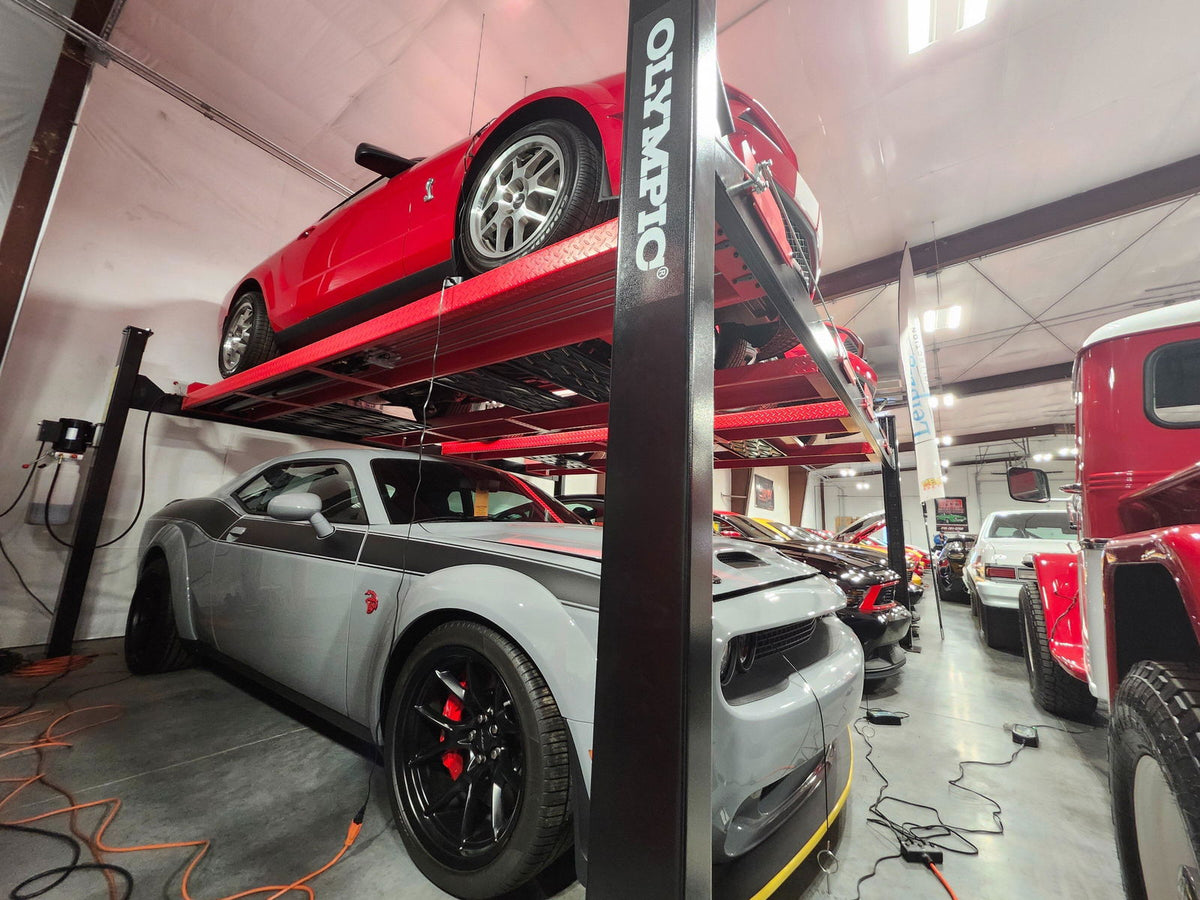

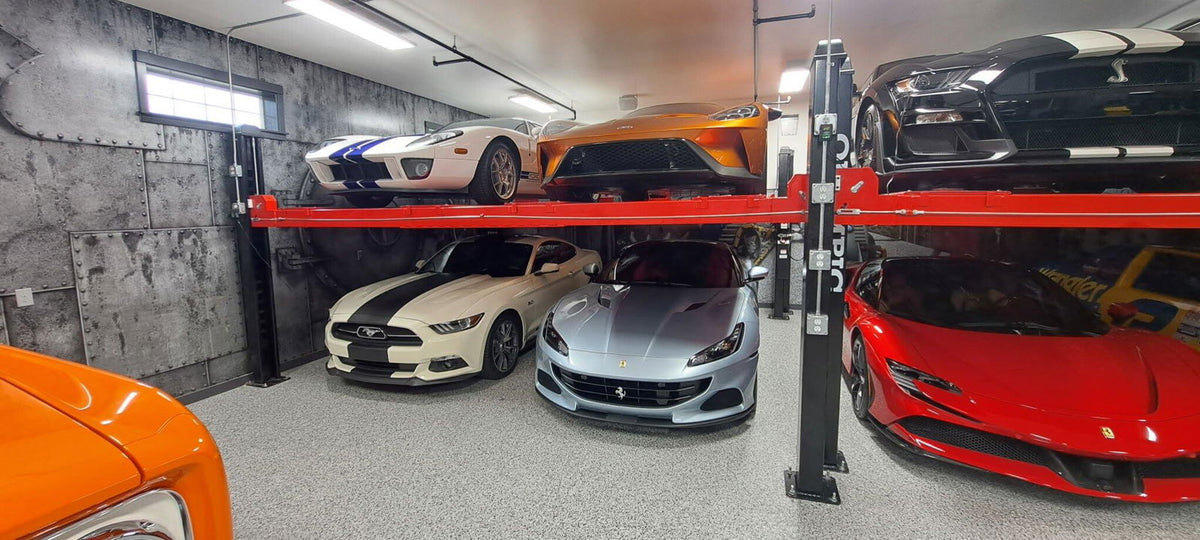

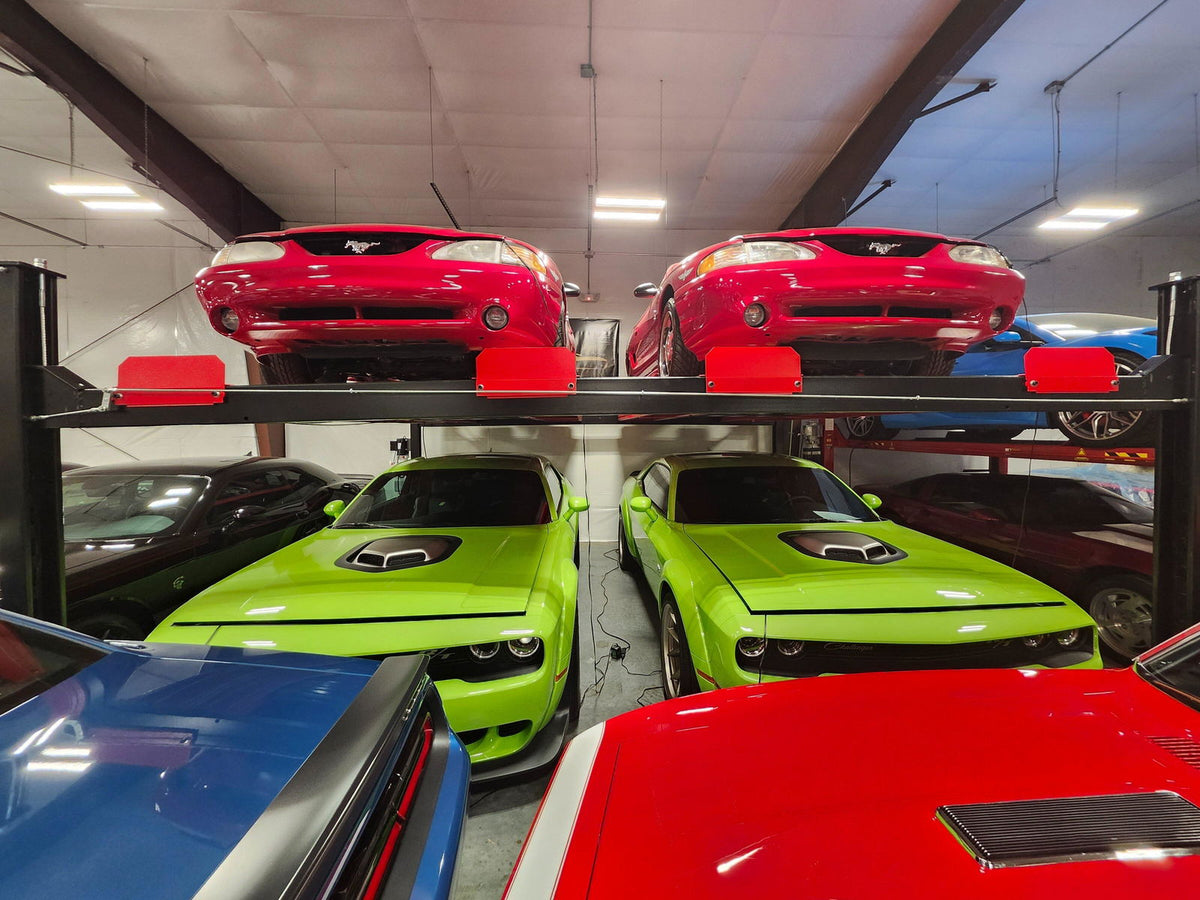

The Olympic 4PXW-10 “Double Stacker” is a heavy-duty 10,000 lb 4-post car stacking and storage lift designed to store or service up to four vehicles in the space typically used for two.
With a massive 173″ drive-through width, 192.01″ space between posts, and 78″ of clearance beneath the tracks, this multi-vehicle storage lift is built for large vehicles and demanding garage storage applications.
The 19-foot runways provide additional length for long vehicles, while the low 4.5″ deck runways make the lift suitable for compatible lowered cars. Six included drip trays help manage fluid collection during vehicle storage or maintenance.

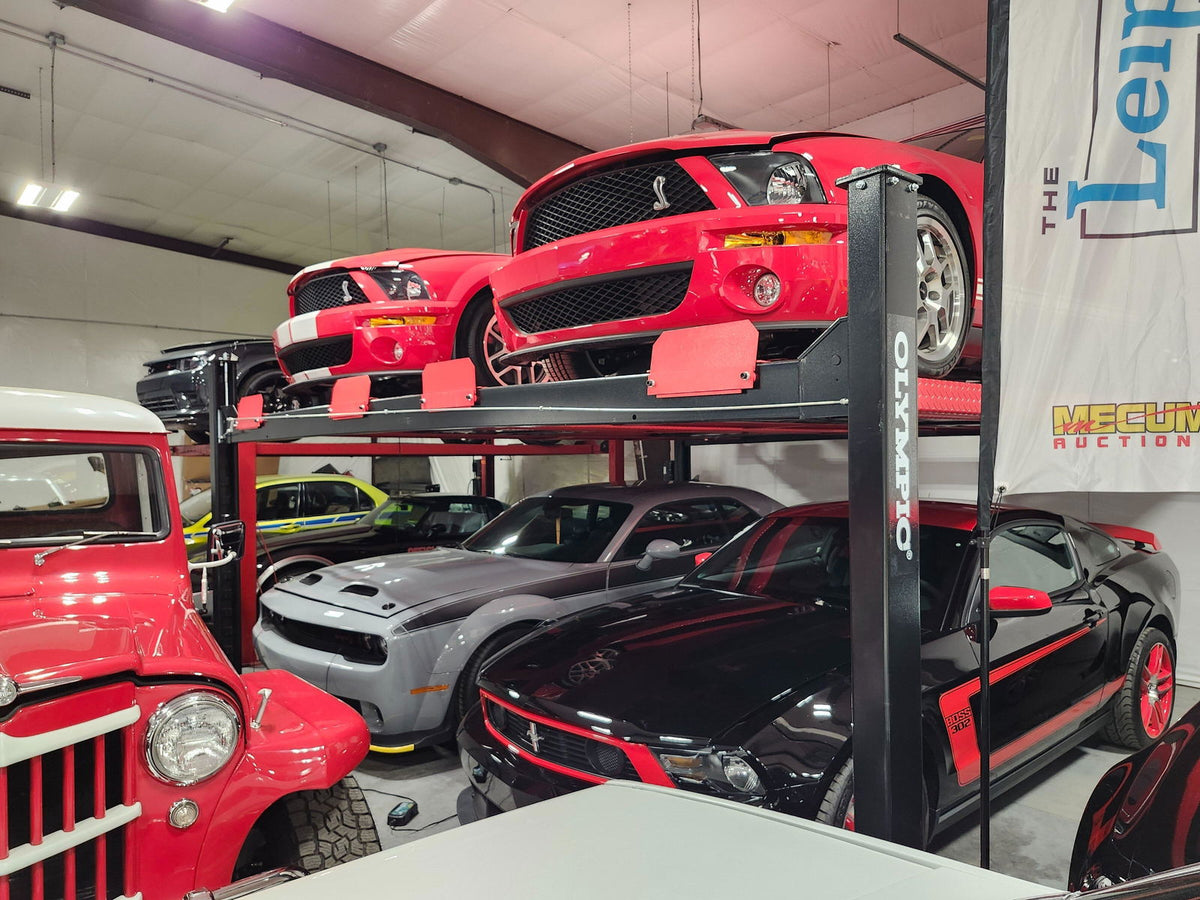

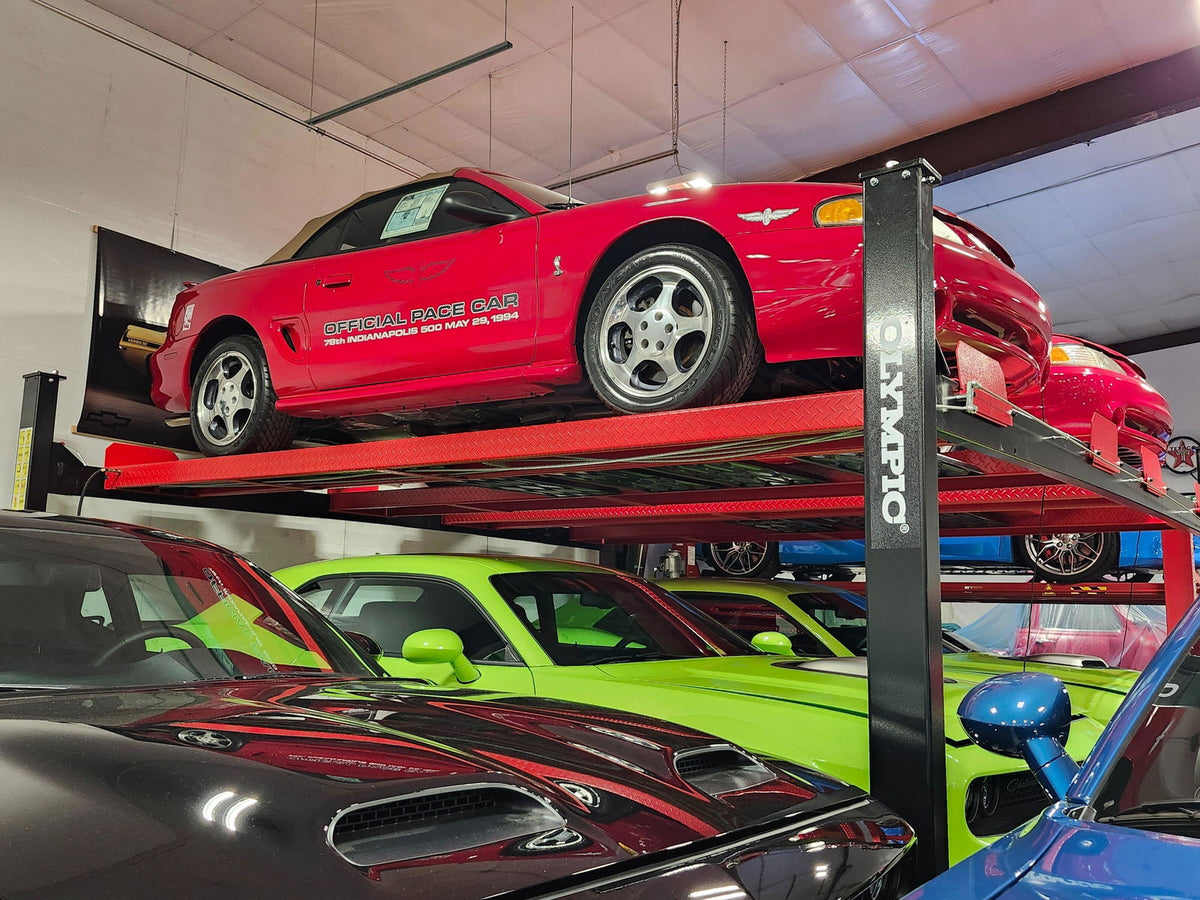

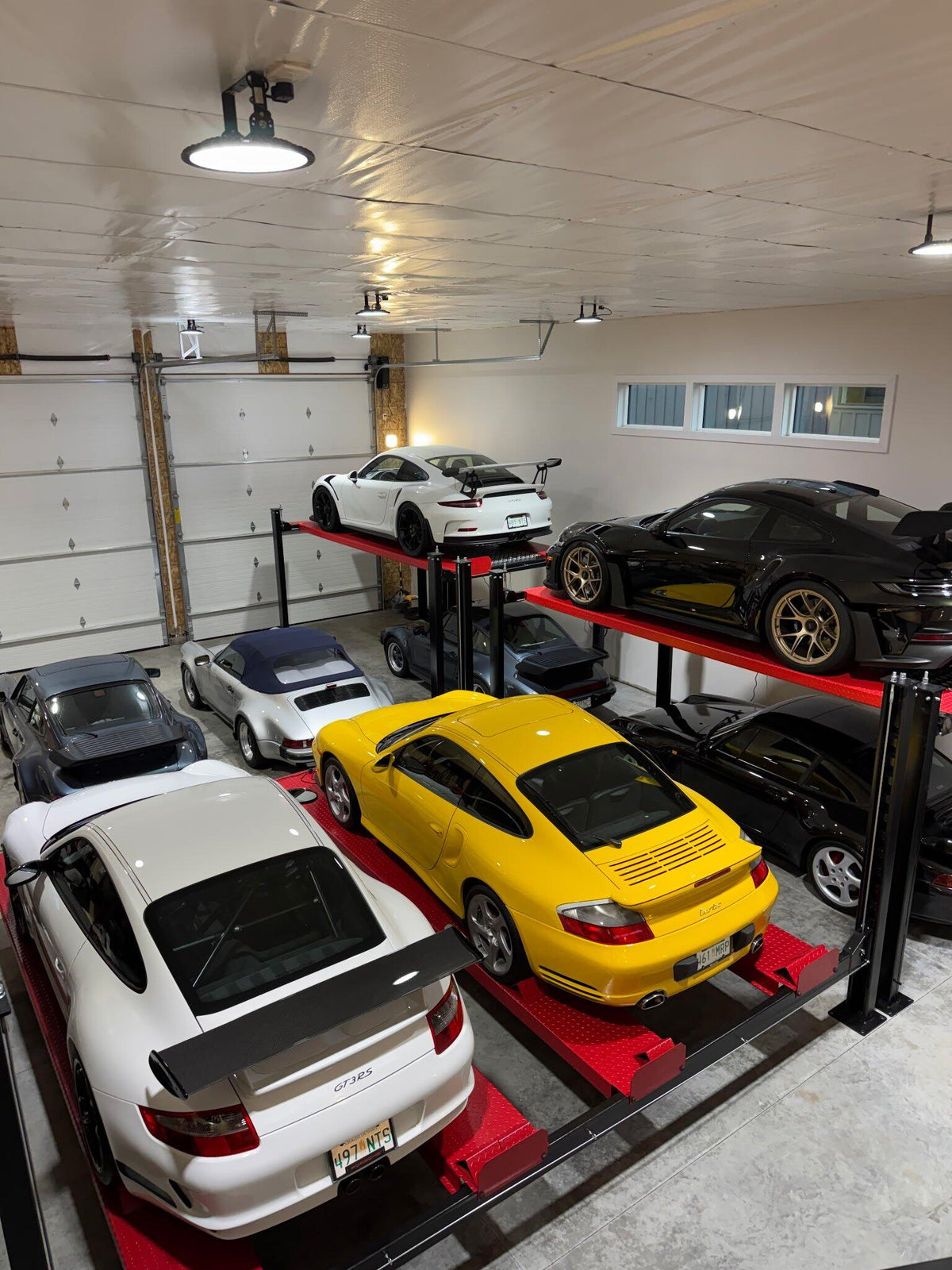

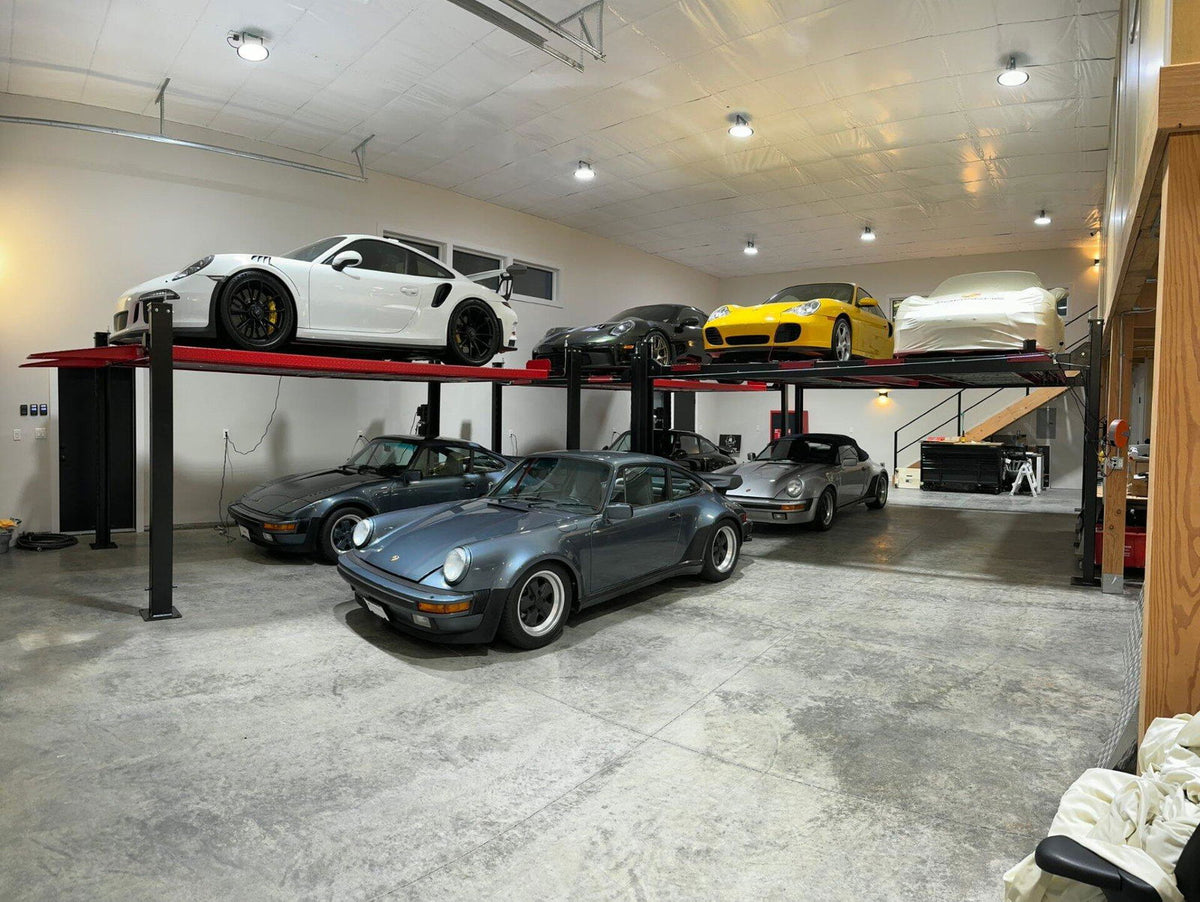

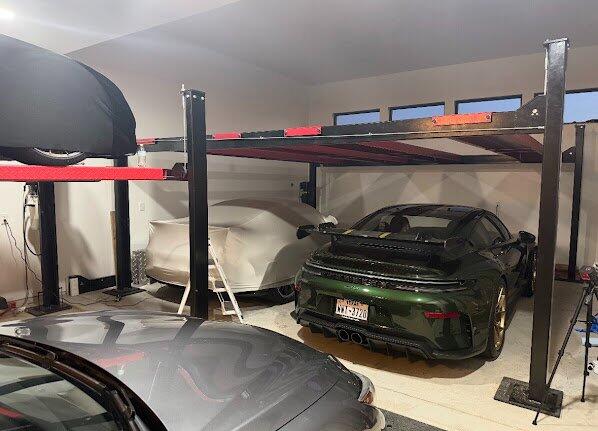

The Double Stacker is designed to store or service up to four vehicles in the space of two, making vertical garage space more useful for multi-vehicle storage.
The 173″ drive-through width and 192.01″ spacing between posts provide substantial room for oversized vehicles and large storage configurations.
The lift provides up to 78″ of clearance beneath the tracks, creating substantial vertical space for parking or storing additional vehicles.
The 19-foot runways are designed to accommodate long vehicles while maintaining a stable platform for supported applications.
The approximately 4.5″ low deck runways provide easier access for compatible lowered vehicles where standard runway heights may be unsuitable.
Automatic safety locks, a single-point lock release, automatic maximum-height shutoff, and heavy-duty structural components make this lift suited to demanding storage and service environments.

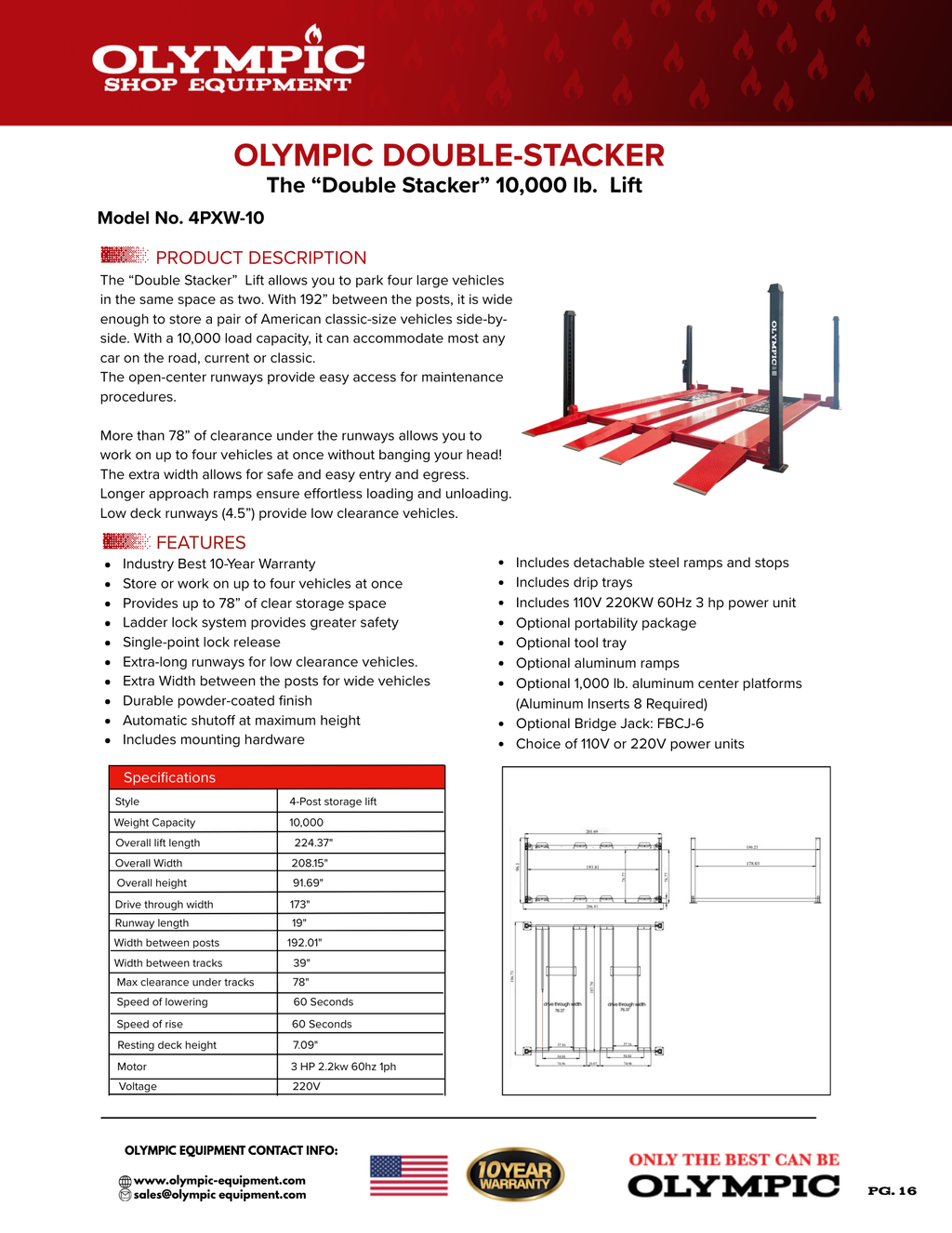

| Specification | Details |
|---|---|
| Model | Olympic 4PXW-10 “Double Stacker” |
| Lift Type | 4-Post Storage Lift |
| Capacity | 10,000 lbs |
| Vehicles Supported | Up to four vehicles for storage or service |

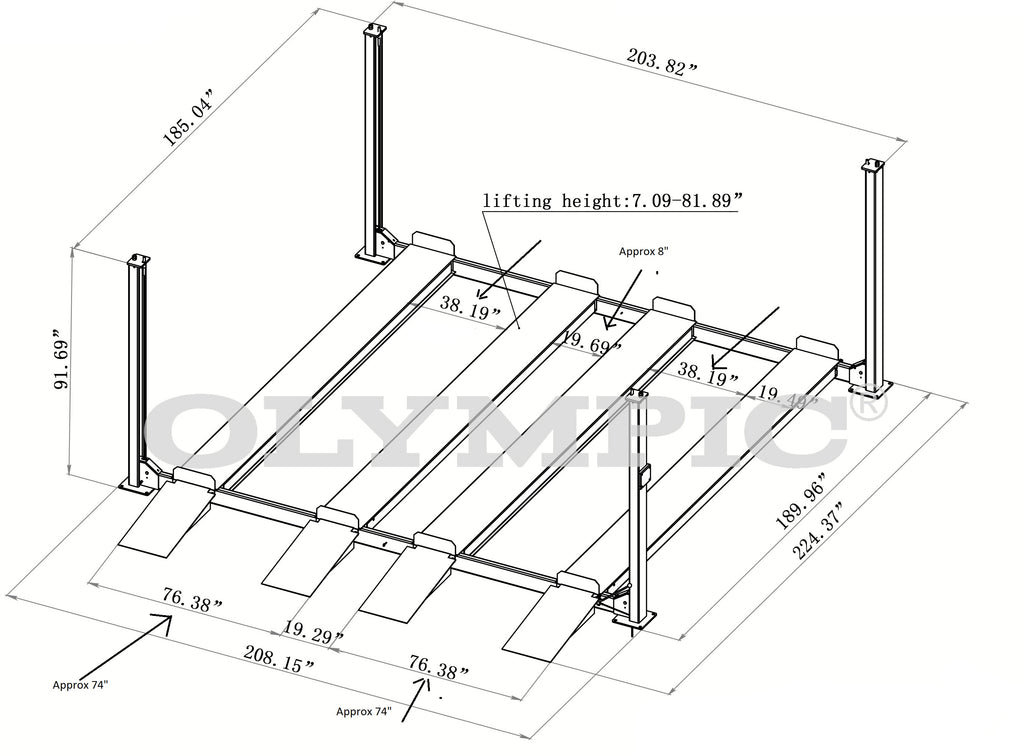

| Overall Length With Ramps | 224.37″ |
| Overall Length Without Ramps | 189.96″ |
| Overall Width | 208.15″ |
| Overall Height | 91.69″ |
| Drive-Through Width | 173″ |
| Runway Length | 19′ |
| Width Between Posts | 192.01″ |
| Width Between Tracks | 39″ |
| Maximum Clearance Under Tracks | 78″ |
| Resting Deck Height | 7.09″ |
| Runway Deck Height | Approximately 4.5″ low deck |
| Rise Speed | 60 seconds |
| Lowering Speed | 60 seconds |
| Standard Voltage | 110V |
| Standard Power Unit | 2.2KW, 60Hz, 1Ph |
| Optional Power | 220V 2.2KW, 60Hz |
| Construction | Q235 structural steel |
| Warranty | 10-year warranty |
The Olympic 4PXW-10 is designed for customers who need to maximize vehicle storage capacity without expanding their existing floor footprint. Its four-post Double Stacker configuration can accommodate up to four vehicles in the space of two, while its extra-wide design provides the clearance needed for large vehicle storage applications.
The 10,000 lb capacity, 173″ drive-through width, 192.01″ post spacing, long runways, and 78″ under-track clearance make it a specialized solution for high-density vehicle storage and compatible maintenance applications.
The lift includes automatic safety locks and is certified and tested at 150% of rated capacity according to the supplied product information.
Maximize your garage or commercial storage space with the Olympic 4PXW-10 10,000 lb Double Stacker. Store or service up to four vehicles in the space of two with its extra-wide 4-post design and 78″ under-track clearance.
Review the exact product specifications, installation requirements, vehicle compatibility, and supplied documentation before installation or operation.
