Name: Model: Olympic 2PCF-9 / 9,000‐lb. / Symmetric Post Clear floor / Dual Point Lock Release / 2-Stage Arms / 2-Stage Foot Pads / 142″ H X 129″ W / 10-Year Warranty / SHIPS FREE!
Brand: OLYMPIC EQUIPMENT
SKU: 2PCF-9
Price: 3125.00 USD
Availability: InStock

1/3

Model: Olympic 2PCF-9 / 9,000‐lb. / Symmetric Post Clear floor / Dual Point Lock Release / 2-Stage Arms / 2-Stage Foot Pads / 142″ H X 129″ W / 10-Year Warranty / SHIPS FREE!

$3,125.00 USD ~~$3,999.00 USD~~

9,000 lbs

Capacity

11′ 10″

Fits Under Ceiling

10-Year

Warranty

99.6″

Drive Through Width

Still have questions? Message us here!

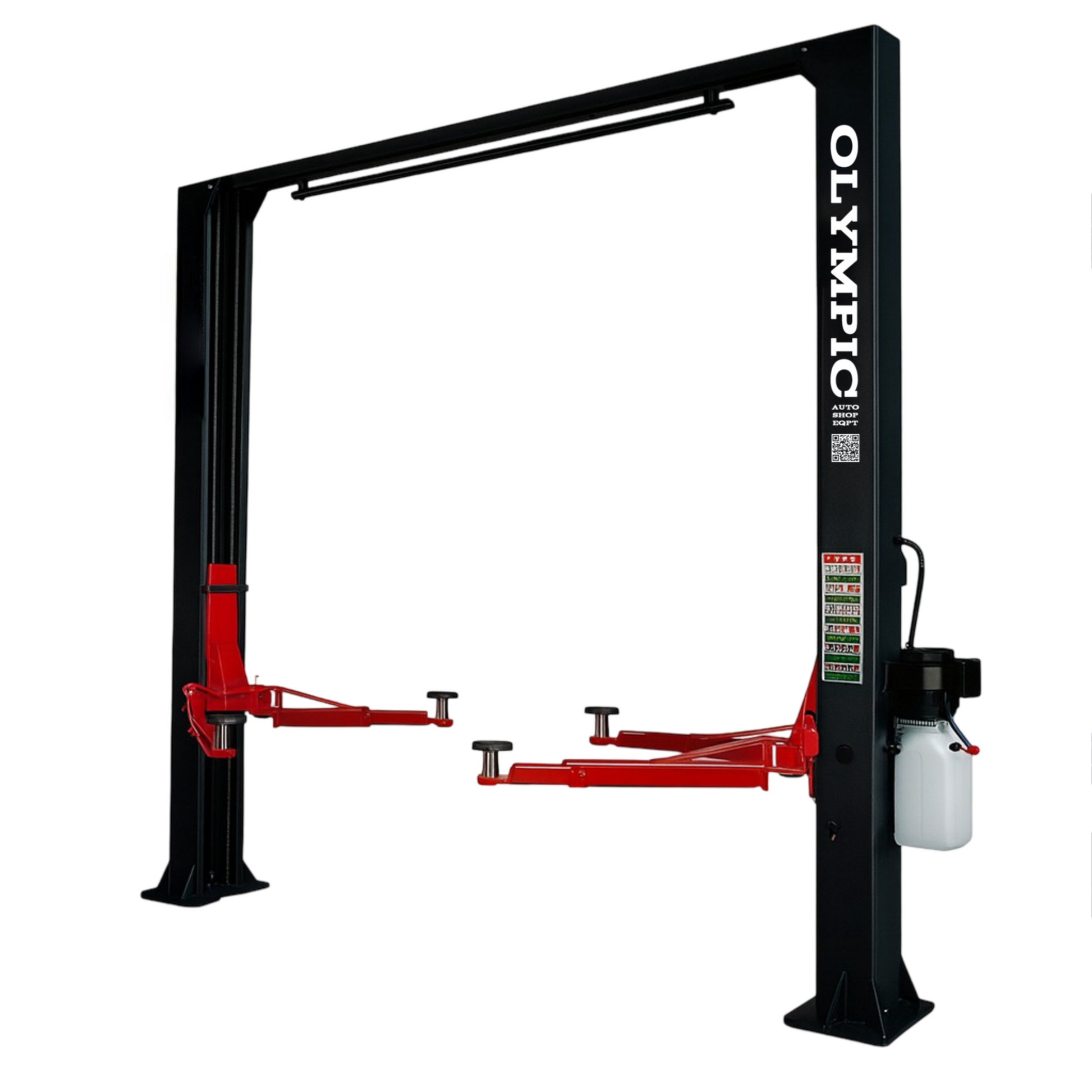

Olympic 2PCF-9 / 9,000 lb. 2-Post Clear Floor Lift

Commercial-quality lift trusted by pros and enthusiasts alike.
Heavy-duty design, excellent features, and a competitive price make the 2PCF-9 one of Olympic’s best-selling lifts.
Capacity: 9,000 lbs. | Fits Under Ceiling Height: 12′ | Max. Lift Height: 74.8″

Key Features

Olympic 10-Year Warranty
High-quality Q235 spec structural steel
Technically advanced configuration
Deluxe pin-on carriage
Asymmetric long-reach arms
Two-stage foot height adapters
Dual point lock release
Durable powder-coated finish
Automatic stop at maximum height
Large diameter heavy-duty hydraulic cylinders
Synchronized hydraulic system
Independent load leveling system
Door anti-crush rubber protection
Swing arm supports with high-quality pads
Mounting hardware included
Includes (4) 3.5″ truck adapters
110V 2.2KW 60Hz 1Ph power unit included (220V option)
Certified & tested at 150% of rated capacity

Specifications

Style	2-Post Clear Floor
Capacity	9,000 lbs
Overall Height	141.73″
Overall Width	128.74″
Voltage	220V / 110V
Min. Lift Height	4.3″
Max. Lift Height	74.8″
Width Between Posts	109.5″
Front Arm Reach	30″ – 41.3″
Rear Arm Reach	30″ – 47.2″
Speed of Rise	60 seconds
Speed of Lowering	55 seconds
Locking positions	15
Motor	3HP, 2.2KW, 1PH
