Model: Olympic 2PCFHD-12 / 12,000‐lb. HDXL / Symmetric Post / Clear floor / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 174″ H X 156″ W / 10-Year Warranty / SHIPS FREE!
Model: Olympic 2PCFHD-12 / 12,000‐lb. HDXL / Symmetric Post / Clear floor / Single Point Lock Release / 3-Stage Arms / 3-Stage Foot Pads / 174″ H X 156″ W / 10-Year Warranty / SHIPS FREE!
$5,811.00 USD $7,264.00 USD
12,000 lbs
Capacity
70.87″
Max. Lift Height
10-Year
Warranty
Synchrony Financing
$484.25/mo for 12 months Preorder Now & Save $290.55

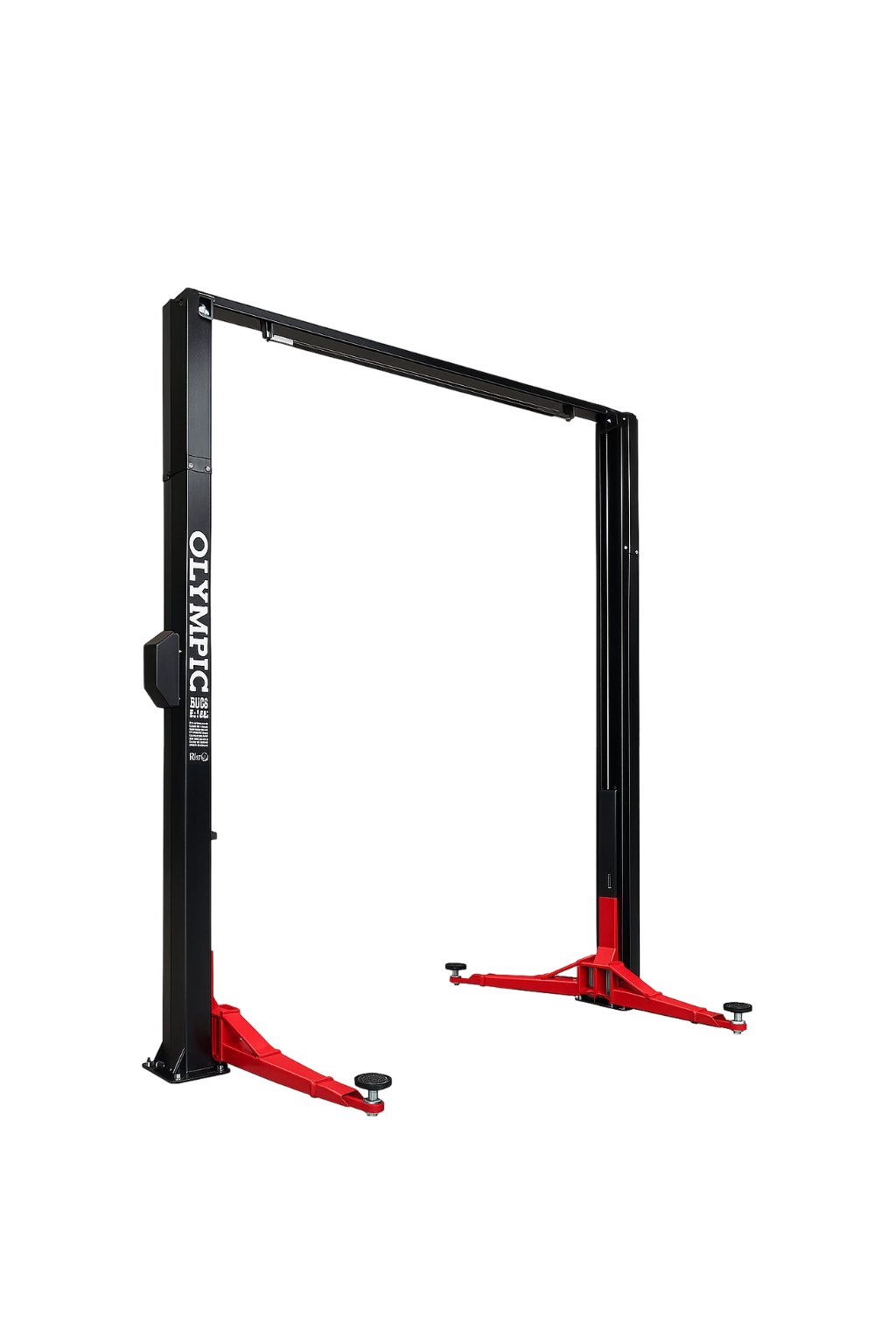

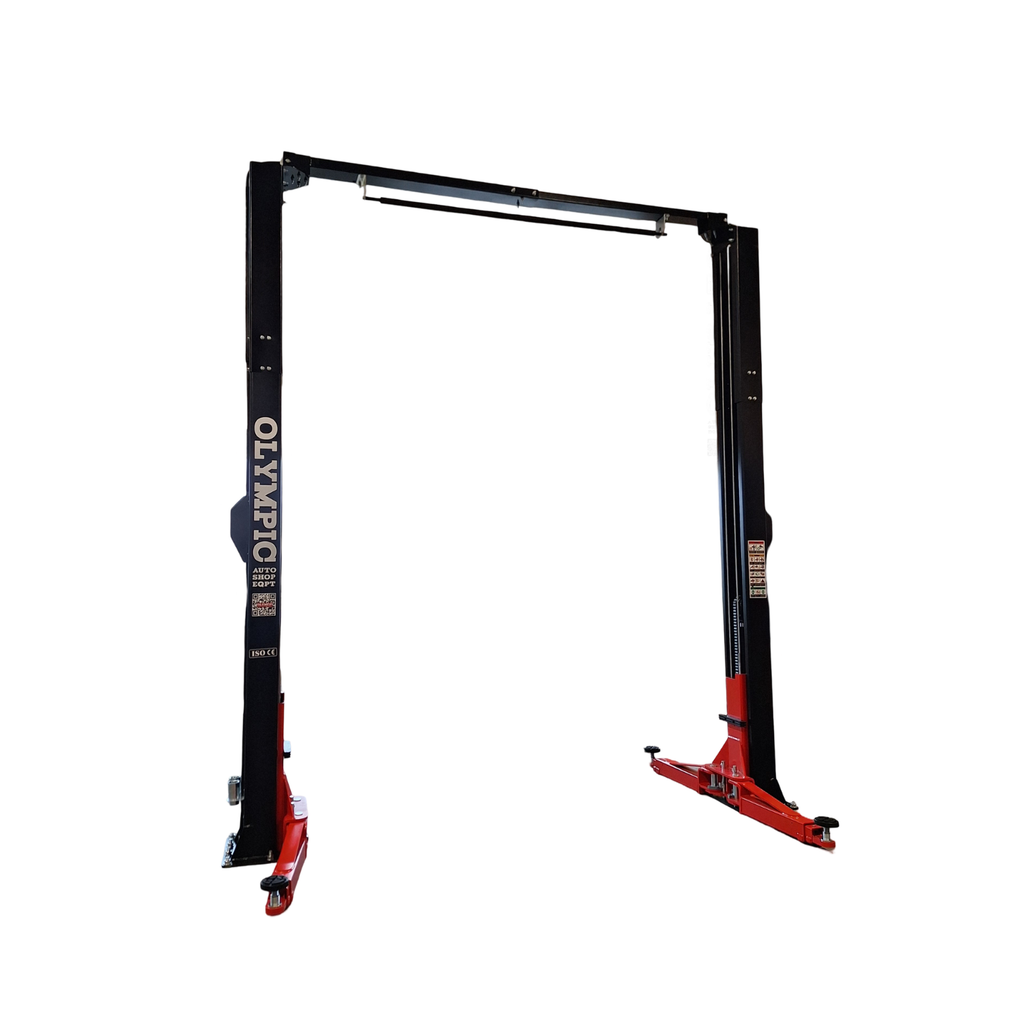

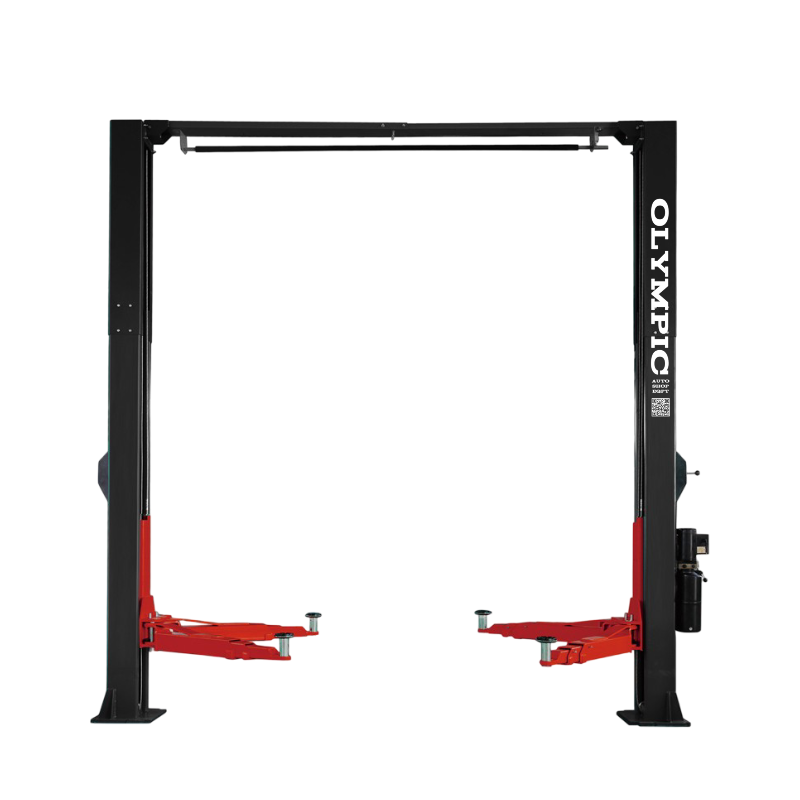

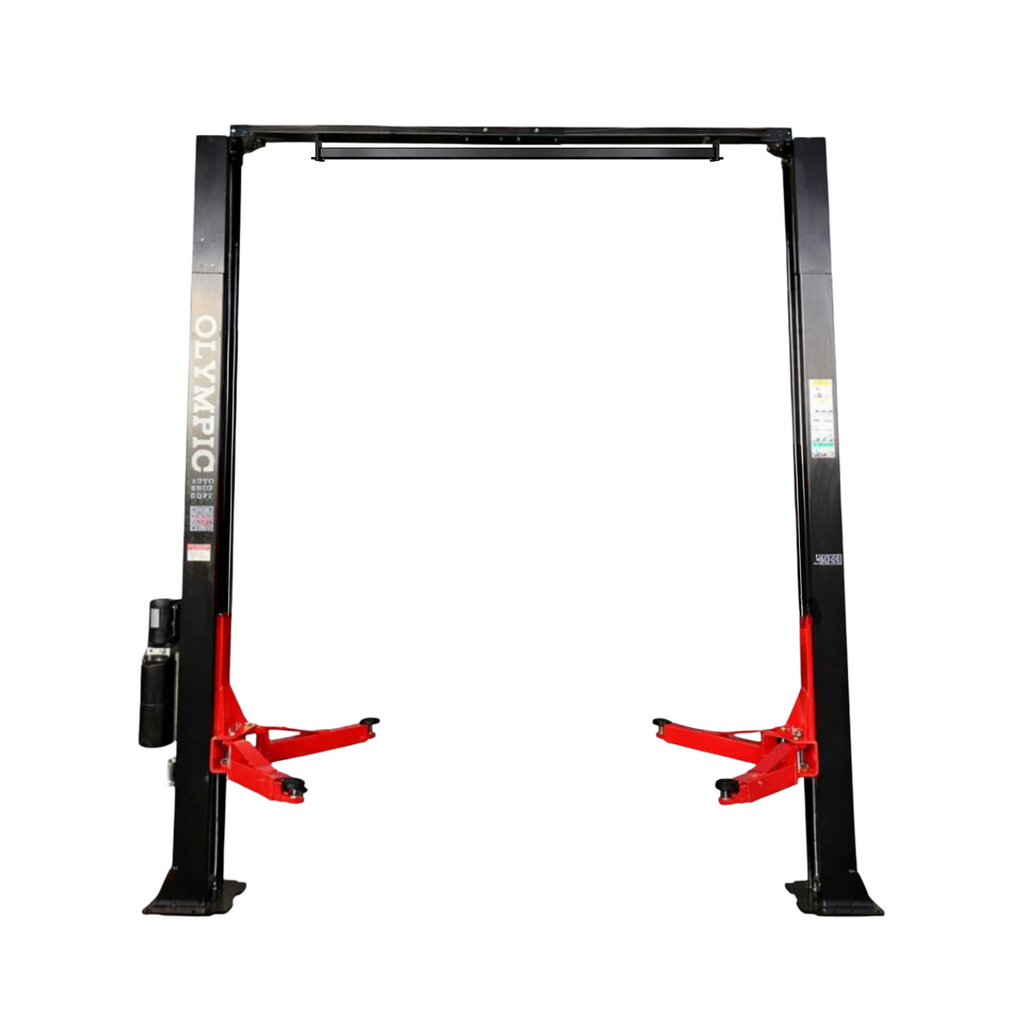

Olympic 2PCFHD-12 / 12,000 lb. Heavy-Duty Extra-Wide, Extra-Tall Lift

A heavy-duty lift built for the toughest jobs.
Designed to handle large, wide, and tall vehicles, including dual-wheel trucks, with ease. Built on the same rugged structure as our 15,000 lb. lift, this model is perfect for high-volume service centers and serious shops.
Capacity: 12,000 lbs | Fits Under Ceiling Height: 14′6″ | Max. Lift Height: 70.87″

Key Features

  • Olympic 10-Year Warranty!
  • Technically advanced configuration
  • Deluxe pin-on carriage
  • Convenient single-point lock release
  • Large-diameter hydraulic cylinder in each column
  • Three-stage symmetrical long reach extension arms
  • Three-stage screw-on adjustable height foot adapters
  • Durable powder-coated finish
  • Automatic stop at maximum lifting height
  • Synchronized hydraulic system
  • Door anti-crush rubber protection
  • Swing arm supports with high-quality pads
  • Mounting hardware included
  • Includes (4) 3.5″ truck adapters
  • 110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option)
  • Certified & tested at 150% of rated capacity

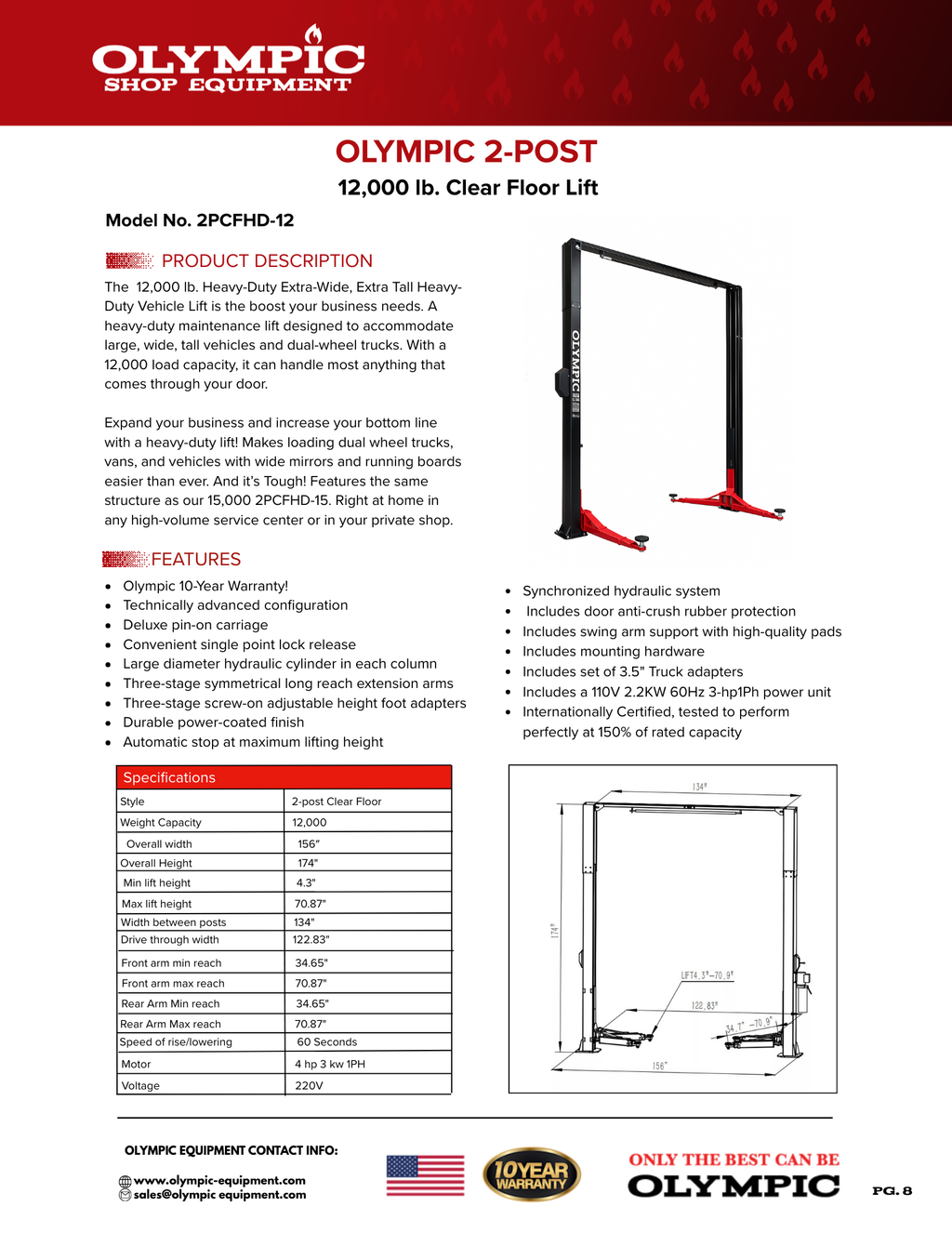

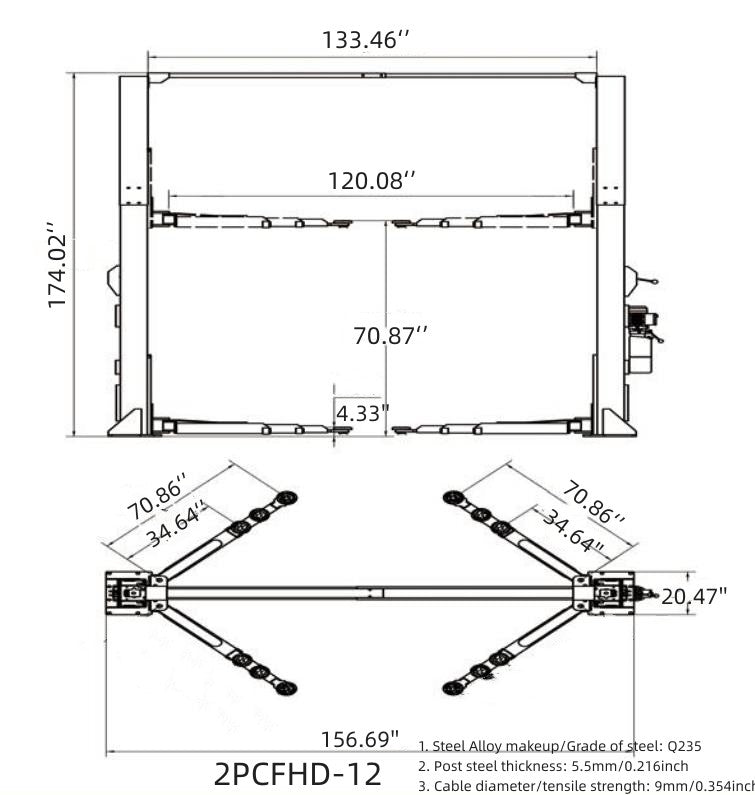

Specifications

Style 2-Post Clear Floor
Capacity 12,000 lbs
Overall Height 174″
Overall Width 156″
Voltage 220V, 1-Phase
Min. Lift Height 4.3″
Max. Lift Height 70.87″
Width Between Posts 134″
Front Arm Reach 34.65″ – 70.87″
Rear Arm Reach 34.65″ – 70.86″
Speed of Rise 55 seconds
Speed of Lowering 55 seconds
Recommended Power Unit HPU2204, 3KW, 4HP, 1PH
Fits Under Ceiling Height 14′6″

Why Choose an Olympic Lift?

When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
