Model: 2PCFHD-15 / 15,000‐lb. Gold Series HDXL / Symmetric Post / Clear floor / Single Point Lock Release / Long Reach Extension Arms / 2-Stage Foot Pads / 10-Year Warranty / 174″ H X 156″ W
Model: 2PCFHD-15

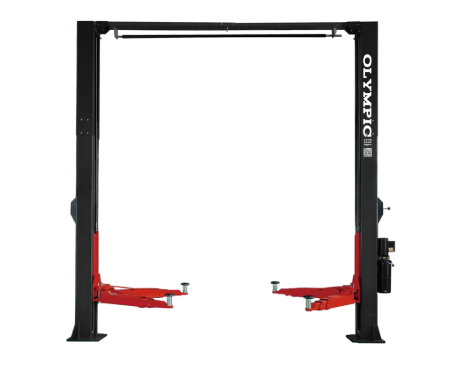

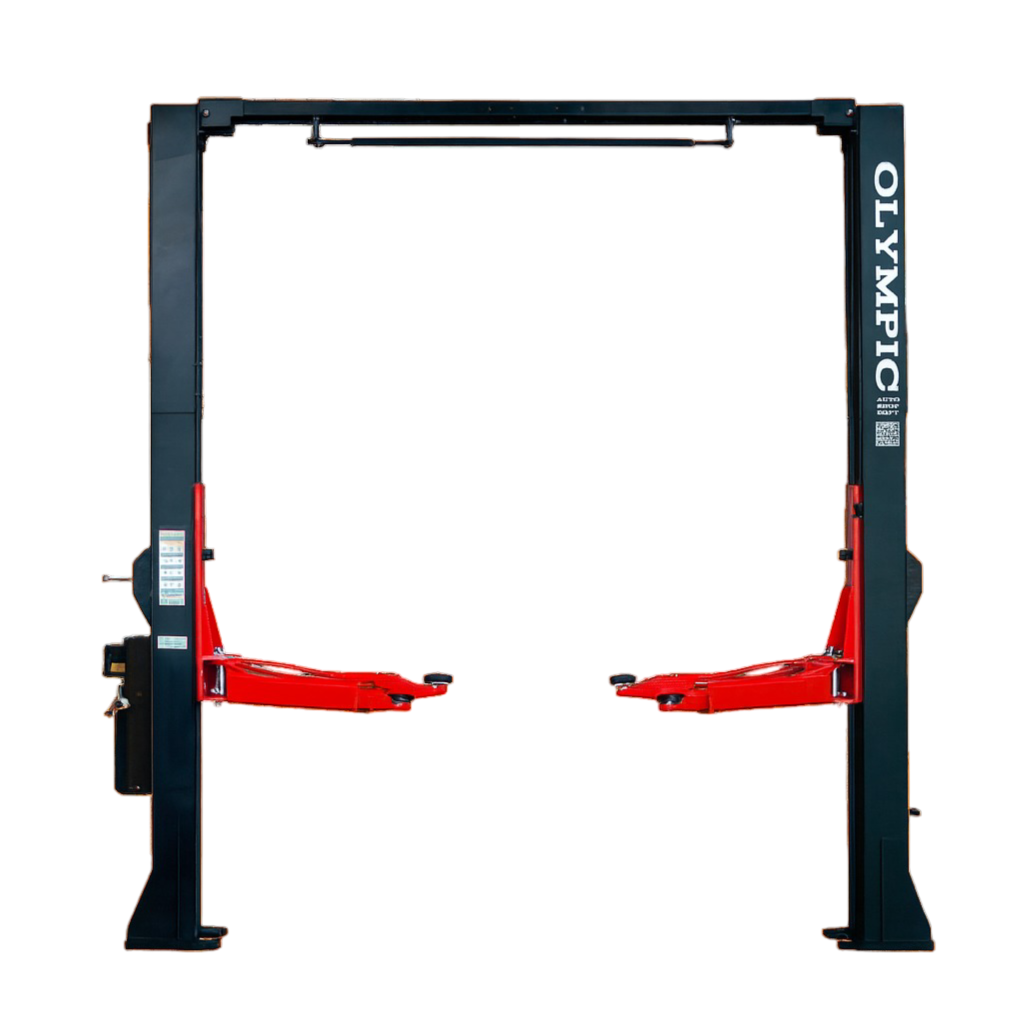

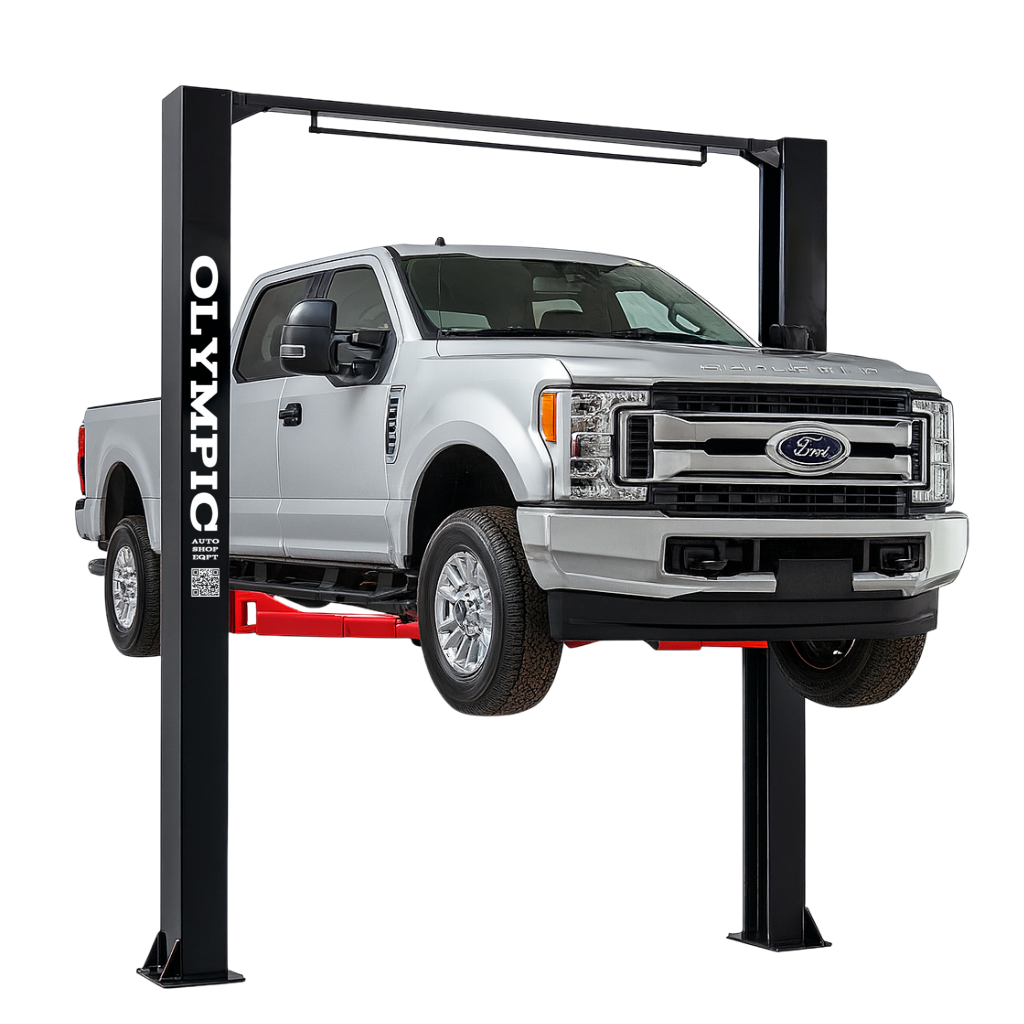

Olympic Gold Series 15,000 LB Heavy-Duty Extra-Large Car Lift is a commercial quality two-post vehicle maintenance lift designed to accommodate larger, wider, taller and dual-wheel vehicles. With its 15,000lb load capacity it is capable of lifting many of the largest, heaviest vehicles on the road. A premium grade lift offering a long list of options and accessories providing you with everything you could possibly want in a two-post car lift.
YOU WIN WITH OLYMPIC GOLD!
Includes a long list of options; check it out! A heavy-duty jumbo size lift that makes loading dually trucks, vans, and vehicles with wide mirrors and running boards easier than ever. And it’s Tough! Described as bulletproof! Right at home in any high-volume service center or in your private shop. Includes everything needed to get the job done right!
Why Choose an Olympic Lift?
It’s Tough, described as bulletproof! When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Don’t forget the Industry Best 10-Year Warranty!
Internationally certified and tested to perform flawlessly at 150% of its rated load capacity.

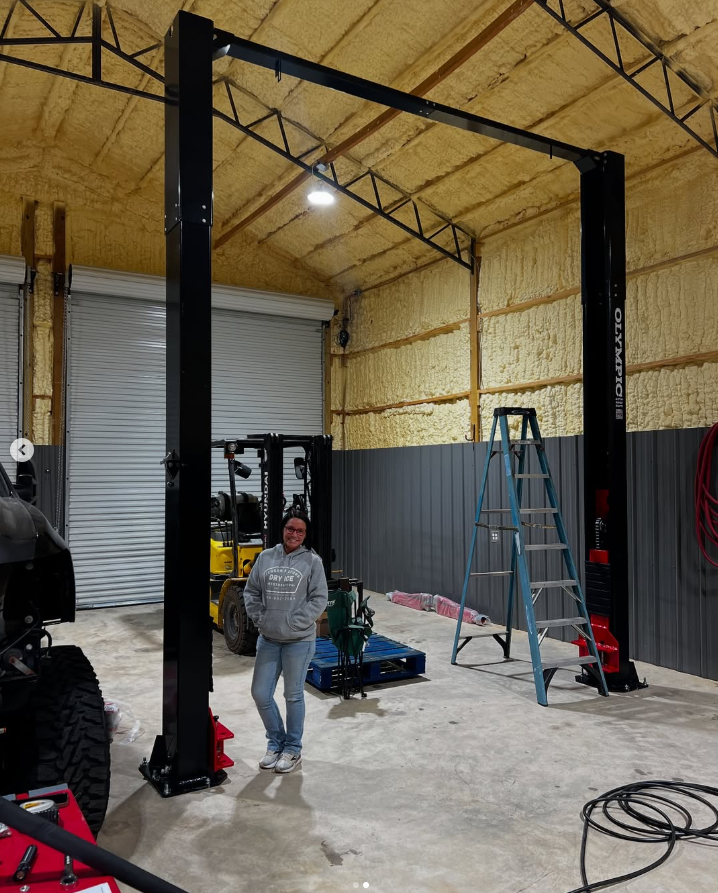

Forklift required for installation
Features
- Industry Best 10-Year Warranty
- Technically advanced design
- Large diameter dual cylinders
- Heavy-duty long reach extension arms standard
- Adjustable height foot adapter
- Single point manual lock release
- Durable powder coated finish
- Automatic stop at maximum lifting height
- Vehicle door anti-crush rubber protection
- Synchronized load distribution
- Cable leveling system
- Swing arm support with high quality wear-resistant rubber pads
- Powerful 220V 3kw 4hp 1ph power unit
- Includes 4″ truck adapters
- Optional 6″ truck adapters available at checkout

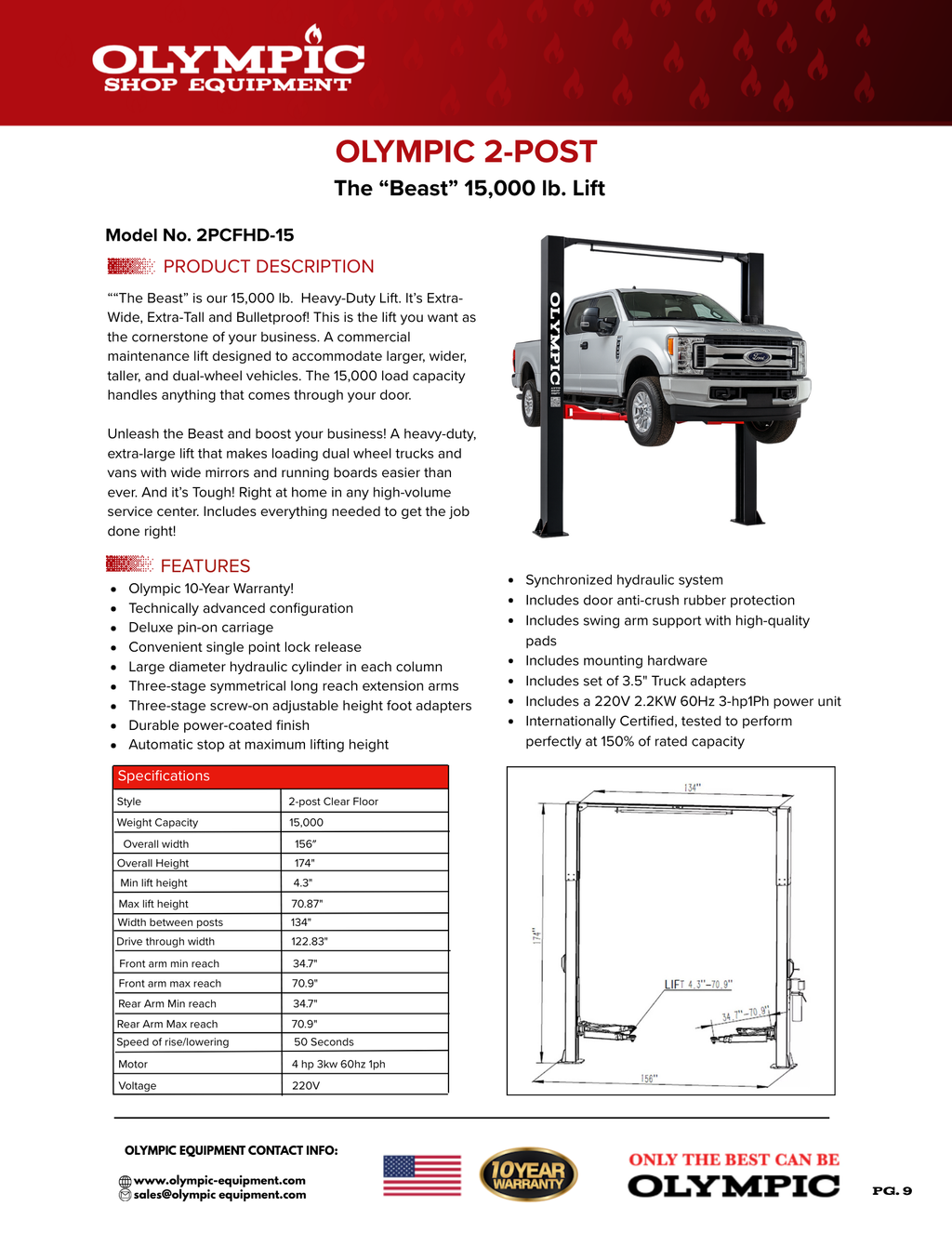

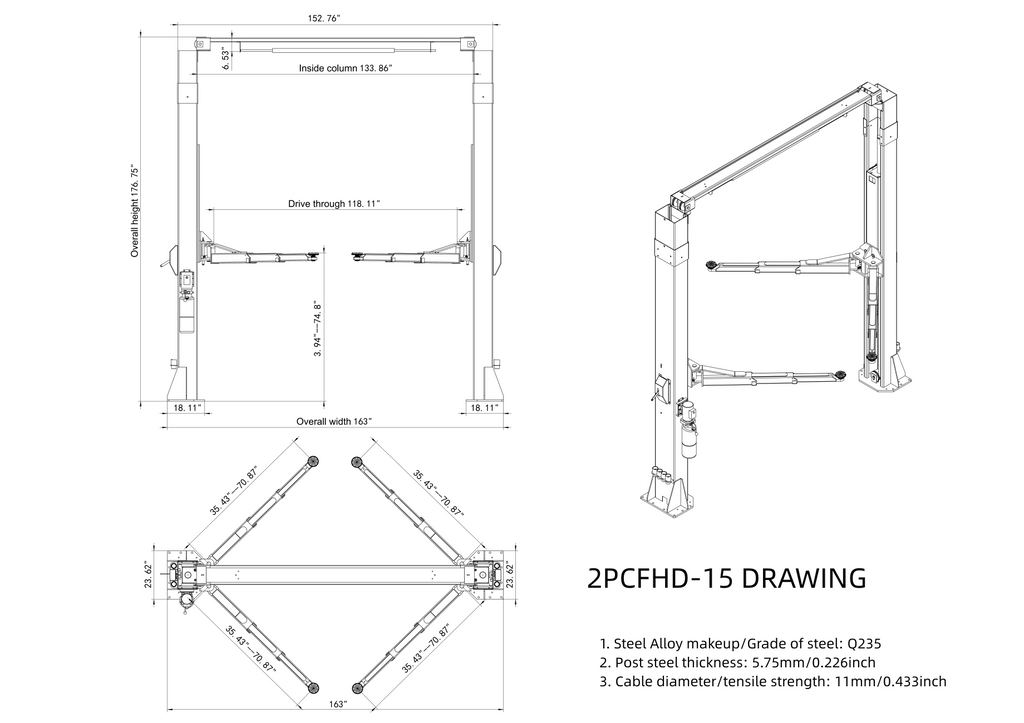

Specifications
Style | 2-Post Clear Floor Lift |
Weight Capacity | 15,000 lbs. |
Overall Width | 156″ |
Overall Height | 174″ |
Minimum Lift Height | 4.3″ |
Maximum Lift Height | 70.9″ |
Width Between Posts | 134″ |
Drive Through Width | 122.83″ |
Front Arm Min Reach | 34.7″ |
Front Arm Max Reach | 70.9″ |
Rear Arm Min Reach | 34.7″ |
Rear Arm Max Reach | 70.9″ |
Speed of Rise | 50 sec |
Speed of Lowering | 50 sec |
Motor Size | 4 hp 3kw 60hz 1ph |
Voltage | 220v |
