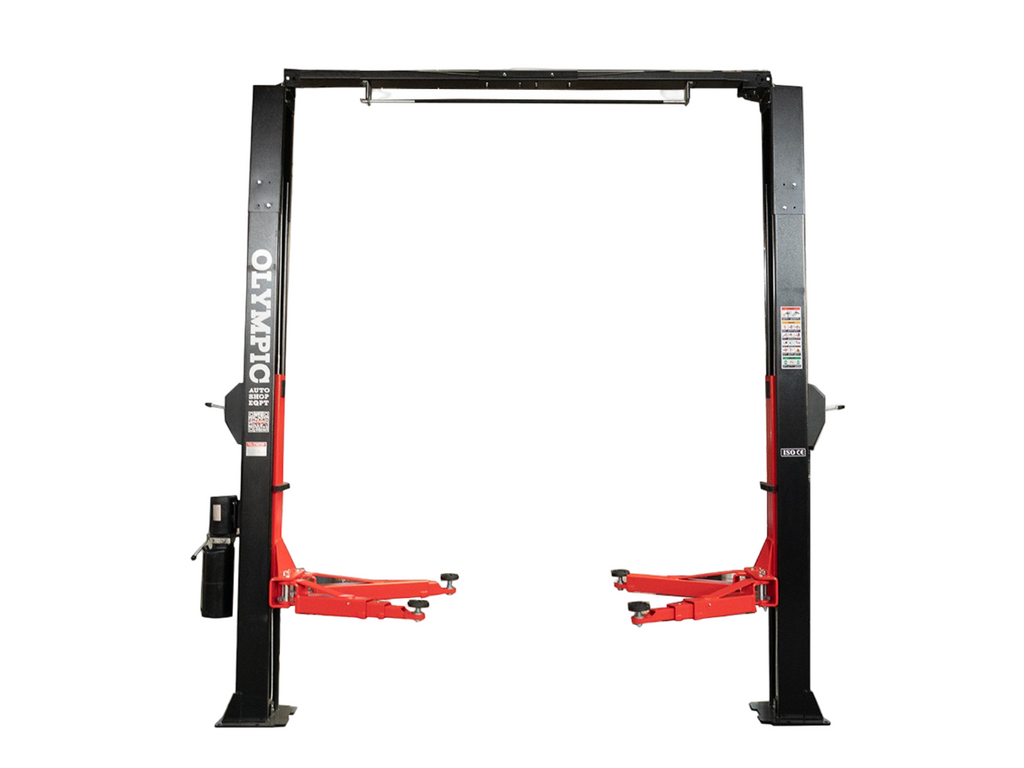

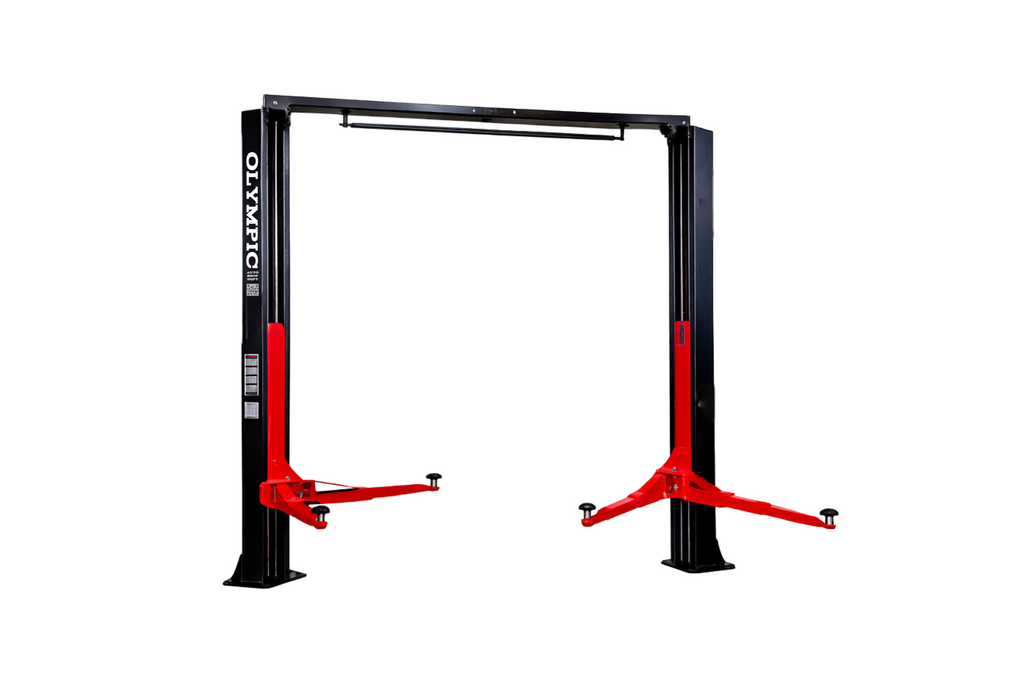

Model: Olympic 2PDDA-10 / 10,000 lb. / Asymmetric-Symmetric Post Design / Direct Drive / Single Point Lock / Long Reach Extension Arms / 3-Stage Foot / 153″ H X 145″ W / 10-Year Warranty / SHIPS FREE!
$4,750.00 USD
$5,938.00 USD
10,000 lbs
Capacity
74.8″
Max. Lift Height
10-Year
Warranty

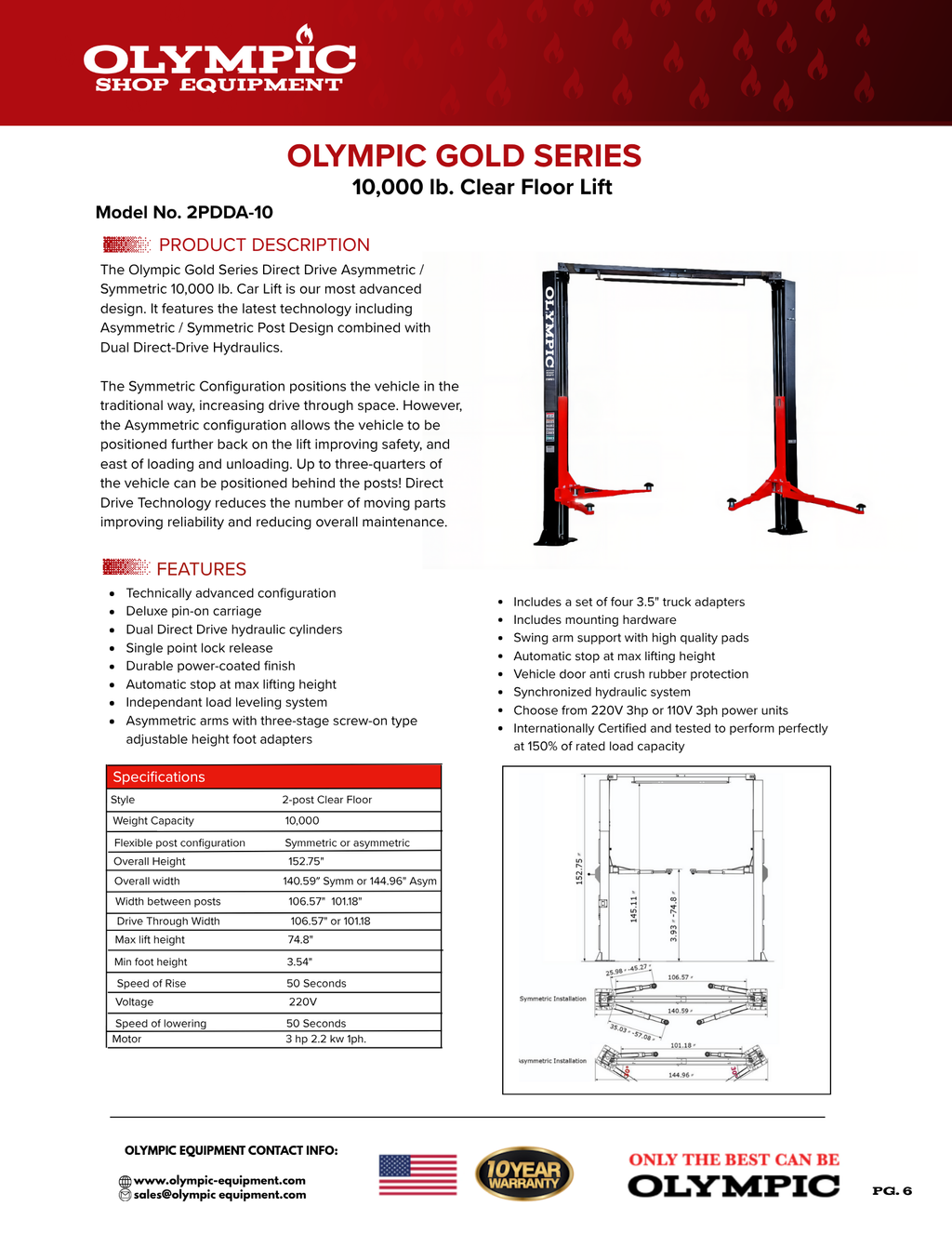

Olympic 2PDDA-10 / 10,000 lb. Direct-Drive Symmetric/Asymmetric Lift
Our most advanced Gold Series 2-post lift with direct-drive technology.
Flexible Symmetric/Asymmetric configuration improves safety, drive-through width, and ease of loading/unloading. Direct-Drive hydraulics reduce moving parts, lowering maintenance and improving reliability.
Capacity: 10,000 lbs |
Fits Under Ceiling Height: 12′8″ |
Max. Lift Height: 74.8″
Key Features
- Olympic 10-Year Warranty!
- Technically advanced configuration
- Direct-drive technology
- Large-diameter hydraulic cylinders in each column
- Deluxe pin-on carriages
- Convenient single point lock release
- Three-stage symmetrical long reach extension arms
- Three-stage screw-on adjustable height foot adapters
- Durable powder-coated finish
- Automatic stop at maximum lifting height
- Synchronized hydraulic system
- Door anti-crush rubber protection
- Swing arm supports with high-quality pads
- Mounting hardware included
- Includes (4) 3.5″ truck adapters
- 110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option)
- Certified & tested at 150% of rated capacity
Specifications
| Style | 2-Post Clear Floor Symmetric/Asymmetric |
|---|---|
| Capacity | 10,000 lbs |
| Flexible Post Configuration | Symmetric or Asymmetric |
| Overall Height | 152.75″ |
| Overall Width | 140.59″ Symmetric / 144.96″ Asymmetric |
| Drive Through Width | 106.57″ Symmetric / 101.18″ Asymmetric |
| Width Between Posts | 106.57″ Symmetric / 101.18″ Asymmetric |
| Min. Foot Height | 3.54″ |
| Max. Lift Height | 74.8″ |
| Speed of Rise | 50 seconds |
| Speed of Lowering | 50 seconds |
| Voltage | 220V |
| Recommended Power Unit | HPU2203, 3HP, 2.2KW, 1PH |
| Fits Under Ceiling Height | 12′8″ |
