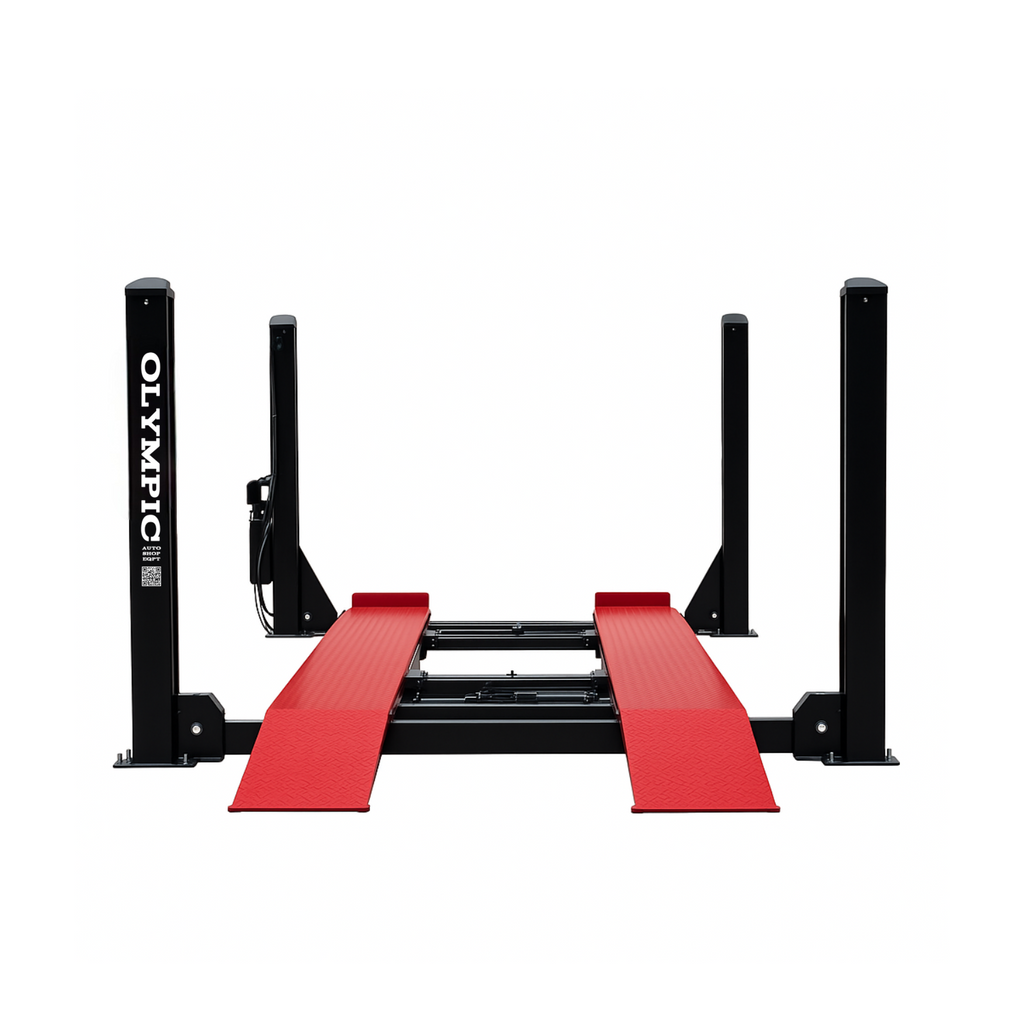

Olympic 4PHDXL-12 / 12,000 lb. Storage & Maintenance Lift

The bulletproof beast built for heavy-duty storage and service.
With a 12,000 lb. capacity, extra-wide runways, and Italian-engineered hydraulic components, this lift is perfect for trucks, vans, and low-clearance cars. Includes 220V power unit for reliable, maintenance-free operation.
Capacity: 12,000 lbs. | Max. Lift Height: 70.9″ | Runway Width: 21.6″

Key Features

• Olympic 10-Year Warranty
• High-quality Q235 Steel
• Max lift height: 70.9″
• Manual lock release system
• 21.6″ wide runways
• Cable-driven lifting system
• Adjustable lock system — locks at any height

• Cable anti-failure safety system
• Heavy-duty cable sheaves & ladder lock system
• Aircraft cables rated at 16,000 lbs.
• Italian oil seals & components
• Durable powder-coated finish

• 220V 2.2KW, 1Ph power unit
• Optional 6,000 Lb. Bridge Jacks (Part No. FBCJ-6)

• Certified & tested at 150% of rated capacity

Operating & Power Requirements

• Power requirement: 220V 60Hz 2.2KW or 3KW 1-phase
• Operating temperature: 5°C to 40°C
• Ambient humidity: 30% to 95% (at 40°C)
• Installation altitude: 5,500 feet/1675m above sea level
• Storage/transport temperature: -25°C to 55°C

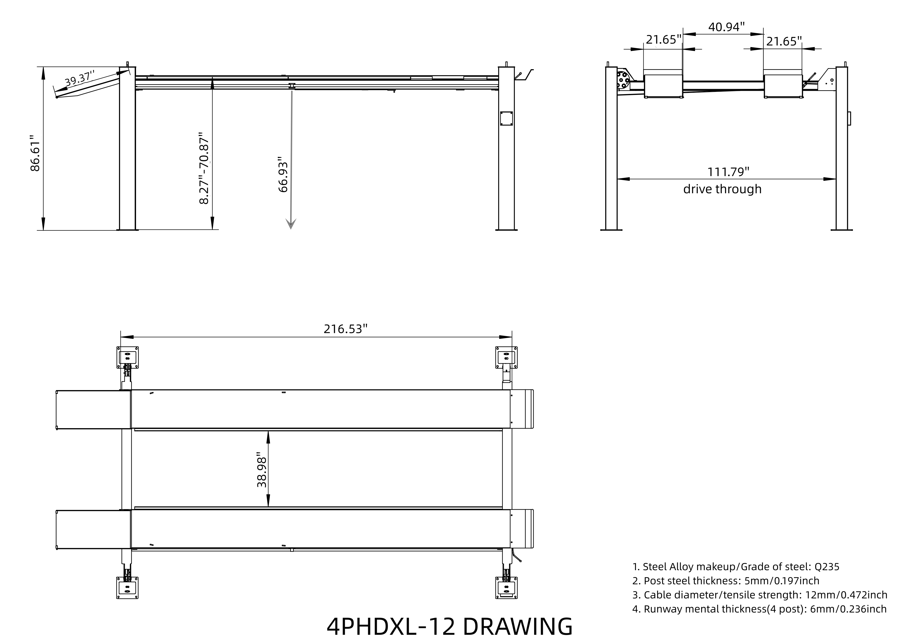

Specifications

Why Choose an Olympic Lift?

When you buy an Olympic lift, you can expect premium product delivered right to your door.
