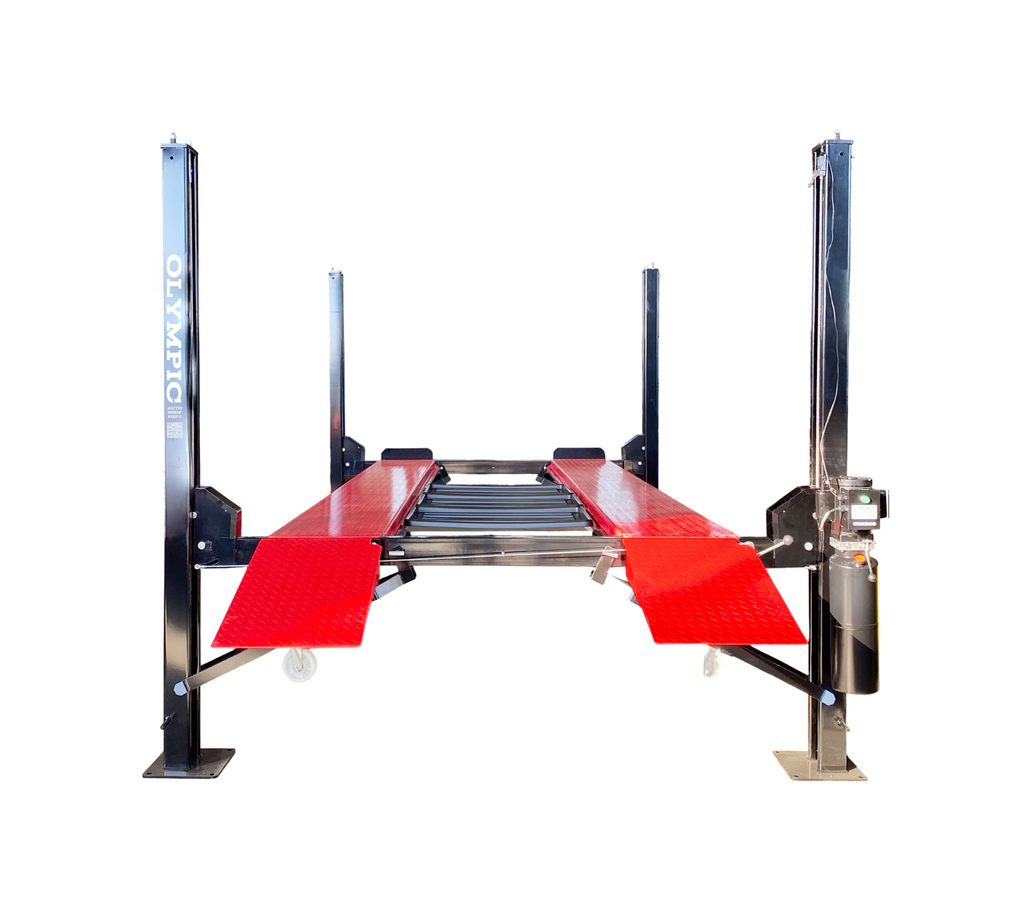

Name: Model: Olympic 4PHR-9X / 9,000 lb. High-Rise Car Storage Lift / Portable / Extra Wide / Extra Long / 78" Storage Space / 112″ W X 219″ L / 10-Year Warranty / SHIPS FREE!
Brand: OLYMPIC EQUIPMENT
SKU: 4PHR-9
Price: 4995.00 USD
Availability: InStock

1/10

Model: Olympic 4PHR-9X / 9,000 lb. High-Rise Car Storage Lift / Portable / Extra Wide / Extra Long / 78" Storage Space / 112″ W X 219″ L / 10-Year Warranty / SHIPS FREE!

$4,995.00 USD

9,000 lbs

Capacity

87.7″

Drive Through

10-Year

Warranty

Synchrony Financing
$416.25/mo for 12 months Still have questions? Contact us

Olympic 4PHR-9X / 9,000 lb. High-Rise Storage & Maintenance Lift

The best-selling high-rise storage lift — stack cars, trucks, and more.
The 9,000 lb. load capacity, 87.7″ drive-through width, and 78″ storage space when resting on the top lock combine to make it our best-selling lift. Makes storing and working on vehicles easier than ever. Portable, safe, and packed with features for both home garages and commercial shops.
Capacity: 9,000 lbs | Drive Through Width: 87.7″ | Max. Clearance Under Tracks: 78″

Key Features

Industry Best 10-Year Warranty!
High-quality Q235 spec structural steel
Provides 78" of storage space under the runways
Portable design with pin-on caster arms
Convenient drive-through design
Large diameter heavy-duty hydraulic cylinder
Single-point lock release
Large slider blocks for added stability
10 locking positions
Aircraft-quality cables rated at 14,000 lbs
31″ detachable steel ramps included
Detachable stops included
Portability package included
Drip trays included
110V 2.2KW 60Hz 1Ph Power Unit
Optional tool tray
Optional aluminum ramps
Optional 1,000 lb. aluminum center platforms (x4 inserts)
Optional 6,000 Lb Bridge Jack (Part No. HLCJ-6 or JVCJ-6)
Certified & tested at 150% of rated capacity

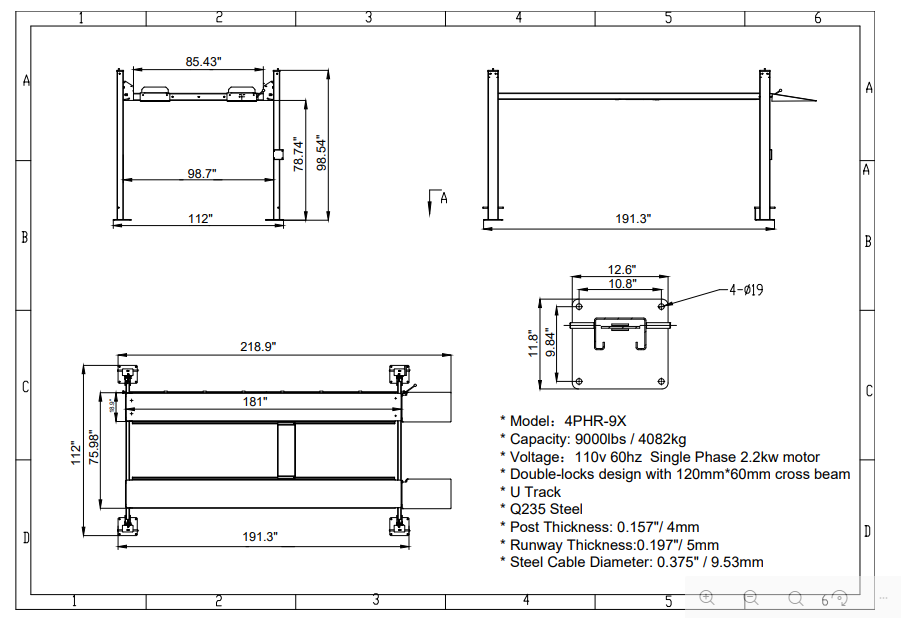

Specifications

Style	4-Post High Rise Lift
Capacity	9,000 lbs
Overall Lift Length	219.2″
Overall Width	112.3″
Overall Height	91.7″
RUNWAY LENGTH	180.07"
Drive Through Width	87.67″
Lifting Range	4.35″ – 82.3″
Width Between Posts	95.2″
Runway Width	18.9″
Max. Clearance Under Tracks	78″
Width Between Tracks	38.6″
Speed of Rise	50 seconds
Speed of Lowering	50 seconds
Recommended Power Unit	HPU2203, 220V 3HP, 2.2KW, 60Hz 1PH
Voltage	110V / 220V

Why Choose an Olympic Lift?

When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.

Looks fantastic in my garage. Love the colors of the lift as well.

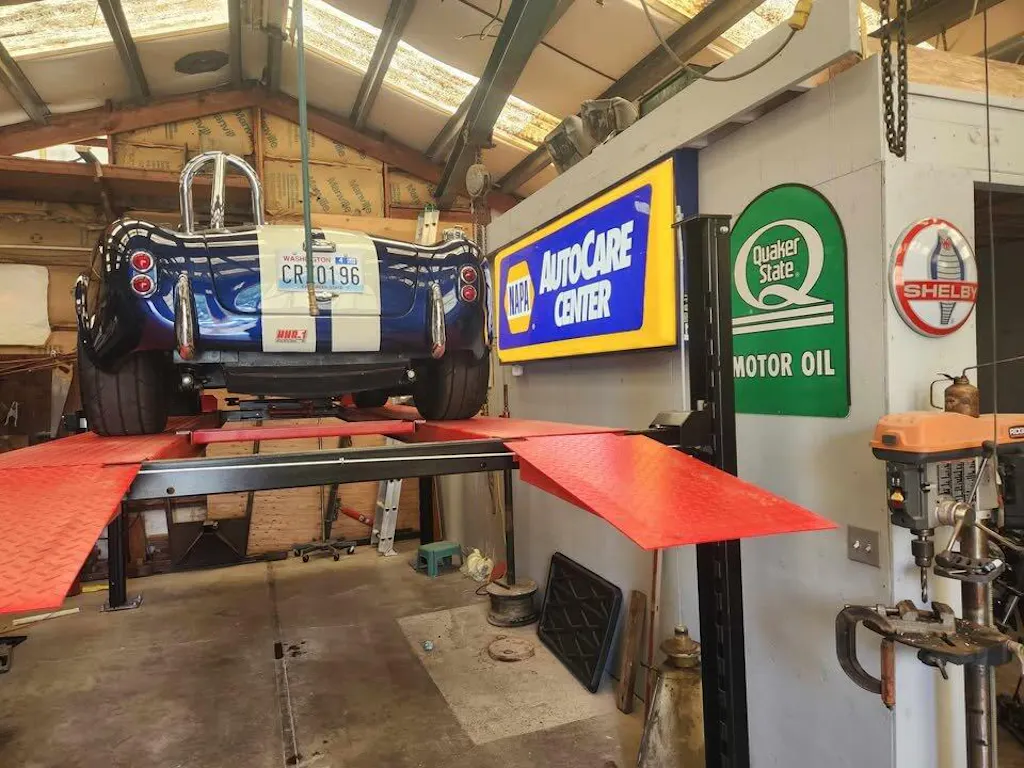

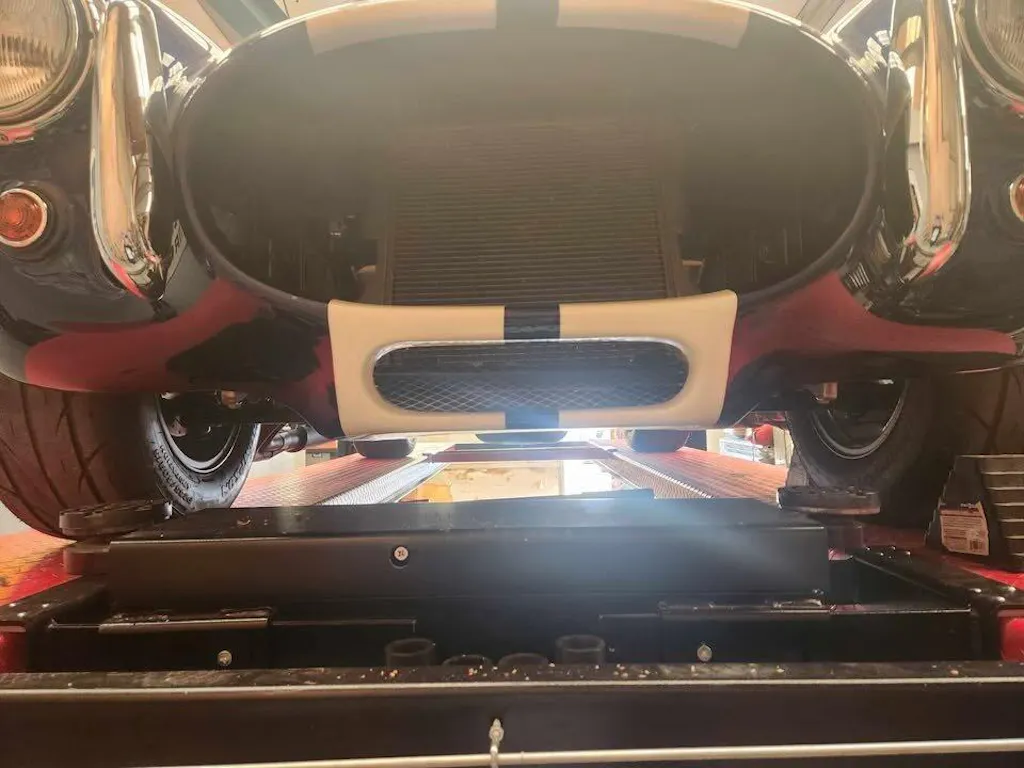

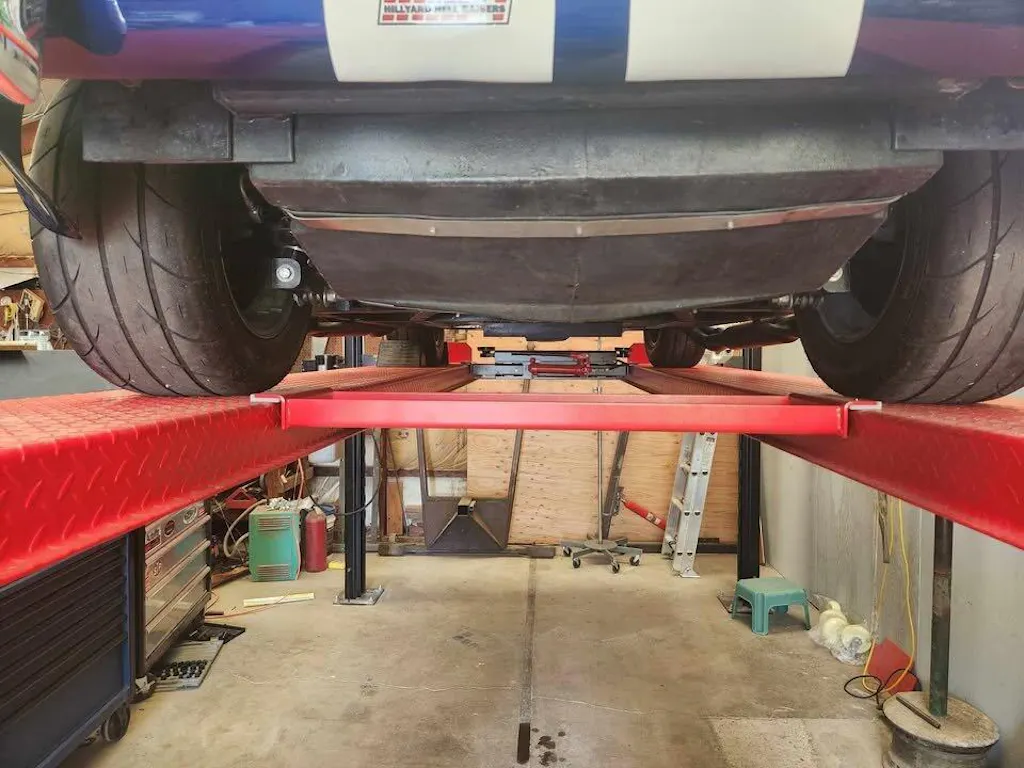

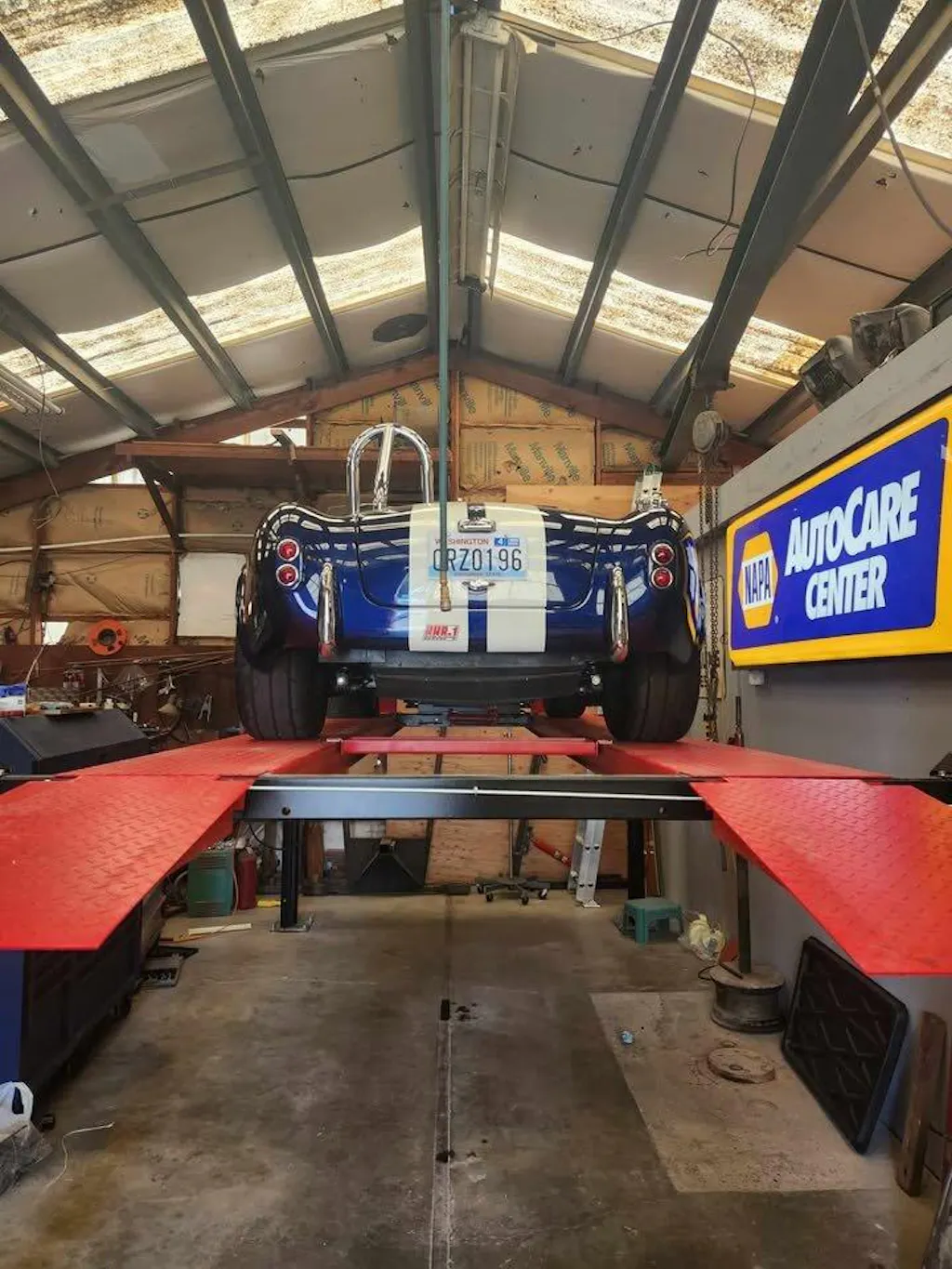

I am very satisfied with my lift! I purchased a 4-post, 9k with the rolling jack. My AC Cobra replica is very low and is able to drive up the standard ramps. The jack will travel end to end under this car. Everything operates as it should and the install by their staff was excellent. I recommend them 100%. Buy local. They traveled to Spokane for my install.

worth the money

I really like the 9,000 four post

I would recommend this company and their installers....

I bought a four post car lift from Olympic last year so I could stack two sport cars in my garage... I searched all four post lifts that were available and found Olympic being in my state. I ordered the lift and it arrived several weeks ahead of schedule. I had it installed by Olympic because I had a shoulder injury and couldn't physically do it myself. The installation was done in a professional manner in one afternoon. I feel the quality is exceptional and I've had no issues with the lift. I would recommend this company and their installers....

Great experience and products-

Great experience and products- I ordered two lifts from Olympic Equipment and had them install both. One of the lifts was a bigger one since I had the extra space in a garage stall, but I discovered that the tracks on that one only had two possible width configurations (as opposed to being able to set them to any distance apart). When they found out, they offered that they could replace it with a regular one without fuss; it was great to hear them wanting to make sure I was happy with my order. Once they installed everything, they walked me through the operation and maintenance procedures. They even came out and helped me fine-tune some things. The lifts are great--very sturdy, and while I originally bolted one down, I ended up removing the bolts so I could move it around since they're already so sturdy.

I also didn't realize...how FUN these things can be. Just being able to lift a car to inspect or work on a car, how fast and easy it can be done, etc. I've even had people stop at my house when my garage is open to comment me on the cool setup. Thanks for the great service and equipment, Olympic Equipment!
