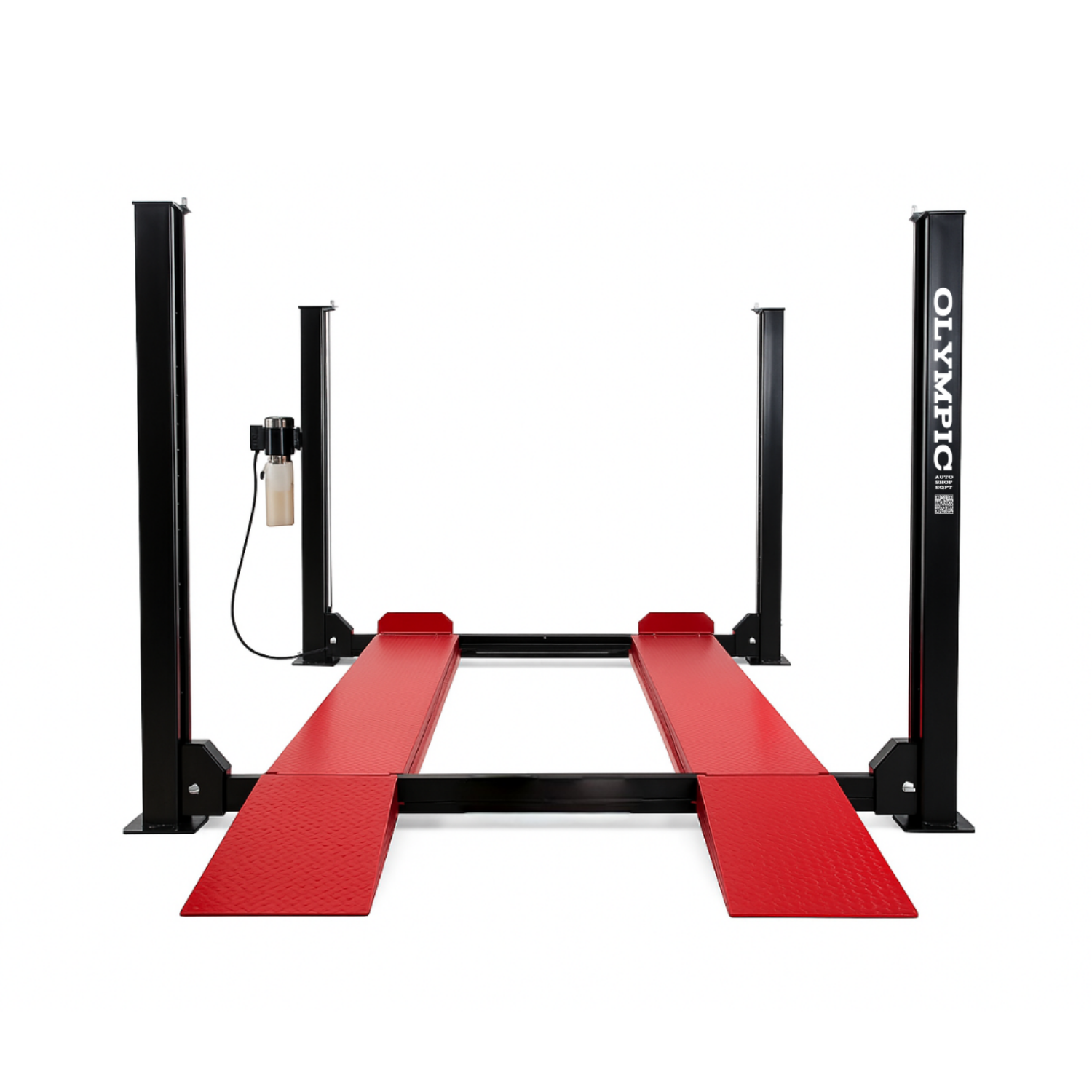

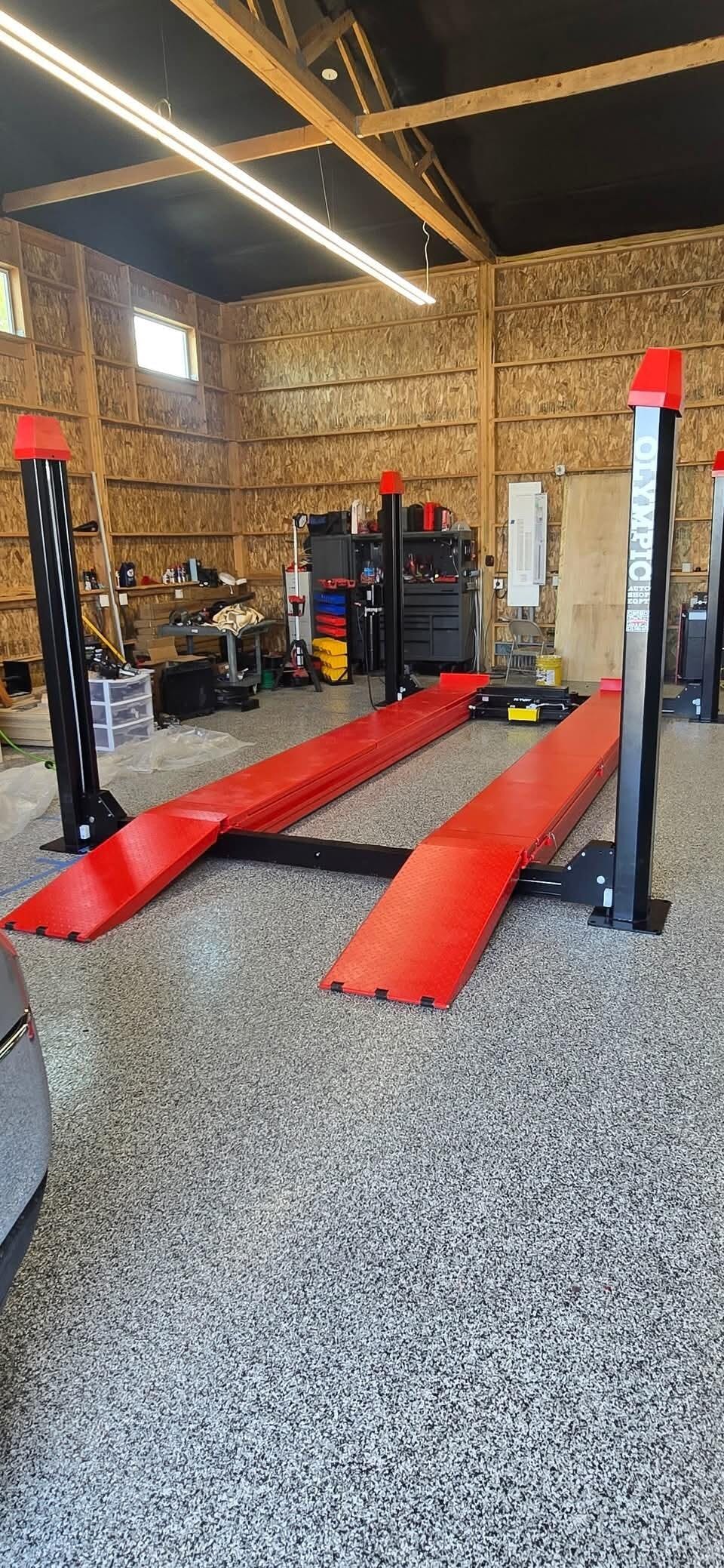

Model: 4PHR-9 / 9,000 lb. Gold Series High-Rise Car Storage Lift / Portable / Extra Wide / Extra Long / 82″ Lift Height / 10-Year Warranty /112″ W X 219″ L
1/10
Model: 4PHR-9 / 9,000 lb. Gold Series High-Rise Car Storage Lift / Portable / Extra Wide / Extra Long / 82″ Lift Height / 10-Year Warranty /112″ W X 219″ L
$4,486.00 USD $5,608.00 USD

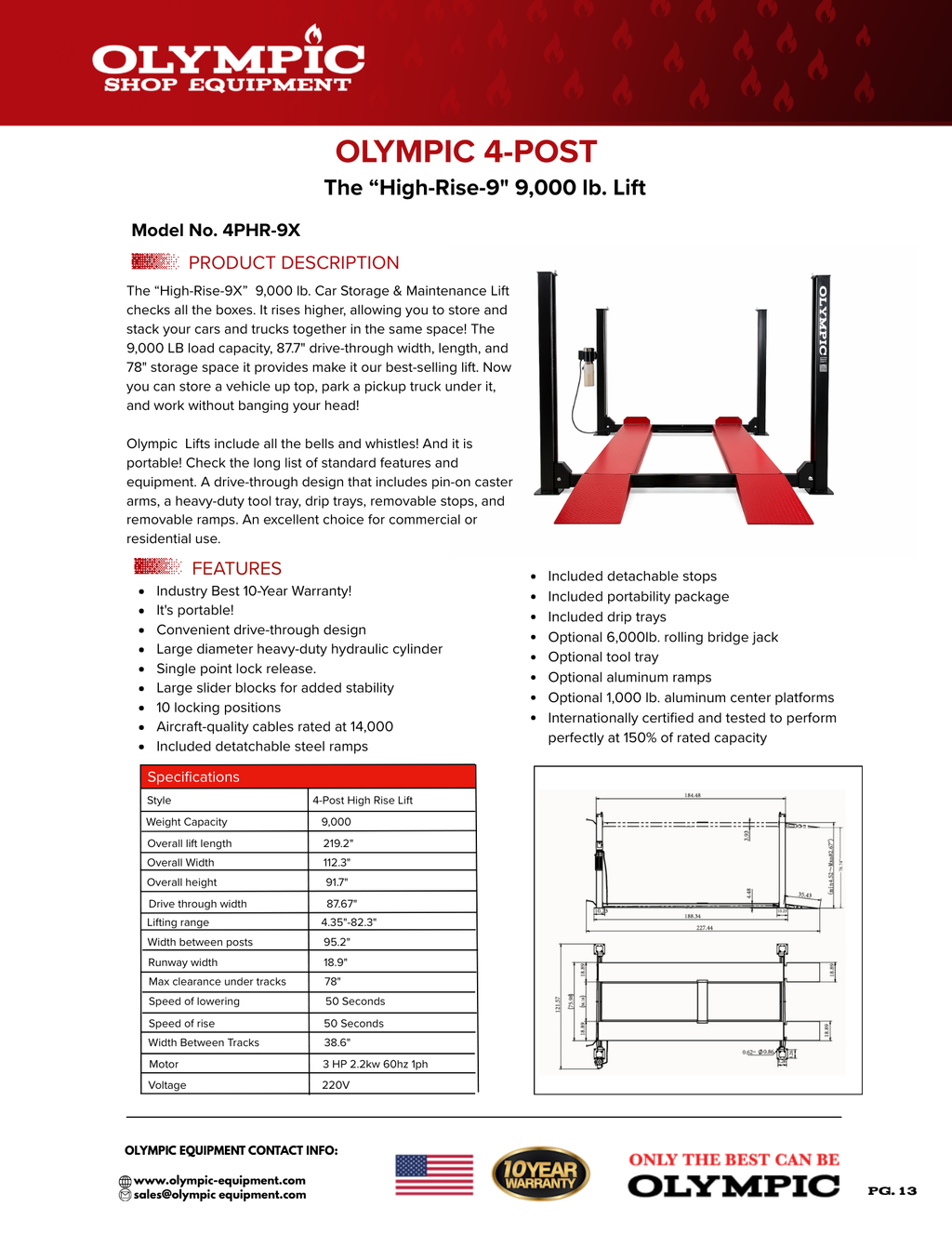

dOWNLOAD MANUAL

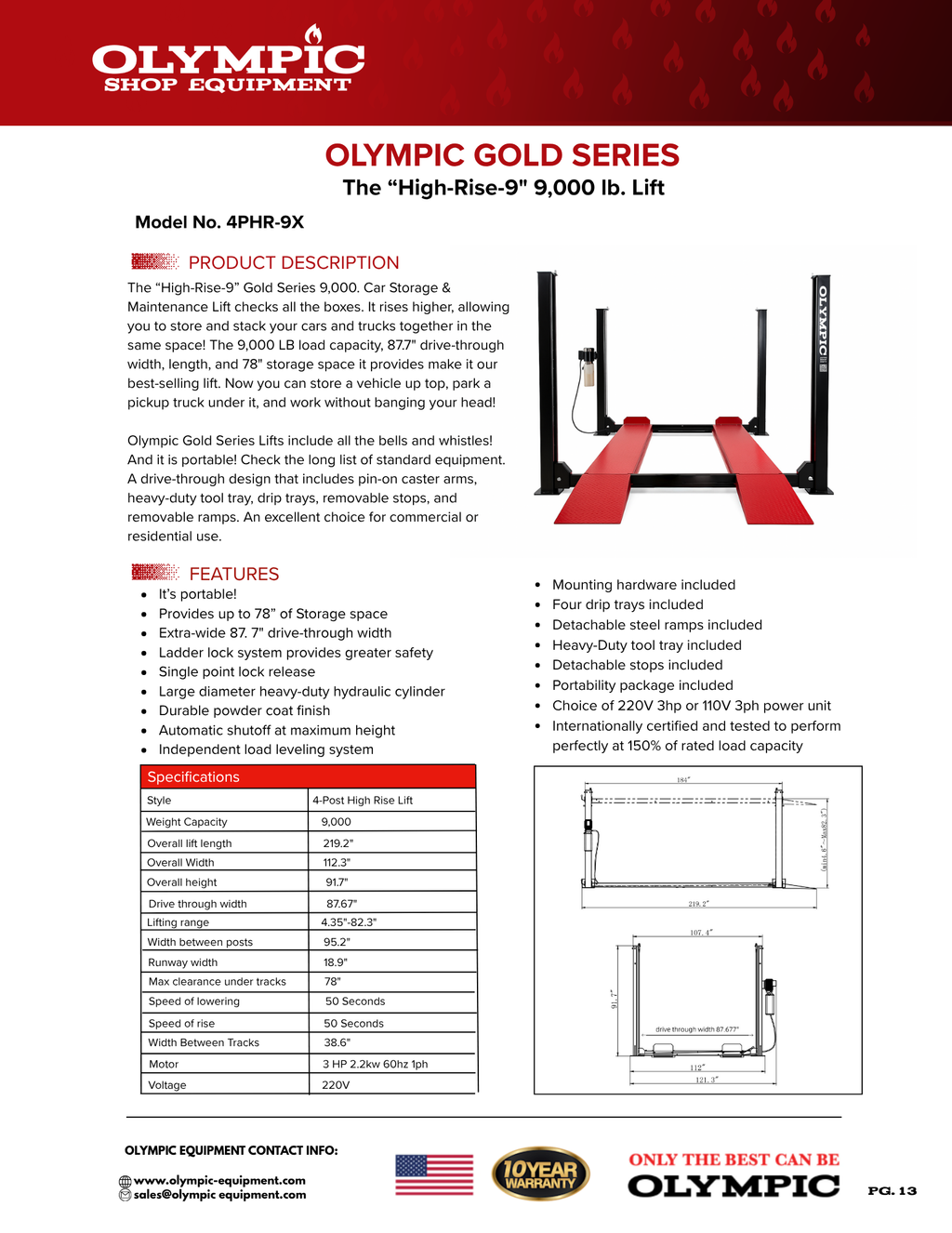

Model: 4PHR-9X

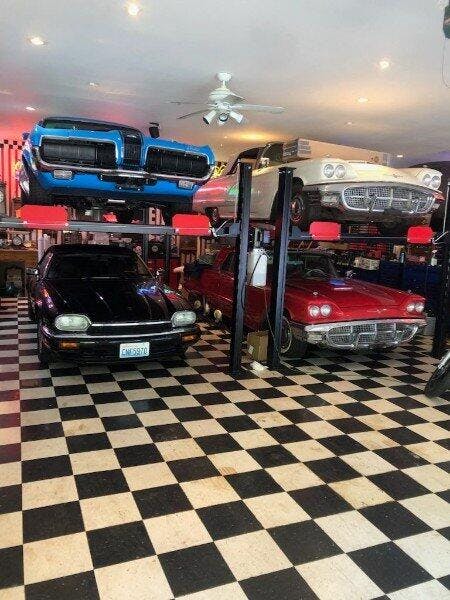

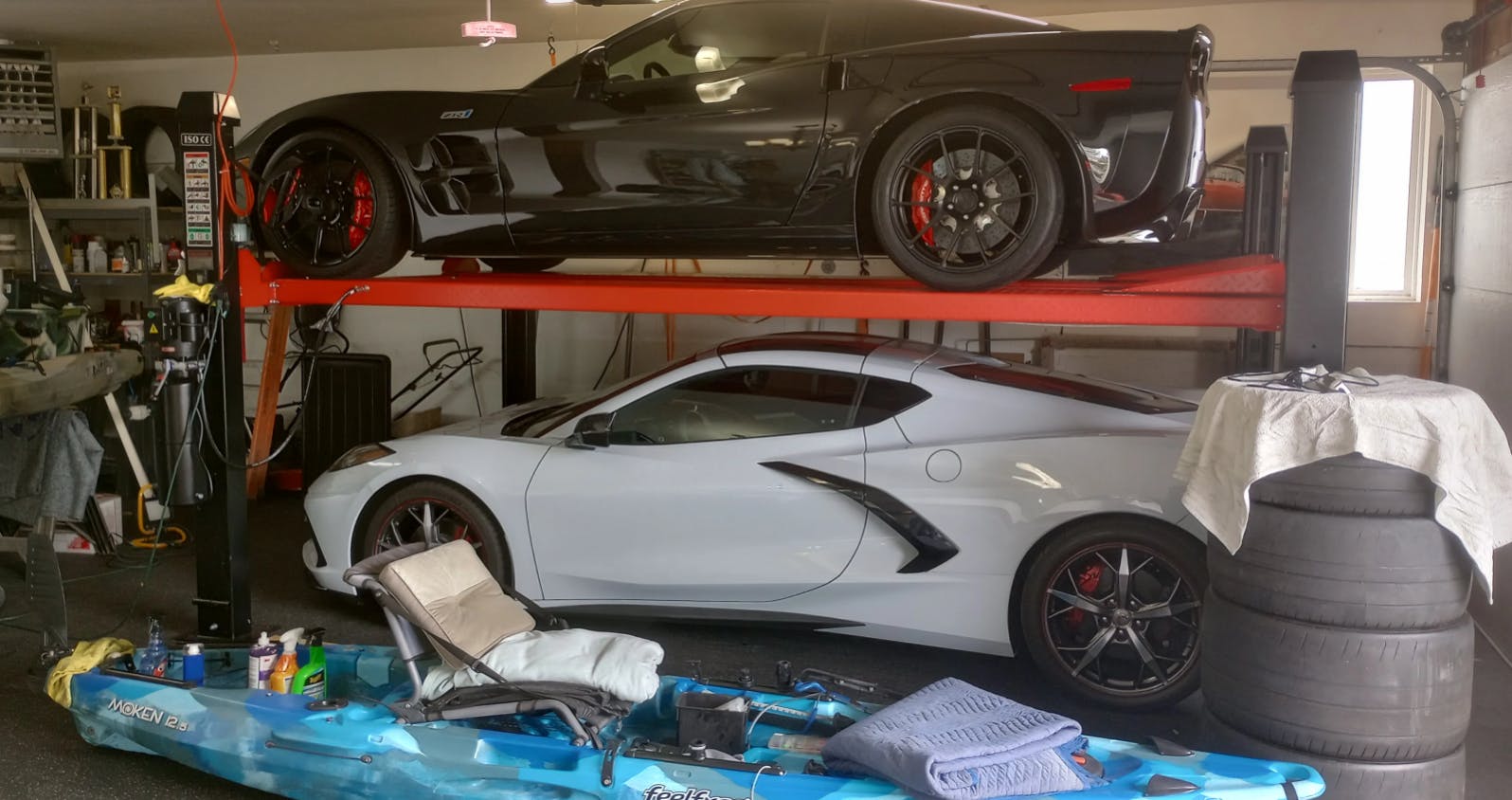

The Gold Series 9,000 lb. Hi-Rise Car Storage & Maintenance Lift checks all the boxes. It rises higher allowing you to store and stack your cars and trucks together in the same space! The 9,000 LB load capacity, extra drive-through width, length, and 78" storage space it provides, combine to make it our best-selling lift. The deck rises a full 78,” high enough to store a vehicle up top, park a pickup truck under the deck, and work on it without banging your head!

YOU WIN WITH OLYMPIC GOLD!

This lift includes all the bells and whistles! 78″ of clear storage space under the runways provides more than enough space to park or store taller cars, trucks, and SUV’s. And it is portable! Pin-on caster arms make it easy to move. The optional rolling center jack makes tire, brake, and wheel vehicle maintenance easy. Includes pin-on caster arms, heavy-duty tool tray, drip trays, removable stops, and removable ramps. An excellent choice for commercial or residential use.



Features

  • Industry Best 10-Year Warranty!
  • It’s portable!
  • Provides up to 78” of Storage space
  • Ladder-lock system provides greater safety
  • Single-point lock release
  • Durable powder-coated finish
  • Automatic shutoff at maximum height
  • Independent cable leveling load distribution system
  • Includes pin-on caster arms

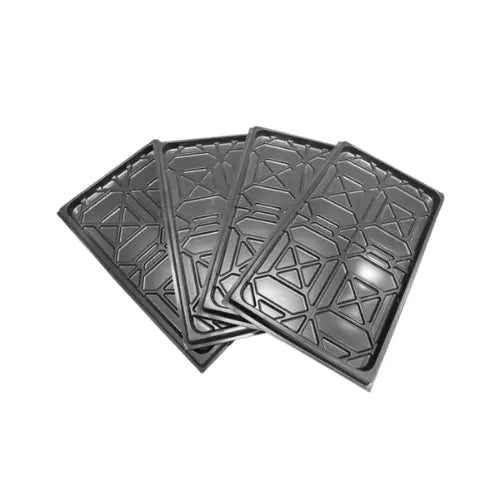

  • Includes four drip trays
  • Includes a heavy-duty tool tray
  • Includes mounting hardware
  • Includes removable ramps
  • Includes removable stops
  • Includes powerful 220v 2.2kw 3hp 60hz 1ph power unit
  • Optional 6,000Lb. sliding bridge jack

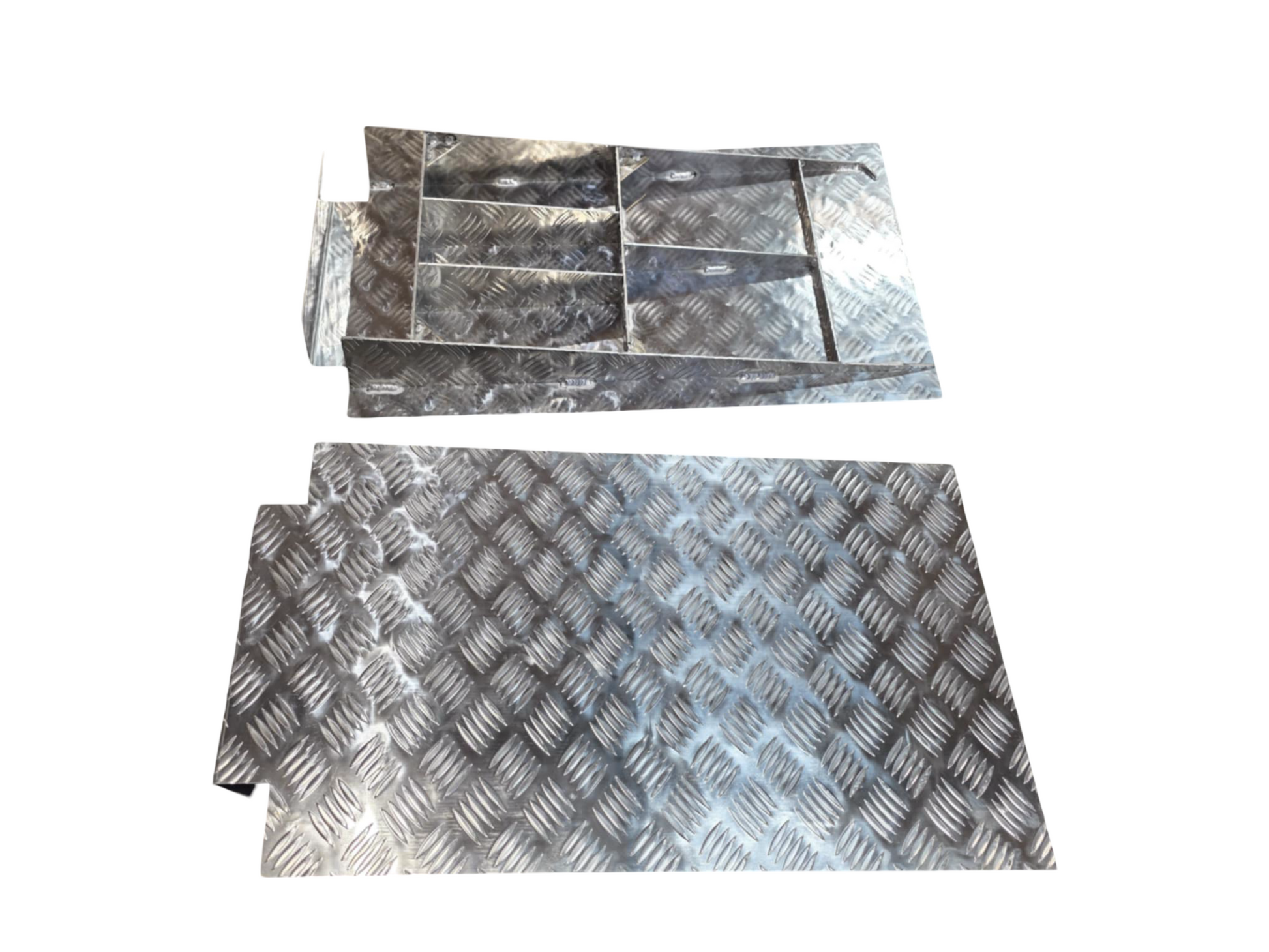

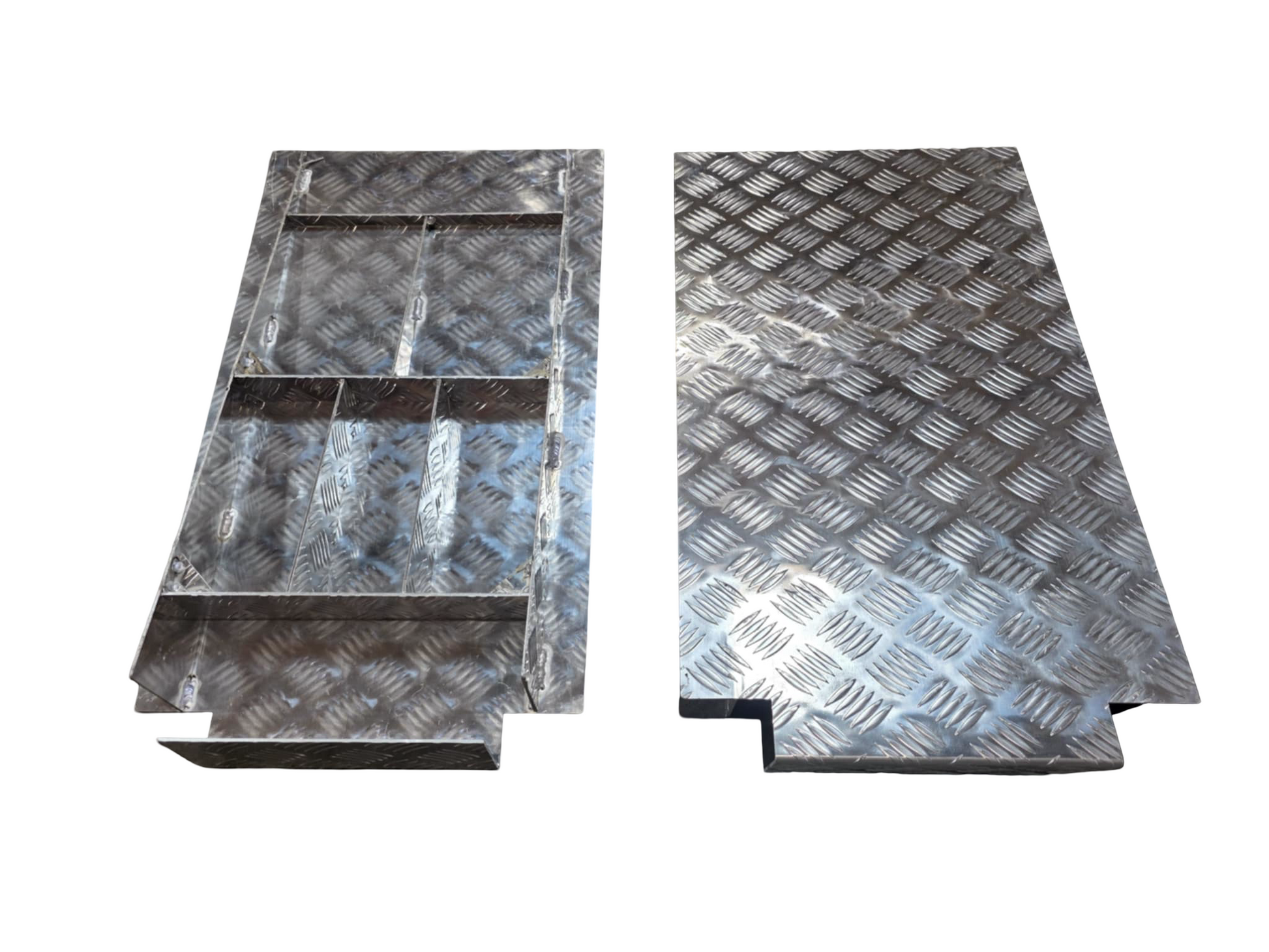

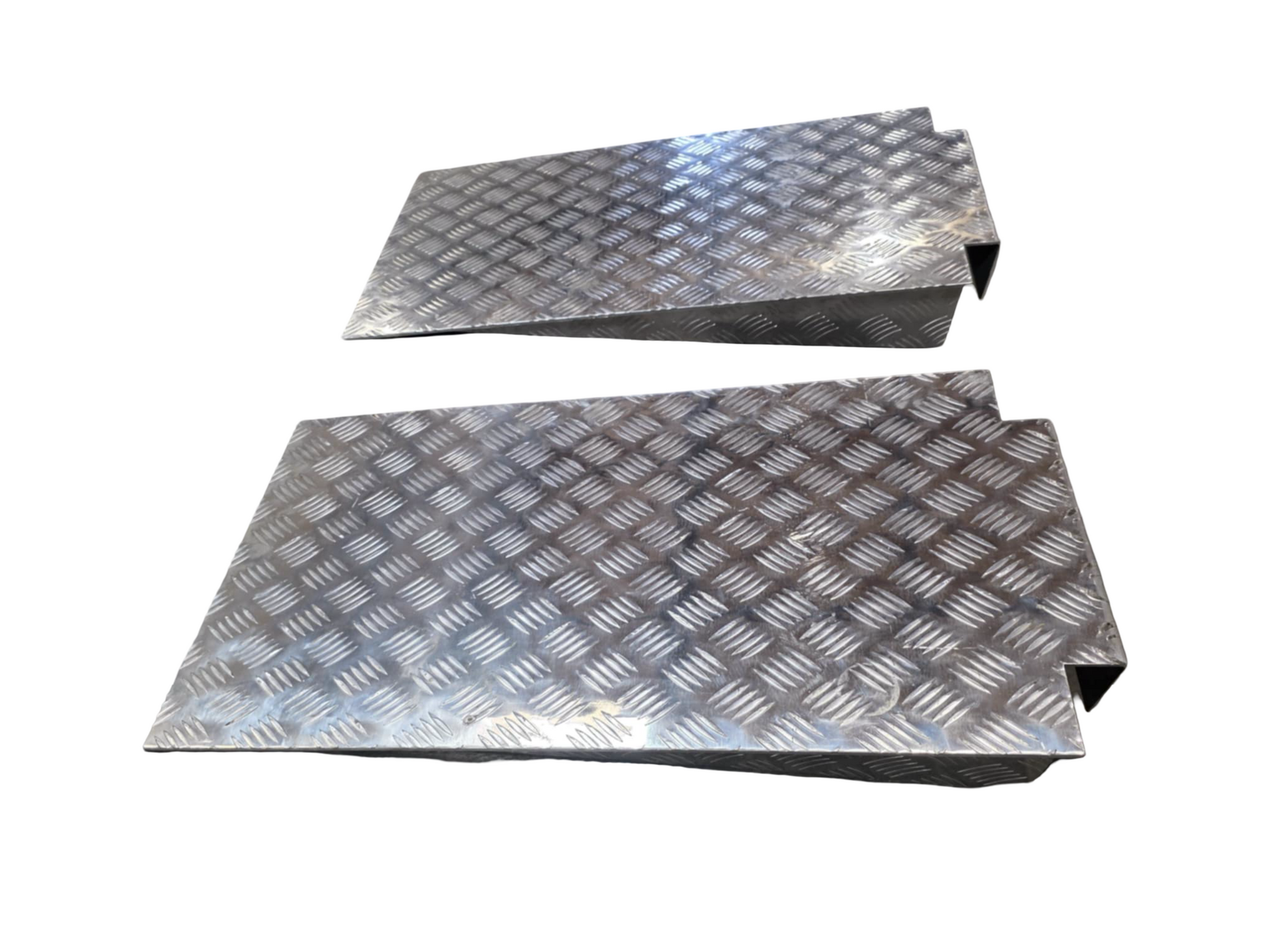

  • Optional aluminum ramps

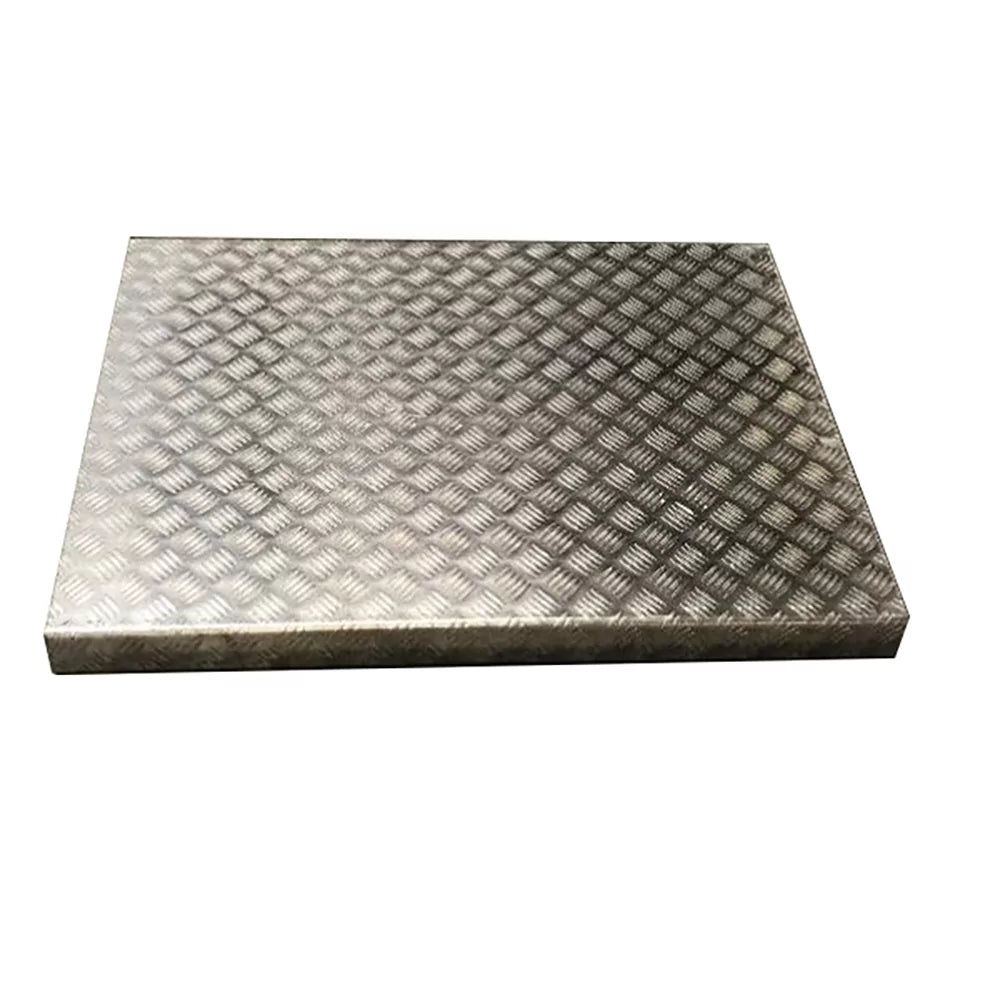

  • Optional 1,000 lb. aluminum center platforms

Specifications

Weight Capacity 9,000 LBS
Overall Lift Length (With Ramps) 219.2″
Overall Width (foot to foot) 112.3″
Overall Height 91.7″
Drive Through Width 87.67"
Minimum Lift Height 4.6″
Maximum Lift Height 82.4″
Width Between Posts 95.2″
Track Length 180.25″
Runway Width 18.9″
Max Clearance Under Tracks 78″
Width Between Tracks 38.3″
Center Jack Capacity 6,000
Speed of Rise 50 seconds
Speed of Lowering 50 seconds
Motor Size 3 hp 2.2 kw 60hz 1ph.
Voltage 220v
