Model: Olympic 4PML-9 / 9,000 lb. Portable Maintenance & Storage Lift / 108″ W X 198″ L / 10-Year Warranty / SHIPS FREE!
1/5
Model: Olympic 4PML-9 / 9,000 lb. Portable Maintenance & Storage Lift / 108″ W X 198″ L / 10-Year Warranty / SHIPS FREE!
$3,699.00 USD $4,599.00 USD
9,000 lbs
Capacity
81.49″
Drive Through
10-Year
Warranty

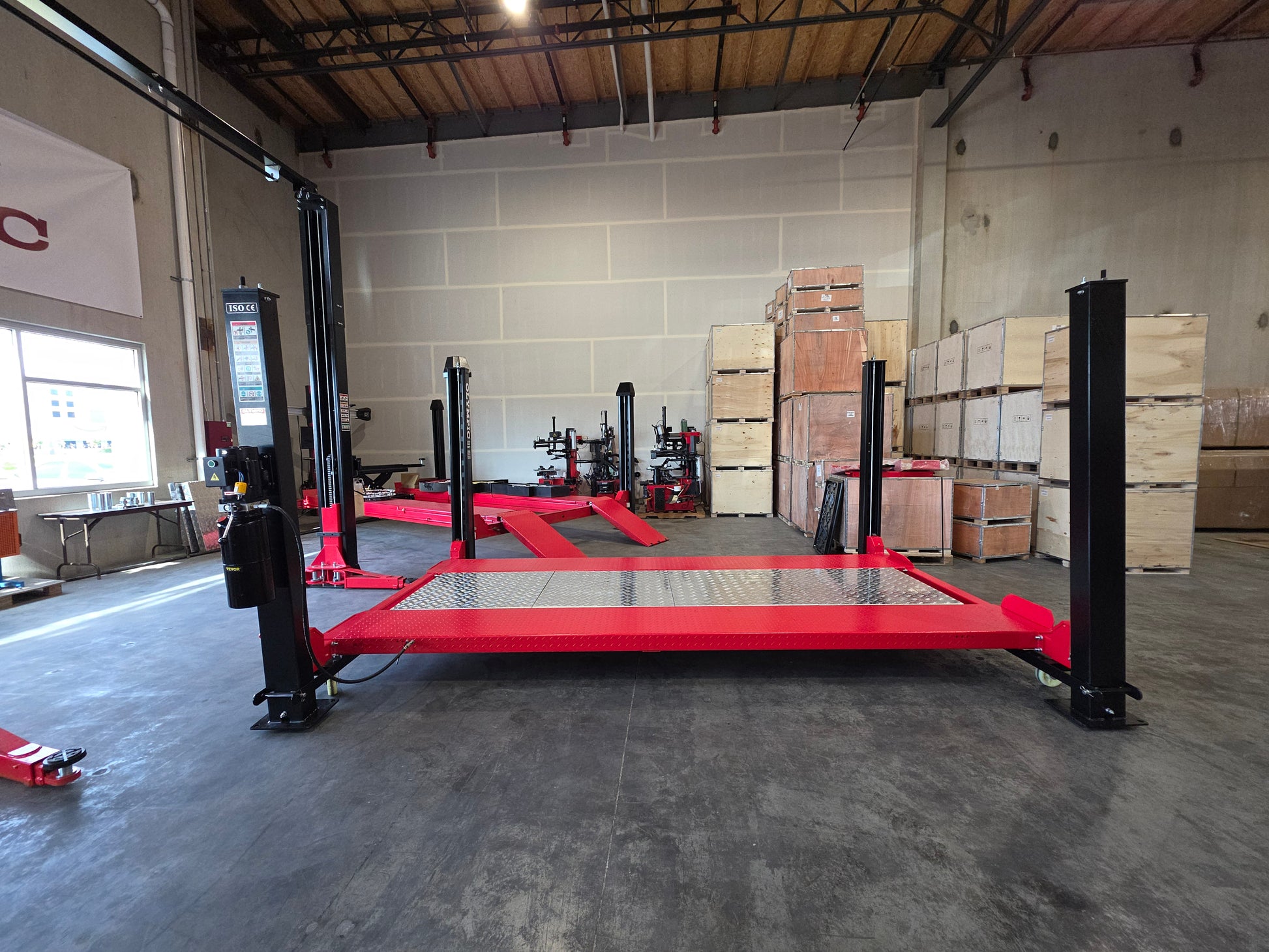

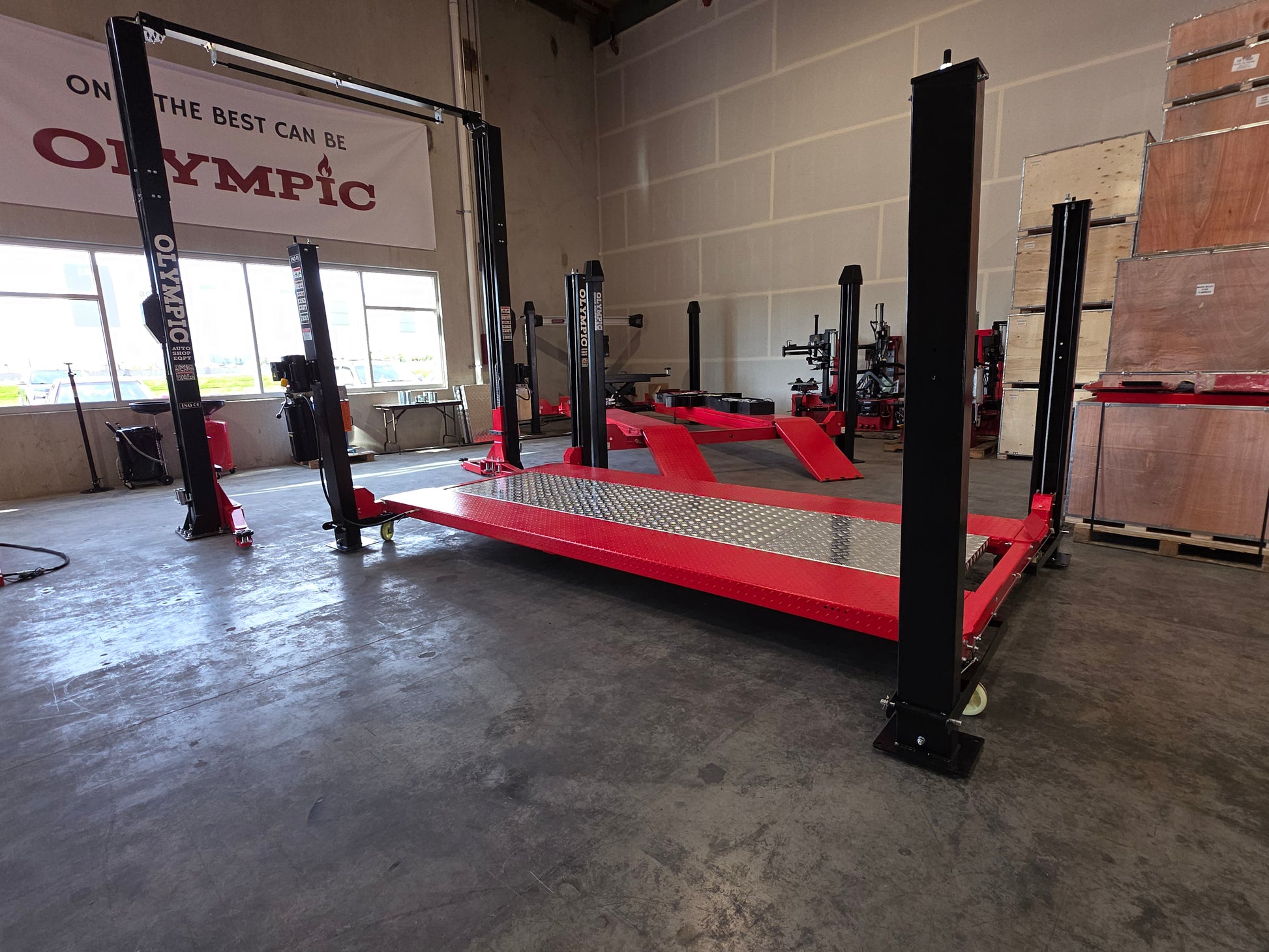

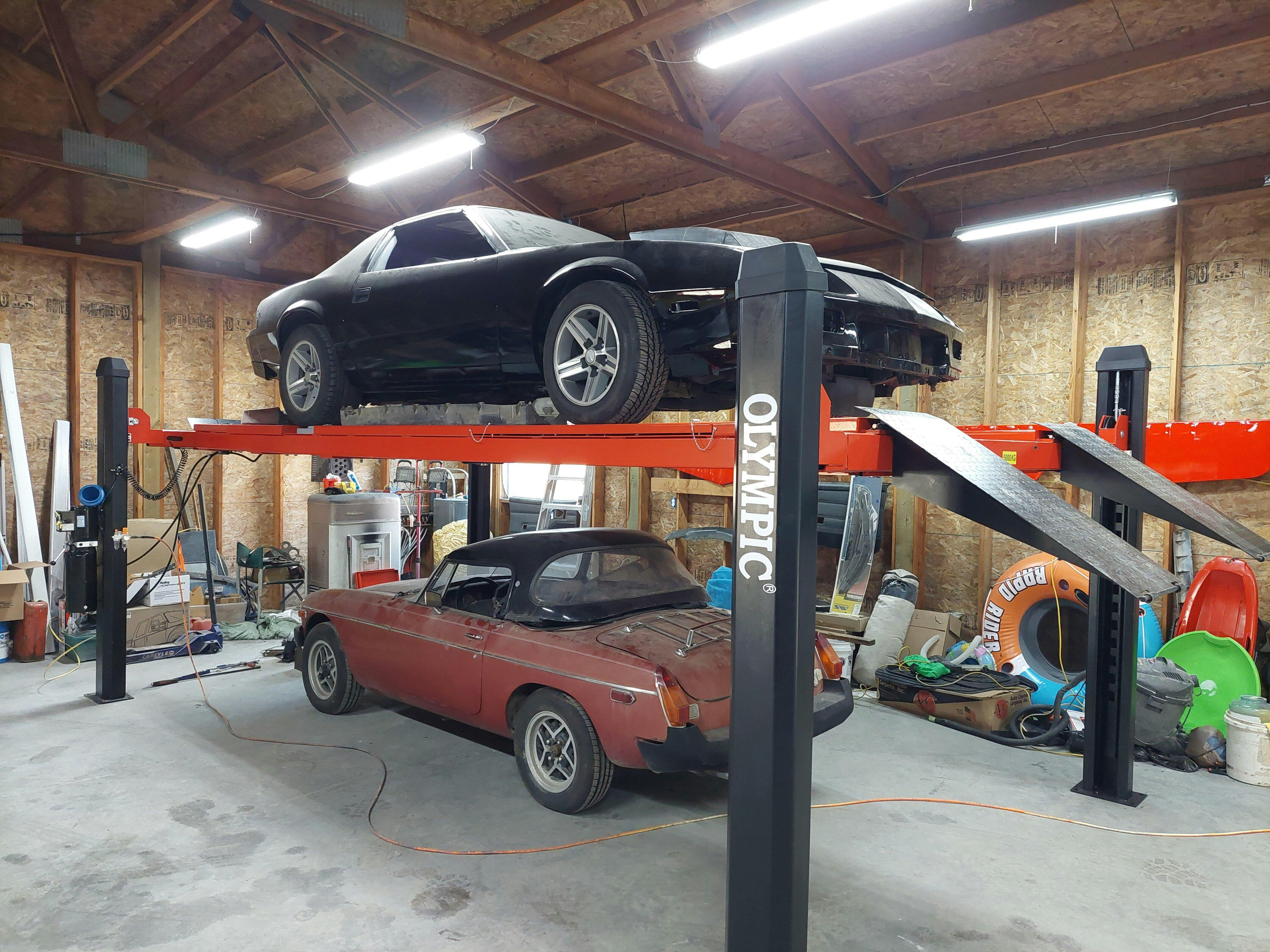

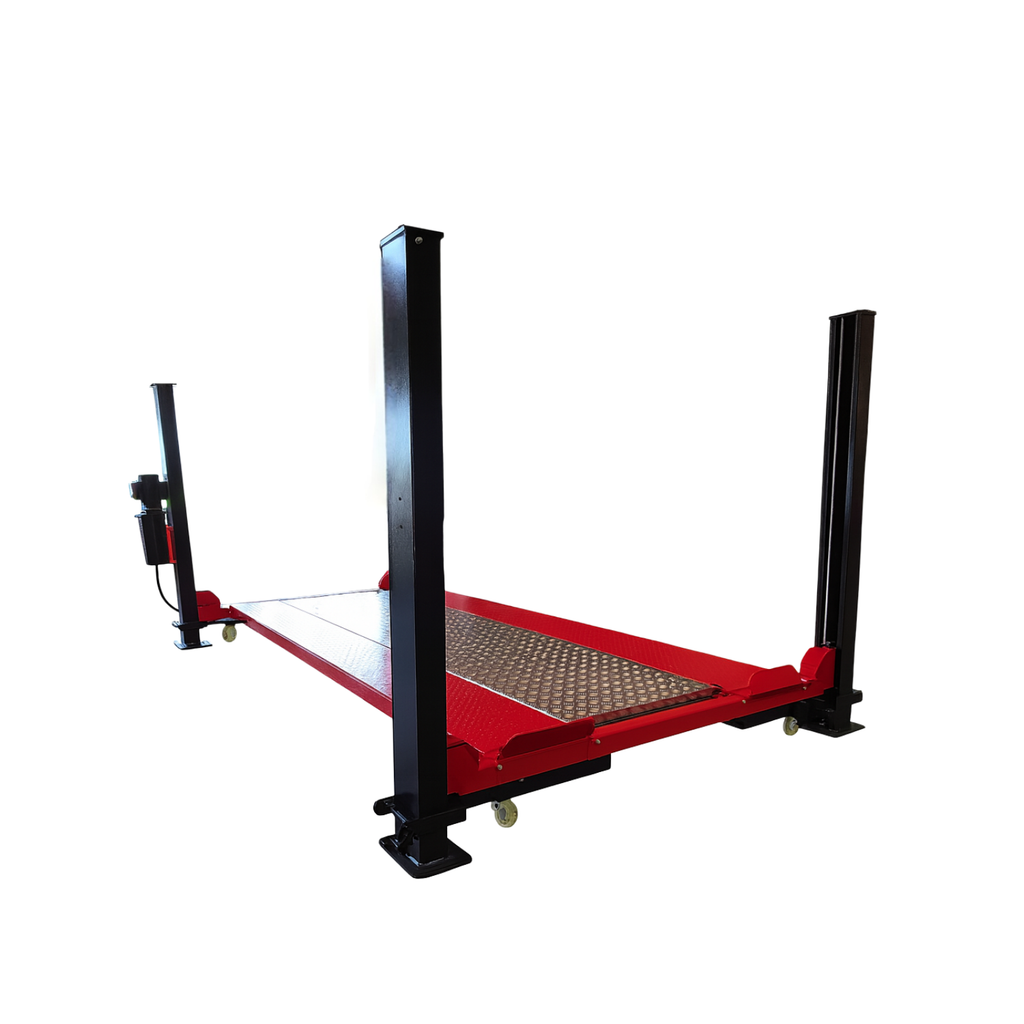

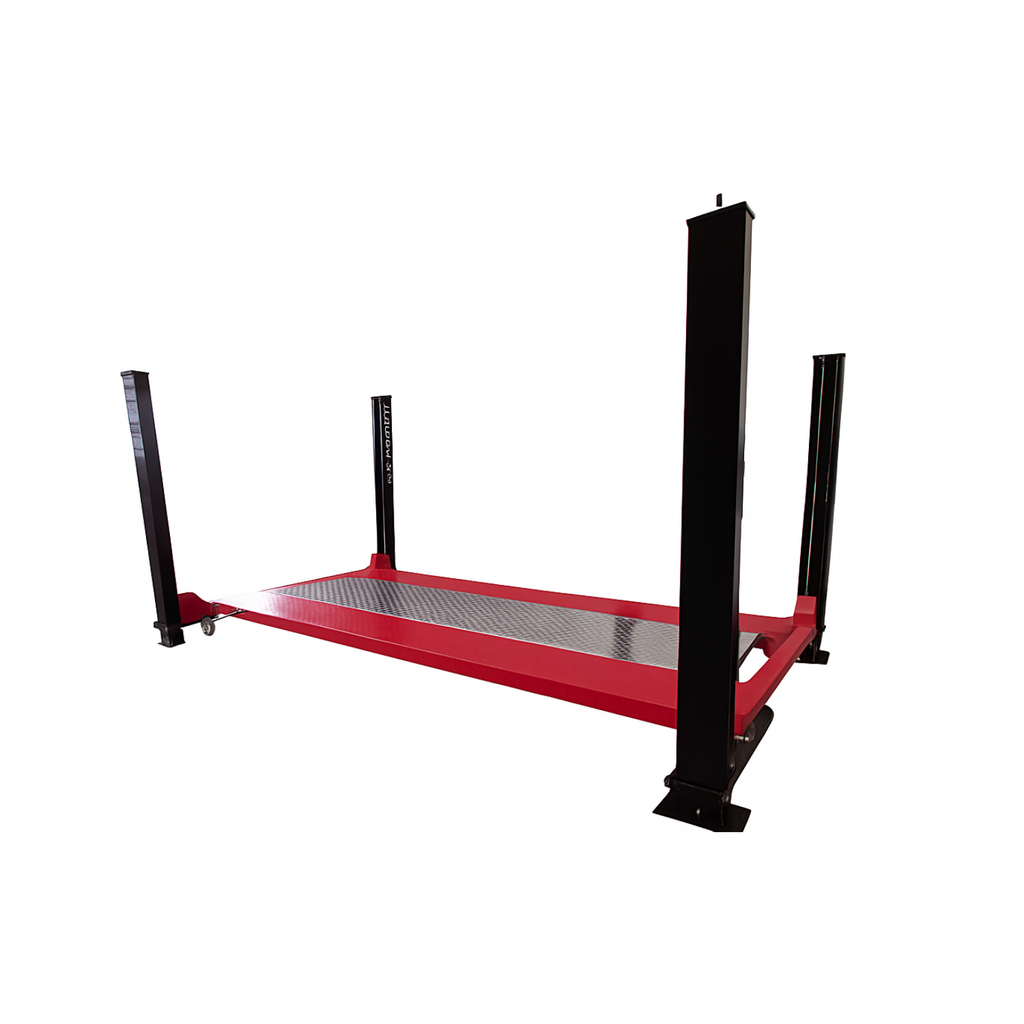

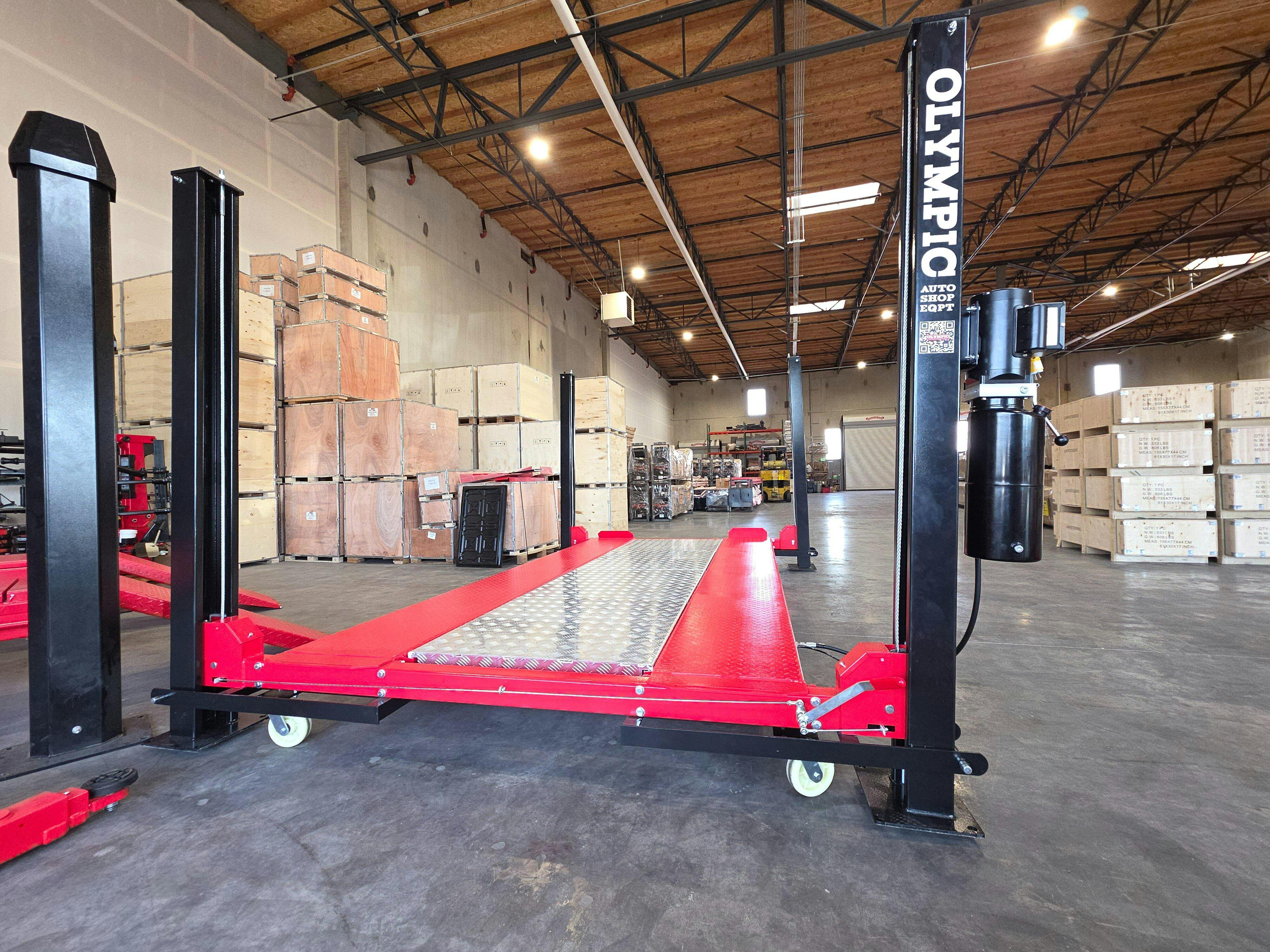

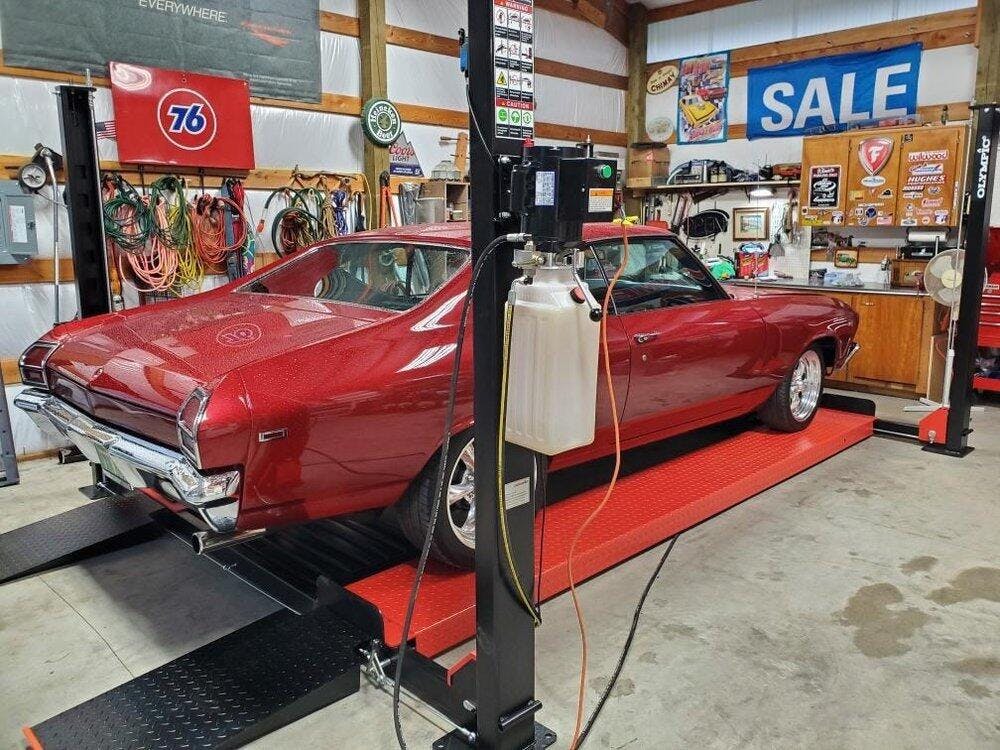

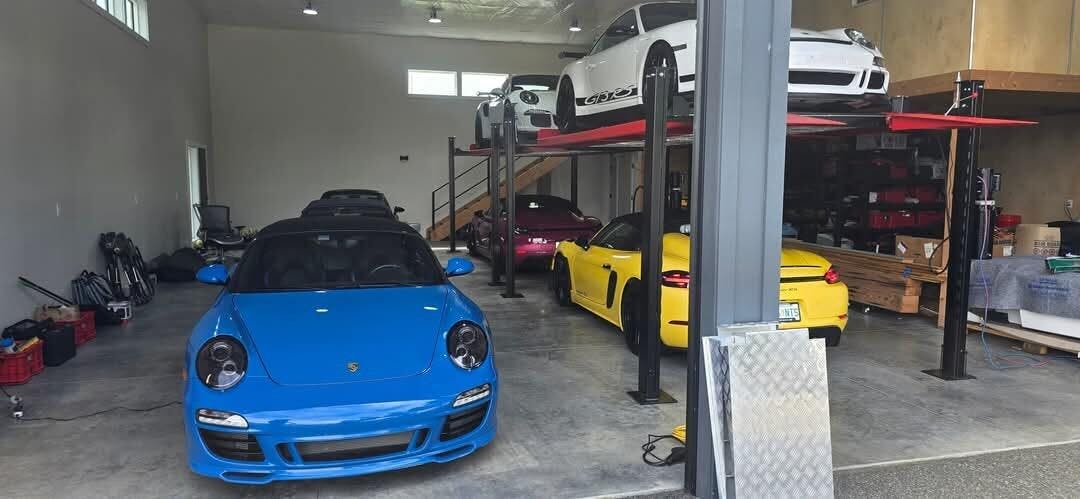

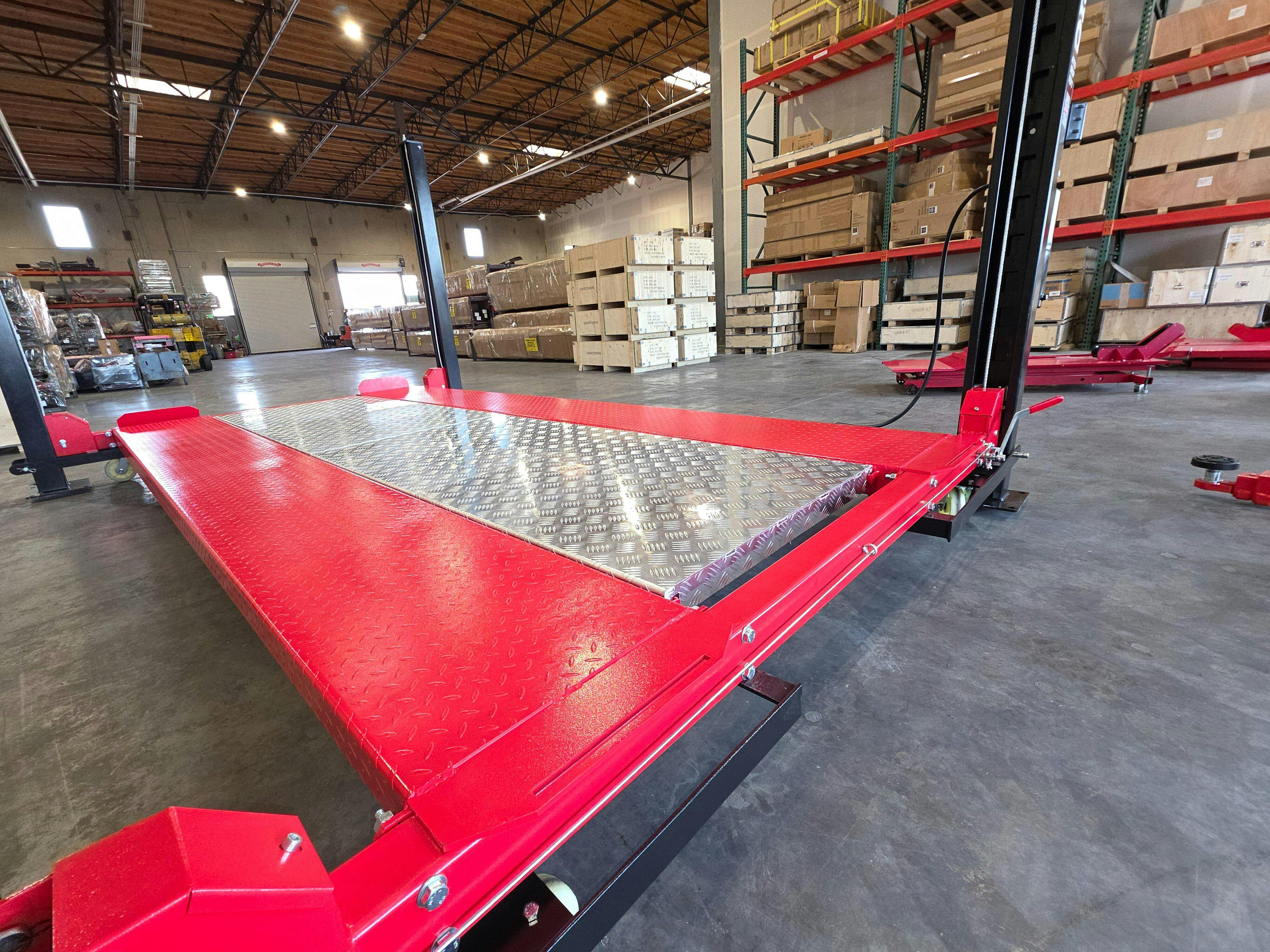

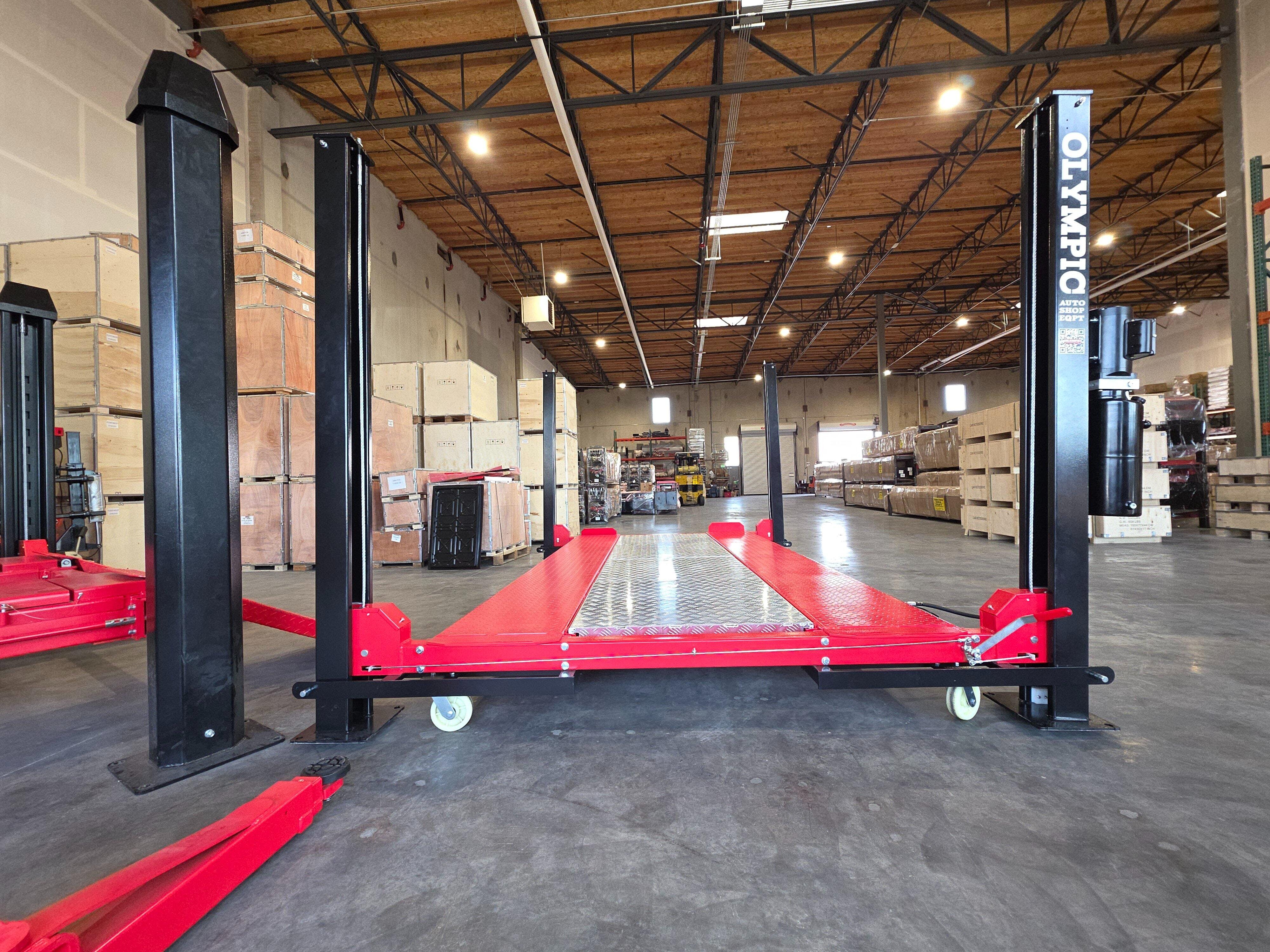

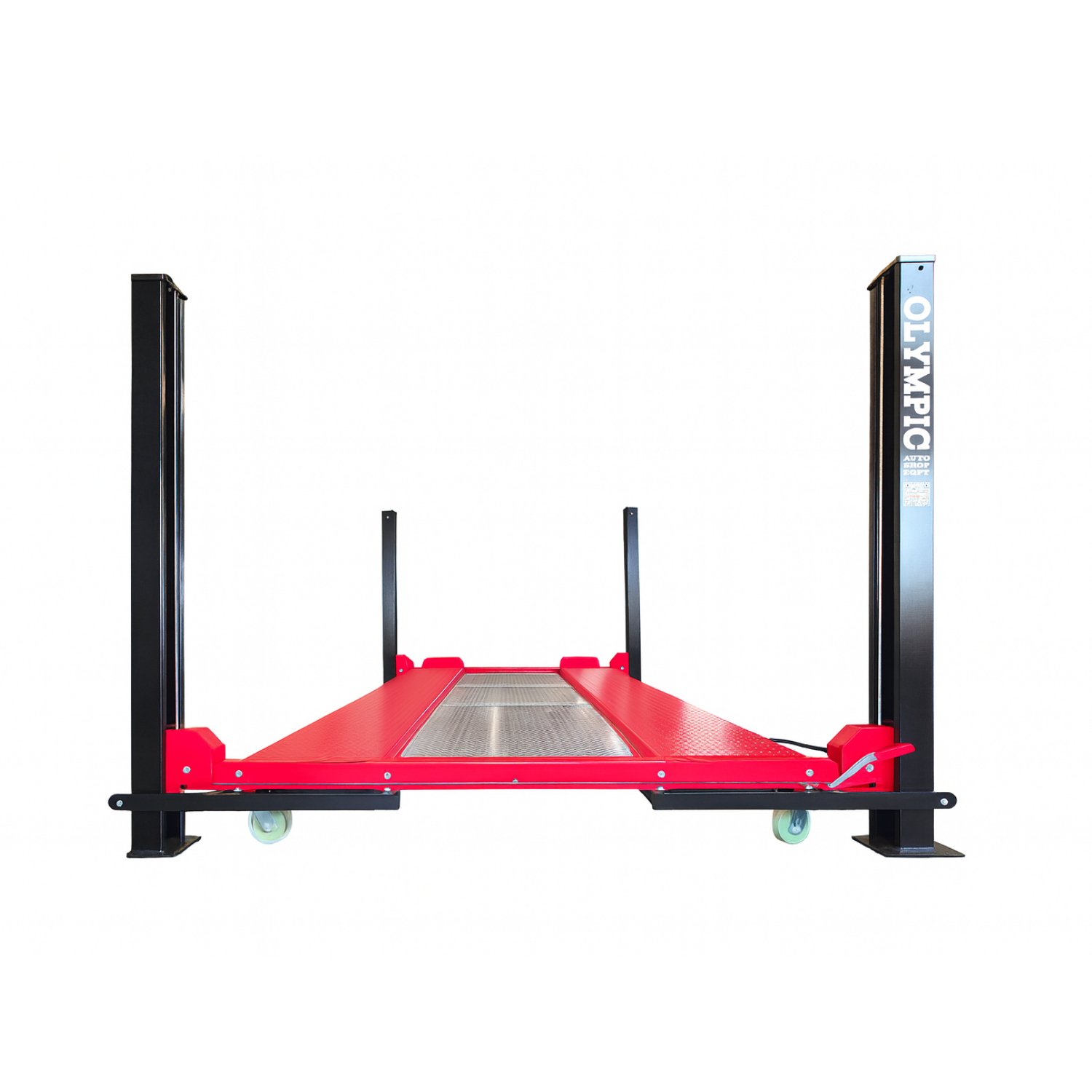

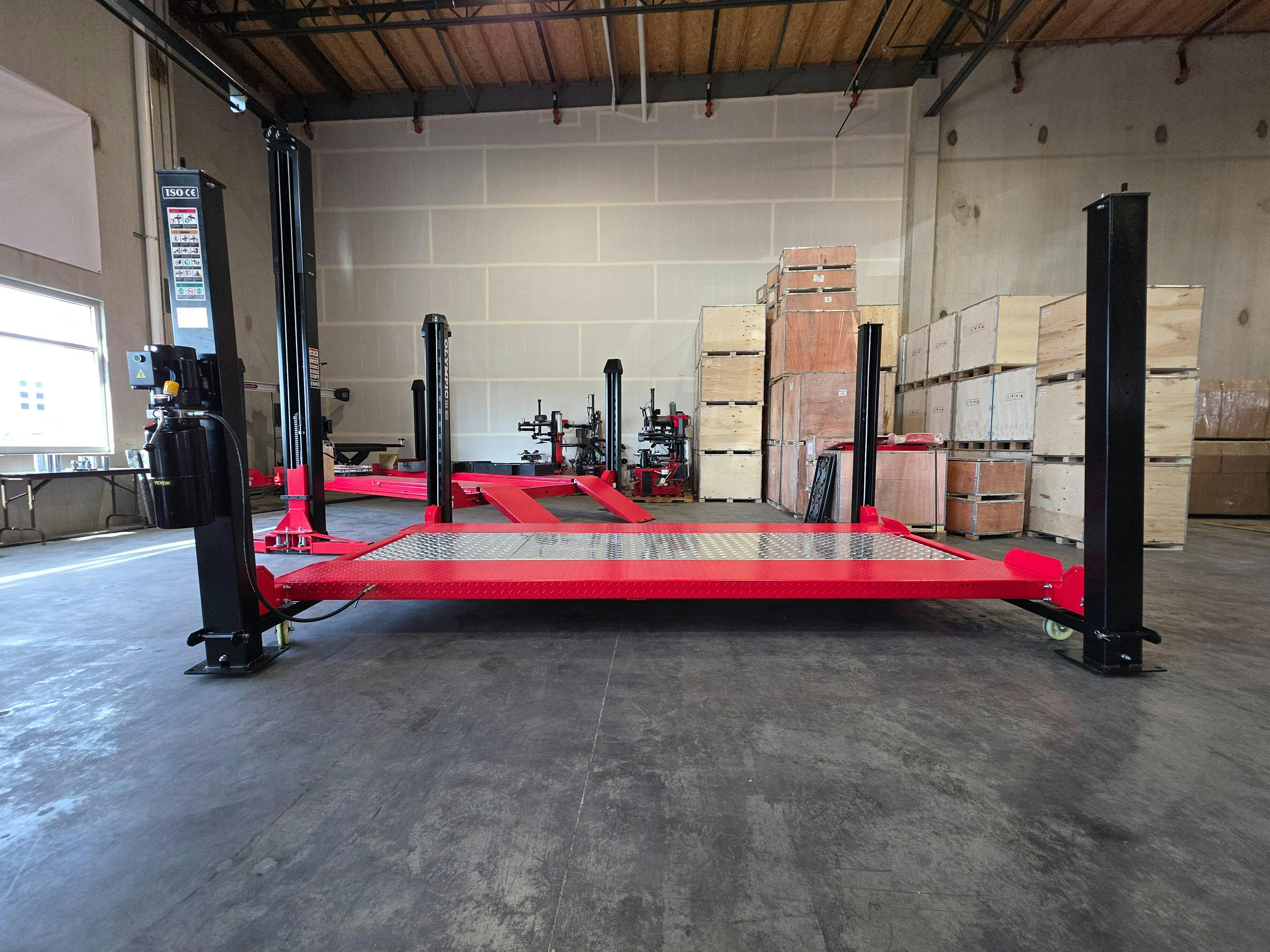

Olympic 4PML-9 / 9,000 lb. Portable Car Storage & Maintenance Lift

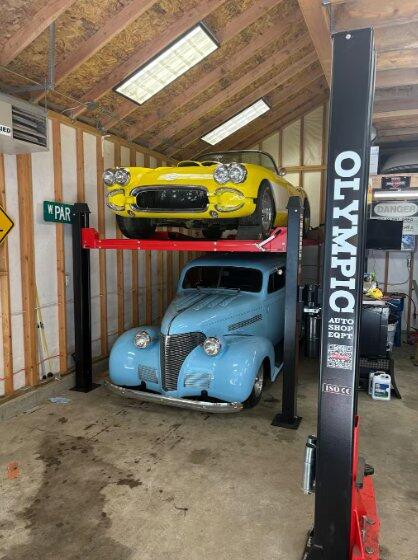

A versatile lift that doubles as a professional-grade storage system.
Recently upgraded from 8,000 lb. capacity to 9,000 lbs. capacity. It's portable, reliable, and safe - perfect for service centers, car collectors, and race teams. The drive-through design adds unmatched convenience.
Capacity: 9,000 lbs. | Lift Range: 4.72″ – 67.7″ | Max. Clearance Under Tracks: 67.7″

Key Features

  • Industry Best 10-Year Warranty!
  • High-quality Q235 spec structural steel
  • Portable design with pin-on caster arms
  • Convenient drive-through design
  • Large diameter heavy-duty hydraulic cylinder
  • Single-point lock release
  • Large slider blocks for added stability
  • 10 locking positions
  • Aircraft-quality cables rated at 14,000 lbs.
  • 31″ detachable steel ramps included
  • Detachable stops included
  • Portability package included
  • Drip trays included
  • Choose 110V or 220V power
  • Optional tool tray
  • Optional aluminum ramps

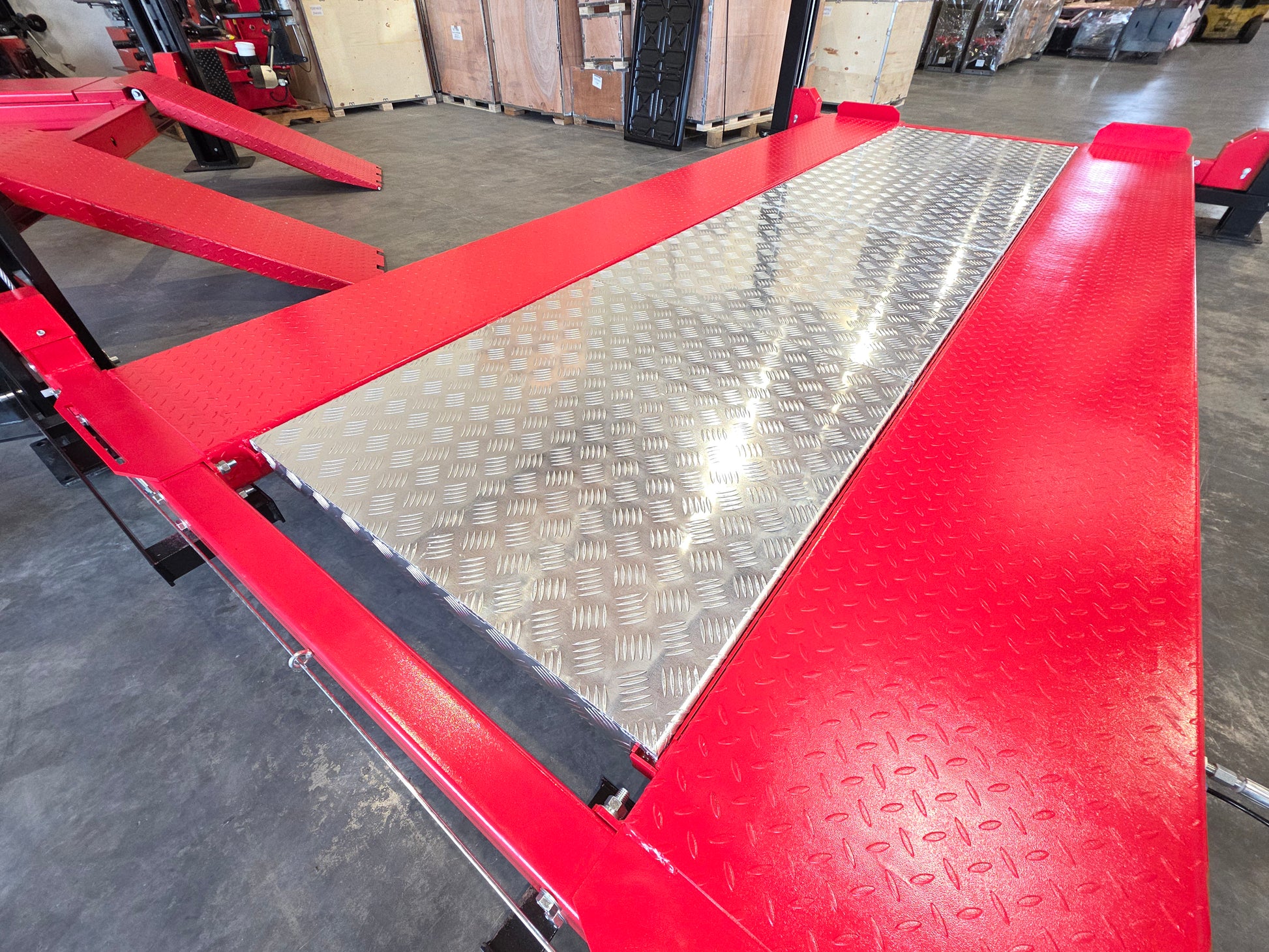

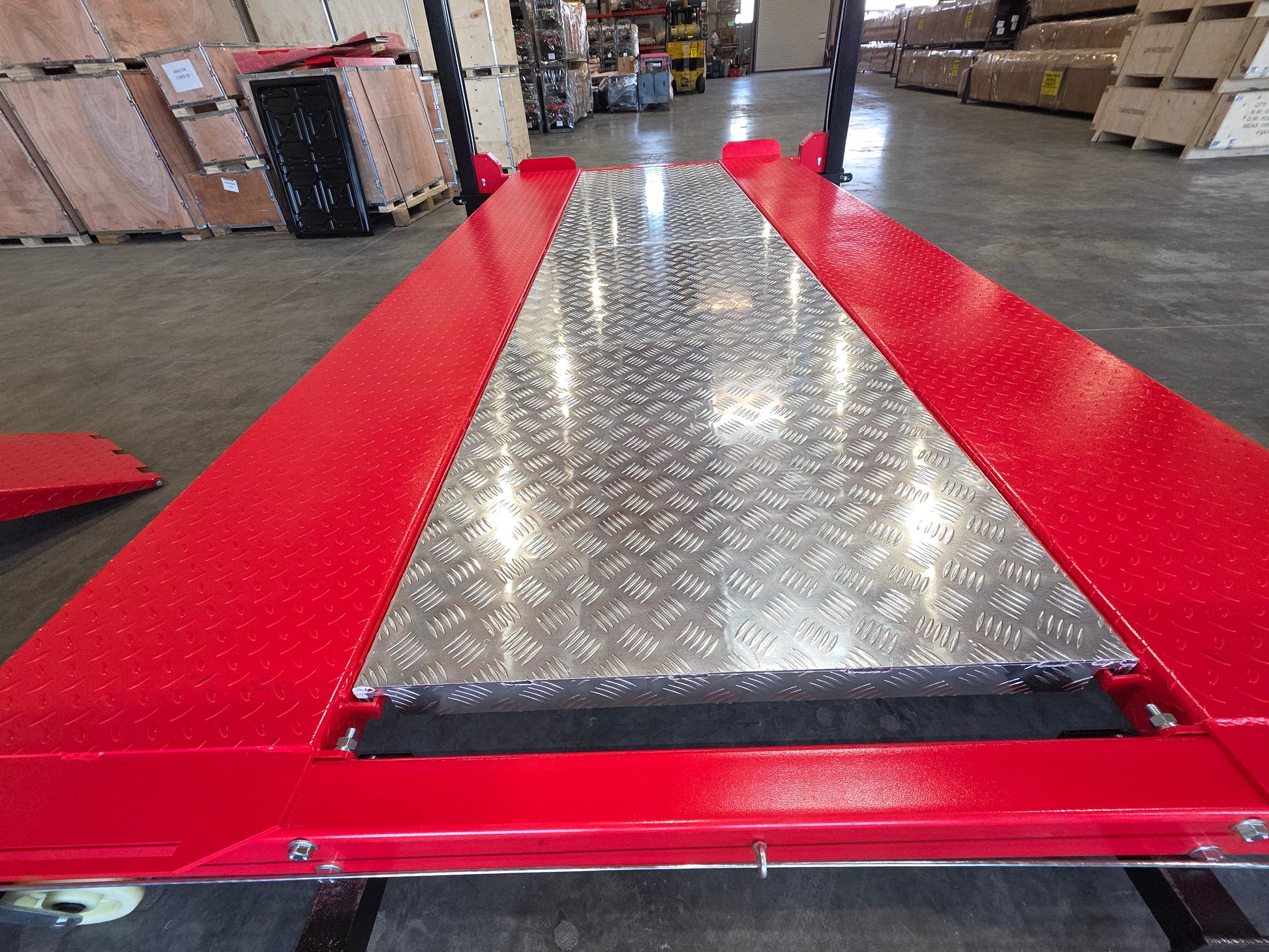

  • Optional 1,000 lb. aluminum center platforms (x4 inserts)
  • Optional 6,000 Lb Bridge Jack (Part No. HLCJ-6 or JVCJ-6)
  • Certified & tested at 150% of rated capacity

Specifications

Style Maintenance / Storage Lift
Capacity 9,000 lbs.
Overall Lift Length 172.44″
Overall Width 107.77″
Overall Height 87.32″
Drive Through Width 81.85″
Lift Range 4.72″ – 67.7″
Width Between Posts 94.72″
Runway Length 163.77″
Runway Width 18.72″
Max. Clearance Under Tracks 67.7″
Speed of Rise/Lowering 50 seconds
Optional Jack Capacity 6,000 lbs
Recommended Power Unit HPU2203, 3HP, 2.2KW, 1PH
Voltage 110V / 220V

Why Choose an Olympic Lift?

When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
