So nice not to have posts in the way. Plenty high, plenty room in between to remove/install transmissions, exhaust systems, etc. The platforms work great as a bench when the car is out of the way.
Model: Olympic 4PXL-10 / “The Dually” Portable 10,000 lb. Maintenance & Storage Lift / Adjustable Width Runway / 84″ Storage Space / 125″ Between Posts / 229″ Platform Length / 10-Year Warranty / SHIPS FREE!
Pickup currently not available
“The Dually” EXTRA LARGE Portable Lift
The Dually is designed to accommodate dual-wheel trucks, trailers, service vehicles, and super-wide cars.

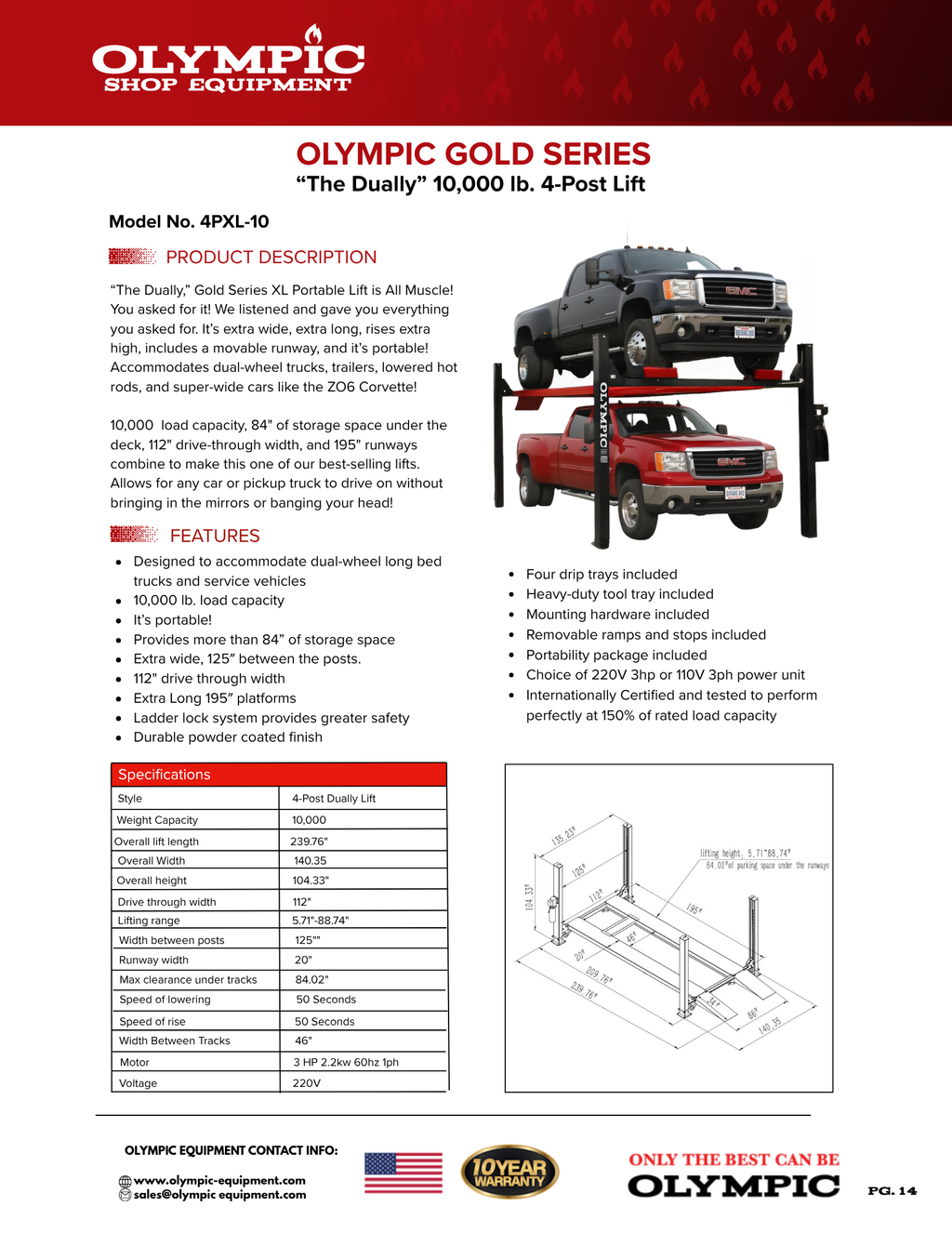

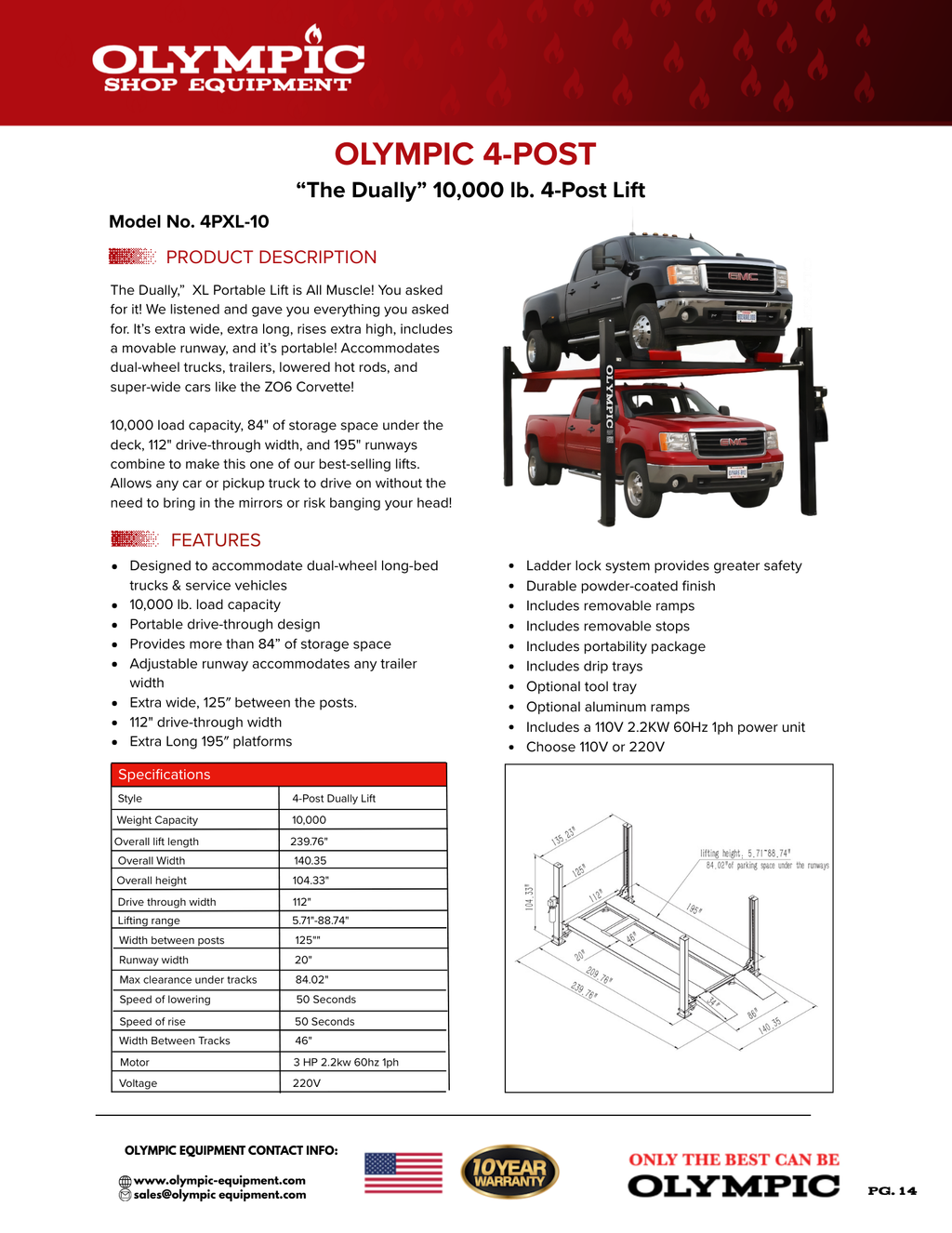

Built around a super-wide 4-post drive-through layout, this lift features a 112″ drive-through width, 125″ between posts, and extra-long 195″ runways. The drawing indicates an overall footprint of 241.52″ overall length and 140.35″ overall width, with 84.13″ max clearance under the runways and an overall height of 105.20″.
112" Drive Through Width | 125" Between Posts | 84.13" Max. Clearance
Key Features
- High-quality Q235 spec structural steel
- Portable drive-through design
- 112″ drive-through width
- 125″ between posts
- Extra-long 195″ platforms (runways)
- Adjustable runway spacing (see “Width Between Tracks”)
- Durable powder-coated finish
- Includes portability package (caster arms)
- Includes removable ramps
- Includes removable stops
- Includes drip trays
Specifications (Per Drawing)
| Style | 4-Post Dually Lift |
|---|---|
| Overall Lift Length | 241.52″ |
| Overall Width | 140.35″ |
| Overall Height | 105.20″ |
| Drive Through Width | 112″ |
| Width Between Posts | 125″ |
| Platform (Runway) Length | 195″ |
| Max. Clearance Under Runways | 84.13″ |
| Width Between Tracks (Adjustable) | 46.00″ – 68.98″ |
| Minimum Height (Per Drawing) | 4.72″ |
| Steel Grade | Q235 |
| Post Steel Thickness | 4mm / 0.157″ |
| Cable Diameter | 9.53mm / 0.375″ |
| Runway Metal Thickness | 5mm / 0.196″ |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value.
