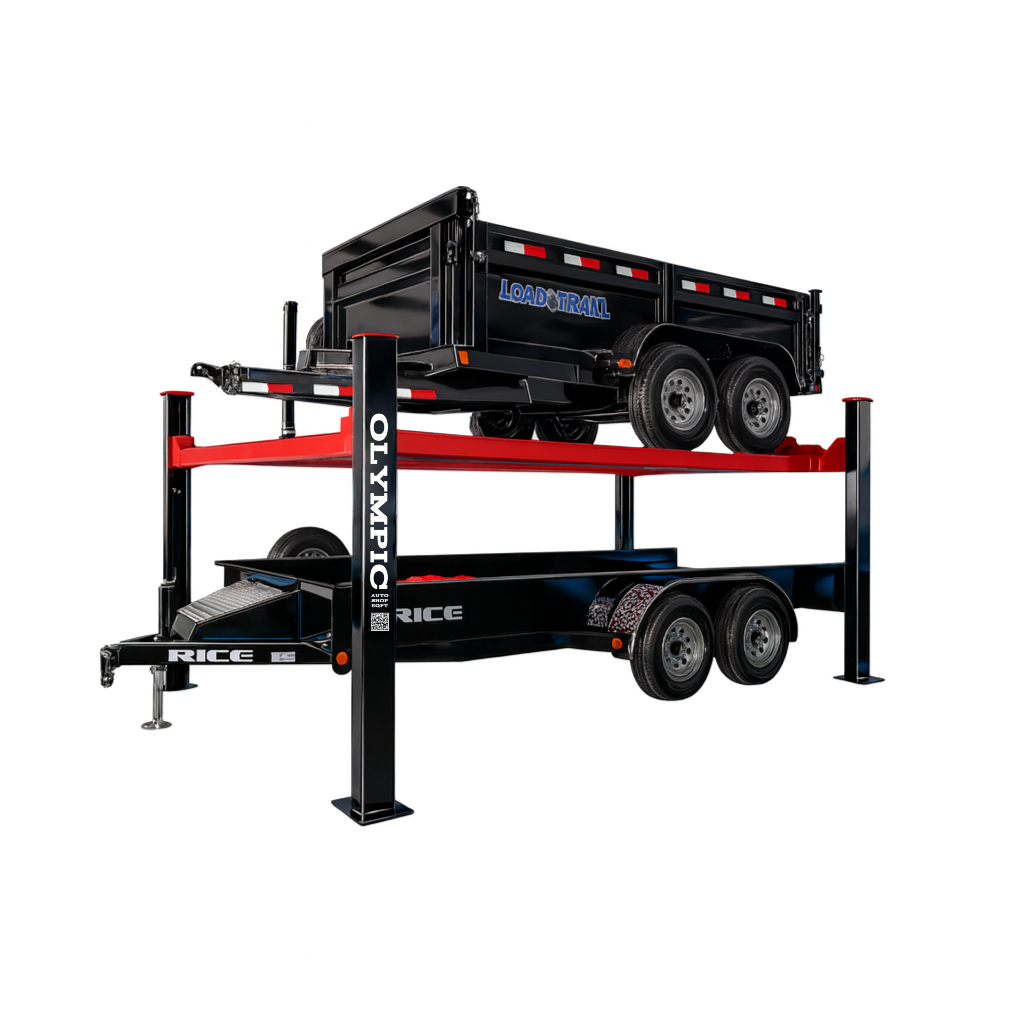

Model: Olympic HDMBL-9 / 9,000 lb. Portable Boat & Trailer Storage Lift / Extra Wide / Adjustable Width Runway / Sliding Hitch Wheel Rest / 137″ W X 199″ L / 10-Year Warranty / SHIPS FREE!
Pickup currently not available

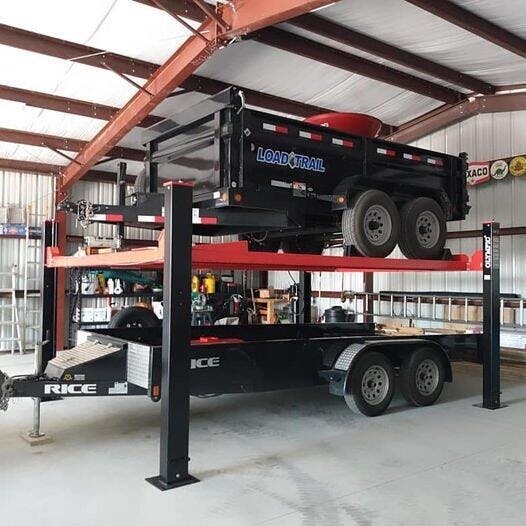

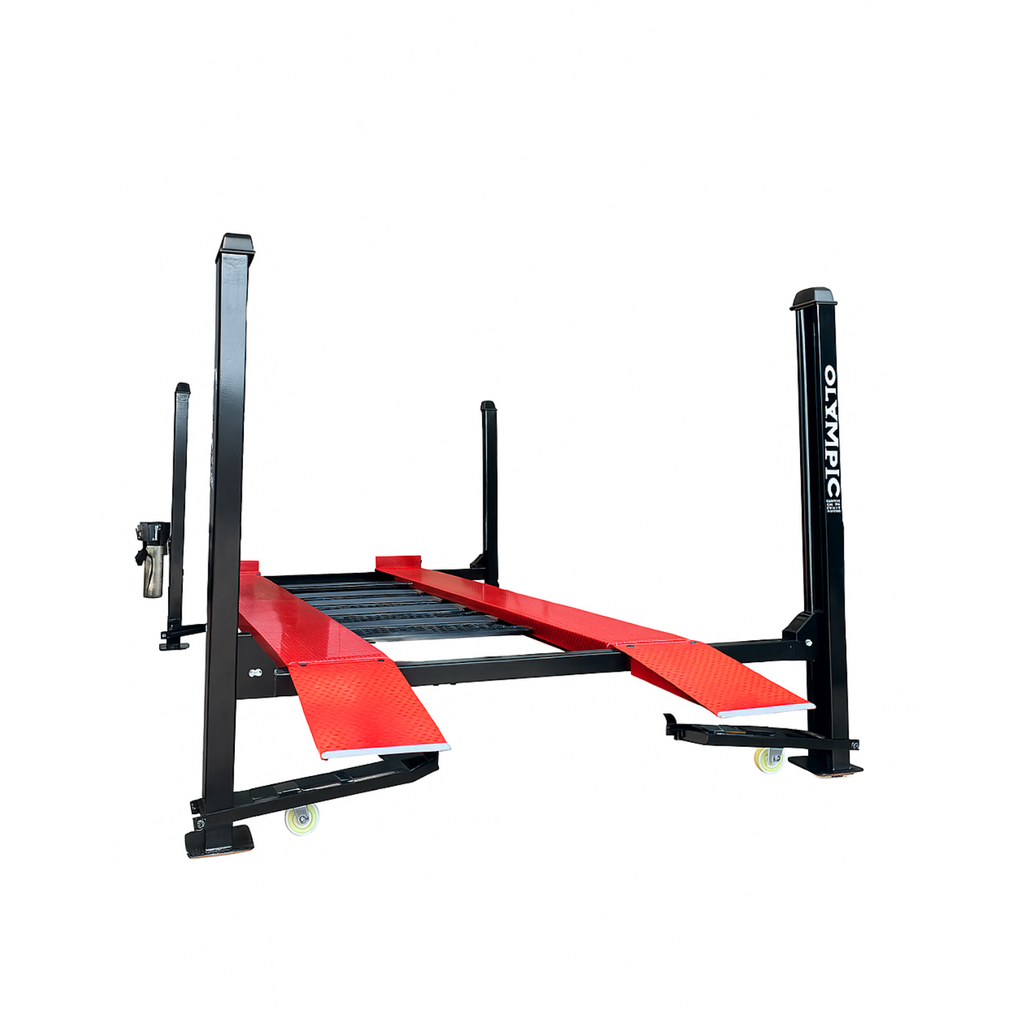

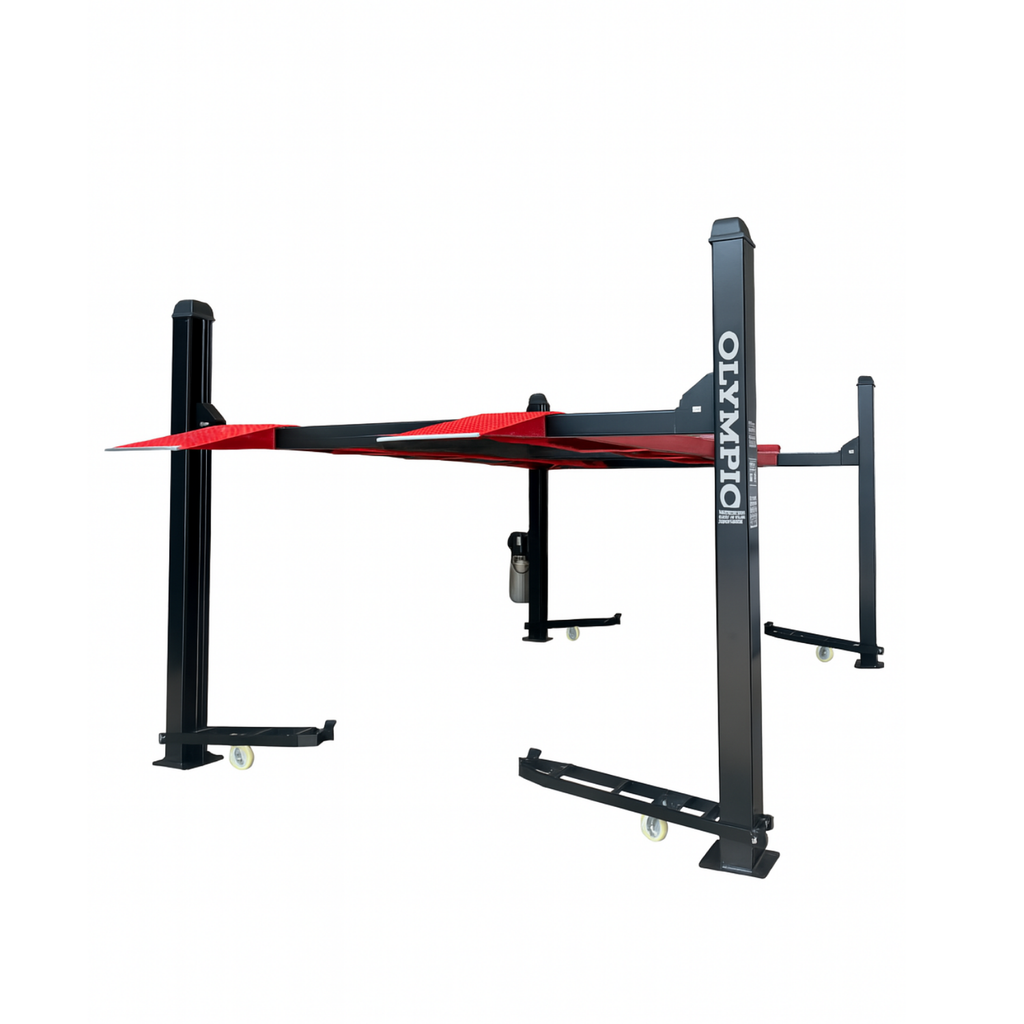

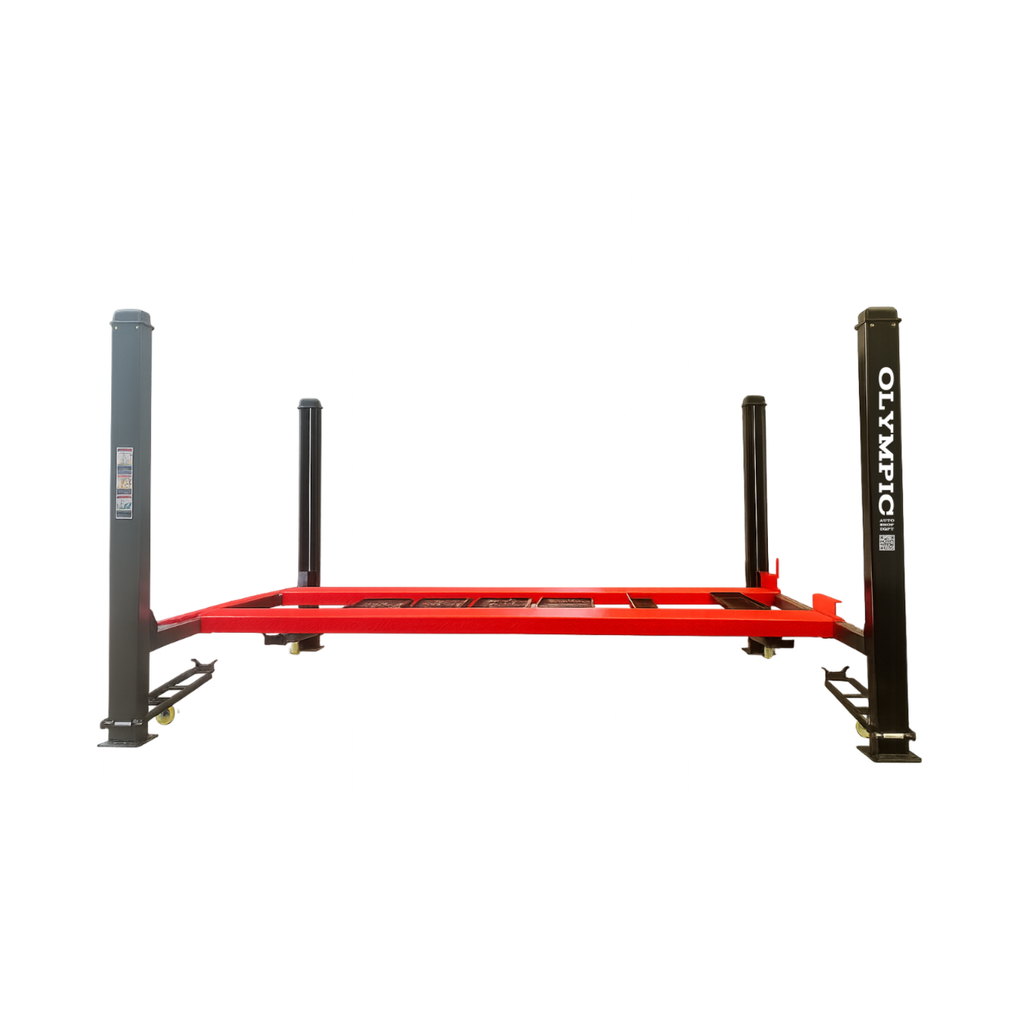

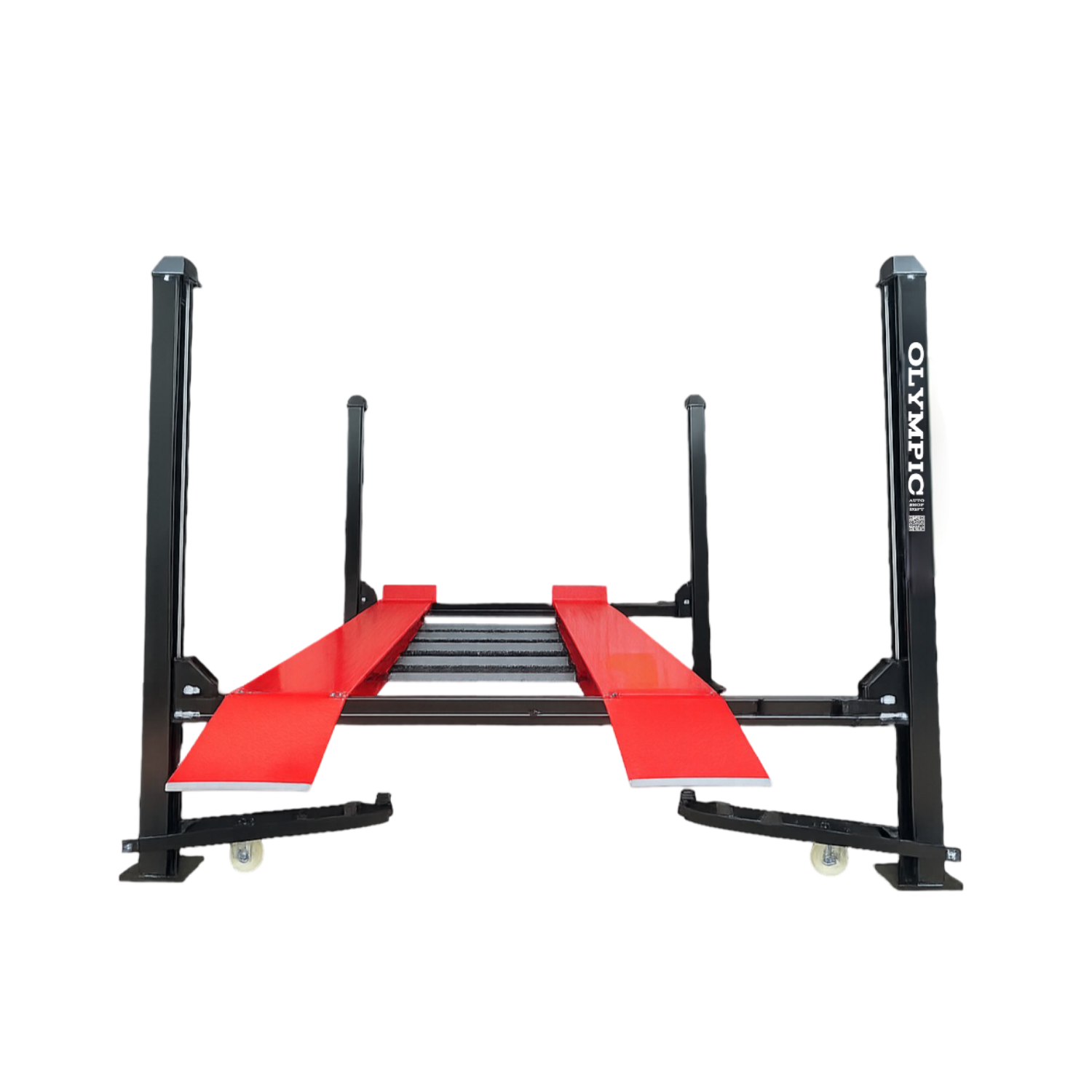

Olympic HDMBL-9 / 9,000 lb. Extra-Wide Portable Boat & Trailer Lift
Protect your boat & trailer while saving storage costs.
Extra-wide, heavy-duty 9,000 lb. lift designed for boats, trailers, and dual-wheel vehicles. Keeps your equipment safe from damage and theft while fitting conveniently in your garage.
Capacity: 9,000 lbs. | Drive Through Width: 110.6″ | Max. Lift Height: 75″
Key Features
- Industry Best 10-Year Warranty!
- High-quality Q235 spec structural steel
- Portable design
- Dependable heavy-duty construction
- Large slider blocks for added stability
- Drive-through design, ramps fit on either end
- Adjustable runways for any trailer width
- Steel runways, 3/16″ non-skid diamond plate
- Extra-wide 18.7″ runways
- Aircraft-quality cables rated at 14,000 lbs.
- Built-in ladder lock safety system
- Heavy-duty 3″ hydraulic cylinder
- Durable powder-coated finish

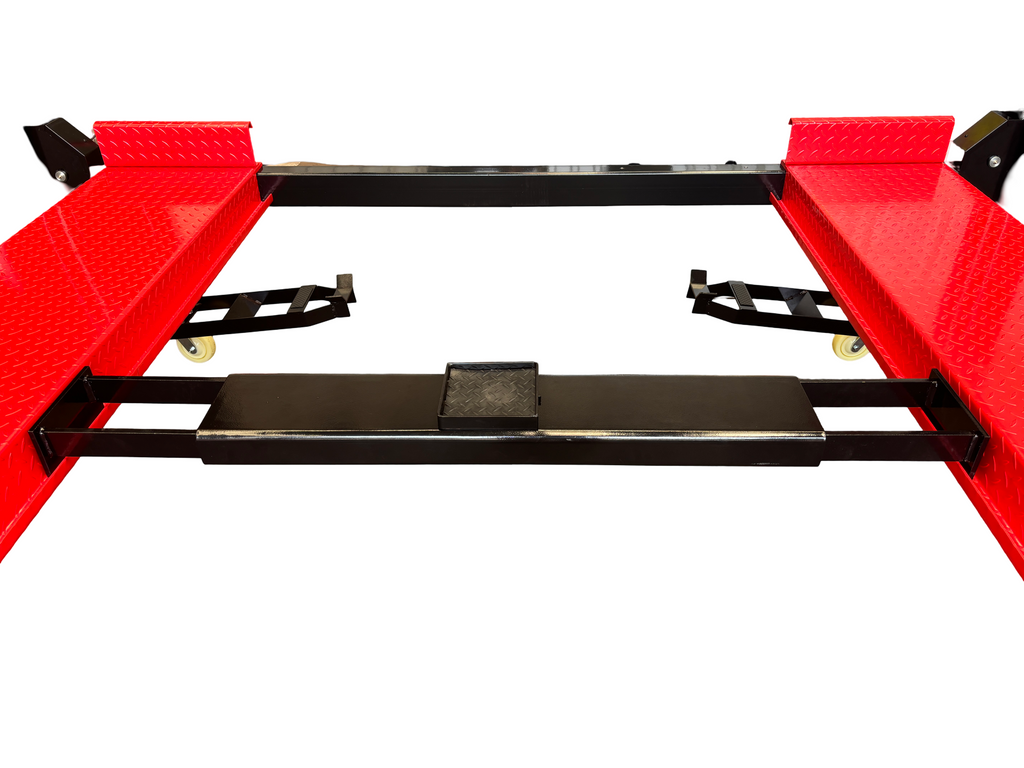

- Sliding adjustable-width trailer hitch wheel rest included
- Included: (2) 30.31″ detachable steel ramps
- Included: (2) detachable stops

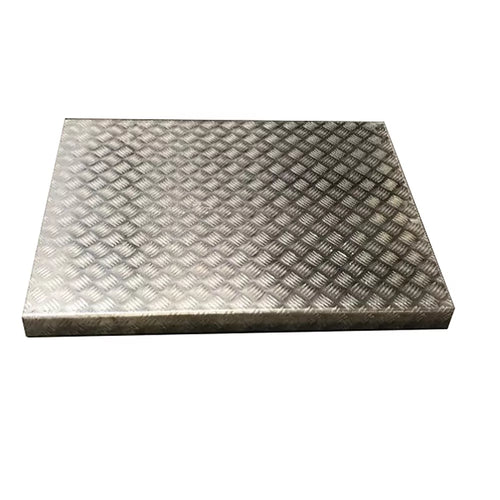

- Included: drip trays
- Included: portability package
- Optional 6,000 Lb. Bridge Jack (Part No. YZRCJ-7 or JVCJ-6)

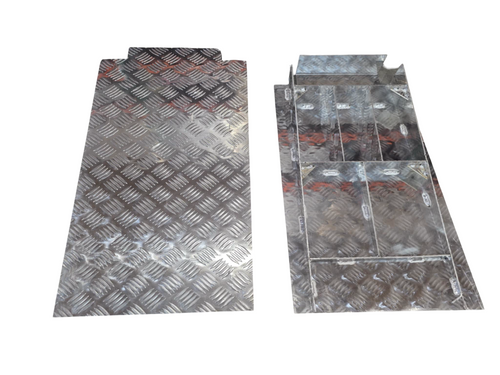

- Optional aluminum ramps
- 110V 2.2KW 60Hz 1Ph power unit included (220V option)
- Certified & tested at 150% of rated capacity
Specifications
| Style | 4-Post Boat & Trailer Storage Lift |
|---|---|
| Capacity | 9,000 lbs. |
| Overall Lift Length (with ramps) | 198.49″ |
| Overall Width | 136.9″ |
| Overall Height | 83.66″ |
| Max. Lift Height | 75″ |
| Drive Through Width | 110.6″ |
| Width Between Posts | 123.83″ |
| Runway Length | 165.9″ |
| Runway Width | 19.09″ |
| Max. Clearance Under Runways | 67.71″ |
| Width Between Tracks | 47″ – 69″ |
| Speed of Rise | 40 seconds |
| Speed of Lowering | 40 seconds |
| Recommended Power Unit | HPU2203, 3HP, 2.2KW, 1PH |
| Voltage | 110V / 220V |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity.
