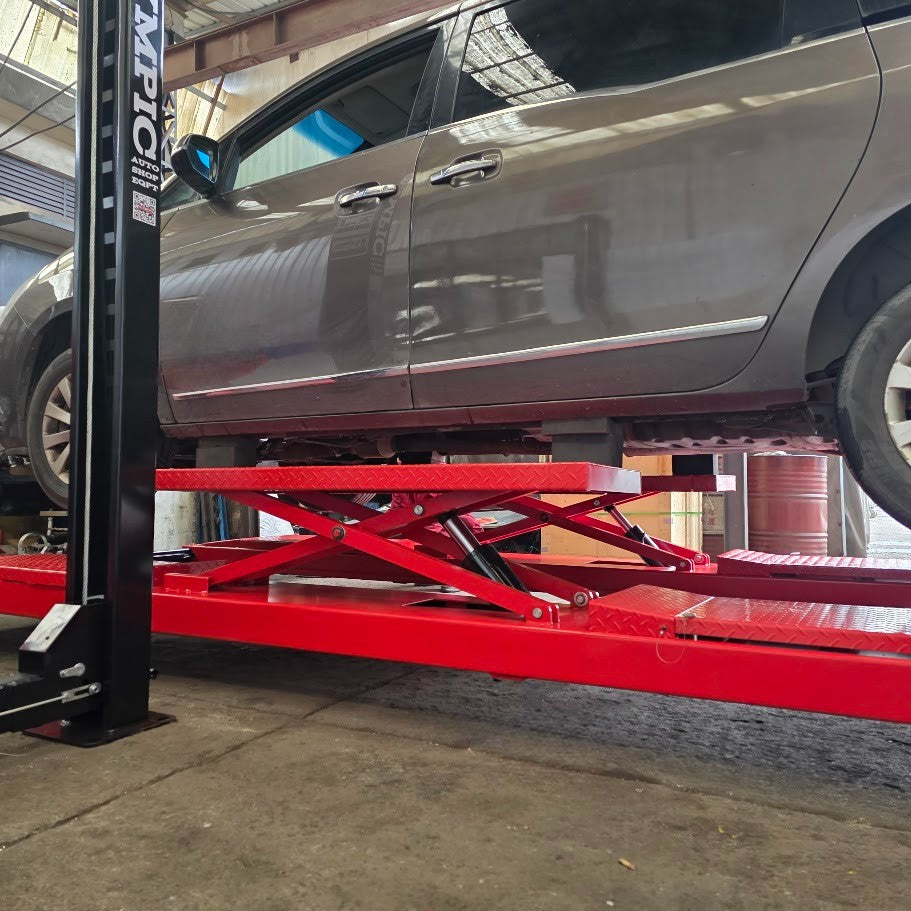

The 4PXLA-10B delivers the best of both worlds — 4-Post durability with 2-Post convenience thanks to integrated runway scissor jacks.
NOW WITH SCISSOR JACKS BUILT INTO THE RUNWAYS!
Designed for dual-wheel trucks, service vehicles, and super-wide cars, “The Dually” eliminates the need for outdated bridge jacks. Built-in scissor jacks allow you to raise vehicles off the runways quickly without repositioning contact points — saving time, space, and labor.
Capacity: 10,000 lbs. | Drive Through Width: 112″ | Max. Clearance Under Tracks: 84″

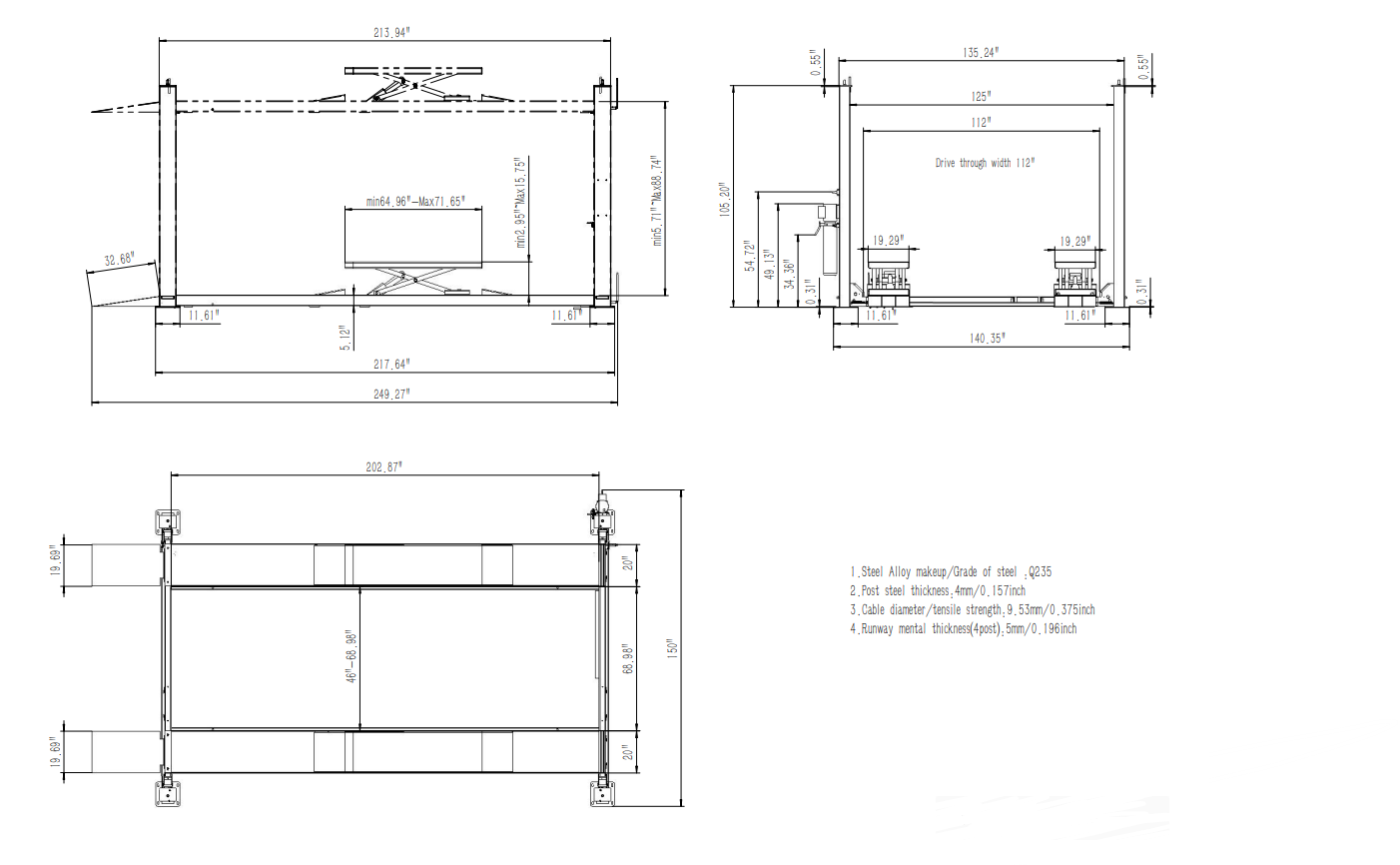

| Style | 4-Post Alignment Lift with Built-In Scissor Jacks |
|---|---|
| Capacity | 10,000 lbs. |
| Overall Lift Length | 249.27″ |
| Overall Width | 140.35″ |
| Overall Height | 105.20″ |
| Drive Through Width | 112″ |
| Width Between Posts | 125″ |
| Runway Width (Adjustable) | 64.96″ – 71.65″ |
| Width Between Tracks | 46″ |
| Lifting Range | 5.71″ – 88.74″ |
| Max. Clearance Under Tracks | 84″ |
| Platform Length | 202.87″ |
| Ramp Length | 32.68″ |
| Power Unit | 110V / Optional 220V |
Olympic lifts are engineered for maximum durability, safety, and long service life. Internationally certified and tested at 150% of rated capacity, this lift is built to perform reliably for years to come.
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value. Your Olympic Lift may very well be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity. 10-Year Warranty!
