The Dually is designed to accommodate dual-wheel trucks, trailers, service vehicles, and super-wide cars.

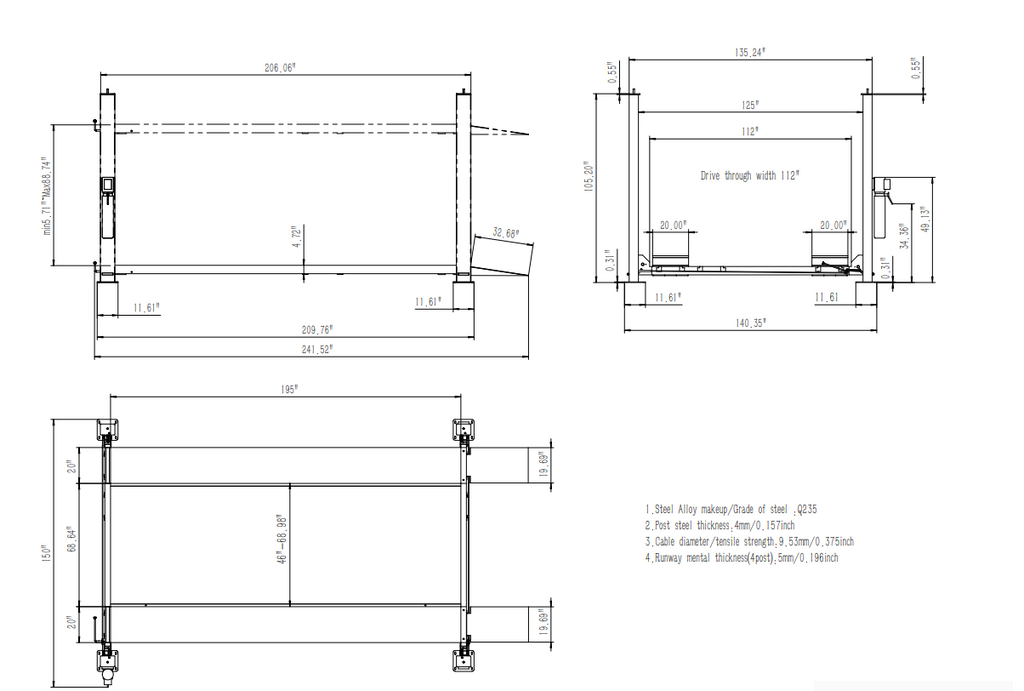

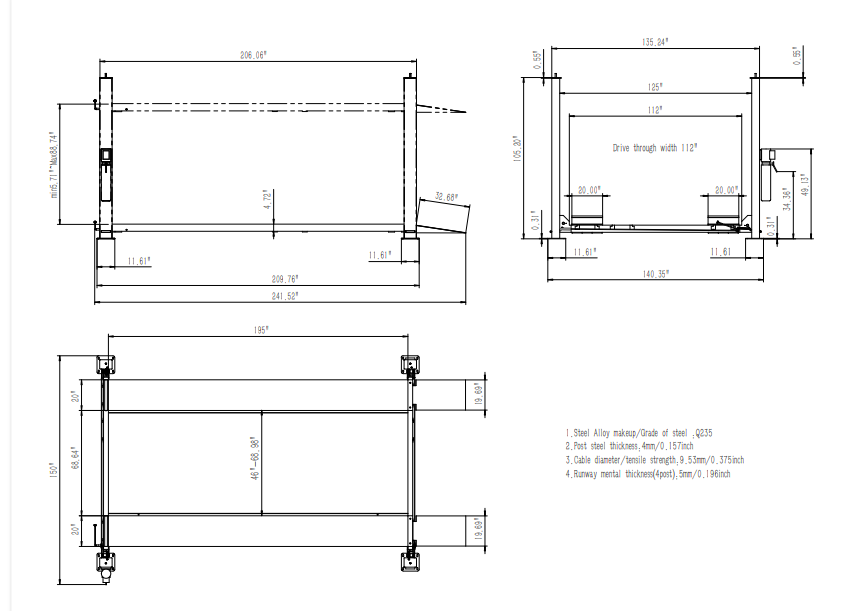

Built around a super-wide 4-post drive-through layout, this lift features a 112″ drive-through width, 125″ between posts, and extra-long 195″ runways. The drawing indicates an overall footprint of 241.52″ overall length and 140.35″ overall width, with 84.13″ max clearance under the runways and an overall height of 105.20″.
112" Drive Through Width | 125" Between Posts | 84.13" Max. Clearance
| Style | 4-Post Dually Lift |
|---|---|
| Overall Lift Length | 241.52″ |
| Overall Width | 140.35″ |
| Overall Height | 105.20″ |
| Drive Through Width | 112″ |
| Width Between Posts | 125″ |
| Platform (Runway) Length | 195″ |
| Max. Clearance Under Runways | 84.13″ |
| Width Between Tracks (Adjustable) | 46.00″ – 68.98″ |
| Minimum Height (Per Drawing) | 4.72″ |
| Steel Grade | Q235 |
| Post Steel Thickness | 4mm / 0.157″ |
| Cable Diameter | 9.53mm / 0.375″ |
| Runway Metal Thickness | 5mm / 0.196″ |
Note: Performance items (capacity, rise time, power unit details, locking positions) are not shown on the dimensional drawing and should be listed only if confirmed by the manufacturer for this exact revision.
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value.
