Olympic A9800 / True 3D Touchless Alignment Machine

Dual Screen | Power Lift | Touchless Wheel Clamp | Patented Smart Window | 5-Year Warranty | SHIPS FREE!

$12,040.00 USD $15,050.00 USD

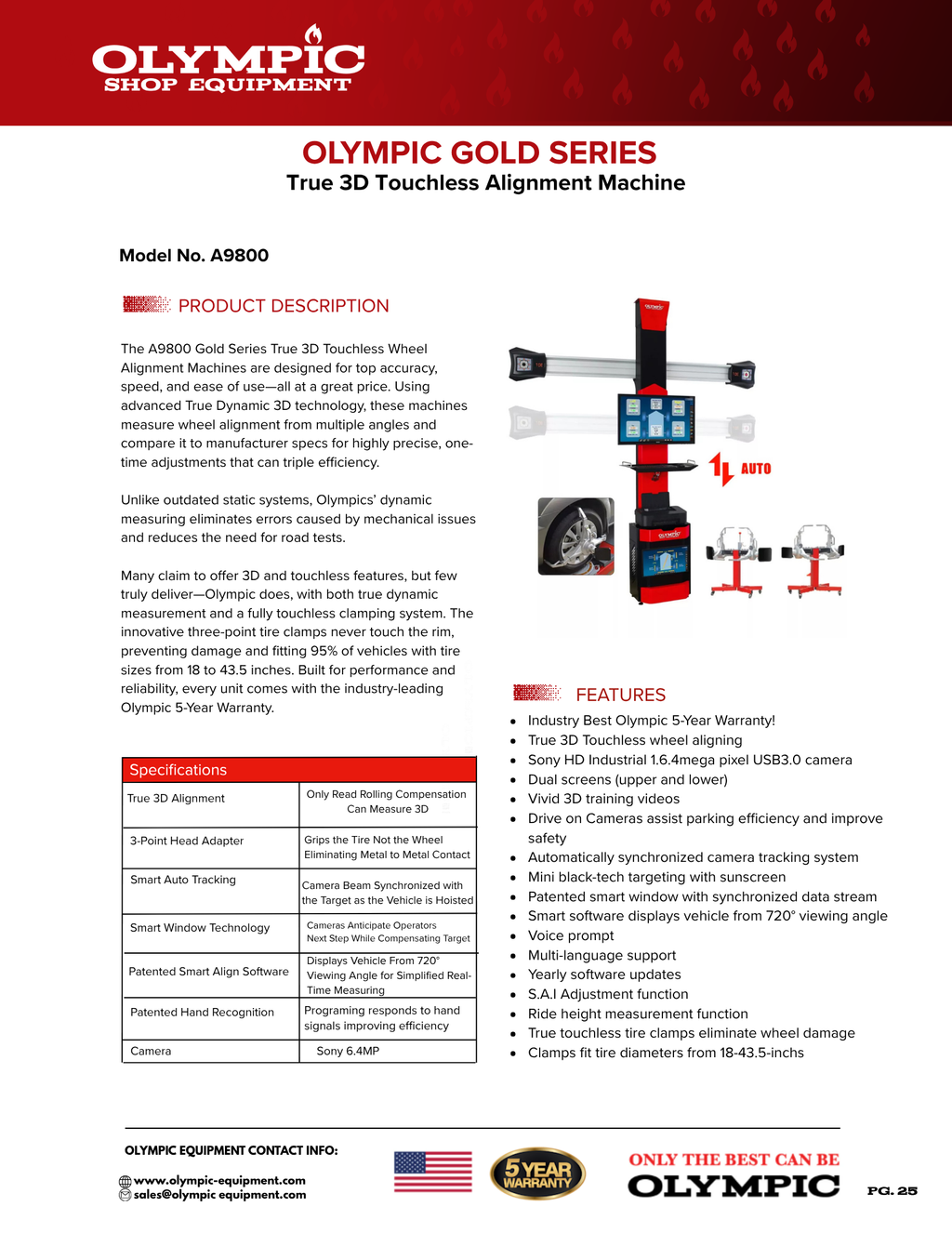

📄 Download Manual

Description

Dynamic 3D precision, touchless technology, and Olympic reliability.
The A9800 delivers fast, damage-free, and highly accurate alignments with its patented touchless 3-point tire clamps and true 3D measuring system. Handles tire diameters from 18″ to 43.5″, covering 95% of vehicles on the road.
True 3D dynamic measuring eliminates mechanical deformation issues and reduces the need for repeated test drives, tripling efficiency.

Key Features

  • Olympic 5-Year Warranty
  • True 3D touchless wheel alignment
  • Sony HD Industrial 6.4MP camera
  • Dual screens (upper and lower)
  • Patented smart window display with real-time data
  • Drive-on cameras improve parking efficiency & safety
  • Automatic synchronized camera beam tracking
  • Lightweight “Black-Tech” polymer targets (sun resistant)
  • 720° real-time vehicle view
  • Touchless 3-point tire clamps — no rim contact
  • Fits tire diameters 18″–43.5″
  • Vivid 3D training videos, voice prompts & multi-language support
  • Certified & tested at 150% of rated capacity

Specifications

Alignment Type True 3D (Rolling Compensation)
Clamp Type 3-Point Tire Adapter (No rim contact)
Camera Sony 6.4MP USB3.0
Smart Tracking Auto-synchronized beam tracking
Smart Window Tech Real-time compensation & anticipation
Software 720° vehicle display, hand signal recognition
Target Material Polymer “Black-Tech” sun-resistant
Functions Toe, Max Turning Angle, Toe-out-on-turn, Ride Height, Wheelbase, Track Width, Offset, Roll Radius
Tire Diameter Range 18″ – 43.5″
Voltage 110V, 60Hz, 1PH
Package Dimensions 3 Crates: 14″×11″×111″ (x2), 39″×30″×53″
Package Weight 640 lbs

Why Choose Olympic?

Olympic’s A9800 alignment system delivers unmatched accuracy, safety, and speed — at thousands less than Hunter. With a 5-Year Warranty and certified at 150% of rated capacity, this is the professional’s choice for true 3D touchless alignment.
